COLD TYRE INFLATION PRESSURE (bar)When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the
tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.500L versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H 2.2 2.0 2.5 2.5
4.2 195/65 R15 91H
(**)
2.4 2.4 2.8 2.9
205/55 R16 91H 2.2 2.0 2.5 2.5
205/55 R16 91H
(**)
2.4 2.0 2.5 2.5
205/55 R16 91H
(***)
2.4 2.2 2.6 2.8
225/45 R17 91H 2.2 2.0 2.5 2.5
225/45 R17 91H
(**)
2.4 2.0 2.5 2.5
225/45 R17 91H
(***)
2.4 2.2 2.6 2.8
(*) For versions/markets, where provided
(**) 1.6 16V MultiJet version
(***) Trekking versions0.9 TwinAir Turbo Natural Power versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
205/55 R16 91H GoodYear
2.6
(**)
2.4
(**)
2.6
(**)
2.8
(**)
4.2
205/55 R16 91H GoodYear
2.2
(***)
2.0
(***)
2.5
(***)
2.5
(***)
(*) For versions/markets, where provided
(**) ECO
(***) ECO consumption is not guaranteed with comfort pressures
167
9-1-2015 12:9 Pagina 167

0.9 TwinAir Turbo Natural Power versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H 2.4 2.4 2.8 2.8
4.2 205/55 R16 91H 2.2 2.0 2.5 2.8
225/45 R17 91H 2.2 2.0 2.5 2.8(*) For versions/markets, where provided0.9 TwinAir Turbo Natural Power versions (for specific markets)Ty r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
205/55 R16 91H GoodYear
2.6
(**)
2.4
(**)
2.6
(**)
2.8
(**)
4.2
205/55 R16 91H GoodYear
2.2
(***)
2.0
(***)
2.5
(***)
2.5
(***)
(*) For versions/markets, where provided
(**) ECO
(***) ECO consumption is not guaranteed with comfort pressures500L LIVING versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H 2.4 2.4 2.8
2.7 / 2.9
(**)
4.2 205/55 R16 91V 2.4 2.2
2.5 / 2.7
(**)
2.5 / 2.7
(**)
225/45 R17 91V 2.4 2.2
2.5 / 2.7
(**)
2.5 / 2.7
(**)
(*) For versions/markets, where provided
(**) 7-seater versions
168
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 168

Important
83)
NoteReduced-width snow chains with a maximum projection of 9 mm beyond the tyre profile can be fitted on 195/65 R15
91H and 205/55 R16 91H tyres. 225/45 R17 91H tyre cannot be fitted with snow chains.
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with
code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
Snow chains can be fitted to the tyres of the front wheels (drive wheels) only.
Check the tension of the snow chains after the first few metres have been driven.
Using snow chains with tyres with non-original dimensions may damage the vehicle.
Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle driveability, with the
risk of losing control of the vehicle and resulting accidents.
Snow chains cannot be fitted to the space-saver wheel (for versions/markets, where provided). If a front tyre is punctured,
replace a rear wheel with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive
wheels at the front, snow chains can be fitted.
WARNING
165)The maximum speed for snow tyres marked "Q" is 160 km/h, while it is 190 km/h for "T" tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
166)Do NOT fit hub caps when using integral caps fixed (with springs) to the steel rim and aftersales tyres provided with Rim Protector. Use
of unsuitable tyres and hub caps may cause sudden decrease of tyre pressure.
WARNING
83)Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, steps and pavements and avoid driving for
long distances on roads not covered with snow to prevent damaging the car and the road surface.
169
9-1-2015 12:9 Pagina 169
SNOW CHAINS

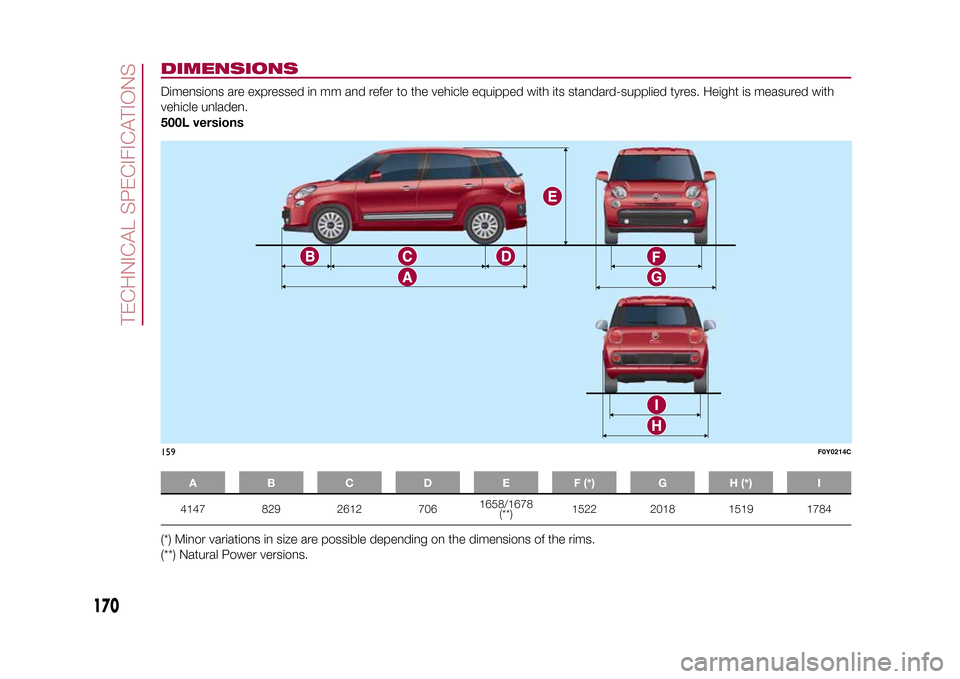

DIMENSIONSDimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
500L versions
A B C D E F (*) G H (*) I4147 829 2612 7061658/1678
(**)1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
(**) Natural Power versions.159
F0Y0214C
170
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 170

500L Trekking versions
A B C D E F (*) G H (*) I4270 868 2612 790 1679 1513/1522 2018 1511/1519 1800
(*) Minor variations in size are possible depending on the dimensions of the rims.160
F0Y0334C
171
9-1-2015 12:9 Pagina 171

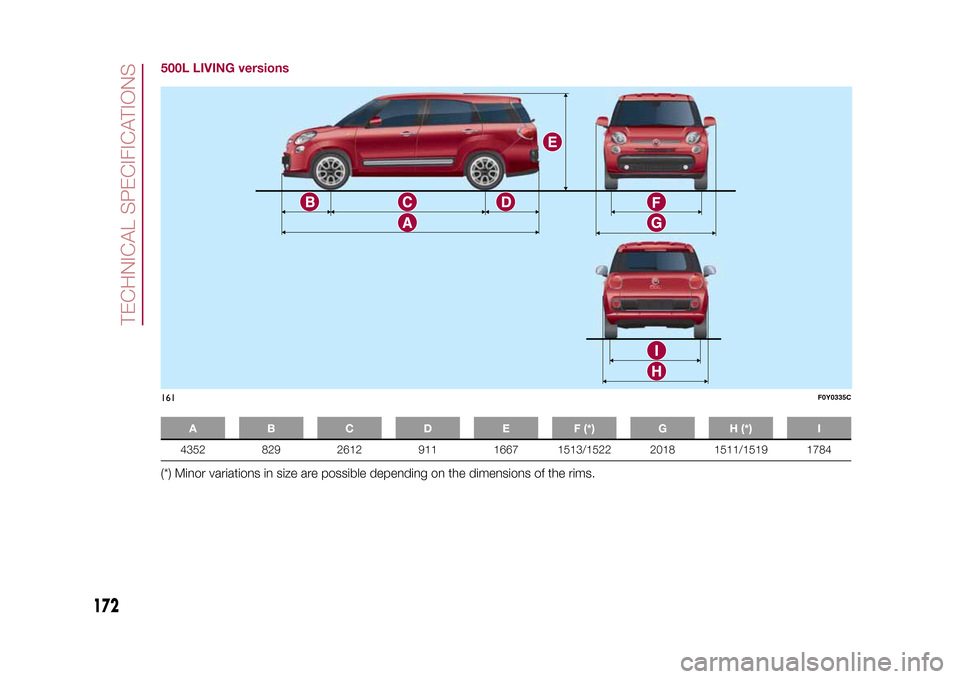

500L LIVING versions
A B C D E F (*) G H (*) I4352 829 2612 911 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.161
F0Y0335C
172
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 172

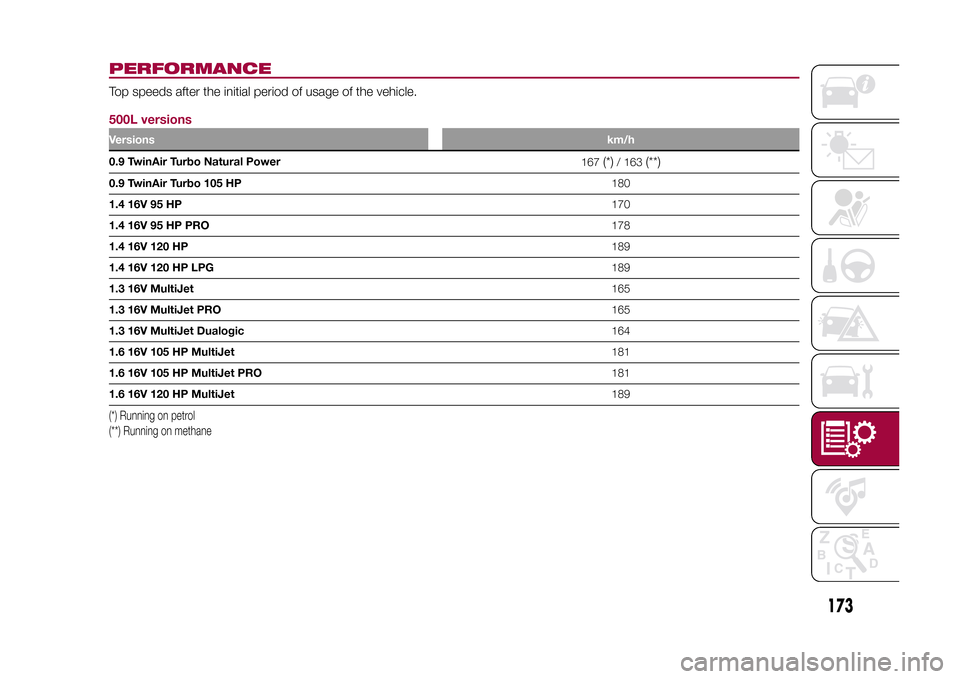

PERFORMANCETop speeds after the initial period of usage of the vehicle.500L versionsVersionskm/h0.9 TwinAir Turbo Natural Power
167
(*)
/ 163
(**)
0.9 TwinAir Turbo 105 HP180
1.4 16V 95 HP170
1.4 16V 95 HP PRO178
1.4 16V 120 HP189
1.4 16V 120 HP LPG189
1.3 16V MultiJet165
1.3 16V MultiJet PRO165
1.3 16V MultiJet Dualogic164
1.6 16V 105 HP MultiJet181
1.6 16V 105 HP MultiJet PRO181
1.6 16V 120 HP MultiJet189(*) Running on petrol
(**) Running on methane
173
9-1-2015 12:9 Pagina 173

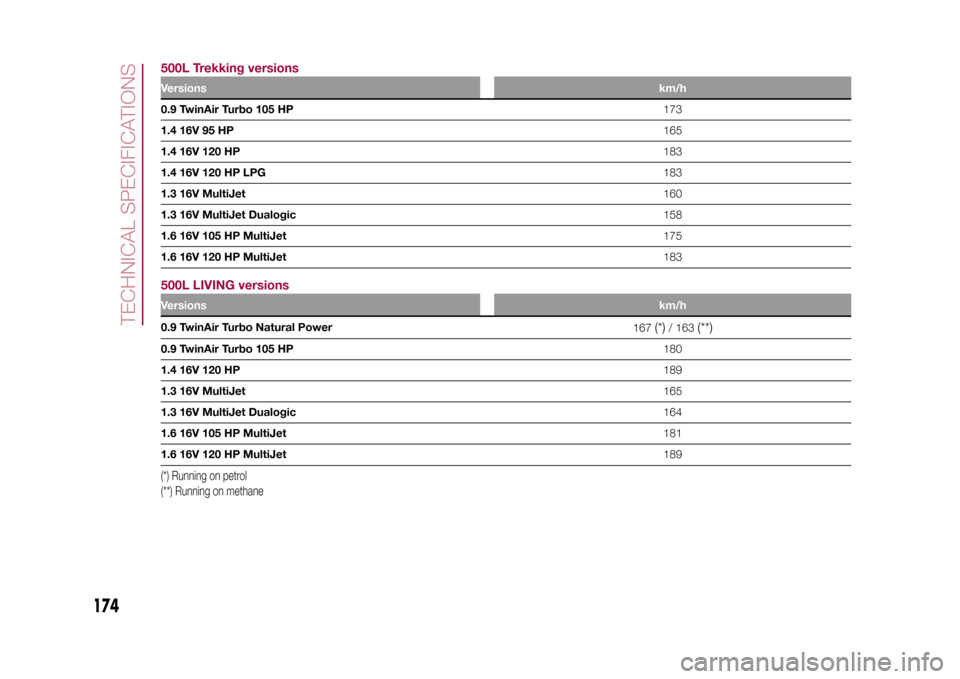

500L Trekking versionsVersionskm/h0.9 TwinAir Turbo 105 HP173
1.4 16V 95 HP165
1.4 16V 120 HP183
1.4 16V 120 HP LPG183
1.3 16V MultiJet160
1.3 16V MultiJet Dualogic158
1.6 16V 105 HP MultiJet175
1.6 16V 120 HP MultiJet183500L LIVING versionsVersionskm/h0.9 TwinAir Turbo Natural Power
167
(*)
/ 163
(**)
0.9 TwinAir Turbo 105 HP180
1.4 16V 120 HP189
1.3 16V MultiJet165
1.3 16V MultiJet Dualogic164
1.6 16V 105 HP MultiJet181
1.6 16V 120 HP MultiJet189(*) Running on petrol
(**) Running on methane
