Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910Change engine oil and replace oil filter
(2) (3)
Replace accessory drivebelt(s) (4)●
Replace toothed timing drive belt (1.3
16V MultiJet versions excluded) (4)●
Replace fuel filter cartridge (5)●●●(2) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message in the instrument panel. In any case, it must never exceed 2 years.
(3) If the vehicle is mainly used in towns and cities, change the engine oil and filter every year.
(4) Areas that are not dusty: recommended maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the
mileage, the belt must be replaced every 4 years.
(5) If the vehicle runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km
143
9-1-2015 12:9 Pagina 143

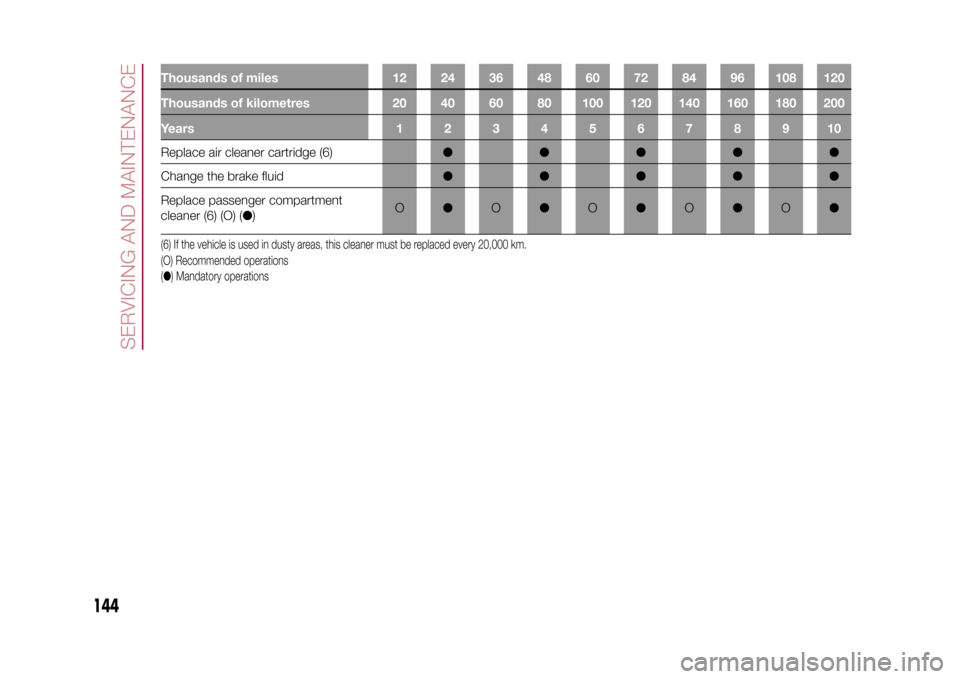

Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910Replace air cleaner cartridge (6)●●●●●
Change the brake fluid●●●●●
Replace passenger compartment
cleaner (6) (O) (●)O●O●O●O●O●(6) If the vehicle is used in dusty areas, this cleaner must be replaced every 20,000 km.
(O) Recommended operations
(●) Mandatory operations
144
SERVICING AND MAINTENANCE
9-1-2015 12:9 Pagina 144

ENGINE COMPARTMENT
.
CHECKING LEVELS
148) 149)
69)

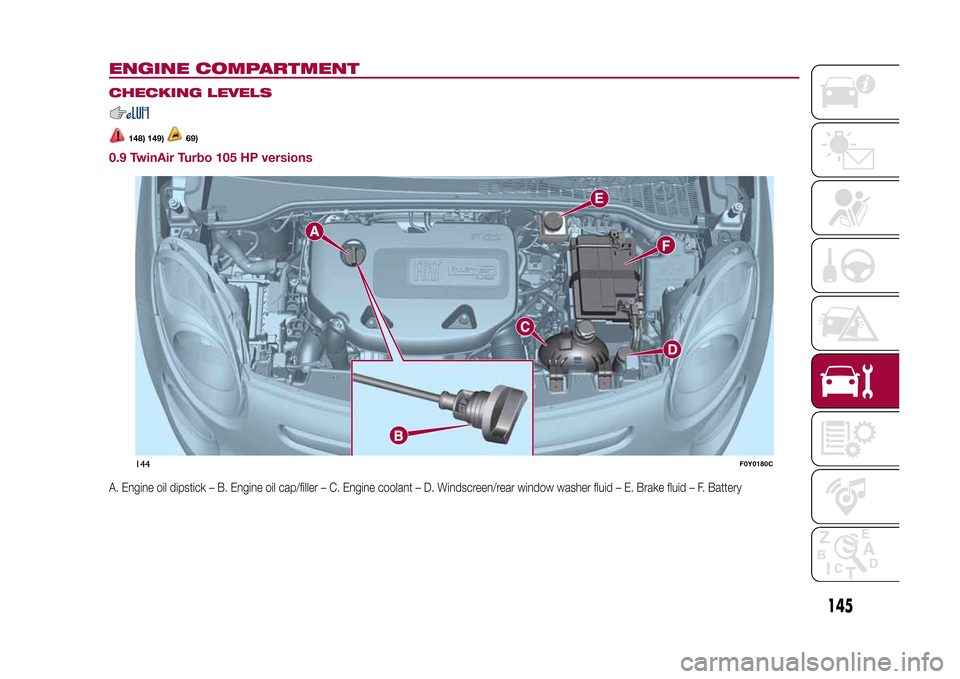

0.9 TwinAir Turbo 105 HP versionsA. Engine oil dipstick – B. Engine oil cap/filler – C. Engine coolant – D. Windscreen/rear window washer fluid – E. Brake fluid – F. Battery
144
F0Y0180C
145
9-1-2015 12:9 Pagina 145

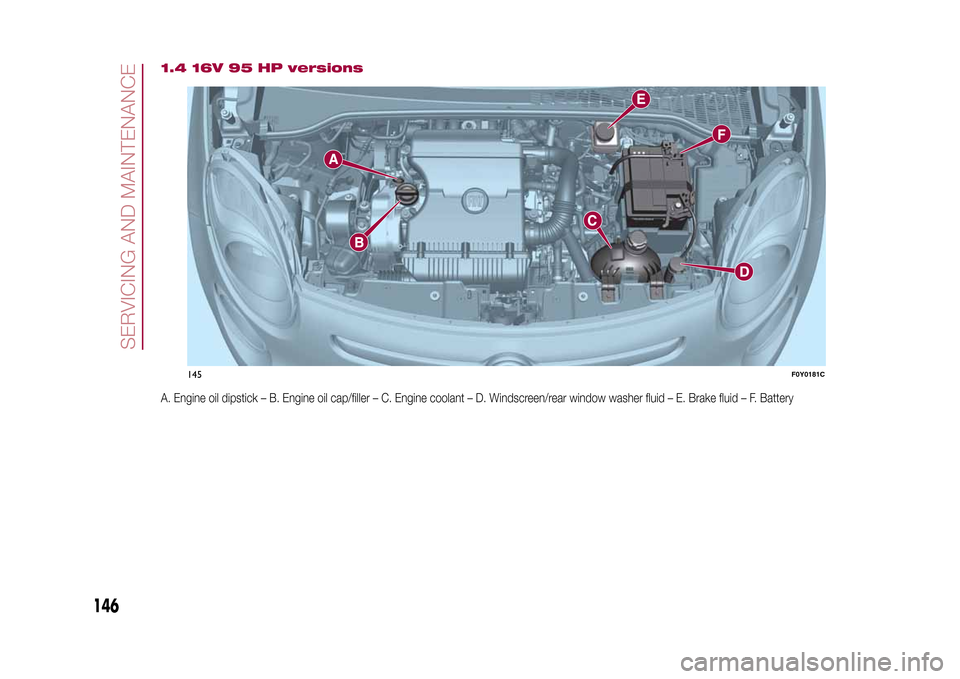

1.4 16V 95 HP versionsA. Engine oil dipstick – B. Engine oil cap/filler – C. Engine coolant – D. Windscreen/rear window washer fluid – E. Brake fluid – F. Battery
145
F0Y0181C
146
SERVICING AND MAINTENANCE
9-1-2015 12:9 Pagina 146

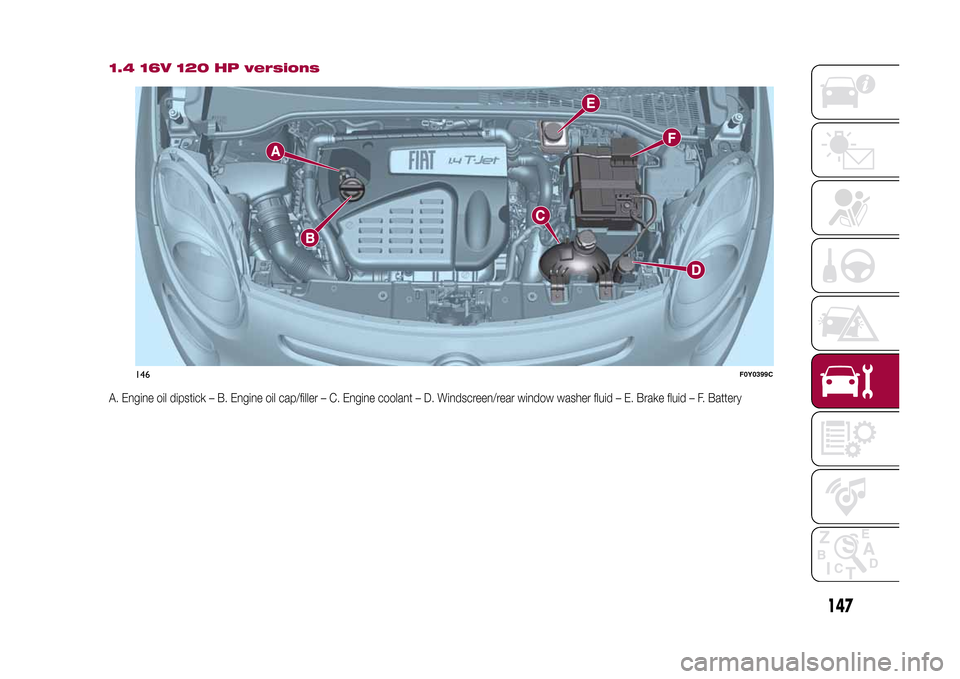

1.4 16V 120 HP versionsA. Engine oil dipstick – B. Engine oil cap/filler – C. Engine coolant – D. Windscreen/rear window washer fluid – E. Brake fluid – F. Battery
146
F0Y0399C
147
9-1-2015 12:9 Pagina 147

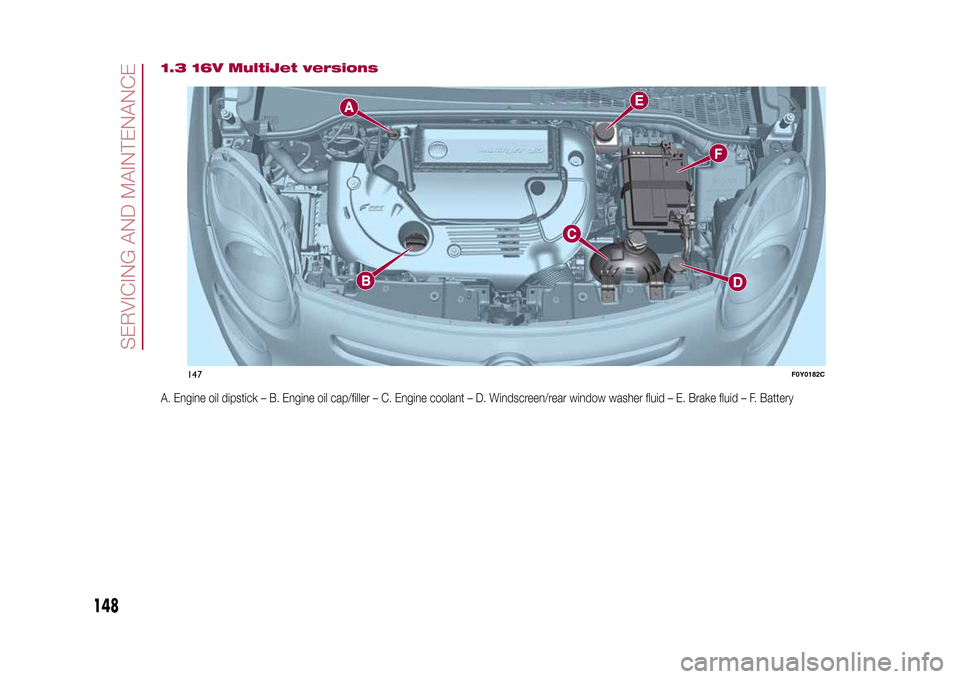

1.3 16V MultiJet versionsA. Engine oil dipstick – B. Engine oil cap/filler – C. Engine coolant – D. Windscreen/rear window washer fluid – E. Brake fluid – F. Battery
147
F0Y0182C
148
SERVICING AND MAINTENANCE
9-1-2015 12:9 Pagina 148

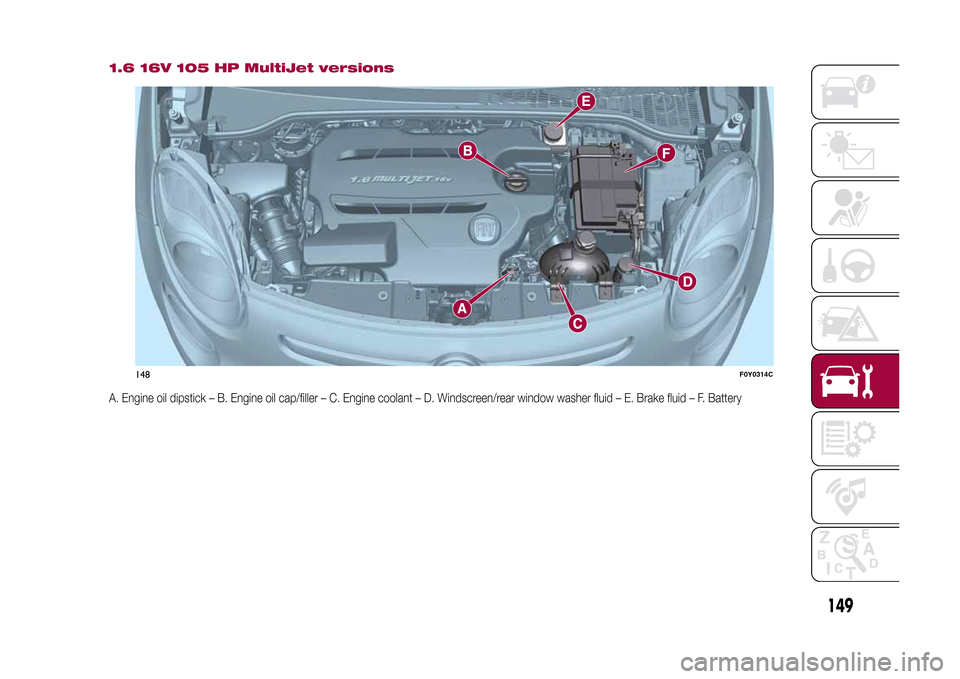

1.6 16V 105 HP MultiJet versionsA. Engine oil dipstick – B. Engine oil cap/filler – C. Engine coolant – D. Windscreen/rear window washer fluid – E. Brake fluid – F. Battery
148
F0Y0314C
149
9-1-2015 12:9 Pagina 149

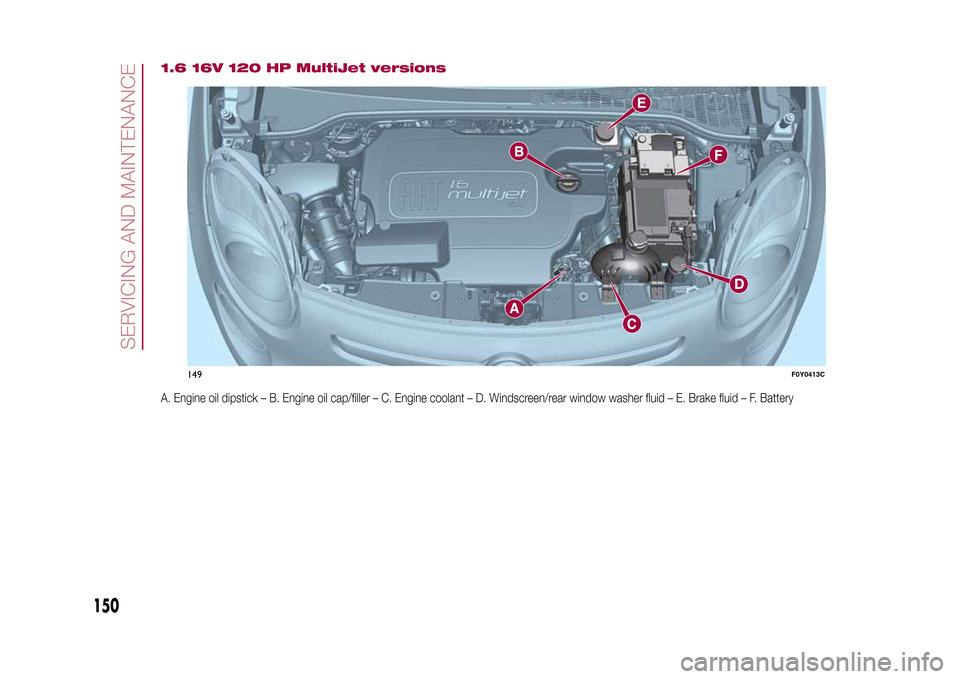

1.6 16V 120 HP MultiJet versionsA. Engine oil dipstick – B. Engine oil cap/filler – C. Engine coolant – D. Windscreen/rear window washer fluid – E. Brake fluid – F. Battery
149
F0Y0413C
