2015 FIAT 500E Owners Manual

CavityMaxi
FuseMini Fuse Description
F30 – 15 Amp
Blue
Fog Lamps
F81 30 Amp
Green
– Electronic Shifter
(ESM)
F82 30 Amp
Green
– Sunroof
F84 – 25 Amp
Clear
Regen Brake Mod-
ule
F85 30 Amp
Green
– Rear Window
Heater
F87 – 5 Amp
Ta n
Electronic Shifter
(ESM)

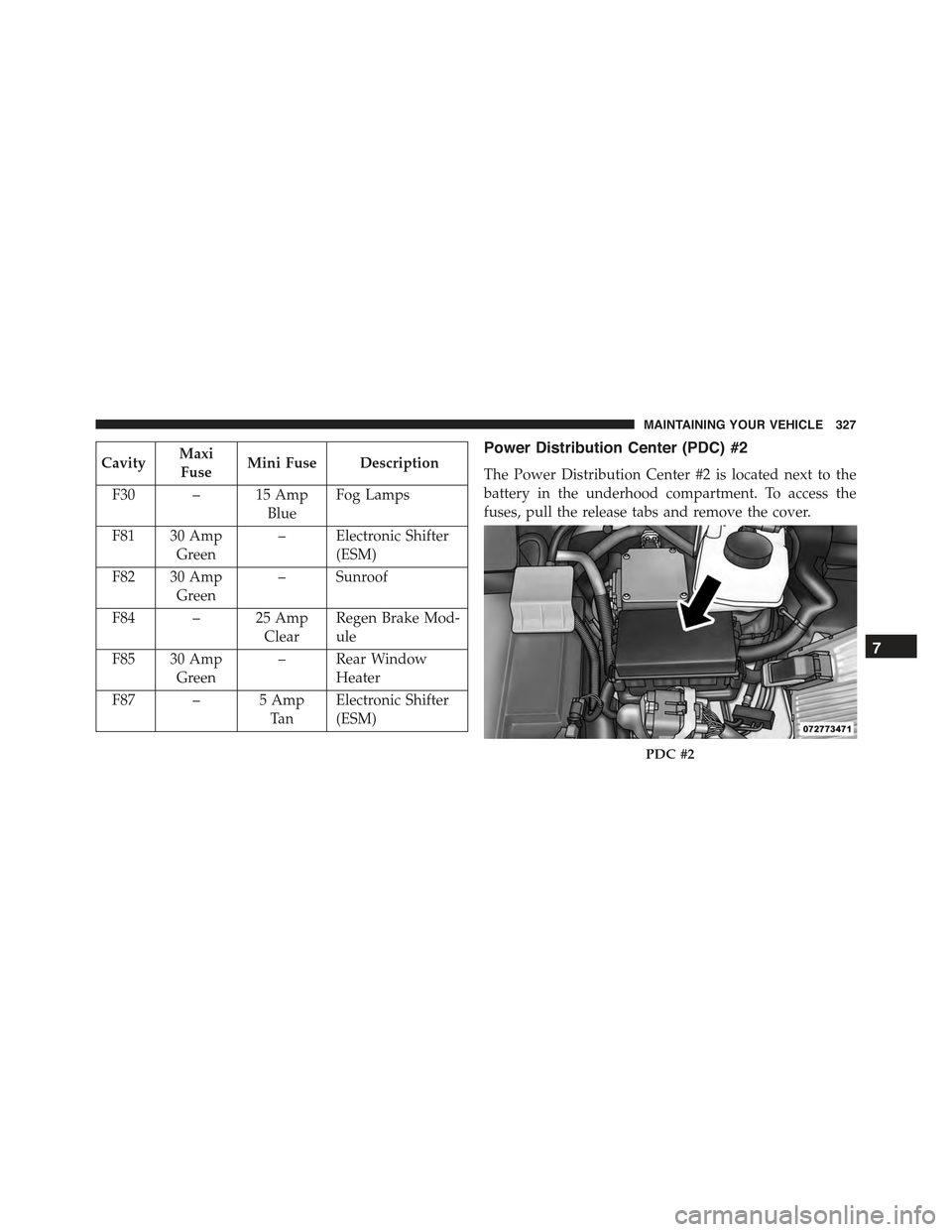

Power Distribution Center (PDC) #2
The Power Distribution Center #2 is located next to the
battery in the underhood compartment. To access the
fuses, pull the release tabs and remove the cover.
PDC #2
7
MAINTAINING YOUR VEHICLE 327

Cav-
ity
Maxi
Fuse
Mini
Fuse
Description

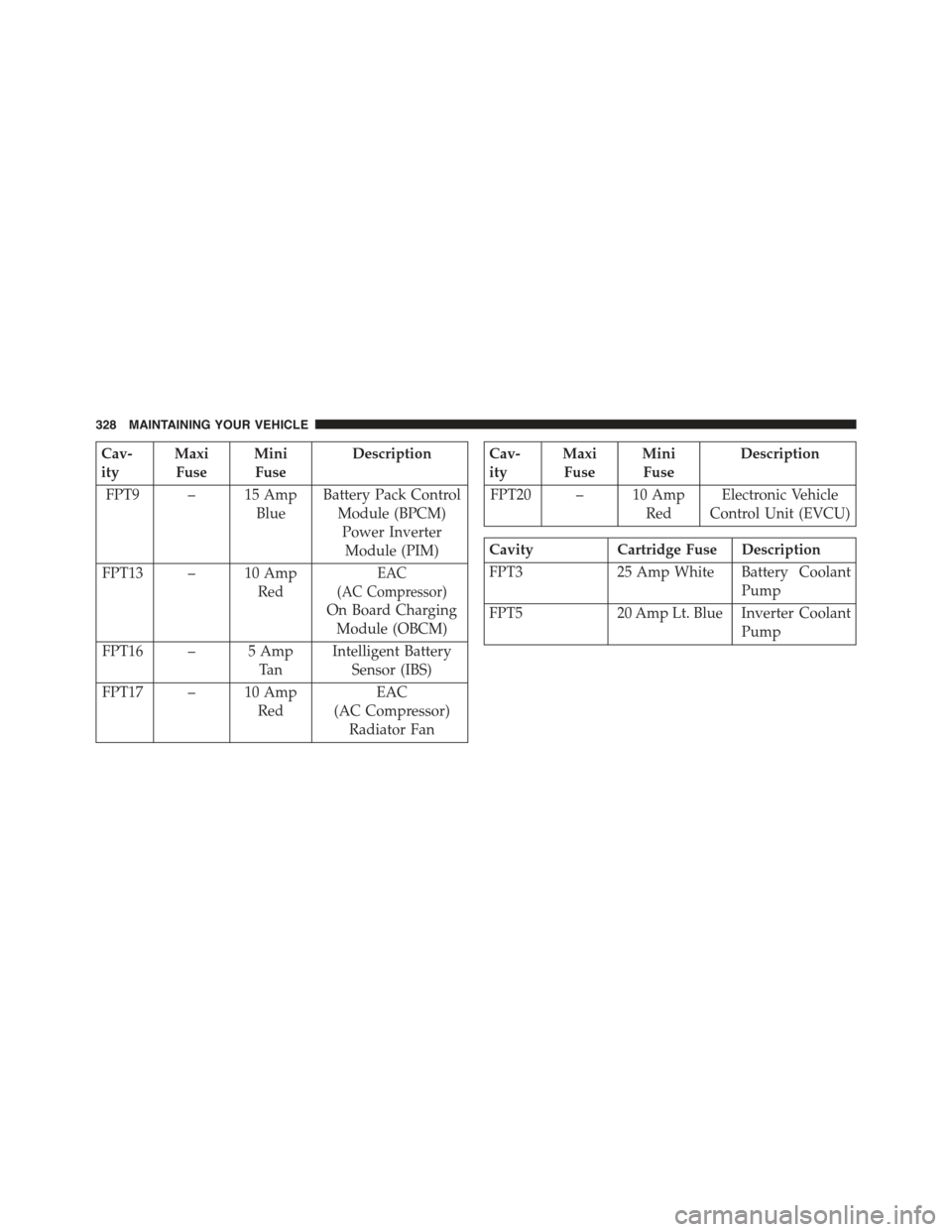

FPT9 – 15 Amp
Blue
Battery Pack Control
Module (BPCM)
Power Inverter
Module (PIM)
FPT13 – 10 Amp
Red
EAC
(AC Compressor)
On Board Charging
Module (OBCM)
FPT16 – 5 Amp
Ta n
Intelligent Battery
Sensor (IBS)
FPT17 – 10 Amp
Red
EAC
(AC Compressor)
Radiator Fan
Cav-
ity
Maxi
Fuse
Mini
Fuse
Description
FPT20 – 10 Amp
Red
Electronic Vehicle
Control Unit (EVCU)
CavityCartridge Fuse Description
FPT325 Amp White Battery Coolant
Pump
FPT520 Amp Lt. Blue Inverter Coolant
Pump
328 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
The preferred way of storing your vehicle for a long
period of time is to leave it attached to a Level 1 or Level
2 charger. The vehicle has a wake-up feature that will
wake the system every 3 weeks and do a maintenance
charge on the 12 Volt battery and also top off the high
voltage battery if necessary.
Anytime you store your vehicle, or keep it out of service
(e.g., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the air conditioning system
is started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead LampC5W
Courtesy LampW5W
Exterior Bulbs
Bulb Number
Front Low and High
Beam Headlamp
HIR2LL
Front Parking/Daytime
Running Lamps
W21/5W
Front Fog Lamps H11LL
Front Side Marker Lamps W3W
Front Turn Signal Lamps WY21W
7
MAINTAINING YOUR VEHICLE 329

Bulb Number
Side Direction LampsWY5W
Rear Turn Signal LampsPY21W
Rear Side Marker LampsW3W
Rear Tail and Stop
Lamps
P21/5W
Rear Backup LampsW16W
Center High Mounted
Stop Lamp
LED (See Authorized
dealer)
License Plate Lamps LED (See Authorized
dealer)
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps Low Beam and High Beam
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.
330 MAINTAINING YOUR VEHICLE

Front Turn Signal, Parking And Daytime Running
Lamps
1. Turn the steering wheel completely to the left or right.
2. Open the wheel housing access door.
3. Remove the plastic cap from the back of the lamp
housing.
4. Rotate bulb/socket counter-clockwise.
5. Remove the bulb and replace as needed.
6. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.
7. Reinstall the plastic cap.
Front Fog Lamps
To replace the front fog lights, see your authorized dealer.
Wheel Housing Access Door
7
MAINTAINING YOUR VEHICLE 331

Front/Rear Side Marker Lamps
1. Remove portion of the wheel liner to allow hand
access to side marker lamp.
2. Rotate the bulb socket counterclockwise, and remove
the bulb and socket assembly from the housing.
3. Pull the bulb from the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the wheel liner.
Rear Tail, Stop, Backup And Turn Signal Lamps
1. Open the liftgate.
2. Remove the two screws and remove the tail lamp
assembly.
3. Remove four screws and separate the backplate from
the lamp housing.
4. Remove the tail, stop, or turn signal bulbs by pushing
them slightly and turning counter-clockwise.
Tail Lamp Assembly Screws
332 MAINTAINING YOUR VEHICLE

5. Remove the backup lamp bulb by pulling straight out.
6. Replace lamps as required and reinstall lamp.
Center High Mounted Stop Lamp (CHMSL)
1. Remove the two guard caps and the two fastening
screws.
2. Remove the center high mounted stop lamp assembly.
3. Disconnect the electric connector.
4. Remove the two screws.
5. Replace the CHMSL assembly.
6. Reinstall the two screws.
FLUID CAPACITIES
SystemsU.S.Metric
Power Electronics Cooling System3.6 Quarts3.5 Liters
Battery Thermal Management Cooling System7.0 Quarts6.7 Liters
Single-Speed Transmission0.8 Quart750 ml
7
MAINTAINING YOUR VEHICLE 333

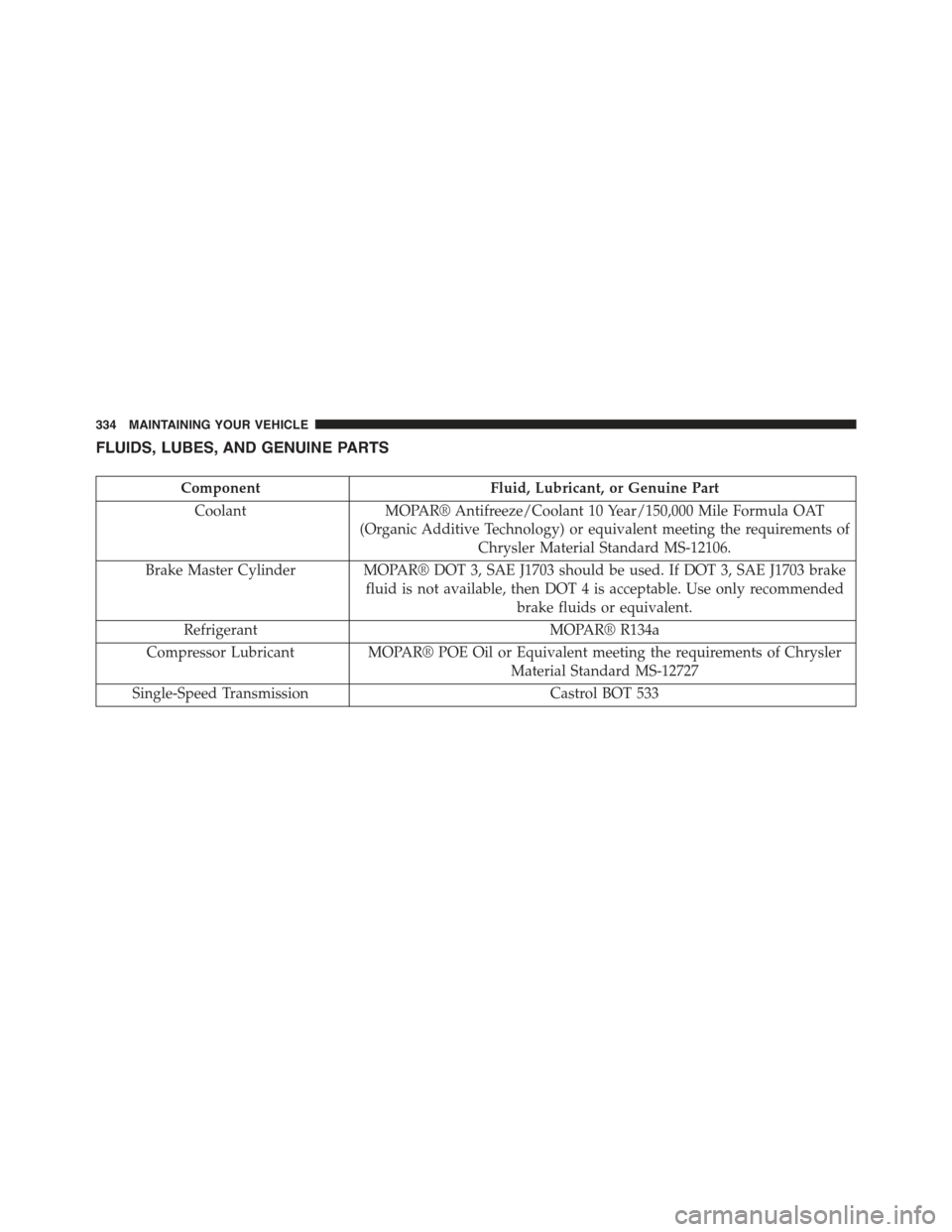

FLUIDS, LUBES, AND GENUINE PARTS
ComponentFluid, Lubricant, or Genuine Part
CoolantMOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT
(Organic Additive Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS-12106.
Brake Master Cylinder MOPAR® DOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.
RefrigerantMOPAR® R134a
Compressor Lubricant MOPAR® POE Oil or Equivalent meeting the requirements of Chrysler
Material Standard MS-12727
Single-Speed TransmissionCastrol BOT 533
334 MAINTAINING YOUR VEHICLE
