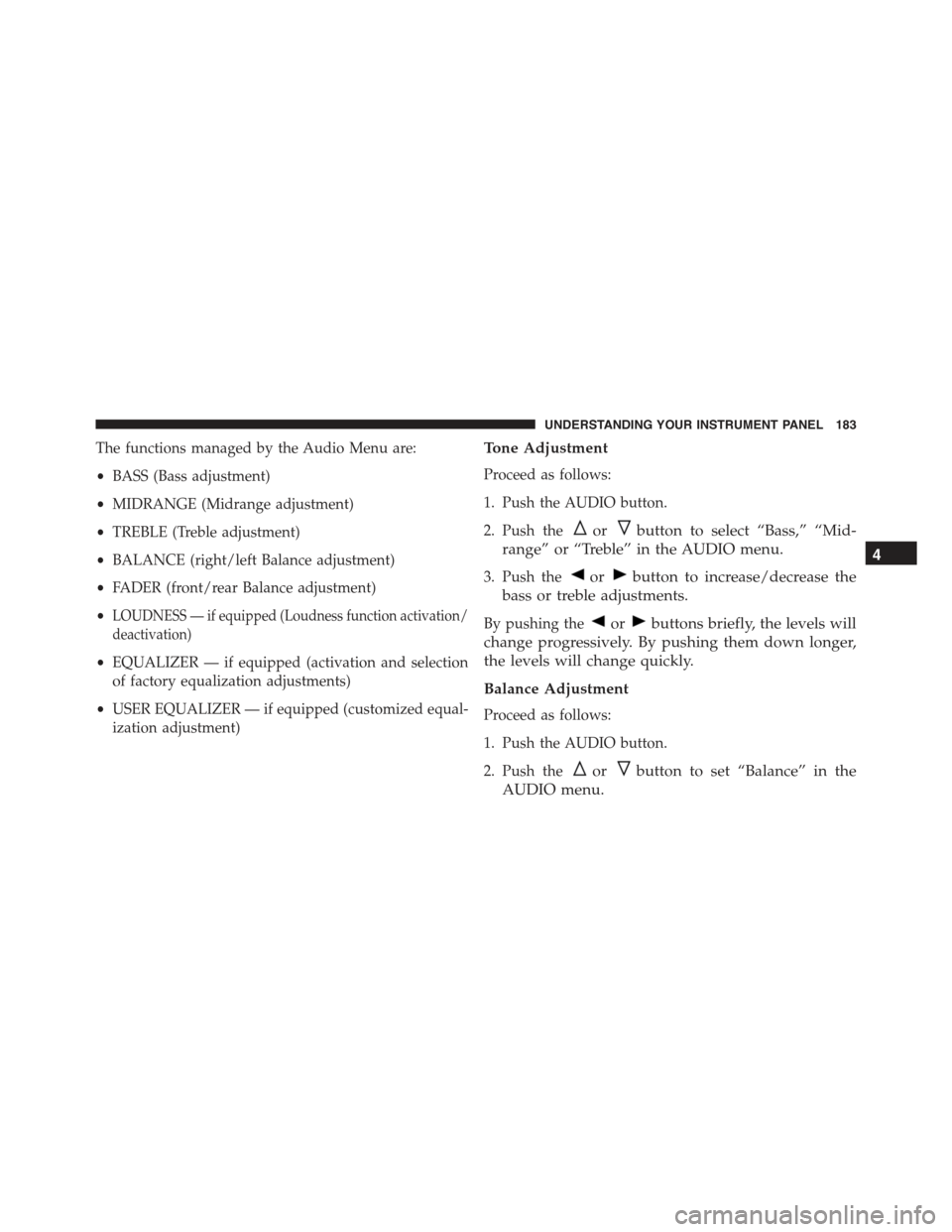

The functions managed by the Audio Menu are:
•BASS (Bass adjustment)
•MIDRANGE (Midrange adjustment)
•TREBLE (Treble adjustment)
•BALANCE (right/left Balance adjustment)
•FADER (front/rear Balance adjustment)
•LOUDNESS — if equipped (Loudness function activation/
deactivation)
•EQUALIZER — if equipped (activation and selection
of factory equalization adjustments)
•USER EQUALIZER — if equipped (customized equal-
ization adjustment)
Tone Adjustment
Proceed as follows:
1. Push the AUDIO button.
2. Push theorbutton to select “Bass,” “Mid-
range” or “Treble” in the AUDIO menu.
3. Push theorbutton to increase/decrease the
bass or treble adjustments.
By pushing theorbuttons briefly, the levels will
change progressively. By pushing them down longer,
the levels will change quickly.
Balance Adjustment
Proceed as follows:
1. Push the AUDIO button.
2. Push theorbutton to set “Balance” in the
AUDIO menu.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

3. Push thebutton to increase the sound from the
left speakers or thebutton to increase the sound
from the right speakers.
By pushing theorbuttons briefly, the levels will
change progressively. By pushing them down longer,
the levels will change quickly.
Select the value “0” to set the right and left audio outputs
at the same level.
Fader Adjustment
Proceed as follows:
1. Push the AUDIO button.
2. Push theorbutton to set “Fader” in the
AUDIO menu.
3. Push thebutton to increase the sound coming
from the rear speakers or thebutton to increase
the sound coming from the front speakers.
By pushing theorbuttons briefly, the levels will
change progressively. By pushing them down longer,
the levels will change quickly.
Select the value “0” to set the right and left audio outputs
at the same level.
Loudness Function — If Equipped
The Loudness function improves the volume of the
sound while listening at low volumes, increasing the bass
and treble.
To activate/deactivate this function, select the “Loud-
ness” setting in the AUDIO menu. The condition of the
function (on or off) is shown on the display for a few
seconds by the wording “Loudness On” or “Loudness
Off”.
184 UNDERSTANDING YOUR INSTRUMENT PANEL

Preset/User/Classic/Rock/Jazz Functions — If Equipped
The built-in equalizer can be activated/deactivated.
When the equalizer function is off, the audio settings can
only be changed by adjusting the “Bass” and “Treble”
settings, whereas when the function is on, the acoustic
curves can be adjusted. To deactivate the equalizer, select
the “EQ Preset” function in the audio menu.
To activate the equalizer, use the AUDIO button to select
one of the adjustments:
•“EQ User” (adjustment of 7 equalizer bands that can
be changed by the user)
•“Classic” (equalizer preset for optimal classic music
sound)
•“Rock” (equalizer preset for optimal rock and pop
music sound)
•“Jazz” (equalizer preset for optimal jazz music sound)
When one of the equalizer adjustments is activated the
wording “EQ” lights up.
User EQ Settings Function — If Equipped
To set a personalized equalizer adjustment:
1. Push the AUDIO button.
2. Use theorbuttons to set EQ function.
3. Useorbuttons to select#EQ User.#
4. Push the MENU button to start adjusting equalizer.
5. On the display a seven bar graph will appear, in which
each bar represents a frequency. Select the bar to be
adjusted by using theorbuttons. The selected
bar will start to flash and it can be adjusted using
orbuttons.
6. To store the setting, push the MENU or AUDIO
buttons.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

Menu
MENU Button Functions
Push the MENU button briefly to activate the Menu
function.
Use theorbuttons to scroll through the menu
functions. To change the setting of the selected func-
tion, use theorbuttons.
The current status of the selected function appears on the
display.
The functions managed by the Menu are:
•Speech Volume
•Aux Audio Offset
•Radio Off
•Sat ID
•SiriusXM Telephone Number
•System Reset
•Speed Volume
•On Volume Limit
Push the MENU button again to exit the Menu function.
Speed Volume Function — If Equipped
This function automatically adapts the volume level to
the speed of the car, turning up the volume when the
speed increases to maintain the ratio with the noise level
inside the passenger compartment. To activate/
deactivate the function, use the buttons. The wording
“Speed volume” appears on the display, followed by the
current status of the function:
•Off: function deactivated
•Low: function activated (low sensitivity)
•High: function activated (high sensitivity)
186 UNDERSTANDING YOUR INSTRUMENT PANEL

On Volume Limit
This function makes it possible to activate/deactivate the
maximum volume limit when turning the radio on.
The display shows the function status:
•“On volume limit: on” – when the radio is turned on
the volume level will be:
– If the volume level is equal to or higher than the
maximum value, the radio will come on at the
maximum volume.
– If the volume level is between the minimum and
maximum values, the radio will come on at the
same volume as before it was switched off.
– If the volume level is equal to or lower than the
minimum value, the radio will come on at the
minimum volume.
•“On volume limit: off” – The radio will come on at the
same volume as before it was switched off. The
volume level can be between 0 and 40.
Use the buttonsorto change the setting.
NOTE:
•Using the Menu it is only possible to adjust the
activation/deactivation of the function and not the
minimum or maximum volume value.
•If the battery charge is too low, the volume cannot be
adjusted between the minimum and the maximum
level.
Radio Off Function
This function makes it possible to set the radio switching
off mode by choosing between two methods.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

The chosen mode appears on the display:
•“Radio off: 00 min” — The radio turns off in connection
with the ignition key; the radio is turned automatically off
as soon as the key is turned to the STOP position.
•“Radio off: 20 min” — The radio turns off indepen-
dently from the ignition key; the radio remains on for
a maximum period of 20 minutes after the key has
been turned to the STOP position.
System Reset Function
This function is used to restore all settings to the factory
values. The options are:
•NO — No restore intervention.
•YES — The default parameters will be restored. During
such operation, the wording “Resetting” appears on the
display. At the end of the operation, the source does not
change and the previous situation will be displayed.
Radio
(Tuner) Introduction
When the car radio is turned on, the last function that
was selected before turning it off (Radio, CD, CD MP3,
AUX) is activated.
To select the Radio function when another audio source is
being listened to, briefly push the TUNER button.
Once the Radio mode has been activated, the display will
show the name (RBDS stations only) or the frequency of
the selected radio station, the frequency band selected
(e.g. FMA) and the preset button number (e.g. P1).
Frequency Band Selection
With the Radio mode active, press the FM or AM tuner
button briefly and repeatedly to select the desired recep-
tion band.
188 UNDERSTANDING YOUR INSTRUMENT PANEL

Each time the button is pressed the following bands are
selected cyclically:
•AM, FM or SAT (if equipped)
Each band is highlighted by the corresponding wordings
on the display. The radio will be tuned to last station
selected on the respective frequency band.
Preset Buttons
The buttons numbered from 1 to 5 are used to set the
following pre-selections:
•15 in the FM band (5 in FMA, 5 in FMB, 5 in FMC)
•10 in the AM band (5 in AMA, 5 in AMB)
•15 in SAT (if so equipped) (5 SATA, 5 SATB, 5 SATC)
To listen to a preset station, select the desired frequency
band and then briefly push the corresponding preset
button (from 1 to 5).
By pushing the preset button for more than two seconds,
the tuned station will be stored. Pushing the A-B-C
button will change between the preset memory group in
the current frequency band.
Automatic Tuning
Briefly push theorbutton to start the automatic
tuning search for the next station that can be received
in the selected direction.
If theorbutton is pushed for longer, the rapid
search is started. When the button is released, the
tuner will stop on the next station that can be received.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 189

Manual Tuning
This is used to manually search for stations in the
preselected band.
Select the desired frequency band and then push briefly
and repeatedly theorbutton to start the search in
the desired direction. If theorbutton is pushed
longer, the fast search starts and then stops when the
button is released.
Stereophonic Broadcasters
If the incoming signal is weak, the reproduction is
automatically switched from Stereo to Mono.
SiriusXM Satellite Radio — If Equipped
SiriusXM Satellite Radio
With over 130 channels, SiriusXM Satellite Radio brings you
more of what you love. Get 69 channels of 100% commercial-
free music, plus all of your favorite sports, news, talk and
entertainment. Hear every NFL game, every NASCAR race,
college sports and more. The biggest and most compelling
names in talk with Howard Stern and Martha Stewart,
laugh-out-loud comedy with Jamie Foxx’s The Foxxhole and
Blue Collar Comedy, plus kids’ programming, world-class
news, local traffic and weather. All of this with crystal clear,
coast-to-coast coverage. Everything worth listening to is
now on SiriusXM. A one-year SiriusXM Satellite Radio
subscription is included. SiriusXM and all related marks and
logos are trademarks of SiriusXM Radio Inc. and its subsid-
iaries. SiriusXM Radio requires a subscription, sold sepa-
rately after trial subscription included with vehicle pur-
chase. Prices and programming are provided by SiriusXM
and are subject to change. Subscriptions governed by
Terms & Conditions available at www.siriusxm.com/
customeragreement. SiriusXM Radio U.S. service only avail-
able to those at least 18 years of age in the 48 contiguous
United States, D.C., and PR. Service available in Canada; see
www.siriusxm.ca.
