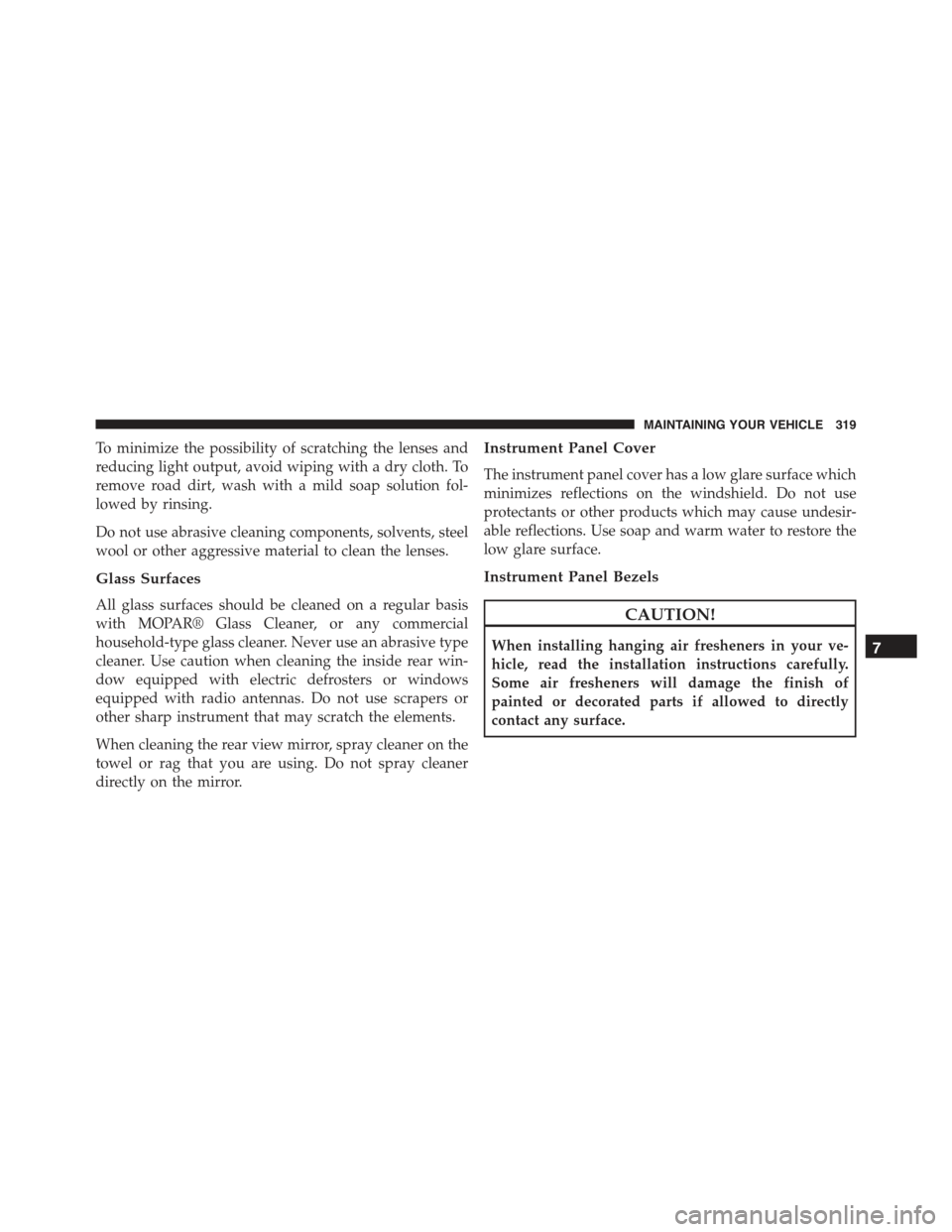

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or windows
equipped with radio antennas. Do not use scrapers or
other sharp instrument that may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
Instrument Panel Bezels
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
7
MAINTAINING YOUR VEHICLE 319

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
320 MAINTAINING YOUR VEHICLE

FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.
(Continued)
WARNING!(Continued)
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
7
MAINTAINING YOUR VEHICLE 321

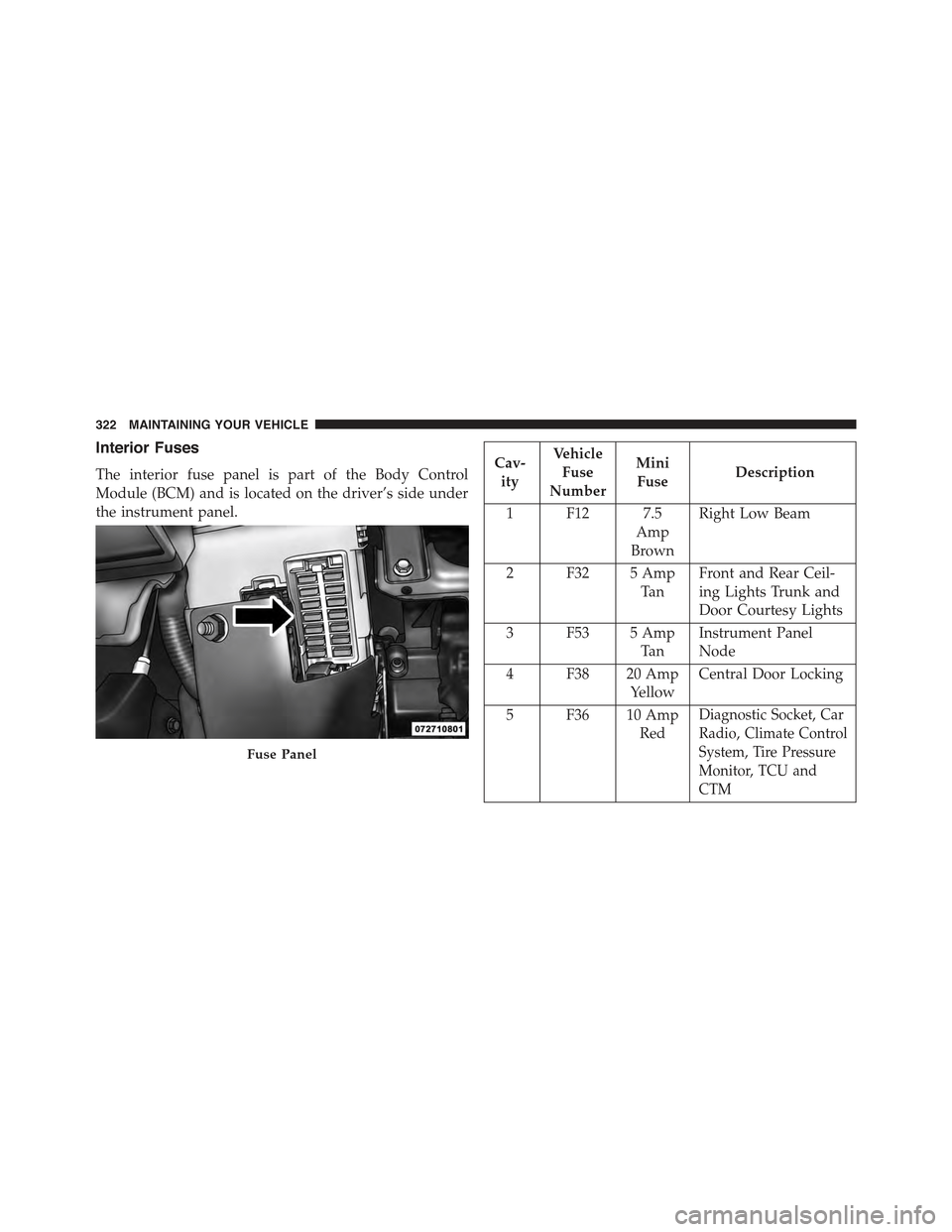

Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Cav-
ity
Vehicle
Fuse
Number
Mini
FuseDescription
1 F12 7.5
Amp
Brown
Right Low Beam
2 F32 5 Amp
Ta n
Front and Rear Ceil-
ing Lights Trunk and
Door Courtesy Lights
3 F53 5 Amp
Ta n
Instrument Panel
Node
4 F38 20 Amp
Yellow
Central Door Locking
5 F36 10 Amp
Red
Diagnostic Socket, Car
Radio, Climate Control
System, Tire Pressure
Monitor, TCU and
CTM
Fuse Panel
322 MAINTAINING YOUR VEHICLE

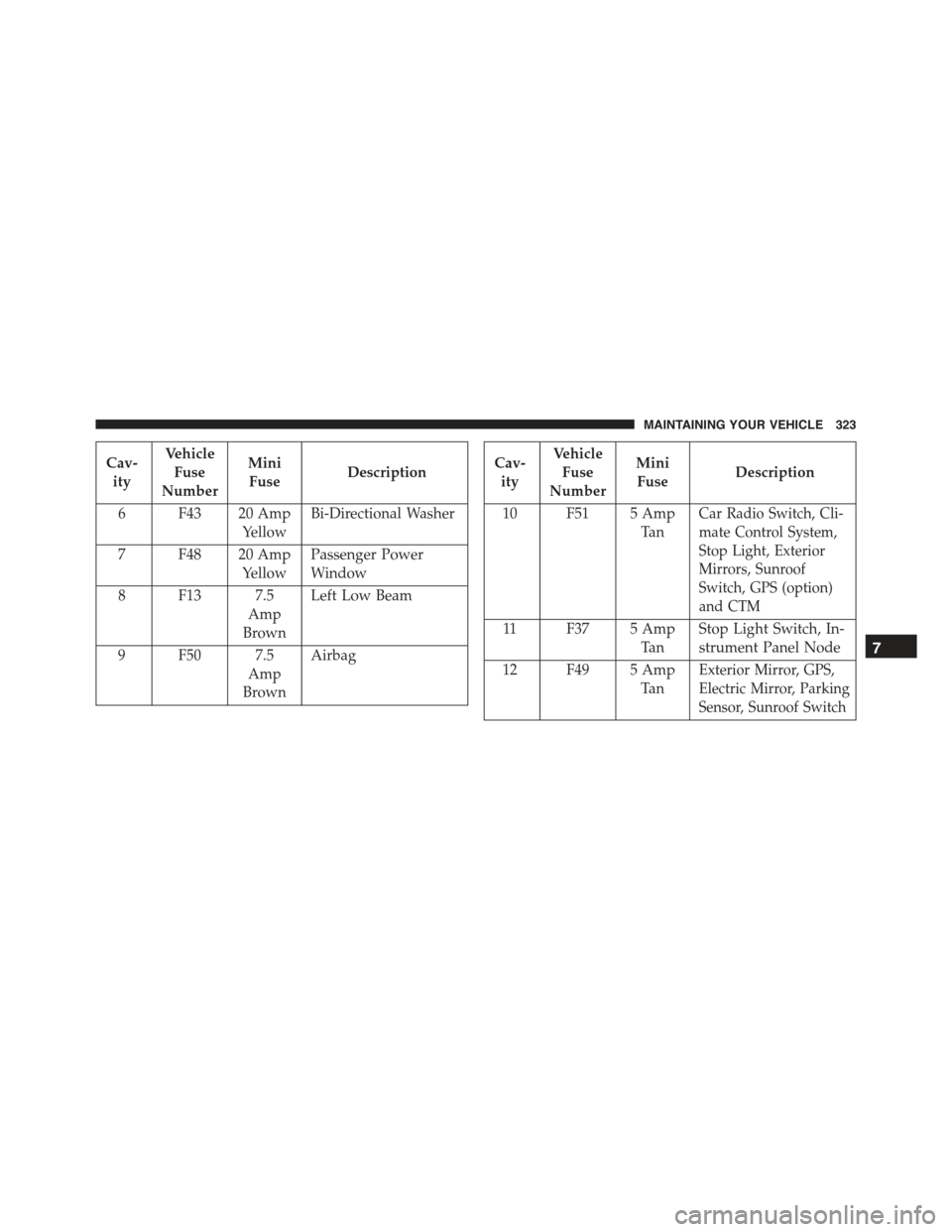

Cav-
ity
Vehicle
Fuse
Number
Mini
FuseDescription
6 F43 20 Amp
Yellow
Bi-Directional Washer
7 F48 20 Amp
Yellow
Passenger Power
Window
8 F13 7.5
Amp
Brown
Left Low Beam
9 F50 7.5
Amp
Brown
Airbag
Cav-
ity
Vehicle
Fuse
Number
Mini
FuseDescription
10 F51 5 Amp
Ta n
Car Radio Switch, Cli-
mate Control System,
Stop Light, Exterior
Mirrors, Sunroof
Switch, GPS (option)
and CTM
11 F37 5 Amp
Ta n
Stop Light Switch, In-
strument Panel Node
12 F49 5 Amp
Ta n
Exterior Mirror, GPS,
Electric Mirror, Parking
Sensor, Sunroof Switch
7
MAINTAINING YOUR VEHICLE 323

Cav-
ity
Vehicle
Fuse
Number
Mini
FuseDescription
13 F31 5 Amp
Ta n
Ignition, Climate Con-
trol, RDU and EVCU
14 F47 20 Amp
Yellow
Driver Power Window

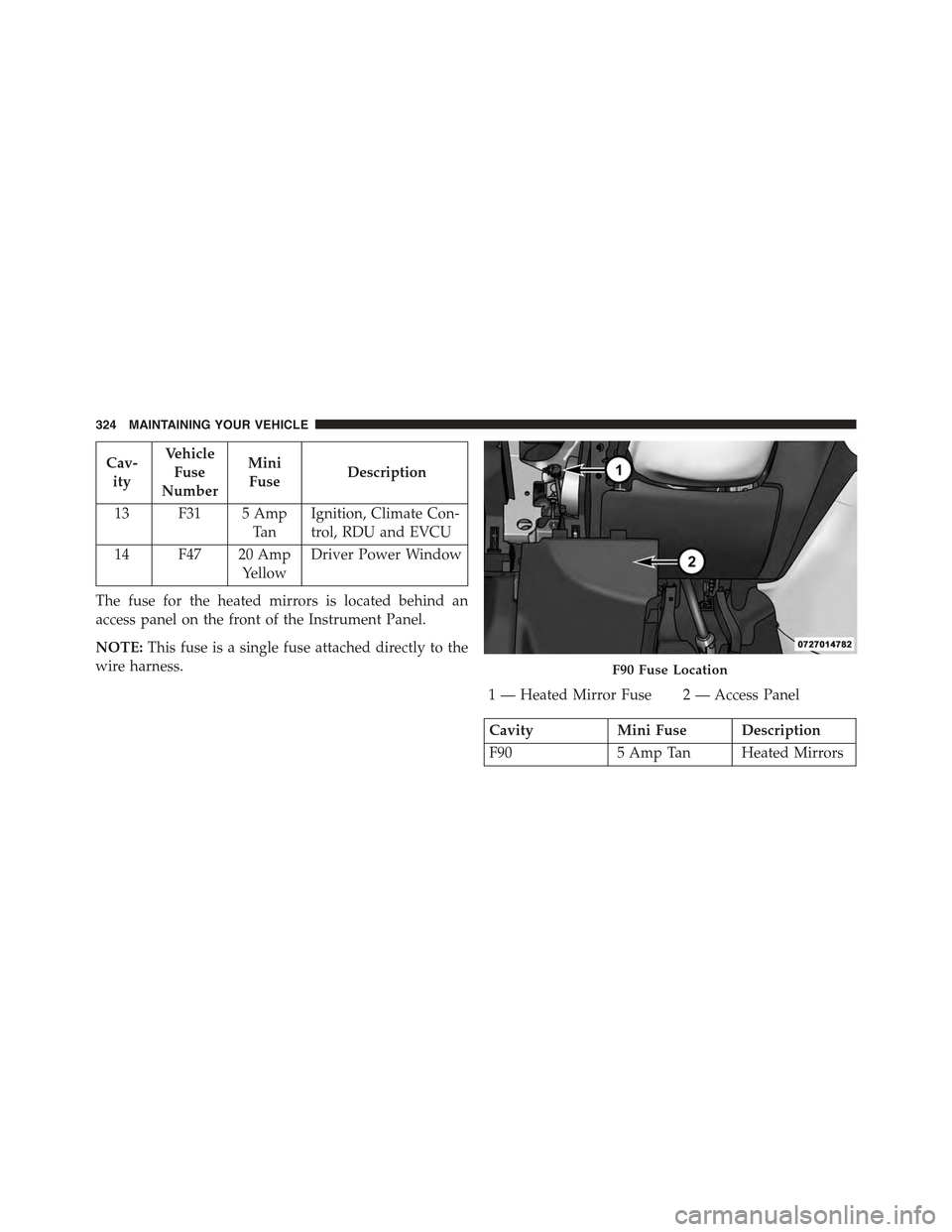

The fuse for the heated mirrors is located behind an
access panel on the front of the Instrument Panel.
NOTE:This fuse is a single fuse attached directly to the
wire harness.
1 — Heated Mirror Fuse 2 — Access Panel
CavityMini Fuse Description
F905 Amp Tan Heated Mirrors
F90 Fuse Location
324 MAINTAINING YOUR VEHICLE

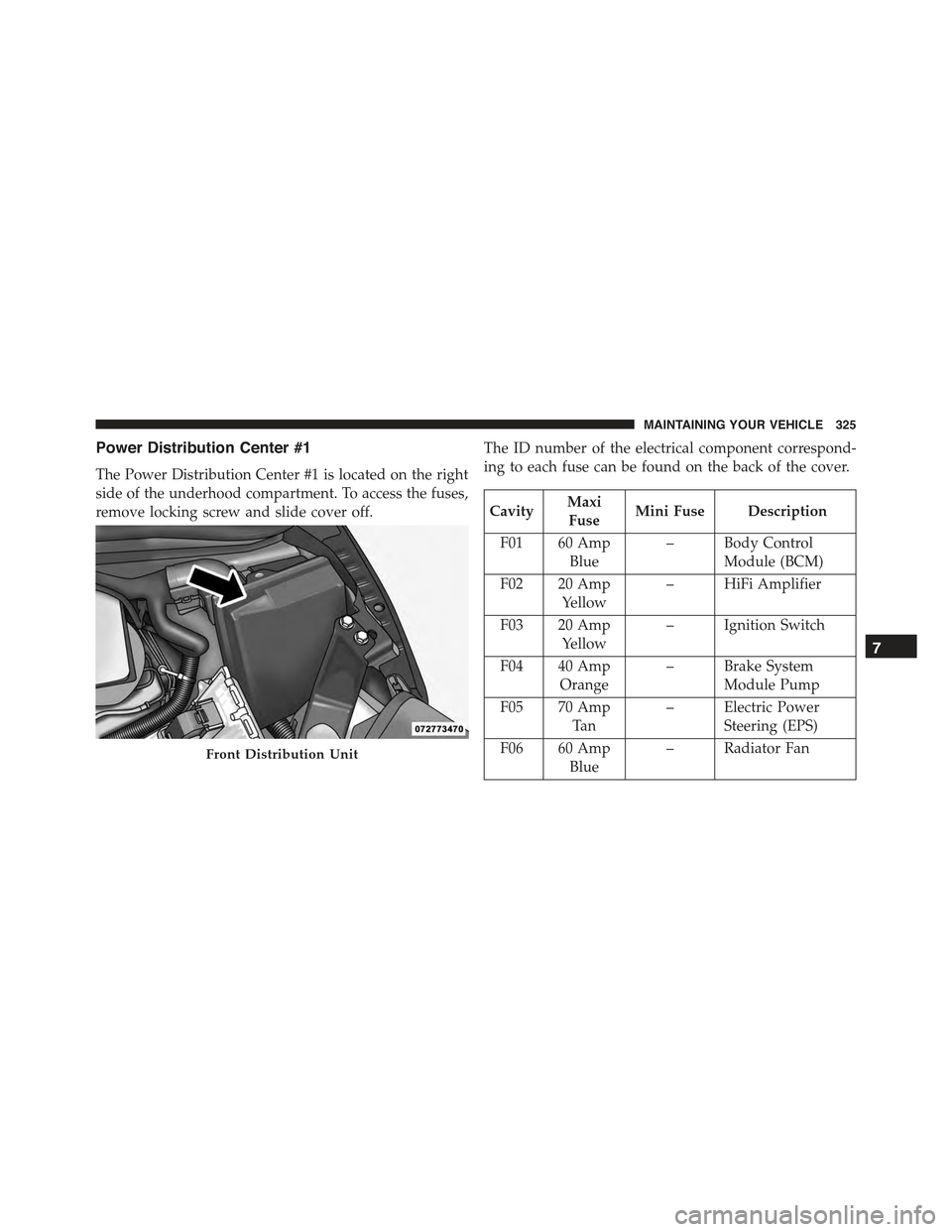

Power Distribution Center #1
The Power Distribution Center #1 is located on the right
side of the underhood compartment. To access the fuses,
remove locking screw and slide cover off.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
CavityMaxi
FuseMini Fuse Description
F01 60 Amp
Blue
– Body Control
Module (BCM)
F02 20 Amp
Yellow
– HiFi Amplifier
F03 20 Amp
Yellow
– Ignition Switch
F04 40 Amp
Orange
– Brake System
Module Pump
F05 70 Amp
Ta n
– Electric Power
Steering (EPS)
F06 60 Amp
Blue
– Radiator FanFront Distribution Unit
7
MAINTAINING YOUR VEHICLE 325

CavityMaxi
FuseMini Fuse Description
F07 40 Amp
Orange
–Regen Brake Mod-
ule
F08 40 Amp
Orange
–HVAC
F09 – 5 Amp
Ta n
Air Electric Heater
Charge Indicator
F10 – 10 Amp
Red
Horn
F11 – 10 Amp
Red
Electronic Vehicle
Control Unit
(EVCU)
F14 – 5 Amp
Ta n
High Beam
(Shutter)
F15 – 15 Amp
Blue
Cigar Lighter
CavityMaxi
FuseMini Fuse Description
F16 – 10 Amp
Red
Humidity Sensor
VPAM
AC Compressor
F18 – 5 Amp
Ta n
Electronic Vehicle
Control Unit
(EVCU)
F19 – 10 Amp
Red
HVAC
F20 – 15 Amp
Blue
Heated Seats – If
Equipped
F23 – 25 Amp
Clear
Anti-Lock Brake
Valves
F24 – 7.5 Amp
Brown
EPS
YAW Sensor
