2015 FIAT 500E Owners Manual

Page 129 of 367

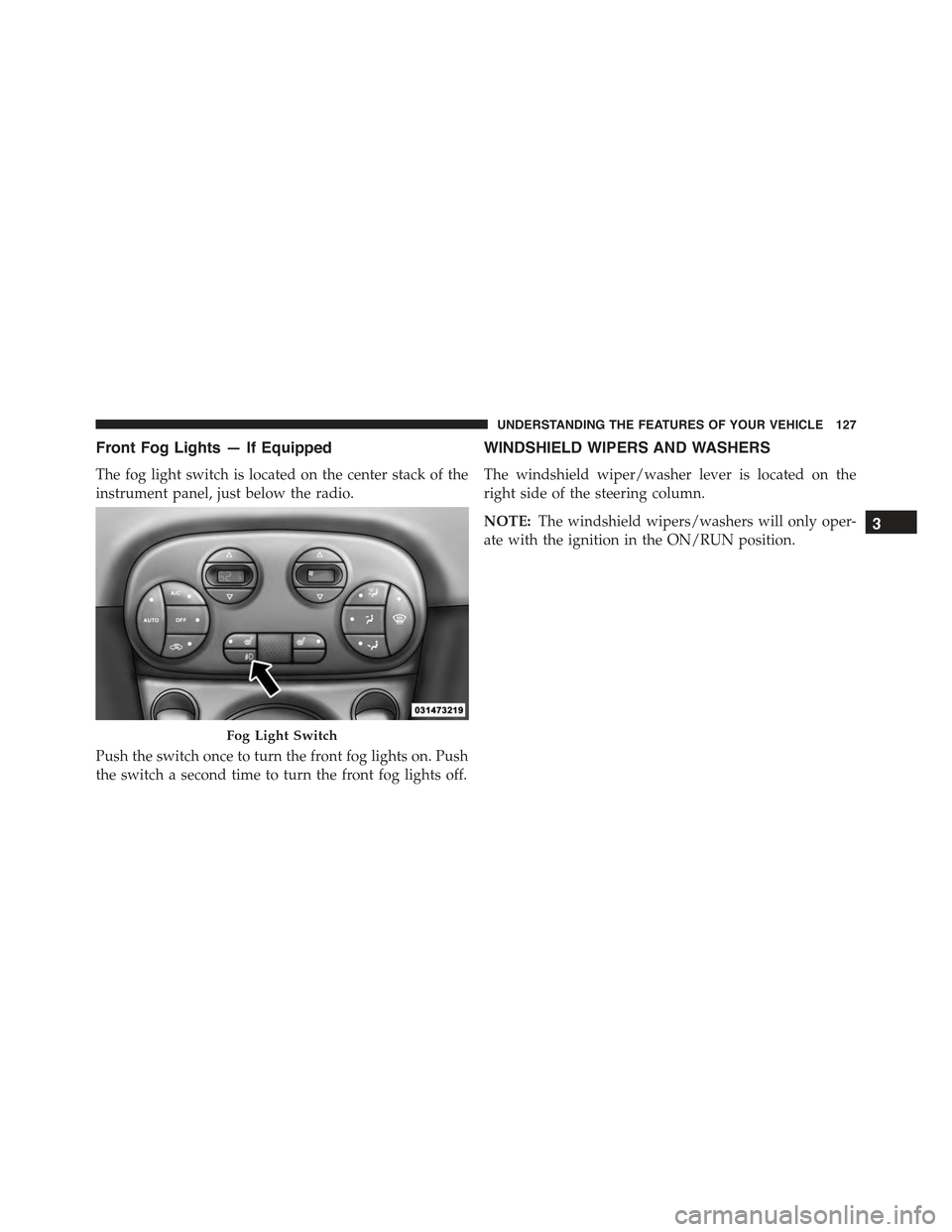

FIAT 500E 2015 2.G Owners Manual Front Fog Lights — If Equipped
The fog light switch is located on the center stack of the
instrument panel, just below the radio.
Push the switch once to turn the front fog lights on. Push
the switc

Page 130 of 367

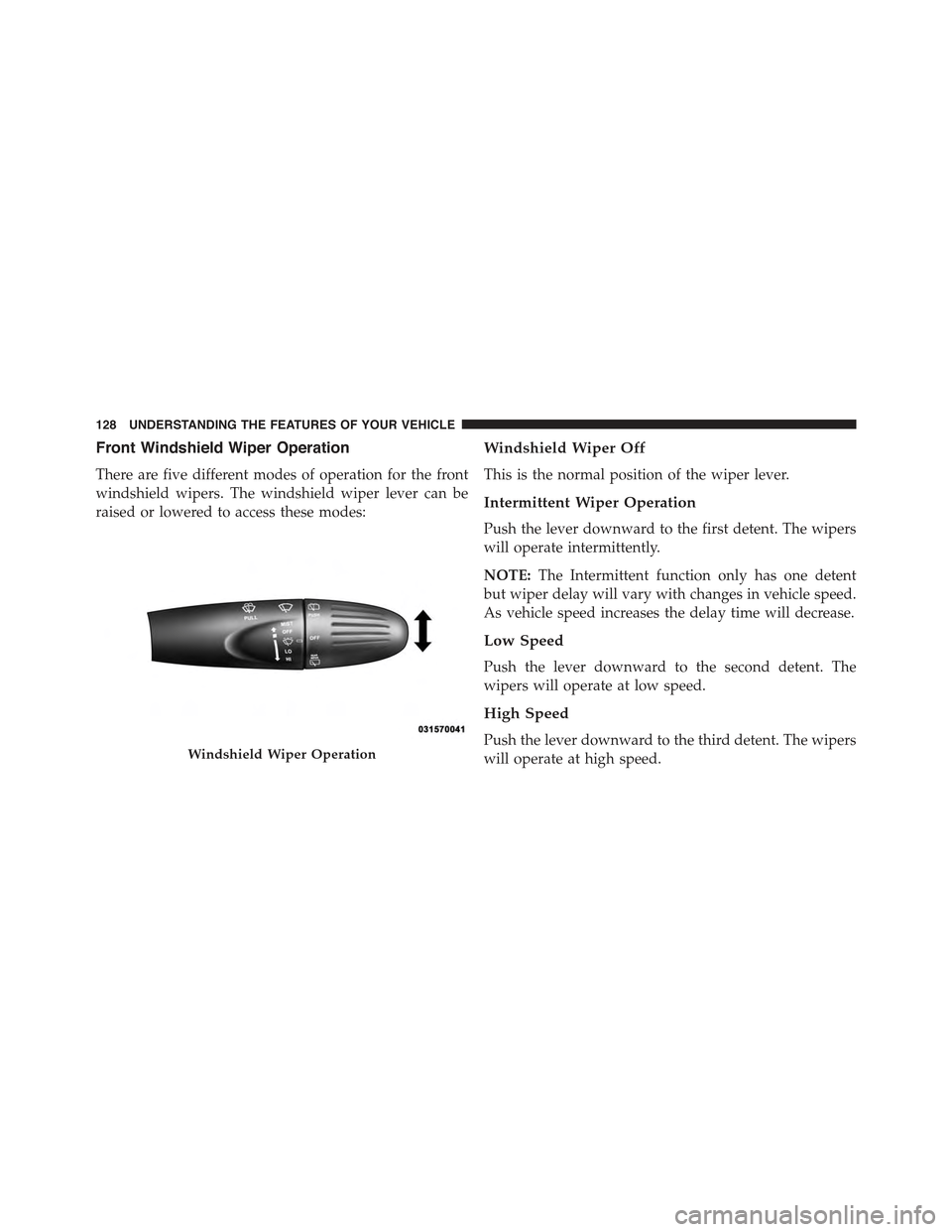

FIAT 500E 2015 2.G Owners Manual Front Windshield Wiper Operation
There are five different modes of operation for the front
windshield wipers. The windshield wiper lever can be
raised or lowered to access these modes:
Windshield Wipe

Page 131 of 367

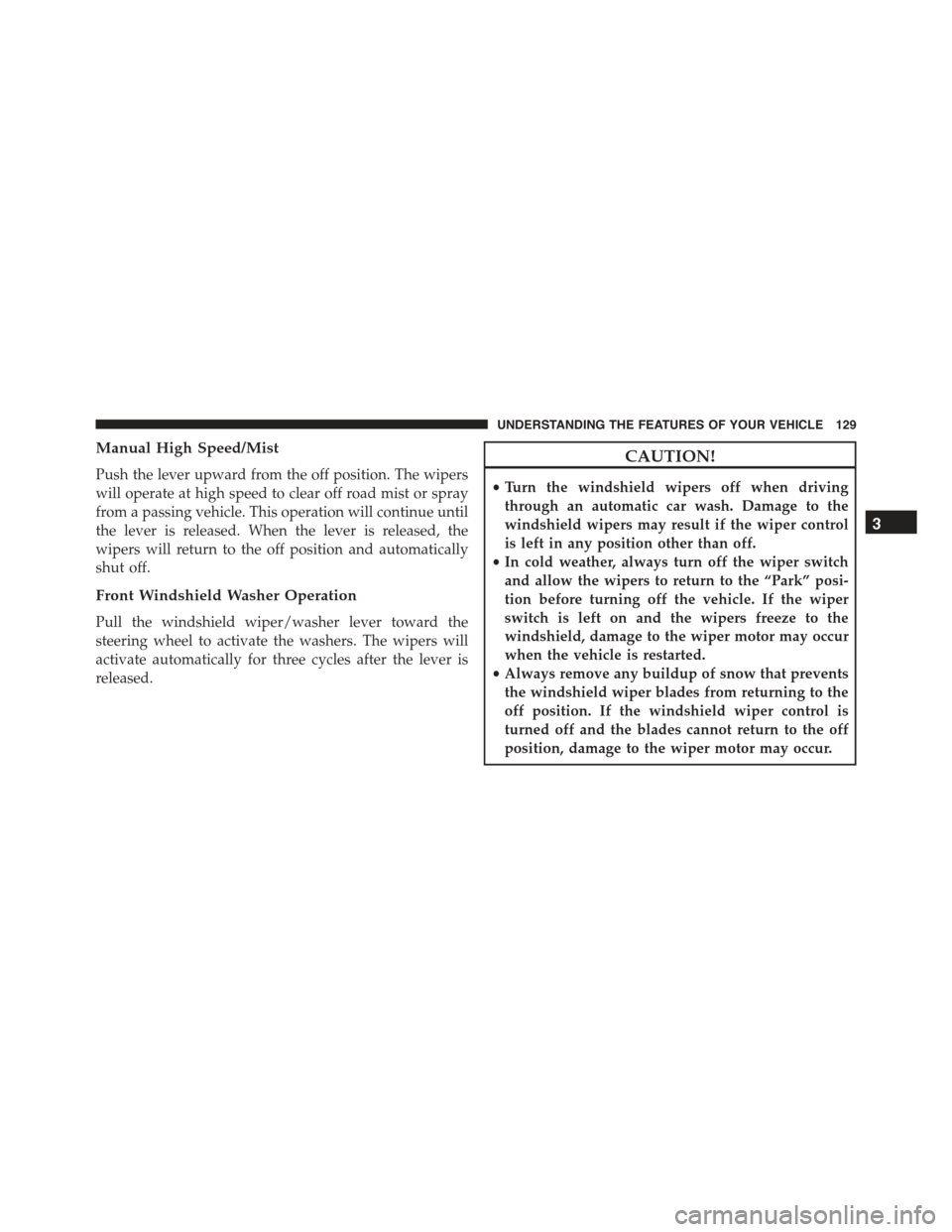

FIAT 500E 2015 2.G Owners Manual Manual High Speed/Mist
Push the lever upward from the off position. The wipers
will operate at high speed to clear off road mist or spray
from a passing vehicle. This operation will continue until
the

Page 132 of 367

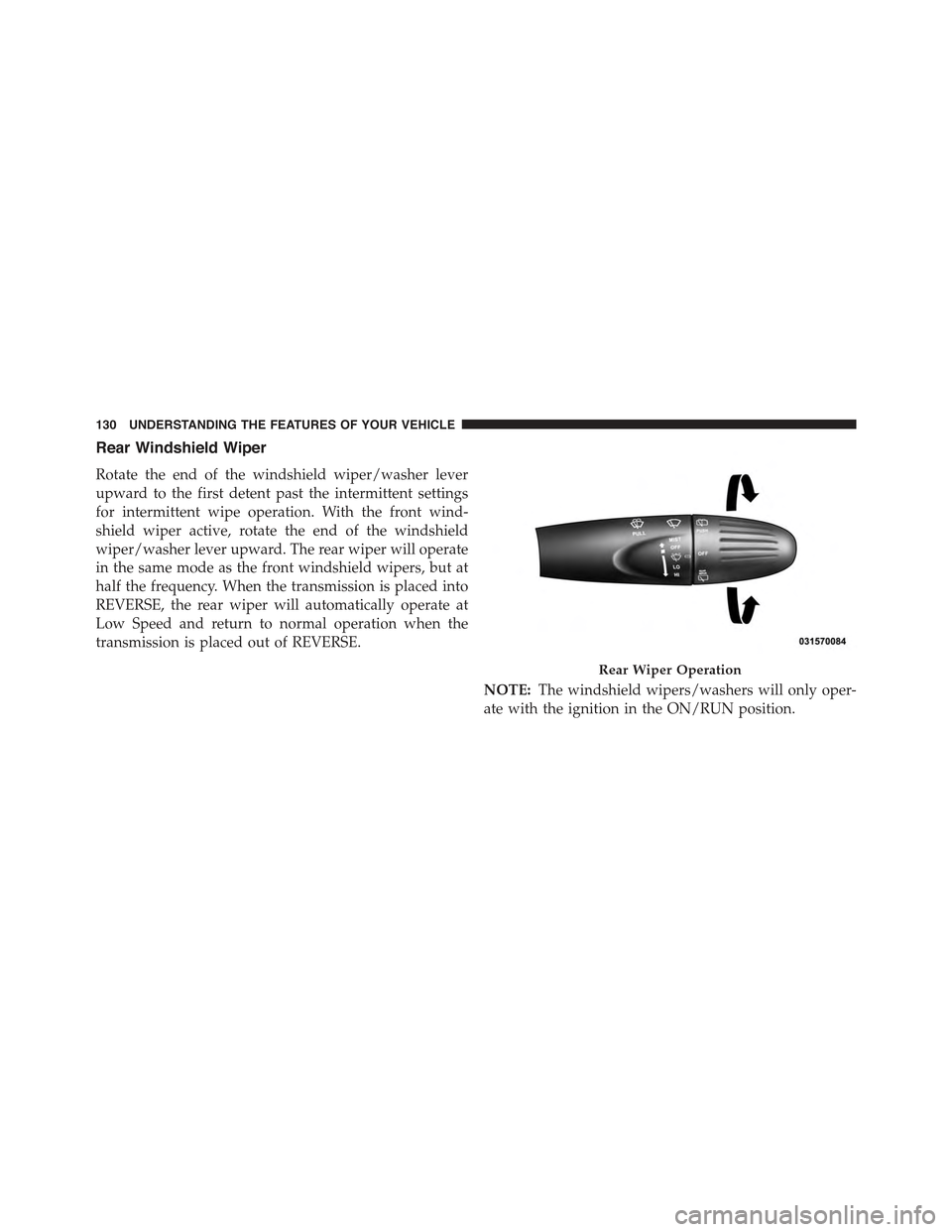

FIAT 500E 2015 2.G Owners Manual Rear Windshield Wiper
Rotate the end of the windshield wiper/washer lever
upward to the first detent past the intermittent settings
for intermittent wipe operation. With the front wind-
shield wiper a

Page 133 of 367

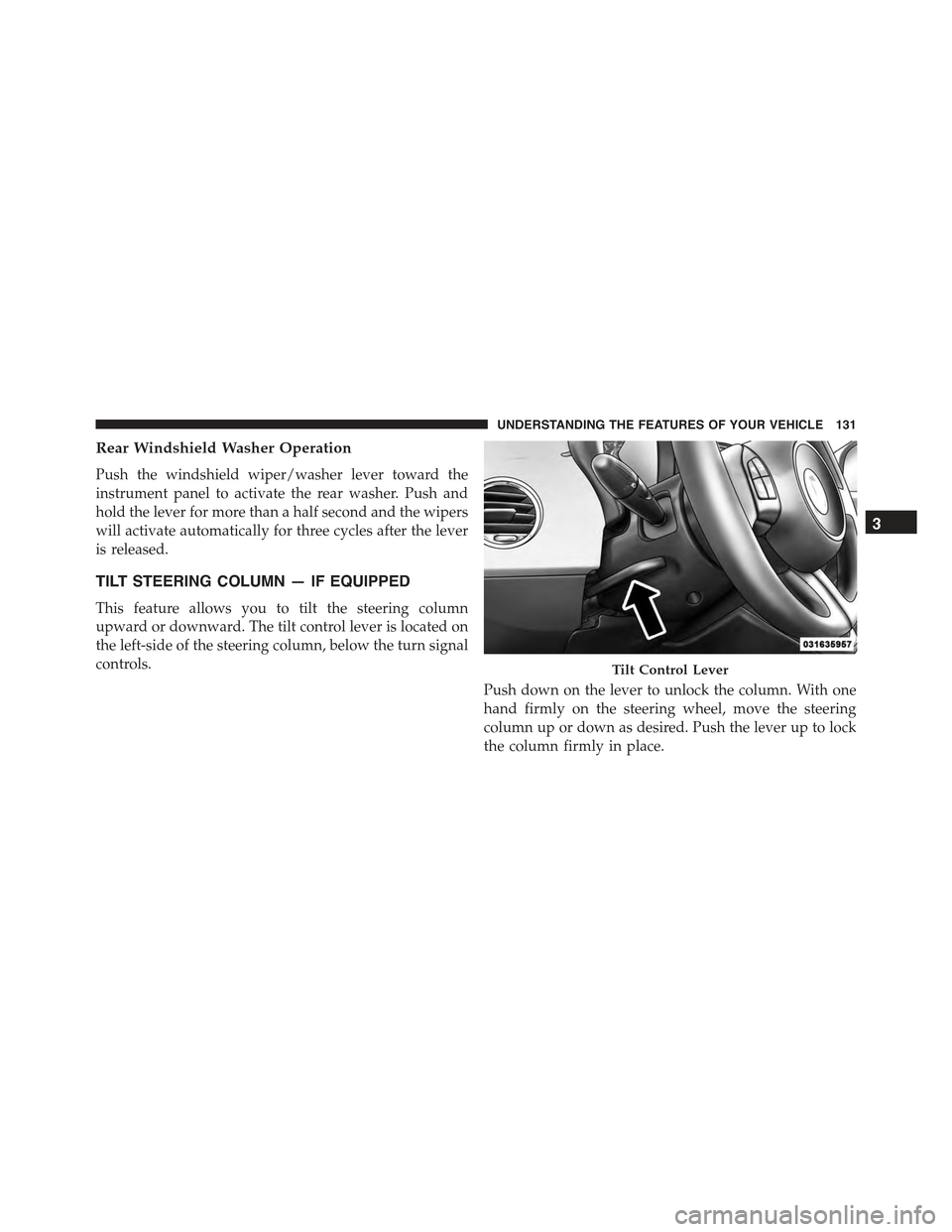

FIAT 500E 2015 2.G Owners Manual Rear Windshield Washer Operation
Push the windshield wiper/washer lever toward the
instrument panel to activate the rear washer. Push and
hold the lever for more than a half second and the wipers
will

Page 134 of 367

FIAT 500E 2015 2.G Owners Manual WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause
the driver to lose control of the vehi

Page 135 of 367

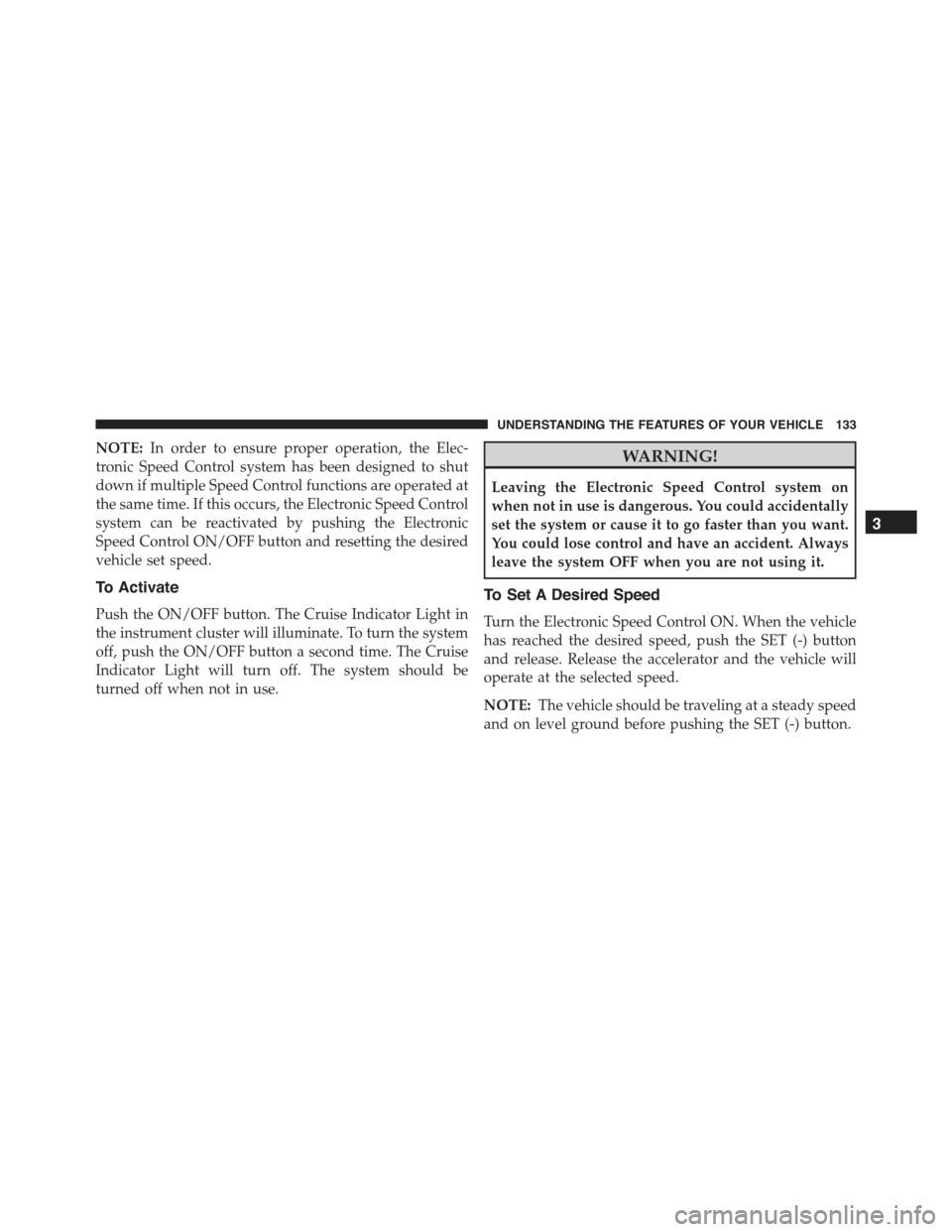

FIAT 500E 2015 2.G Owners Manual NOTE:In order to ensure proper operation, the Elec-
tronic Speed Control system has been designed to shut
down if multiple Speed Control functions are operated at
the same time. If this occurs, the El

Page 136 of 367

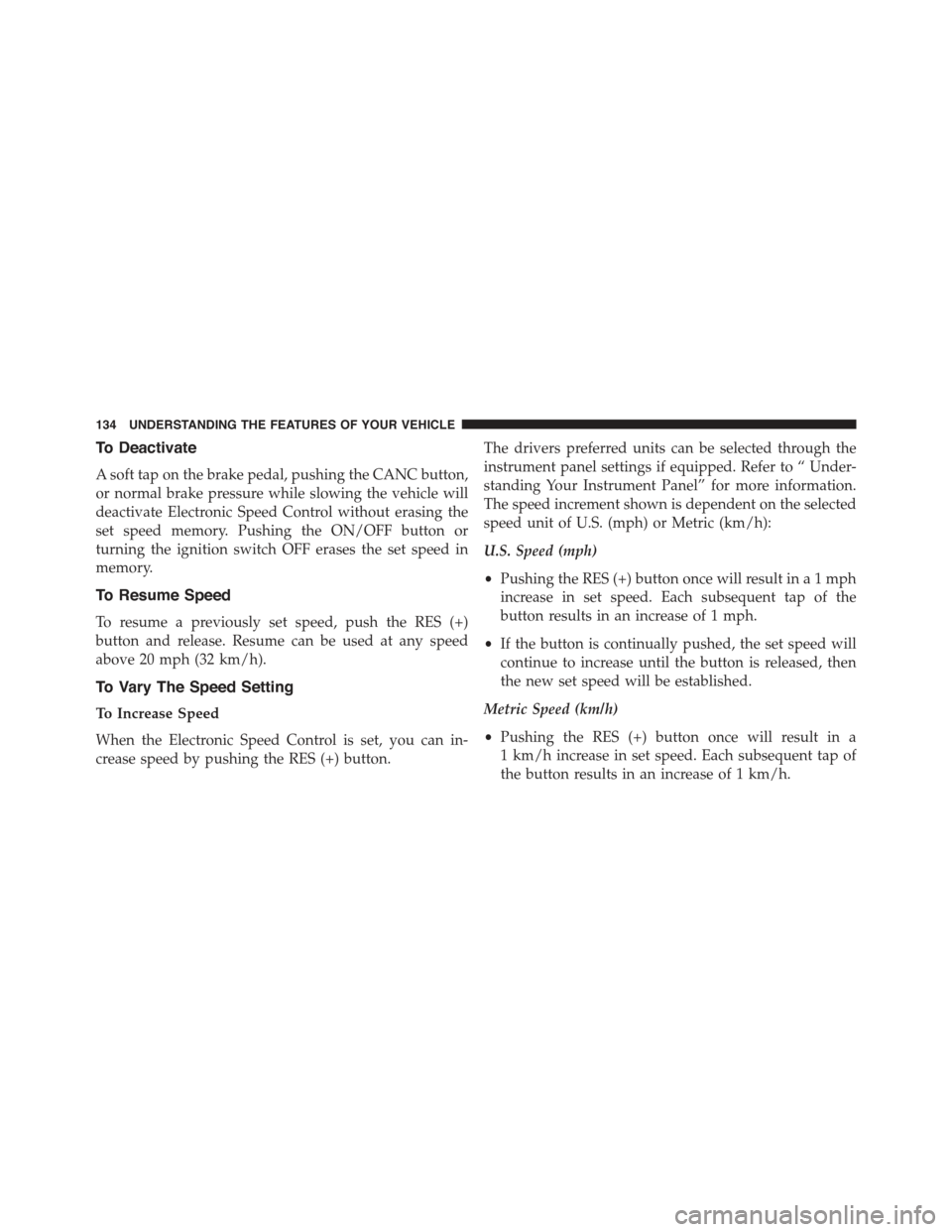

FIAT 500E 2015 2.G Owners Manual To Deactivate
A soft tap on the brake pedal, pushing the CANC button,
or normal brake pressure while slowing the vehicle will
deactivate Electronic Speed Control without erasing the
set speed memory.
