2015 AUDI S3 SEDAN Owners Manual

M N
0 > co ,...., \!) ..,.,
..,.,
..,., ,....,

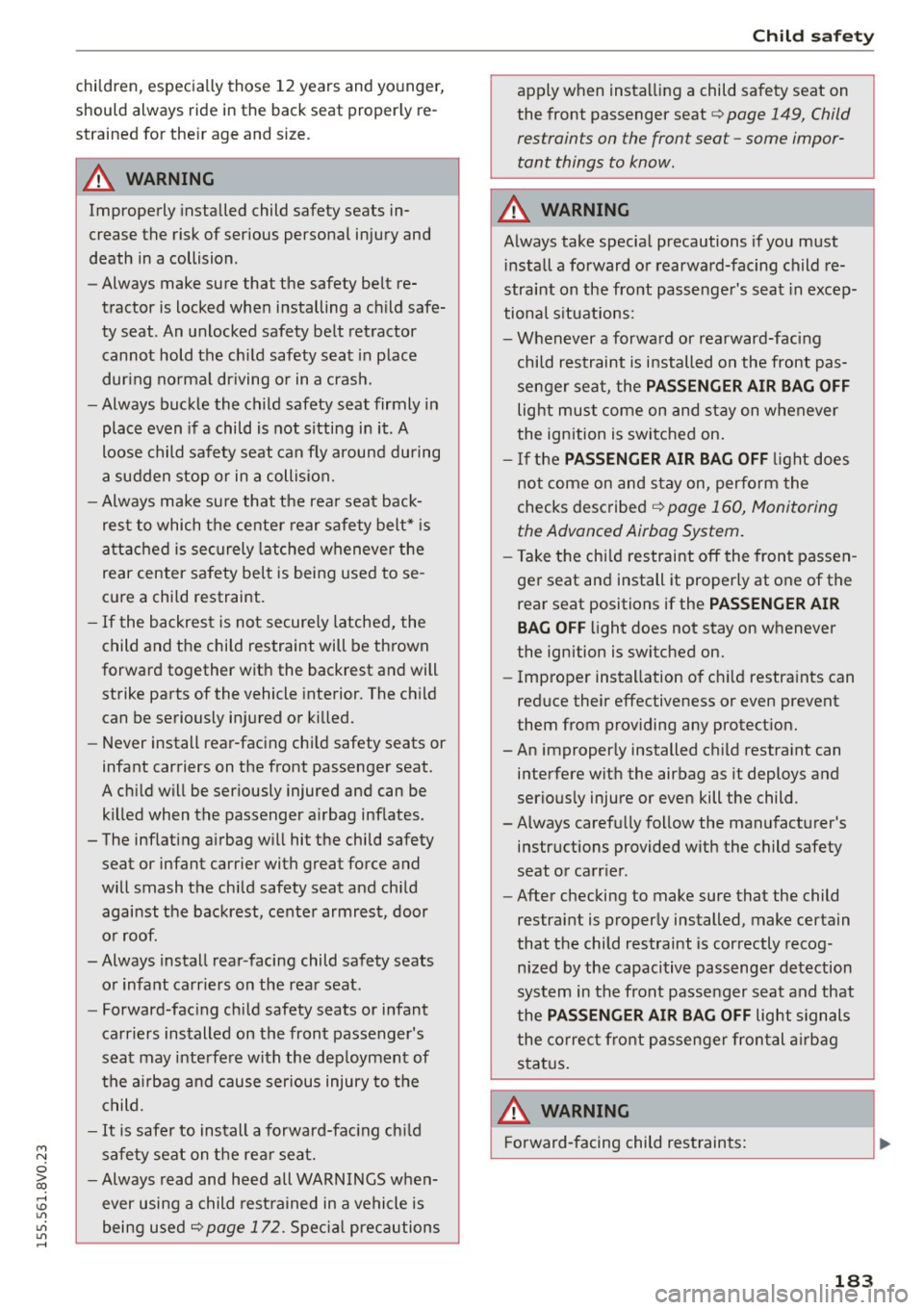

children, especially those 12 years and younger,
should always ride in the back seat properly re­
strained for their age and size.
A WARNING
-
Improperly installed child safety seats in­
crease the risk of serious personal injury and
death in a collision.
- Always make sure that the safety belt re­
tractor is locked when installing a child safe­
ty seat. An unlocked safety belt retractor
cannot hold the child safety seat in place
during normal driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it . A
loose child safety seat can fly around during
a sudden stop or in a collision.
- Always make sure that the rear seat back­
rest to which the center rear safety belt* is
attached is securely latched whenever the
rear center safety belt is being used to se­
cure a child restraint.
- If the backrest is not securely latched, the
child and the child restraint will be thrown
forward together with the backrest and will strike parts of the vehicle interior. The child
can be seriously injured or killed.
- Never install rear-facing child safety seats or
infant carriers on the front passenger seat.
A child will be seriously injured and can be killed when the passenger airbag inflates.
- The inflating airbag will hit the child safety seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
- Always install rear-facing child safety seats or infant carriers on the rear seat.
- Forward-facing child safety seats or infant
carriers installed on the front passenger's
seat may interfere with the deployment of
the airbag and cause serious injury to the child.
- It is safer to install a forward-facing child
safety seat on the rear seat.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used
r:::> page 172 . Special precautions
Child safety
apply when installing a child safety seat on
the front passenger seat
r:::> page 149, Child
restraints on the front seat -some impor­
tant things to know .
A WARNING
Always take special precautions if you must
install a forward or rearward-facing child re­
straint on the front passenger's seat in excep­
tional situations:
- Whenever a forward or rearward-facing
child restraint is installed on the front pas­
senger seat, the
PASSENGER AIR BAG OFF
light must come on and stay on whenever
the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks described
r:::> page 160, Monitoring
the Advanced Airbag System.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on.
- Improper installation of child restraints can
reduce their effectiveness or even prevent
them from providing any protection.
-An improperly installed child restraint can interfere with the airbag as it deploys and
seriously injure or even kill the child.
-Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- After checking to make sure that the child
restraint is properly installed, make certain
that the child restraint is correctly recog­ nized by the capacitive passenger detection
system in the front passenger seat and that
the
PASSENGER AIR BAG OFF light signals
the correct front passenger frontal airbag
status.
A WARNING
Forward-facing child restraints:
-
183

Child safety
-Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
- Never put the forward-facing child restraint
up, aga inst or very near the instrument pan­
el.
- Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the for­
ward-fac ing child restraint. The backrest
must be adjusted to an upright posit ion.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
_&. WARNING
Rearward-fac ing ch ild restra ints:
- A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad ­
vanced Airbag System .
- T he inflating airbag wil l hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and child
against the backrest, center armrest, door
or roof.
- Always be especially carefu l if you must in­
stall a rearward facing child safety seat on
the front passenger seat in exceptional cir­
cumstances.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the t ime
whenever the ignition is switched on .
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immed iately in­
stall the rear-fac ing ch ild safety seat in a
rear seating position and have the airbag
system inspected by your Aud i dealer.
184
· Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint.
Always heed the child safety seat manufacturer's
instructions when installing a child restraint in
your vehicle . T o activate the convert ible locking
retractor:
.. Place the child restraint on a seat, preferably on
the rear seat .
.. Slowly pull the belt
all the way out.
.. Route it around or through the child restraint
belt pat h
c::> ,&..
.. Push the ch ild safety seat down with your full
weight to get the safety belt really tight.
.. Insert the belt tongue into the buckle for that
seating position.
.. Guide the safety be lt back into the retractor un­
til the belt lies flat and snug on the ch ild safety
seat.
.. You should hear a "clicking" noise as the belt
w inds back into the inertia reel. Test the con­
vert ible lock ing retractor by pulling on the belt .
You should no longer be able to pull the belt
out of the ret ractor. The convertible locking re­
tractor is now activated .
.. Make sure that the red release button is facing
away from the child restraint so that it can be
unbuckled quickly .
.. Pull on the belt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward or s ideways more than
one inch (2 .5 cm).
_&. WARNING
Using the wrong child restraint or an improp­
erly installed child restraint can cause serious
personal injury or death in a crash.
- Always make sure that the safety belt re­
tractor is loc ked when insta lling a child safe­
ty seat. An unlocked safety belt retractor
cannot hold the child safety seat in place
during normal driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a chi ld is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a crash.
.

M N
0 > co ,...., \!) 1.1'1
1.1'1
1.1'1
,....,

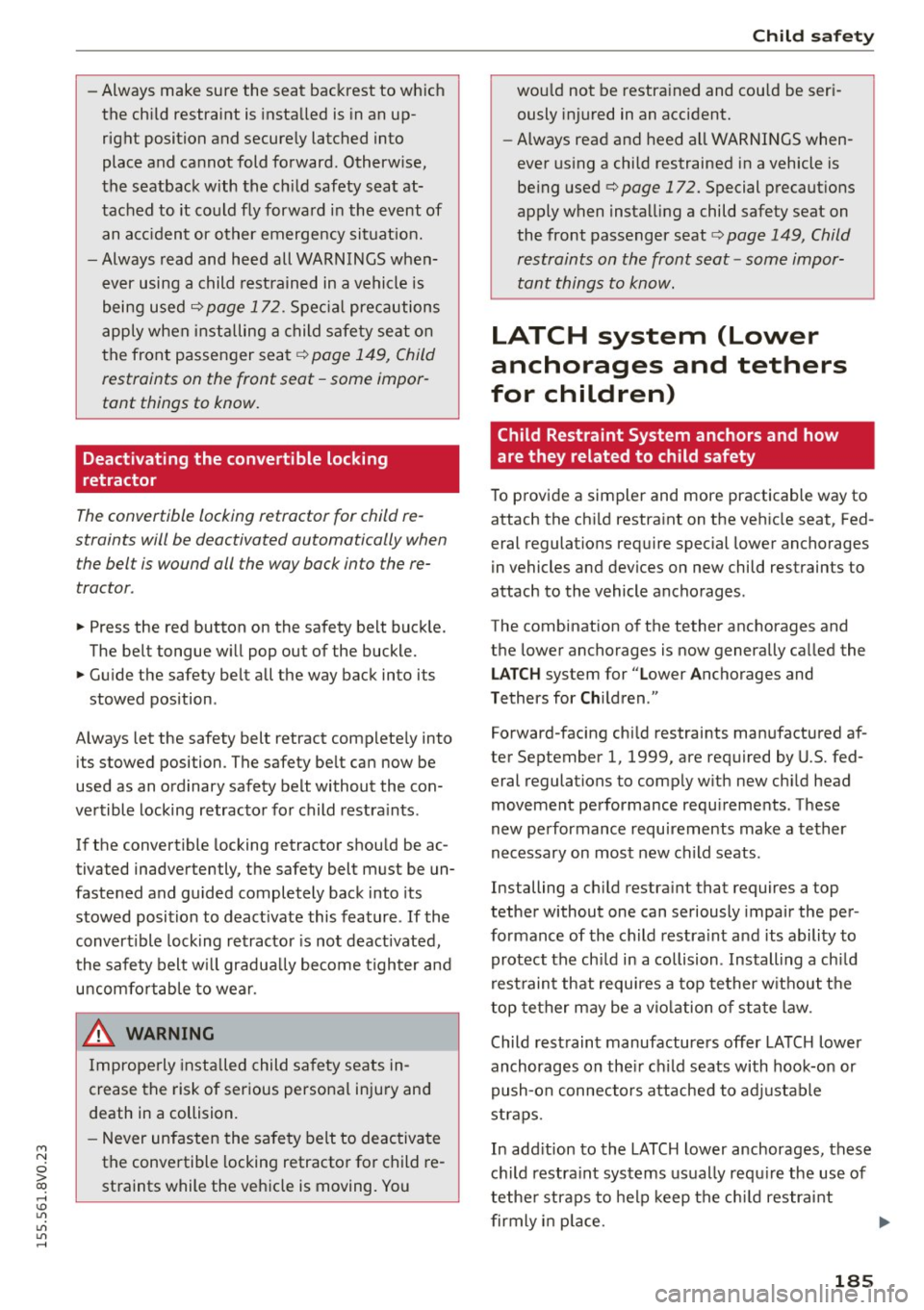

-Always make sure the seat backrest to which
the ch ild restraint is installed is in an up­
right position and securely latched into
place and cannot fold forward. Otherw ise,
the seatback with the ch ild safety seat at­
tached to it co uld f ly forward in the event of
an acc ident or o ther emergency si tuat ion.
- Always read and heed all WARNINGS when­
ever using a child rest rained in a vehicle is
being used
r=;, page 172. Spec ia l precautions
apply when ins talling a child s afety se at on
the front passenger seat¢
page 149, Child
restraints on the front seat -some impor­
tant things to know.
Deactivating the convertible locking
retractor
The convertible locking retractor for child re­
straints will be deactivated automatically when
the belt is wound all the way back in to the re­
tractor .
~ Press the red button on the safety belt buck le.
The belt tongue will pop out of the buckle.
~ Guide the safety belt all the way back into its
stowed position .
Always let the safety belt retract comp lete ly into
its stowed position . The safety be lt can now be
used as an ordinary safety belt without the con­
ve rtible locking retrac to r fo r child restra ints .
If the convert ible locking retractor shou ld be ac­
tivated inadvertently, the safety belt must be un­
fastened and gu ided completely back into its
stowed position to deact ivate this feature .
If the
convert ible lock ing retractor is not deactivated,
the safety belt w ill gradua lly become tighter and
uncomfo rt a ble to wear .
_& WARNING
-
Imprope rly insta lled child sa fe ty se ats in­
crease the risk of ser ious personal inju ry and
death in a co llision.
- Never unfasten the sa fe ty belt to deac tiva te
the conve rtible locking retractor for child re­
straints while the veh icle is moving. You
Child sa fety
wou ld not be restra ined and cou ld be ser i­
ously injured in an accident.
- Always read and heed all WAR NINGS when­
ever using a child restrained in a vehicle is
be ing used
¢ page 172. Special precaut ions
apply when install ing a child safety seat on
the front passenger seat
c:> page 149, Child
restraints on the front seat -some impor­
tant things to know .
LATCH system (Lower
anchorages and tethers
for children)
Child Restraint System anchors and how
are they related to child safety
T o provide a simpler and more practicable way to
attach the ch ild restra int on the veh icle seat, Fed ­
eral regulations require special lower anchorages
in vehicles a nd devices on new child restraints to
attach to the vehicle anchorages .
The combination of the tether anchorages and
the lower anchorages is now generally ca lled the
LATCH system f or " Lower Anchorages and
T ethers for Child ren ."
Forward -facing chi ld restraints manufactured af ­
ter September 1, 1999, are requ ired by U.S. fed­
eral regulations to comp ly w ith new ch ild head
movement performance requ irements . These
new pe rformance requ irements make a te ther
necessary on most new ch ild seats .
Installing a ch ild restra int that requires a top
tethe r without one can seriously impair the per­
fo rmance of the child restra int and its ability to
protect the ch ild in a co llision . Installing a ch ild
r est rain t that requ ires a top te ther w it h out t he
top tether m ay be a vio lation o f st ate l aw .
Child rest raint manufacturers offer LA T CH lower
anchorages on the ir chil d seats with hook-o n or
push-on connec tors attached to adjustab le
str aps.
In add ition to the LATCH lower anchorages, these
c hi ld restra int systems usually requ ire the use of
te the r straps to he lp keep the c hild restra int
firmly in pla ce. .,..
185

Child safety
_& WARNING
Improper installation of child restraints will
increase the risk of injury and death in a crash.
- Always follow the instructions provided by
the manufacturer of the child restraint you
intend to install in your vehicle.
- Never install a child restraint without a properly attached top tether strap if the
child restraint manufacturer's instructions
require the top tether strap to be used .
- Improper use of child restraint LATCH lower
anchorage points can lead to injury in a colli­
sion. The LATCH lower anchorage points are
designed to withstand only those loads im­
posed by correctly fitted child restraints .
- Never mount two child restraint systems on
one LATCH lower anchorage point .
- Never secure or attach any luggage or other
item to the LATCH lower anchorages .
(D Tips
-In Canada, the terms "top tether" with
"lower universal anchorages" (or "lower uni­
versal anchorage bars") are used to describe
the system.
- In other countries, the term "ISO FIX" is
used to describe the lower anchorages.

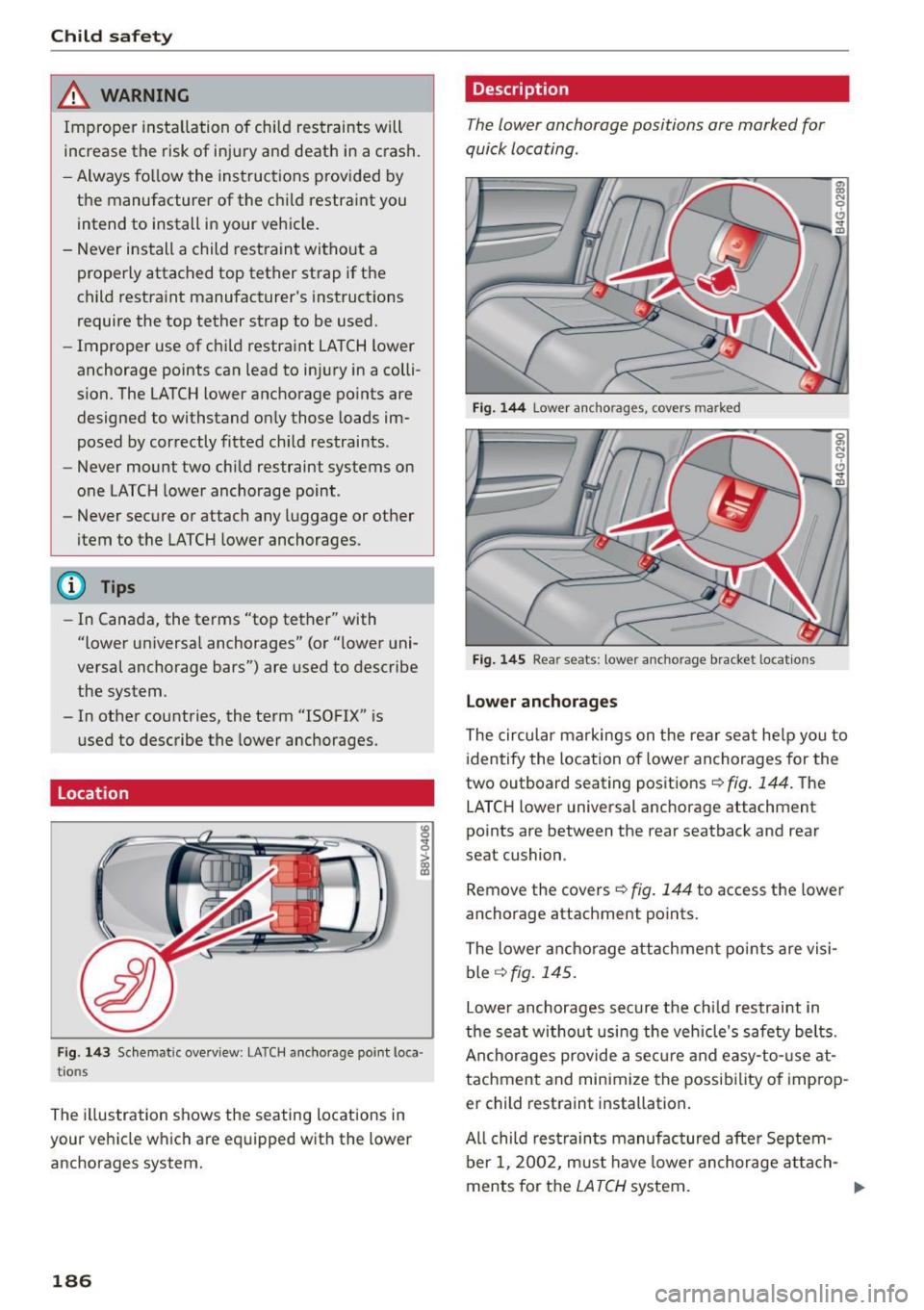

Location
Fig. 143 Schemat ic overv iew : LATCH an cho rage po int lo ca ·
tio ns
The illustrat ion shows the seat ing locations in
your vehicle which are equipped with the lower
anchorages system.
186
Description
T he lower an chorage positions are marked for
quick locating .
Fig. 144 Lower an cho rag es, cov ers m ark ed
Fig. 145 Rear se ats : low er an cho rage bra cke t lo cation s
Lower anchorages
The circular markings on the rear seat help you to
ident ify the location of lower anchorages for the
two outboard seating positions~
fig. 144. The
LATCH lower universal anchorage attachment
points a re between the rear seatback and rear
seat cushion .
Remove the covers~
fig. 144 to access the lower
anchorage attachment points.
The lower anchorage attachment points are visi­
ble
~ fig. 145.
Lower anchorages secure the child restraint in
the seat without using the vehicle's safety belts.
Anchorages provide a secure and easy-to-use at­
tachment and m inimize the possibility of improp ­
er child restraint installation.
All child restraints manufactured after Septem­
ber 1, 2002, must have lower anchorage attach-
ments for the
LATCH system. ..,.

M N
0 > co
Please remember that the lower anchorage
points are only intended for installation and at­
tachment of child restraints specif ica lly certif ied
for use w ith
LATCH l ower anchorages . Child re­
straints that are not equipped w ith the lower an­
chorage attachments can still be installed in
compliance w ith the child rest raint manufactur­
er 's instructions on using vehicle safety belts .
.8, WARNING
Improper use of LATCH lower anchorages can
cause serious personal injury in an accident.
- Always ca refully fo llow the ch ild restra ints
man ufactu rer's instr uctio ns for proper i n­
sta llation of the child restrain t and proper
u se of the lower anchorages or safety belts
in yo ur vehicle.
- Never se cure o r attach any l uggage or other
items to the
LATCH lower anchorages .
- Always read and heed the impor tan t infor­
mation about child restraints in this chapter
and WARNINGS
¢ page 172, Child safety.

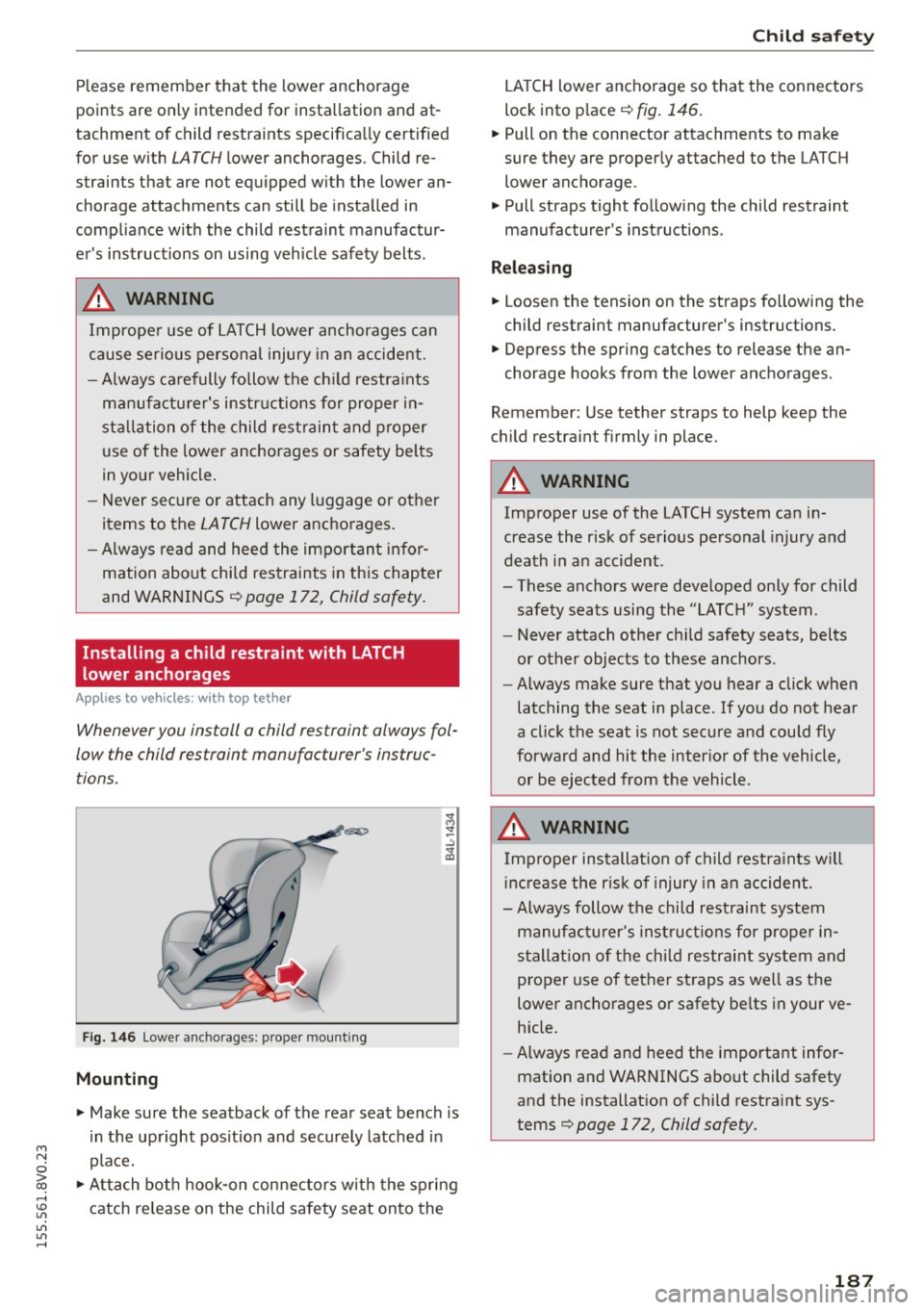

Installing a child restraint with LATCH
lower anchorages
App lies to vehicles: with top tether
Whenever you install a child restraint always fol­
low the child restraint manufacturer's instruc­
tions.
F ig . 14 6 Lower anchorages: p roper mount ing
Mounting
.,. Make sure the seatback of the rear seat bench is
in the upright pos ition and secure ly latched in
place.
.,. Attach both hook-on con nectors with the spring
,....,
~ catch release on the child safety seat onto the
Vl
Vl
,....,
Child sa fety
LA TCH lower ancho rage so that the connecto rs
lock into p lace
¢ fig. 146 .
.,. Pull on the connector attachments to make
sure they are properly attached to the LATCH lower anchorage .
.,. Pull straps tight fo llow ing the child restraint
manufacturer's instruct ions .
Releasing
.,. Loosen the tension on the straps following the
child restraint manufacturer's instructions.
.,. Depress the spring catches to release the an­
chorage hooks from the lower anchorages .
Remember: Use tether straps to help keep the
child restra int firmly in place.
.8, WARNING "---Improper use of the LATCH system can in­
crease the r isk of serious pe rsonal injury and
death in an accident.
- These anchors were developed only for child safety seats using the "LATC H" system .
- Never attach other ch ild safety seats, belts
or other objects to these anchors.
- Always make sure that you hear a click when
latching the seat in place. If you do not hear
a cl ick the seat is not sec ure and could fly
forward and hit the inter io r of the vehicle,
or be ejec ted from the vehicle .
.8, WARNING
Improper installat ion of child restra ints w il l
i nc rease the r is k of i njury in an accide nt.
- Always follow the child res traint system
manufac turer's ins truct ions for proper in­
s tallat ion of the ch ild restrai nt system and
proper use of tether straps as we ll as the
lower ancho rages or safety be lts in your ve­
h icle.
- Always read a nd heed t he important infor ­
matio n and WARNINGS about child safety
and the installat ion of child restra int sys­
tems
¢ page 172, Child safety .
187

Child safety

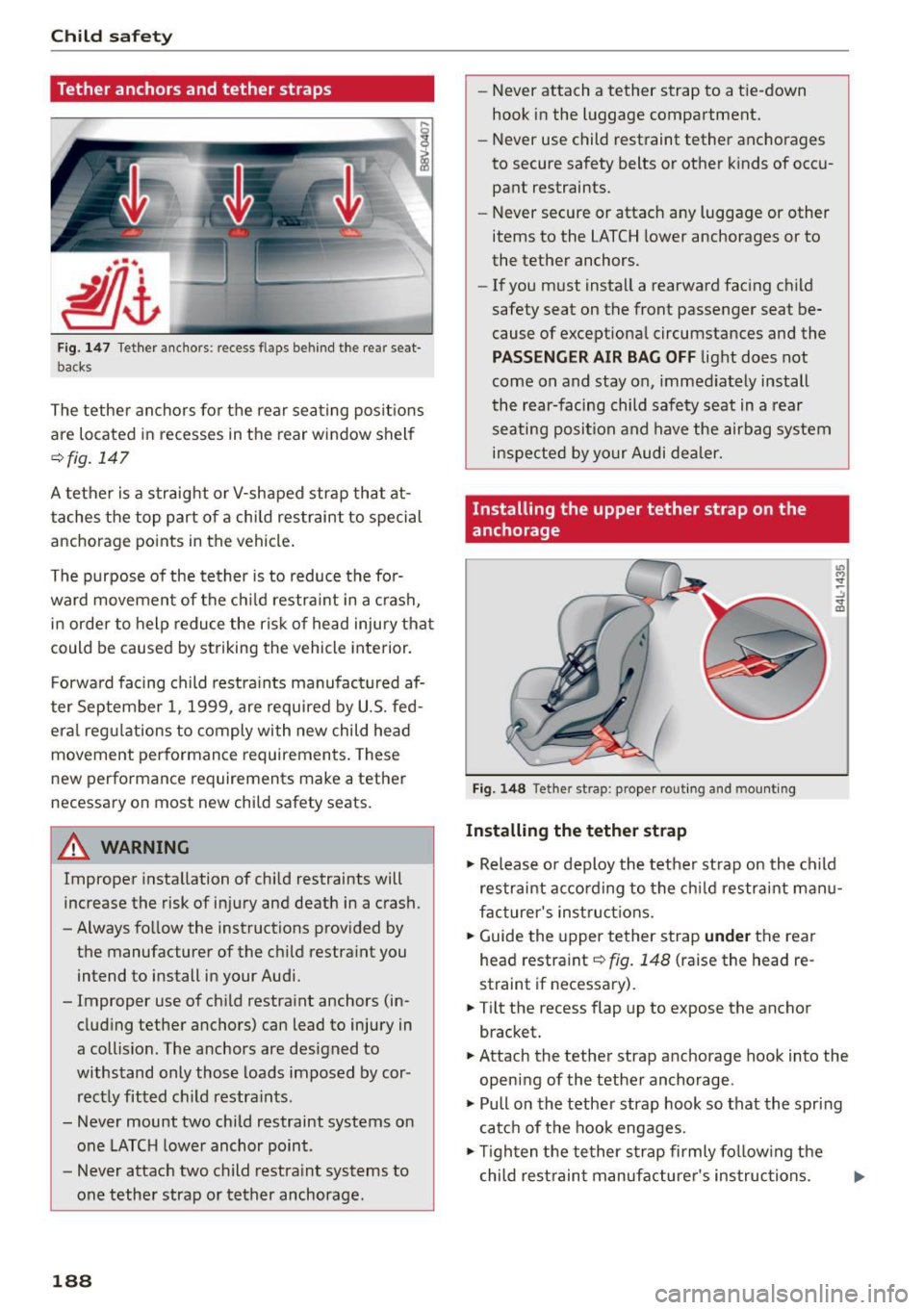

Tether anchors and tether straps
Fig. 147 Tether anchors: recess flaps behind the rear seat­
ba cks
The tether anchors for the rear seating positions
are located in recesses in the rear window shelf
~fig. 147
A tether is a straight or V-shaped strap that at­
taches the top part of a child restraint to special
anchorage points in the vehicle.
The purpose of the tether is to reduce the for­ ward movement of the child restraint in a crash,
in order to help reduce the risk of head injury that
could be caused by striking the vehicle interior.
Forward facing child restraints manufactured af­
ter September 1, 1999, are required by U.S. fed­
eral regulations to comply with new child head
movement performance requirements. These
new performance requirements make a tether
necessary on most new child safety seats.
&_ WARNING
Improper installation of child restraints will
increase the risk of injury and death in a crash.
- Always follow the instructions provided by
the manufacturer of the child restraint you
intend to install in your Audi.
- Improper use of child restraint anchors (in­
cluding tether anchors) can lead to injury in
a collision. The anchors are designed to
withstand only those loads imposed by cor ­
rectly fitted child restraints .
- Never mount two child restraint systems on
one LATCH lower anchor point .
- Never attach two child restraint systems to
one tether strap or tether anchorage.
188
.
- Never attach a tether strap to a tie-down
hook in the luggage compartment.
- Never use child restraint tether anchorages
to secure safety belts or other kinds of occu­
pant restraints.
- Never secure or attach any luggage or other
items to the LATCH lower anchorages or to
the tether anchors.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on , immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your Audi dealer.
Installing the upper tether strap on the
anchorage
Fig. 148 Tether st ra p : proper routing and mounting
Installing the tether strap
11> Release or deploy the tether strap on the child
restraint according to the child restraint manu­
facturer's instructions.
"Guide the upper tether strap
under the rear
head restraint ~
fig. 148 (raise the head re­
straint if necessary) .
"Tilt the recess flap up to expose the anchor
bracket.
"Attach the tether strap anchorage hook into the
opening of the tether anchorage .
11o Pull on the tether strap hook so that the spring
catch of the hook engages.
11> Tighten the tether strap firmly following the
child restraint manufacturer's instructions.

M N
0 > co ,...., \!) 1.1'1
1.1'1
1.1'1
,....,

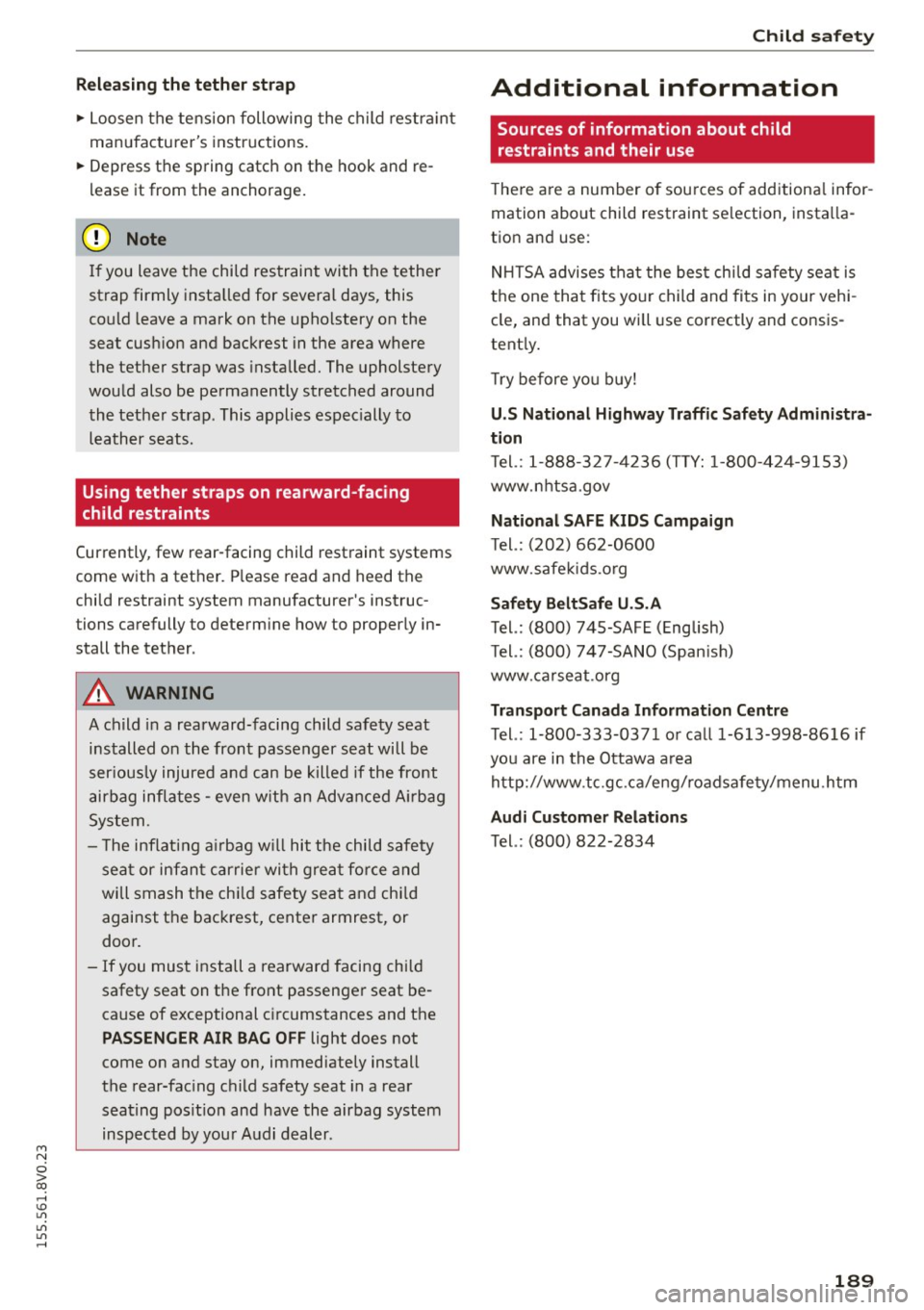

Relea sin g the teth er strap
"' Loosen the tens ion following the child restra int
manufacturer's instructions.
"' Depress the spring catch on the hook and re­
lease it from the anchorage.
(D Note
If you leave the child restraint with the tether
strap firmly insta lled for several days, this
could leave a mark on the upholstery on the
seat cush ion and backrest in the area where
the tether strap was installed. The upholstery
wou ld also be permanently stretched around
the tether strap. This applies espec ially to
leather seats.
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint systems
come with a tether. P lease read and heed the
child restraint system manufacturer's instruc­
tions carefully to determ ine how to properly in­
stall the tether .
A WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
ser iously injured and can be killed if the front
airbag inflates -even w ith an Advanced A irbag
System.
- T he inflating a irbag w ill hit the chi ld safety
s eat or infant carrie r wi th grea t fo rce and
will smash the chi ld safety seat and chi ld
against t he backrest, center armrest, or
doo r.
- If you mus t install a rearward facing chi ld
safety seat on the front passenger seat be­
cause of exceptional c ircumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-fac ing child safety seat in a rear
seat ing pos it ion and have the airbag system
inspected by you r A udi dealer .
Child sa fety
Additional information
Sources of information about child
restraints and their use
T he re a re a number o f sou rces of add itiona l infor­
mation about child restraint se lection, insta lla­
tion and use:
N HT SA advises that the bes t ch ild safety seat is
the one that f its yo ur child and fits in your vehi ­
cle, and that you will use correctly and consis­
tent ly .
T ry before yo u buy!
U.S National Highw ay Traffic Safety Admin istr a­
tion
T el.: 1-888-3 27- 42 36 (TIY: 1-800-424-9153)
www. n htsa .gov
National SAFE KIDS Campaign
Tel.: (202) 662-0600
www.safe kids.o rg
Safety Belt Saf e U.S .A
Tel.: (800) 7 45-SAFE (English)
T el.: (800) 747-SANO (Span ish)
www.carseat .org
Transport Canada Information C entre
Tel.: 1-800-333-0371 o r call 1-613-998-86 16 if
you are in the Ottawa a rea
http://www.tc.gc.ca/e ng/ roadsafety/menu .htm
Aud i Cu stomer R elations
Tel.: (800) 822-2834
189

Checking and F ill in g
Checking and Filling
Gasoline
Fuel supply
App lies to veh icles: w ith gaso line engine
Using the right fuel helps keep the environment
clean and prevents engine damage.
Fuel re co mm en da tion
The fuel recommended for your vehicle is unl ead­
e d prem ium
grade gaso line. Audi recommends
using TOP TIER Detergent Gasoline with a mini­
mum octane rating of 91 AKI (95 RON). For more
information on TOP TIER Detergent Gasoline,
please go to the official website
(www.toptiergas .com).
The recommended gasoline octane rating for
your engine can also be found on a label located on the ins ide of the fuel filler flap . This rating
may be specified as AKI or RON .
Your vehicle may also be operated using unlead­
ed regular gasol ine with a minimum octane rat ­
ing of 87 AKl/91 RON. However, using 87 AKI/
91 RON octane fue l wi ll sli ght ly reduce engine
pe rformance.
U se un leade d ga solin e only . Unleaded gasoline
is available throughout the USA, Canada, and in
most European countries. We recommend that
you do not ta ke you r vehicle to areas or countr ies
where unleaded gasoline may no t be ava ilable.
For more informat ion on refueling your veh icle,
see
¢page 192.
Octan e rat ing
Octane rating indicates a gasoline's ability to re­
sist engine damaging "knock" caused by prema­
ture ignition and detonation . Therefore, buying
the correct grade of gasoline is very important to
he lp prevent possible eng ine damage and a loss
of eng ine performance.
Gasoline most commonly used in the Un ited
States and Canada has the following octane rat­
i n gs that ca n usually be found on the filler pump:
- Prem ium Grade : 91 - 96 AKI
190
- Regular Grade: 87 -90 AKI
Explanation of the abb reviations:
AKI = Anti Knock Index = (R +M)/2 = (RON+MON)/
2
RON= Research Octane Number
MON = Motor Octane Number.
{[) Note
-Do not use any fue l w ith o ctane rat ings low­
er than 87 AKI or 91 RON otherwise expen­
sive engine damage w ill occur .
- Do
not use leaded gasoline. The use of lead­
ed gasoline will severely damage your veh i­
cle's catalytic converter and its abi lity to
control exha ust em issions.
Blended gasoline
App lies to vehicles: wit h gaso line e ngi ne
U se of g aso lin e cont aining alcohol or MTBE
( meth yl tert iary butyl ethe r)
You may use unleaded gasoline blended with al­
cohol or MTB E (commonly referred to as oxygen­
ates) if the ble nded mixture meets the following
criteria:
Blend of gasoline methano l (wood alcohol or
m eth yl alcoho l)
-Anti -knock index must be 87 AKI or h igher.
- Blend must contain no more than 3% metha-
nol.
- Blend must contain more than 2% co-solvents.
Blend of ga solin e and ethan ol (grain alcoh ol or
ethyl alcohol )
- Anti-knock index must be 87 AKI or h igher.
- Blend must not conta in more than 15% etha-
nol.
Blend of ga soline a nd M TBE
- Anti-knock index must be 87 AK I or h igher.
- Blend must contain not more tha n 1S % MTB E.
S eas onall y adjust ed gasoline
Many gasoline grades are blended to perform es­
pecially well for winter or summer dr iv ing . Dur-
i ng seasonal change-over, we suggest tha t you .,..
