-If the power lock ing system should fail, you
can still open the fuel tank flap in an emer­
gency
c::> page 186 .
-You are well advised not to keep valuables
inside an unattended vehicle, v isible or not.
Even a properly locked vehicle cannot pro­
vide the secur ity of a safe.
- If the LED in the upper edge of the driver's
door panel comes on for about 30 seconds
after the vehicle is locked, there is a mal­
funct io n in the power locking or the anti­
theft warning system. Have the malfunction
corrected by an authorized Audi dealersh ip
or qualified repa ir fa cility.
Key set
Fig. 18 Key set
@ Remote cont rol key w ith mechanical key
You can centrally lock and unlock your vehicle and
start the engine wit h the master key with remote
control. A mec hanical key is integ rated in the
master key
c::>page 32 .
@ Emergency key
The emergency key is not intended for constant
use. It should only be used in an emergency, for
example, in place of the ign ition key
c::> page 72. Keep it in a safe place and do not
carry it o n your key ring.
Key replacement
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disabled .
Be sure to bring a ll yo ur keys with you .
Opening and clo sing
Number of keys
You can che ck the number of assigned keys to
yo ur vehicle
c::> page 11 . This allows you to make
s ur e you have received all of the keys when you
purchase a used vehicle.
Data in the mast er key
D uring d riving, service and maintenance- relevan t
da ta is cont in uo usly stored on your master key .
Your Aud i service advise r can read out this data
and te ll you about the work your vehicle needs .
This applies also to vehicles w ith convenience
key*.
Personal comfort settings
If t wo people use one vehicle, it is recommended
that each person always uses "their own" master key. When the ignition is t urned
off or when the
vehicle is locked , persona l convenience settings
for the fo llowing systems are stored and as­
s igned to the remote master key.
- Climate contro l
- Powe r locking system
- Sea t memory*
- Park ing syst em*
-Adapt ive cru ise control*
- Side assist*
- Dr ive se lect*
T he sto red settings are automa tically recalled
when you unlock the vehicle, when yo u open the
doors or when you turn on the ignition.
A WARNING
- Do not leave your vehicle unattended with
the key in the ignition lock. Entry by unau­
thor ized persons could endanger you or re­
sult in theft or damage the veh icle.
- Do not leave ch ildren unattended in the ve­
h icle, especially with access to vehicle keys .
Ungua rded access to the keys provides chil­
d ren the opportunity to start the engine
a nd /or ac tivate vehicle sys tems su ch as the
power wi ndows etc. Uns upervised oper ation
of any vehicle system by chil dren can result
in serious injury.
-
31

"' N
0:: l­oo
rl I.O
"' N
"' rl
Emergency unlocking of the ignition key
In the event of malfunctions in the electrical sys­
tem, it may happen that you cannot remove the
ignition key.
.,. Remove the mechanical key ,=;,page 32.
.,. Lock the veh icle using the mechan ical key
,=;, page 35 .
.,. Have the electrical system inspected by an au­
t h o rized Aud i dea lership.
Locking and unlocking the vehicle with the
remote control
Fig . 2 1 Remote master key: funct ion butto ns
:g ID 0 :i: .,. a,
.,. Press button@ to unlock the veh icle c;, fig. 21 .
.,. Press button @to lock the veh icle c;, A in Gen­
eral description on page 30 .
.,. Press button e:5 briefly to unlock the rear lid .
.,. Press the button
e:5 for at least one second to
open the rear lid .
.,. Push the red
I PANIC I button to activate the
panic funct ion . The horn sounds and the turn
s ignals flash . Push the red
I PANIC ! button aga in
to deactivate the pan ic function .
If the vehicle is unlocked and no door, the rear lid
or the hood is opened w ithin 60 seconds, the ve­
h icle locks itself aga in automatically . This feature
p reven ts the vehicle from be ing accidenta lly left
un locked over a long per iod of time.
It depends on the setti ngs in the radio o r
MM!*
whether the entire vehicle is un locked or only ce r­
tain doors
c;, page 35 .
On ve hicles w ith automatic transmission, these­
lecto r lever must be in the P pos it ion, otherwise
the vehicl e cannot be locked .
Opening and clo sing
A WARNING
-Read and follow all WARNINGS c;, .&. in Gener-
al description on page 30 .
@ Tips
-In orde r to make sure the locking f unction is
work ing, you should a lways keep your eye
on the vehicle to make sure it is properly
locked.
- Do not use the remote control if you are in­
side the car, otherwise you may unintention­
ally lock the vehicle, and then you would set
off the anti-theft alarm when you try to
sta rt t he engine o r open a door. In case this
happens anyhow, pu sh th e unlock button@ .
- Use the pan ic function o nly if yo u are in a n
e m erge ncy si tuat ion.
- Add itiona l remote co ntrol key functions
c;, page 38.
Locking and unlocking with convenience
key
Applies to v ehicles: w ith c onve nienc e key
The doors and the rear lid can be unlocked and
locked without operating the master key .
Fig. 22 Door handle : lock ing the vehicle
Unlocking vehicle
.,. Take hold of the door handle . The door is un-
locked automatically.
.,. Pull the handle to open the door .
Locking vehicle
.,. Move the selector lever to the P position, ot her ­
wise the vehicle cannot be locked.
.,. To lock the veh icle, close the door and touch
the sensor in the door handle
once c> fig. 22
33

Opening and closing
Once the front passenger's door has been closed,
you cannot open it again from the outside. The
door can be opened from the inside by pulling
the door handle.
A WARNING
Read and follow all WARNINGS¢.& in Gener­
al description on page 30.
(D Tips
After the ignition is switched on, the power
locking system switch and the unlocking but­
ton for the rear lid~ in the door are ena­
bled.
Electronic immobilizer
The immobili zer prevents your vehicle from being
started by unauthorized persons .
Inside the key there is a computer chip . This chip
automatically activates/deactivates the electron­ ic immobilizer .
Applies to vehicles with ignition lock:
The electronic immobilizer deactivates automati­
cally when you insert the remote control key into
the ignition lock.
It activates again automatically
when you remove the remote control key from
the ignition lock.
Applies to vehicles with convenience key:
If the remote control key is located inside the ve­
hicle and you press the
! S TAR T ENGINE ST OPI
button, the electronic immobilizer deactivates
automatically . If you swi tch the ignition off and
remove the remote control key from the vehicle,
the electronic immobilizer activates again auto ­
mat ically.
A WARNING
Always take the key with you when you leave
the vehicle. The key can disarm the electronic
eng ine immobilizer and permit an unauthor­
ized person to start the engine and enable op­
eration of the vehicle systems such as power
window or power sunroof leading to serious personal injury.
36
@ Tips
- Th e vehicle cannot be started if an unau­
thorized key is used. The vehicle may not
start if another radio device such as a key
for another vehicle or a transponder is locat­ ed on the key ring.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢ page 239 .
Luggage compartment
lid
Opening/closing rear lid
Fig. 26 Driver 's doo r: remote rear lid r elease
Fig. 27 Rear lid: handle
Opening the rear lid
.. Press the button ~ on the remote control
master key for at least one second. The rear lid
unlocks and opens slightly. Or
.. Pull the release button~ in the driver's door
¢fig. 26. Or
.,. Press the handle on the rear lid¢
fig. 27 .
Closing the rear lid
.. Pull the rear lid down at the grip on the inside
and allow it to drop gently to close it¢ .&_ . .,.

Open in g and cl osin g
"' Pull the switch briefly to the se con d sto p to au­
tomatically close the window.
A WARNING
- When you leave your vehicle -even if only
briefly -always remove the ignition key. This
applies part icularly when children remain in
the vehicle. Otherwise the children could start the engine or operate electr ical equip­
ment (e.g. power w indows). The power win­
dows are functional until the driver's door o r
passenger's door has been opened.
- Pay close atten tion when closing the w in­
dows to prevent pinch ing of hands or limbs.
- When locking the vehicle from outs ide, the
vehicle must be unoccupied since the win­ dows can no longer be opened in an emer­
gency.
(I) Tips
- When you open the doo rs, the windows au­
tomatically lower about 10 mm.
- After the ignition has been switched off, the
windows can st ill be opened or closed for
about 10 m inutes. The window regulators
are not switched until the dr iver's or pas­
senger's door is opened .
Convenience opening/closing
The windows and the panoramic tilting sunroof
can be opened and closed with the mechanical
key or the emergency key.
F ig. 30 Key turns fo r opening a nd clos ing
Conveni ence opening fe ature
"' Use the emergency key or pull the mechanical
key out of the master key
c> page 32 .
38
"'Insert the key into the lock of the driver's door .
"' Turn the key to position ¢
fig. 30 ® unti l all
the windows have reached the des ired pos ition
and the panoramic tilting sunroof is t ilted.
Con veni ence clo sing f eatur e
"'Use the emergency key or pull the mechanical
key out of the master key ¢
page 32.
"'Turn the key in the lock of the driver's door to
the lock position @ unti l the windows and the
panoramic tilting sunroof are closed
c> ,& .
When the panoramic tilting sunroof is tilted/
closed, the electric sun shade* is also opened/
closed.
A WARNING
- Never close the windows and the panoram ic
tilting sunroof inattentively and without
checking -there is risk of injury .
- You must always watch when the w indows
are be ing raised so that no one can be trap ­
ped. If you release the key, the closing ac­
tion is immed iate ly canceled .
- Always read and heed WARN ING
c> A in
General description on page 30.
Correcting window regulator malfunction
After disconnecting the vehicle battery , the one­
touch up and down feature must be activated
agatn.
"' Pull and ho ld the power window sw itch until
the window is completely closed .
"' Release the sw itch and pull the sw itch again for
one second .

M N
0:: l­oo ,...., \!) 1.1"1
N 1.1"1 ,....,

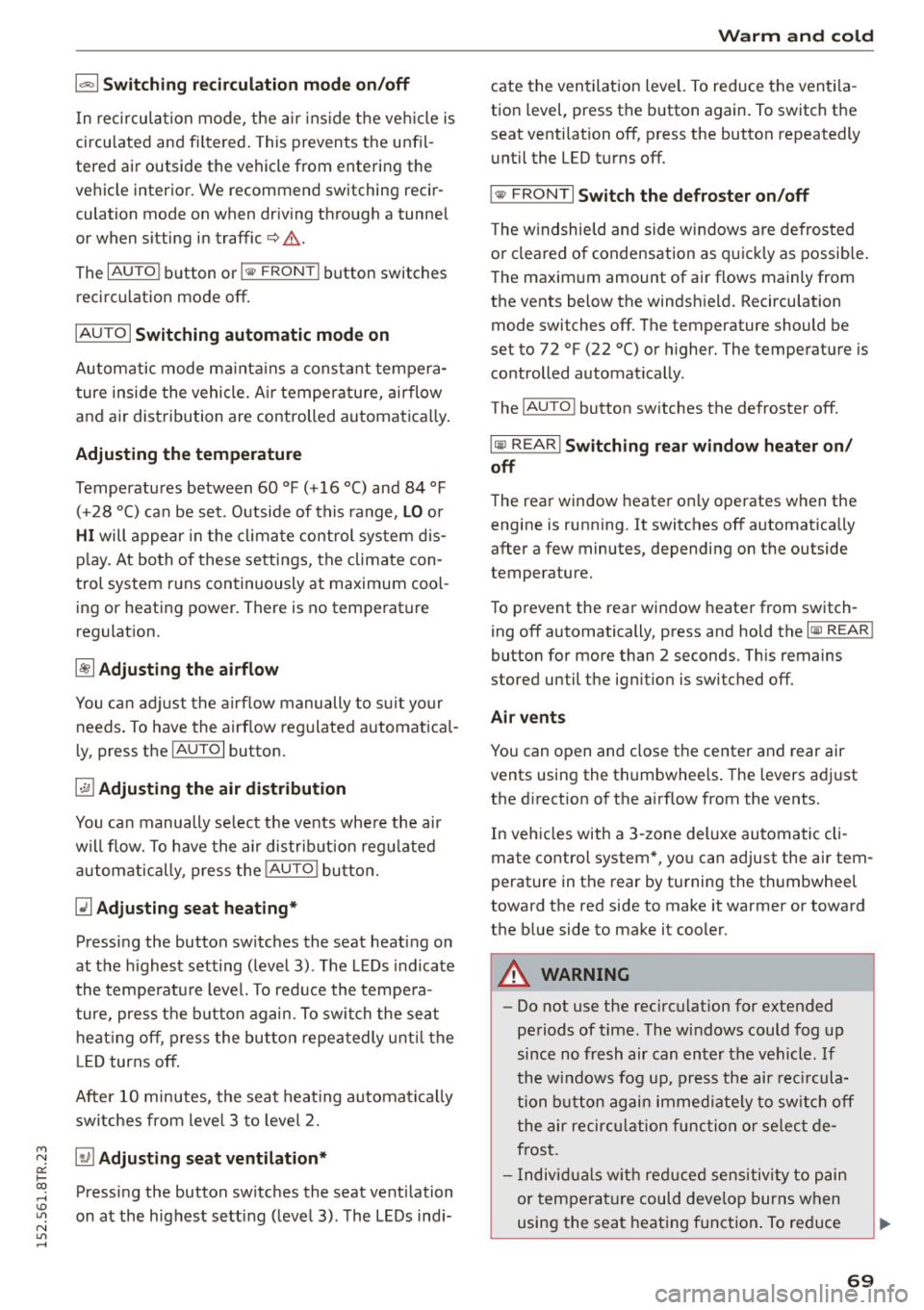

Warm and cold Climate control system
Description
The climate control system warms, cools and
adds humidity to the a ir in the veh icle inter io r.
It
is the most effect ive when the windows and sun­
roof are closed. If there is a build-up of heat in ­
side the vehicle, ventilation can help to speed up
the cooling process.
I n all heating mode functions except
defrost, the
b lower only switches to a higher speed once the
engine coolant has reached a certain tempera­
ture.
Condensat ion from the cooling system can drip
and form a puddle of water unde r the vehicle.
This is normal and does not mean there is a leak.
Pollutant filter
The pollutant filte r removes pollutants such as
dust and pollen from the ai r.
The air pollutants filter must be changed at the
intervals specified in your Warranty & Mainte­
nance booklet, so that the a ir condit ioner can
properly work.
If you drive your vehicle in an area with high air
pollution, the filter may need to be changed
more frequently than spec ified in your Audi Wa r­
ranty
& Maintenance booklet. If in doubt, ask
your authorized Audi Service Adv isor for advice.
Key coded settings
The climate control settings are automat ically
stored and assigned to the remote control key
that is in use.
_&. WARNING
Reduced visibility is dangerous and can cause
accidents .
- For safe dr iv ing it is very important that all
windows be free of ice, snow and condensa­
tion .
Warm and cold
-Comp letely familiarize yourse lf with the
proper use and funct ion of the heating and
ventilation system and especially how to de­
fog and defrost the windows.
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshie ld first, using the heat­
ing and vent ilation system. The washer solu­
tion may freeze on the windsh ield and re­
duce visibility.
(D Note
- If you suspect that the air conditioner has been damaged, sw itch the system off to
avoid further damage and have it inspected
by a qualified dealership.
- Repairs to the Audi air conditioner require
special techn ical knowledge and spec ial
tools. Contact an authorized Aud i dealer for
assistance.
@ For the sake of the environment
By reducing the amount of fuel you use, you
also reduce the amount of pollutants emitted
into the air.
(D Tips
- Keep the air intake slots (in front of the
w indshield) free from ice, snow and debris
in order to main tain the proper function of
the climate control system.
- T he energy management system may switch
the seat heating * or rear window defroster
off temporarily. These systems are avai lab le
again as soon as the energy balance has
been restored.
- Air escapes through vents under the rear
window. When placing items of cloth ing on
the luggage compartment cover, ensure
that the openings are not covered.
67

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
1- 1 Switching recirculation mode on /off
In re circul ation mode, the air inside the ve hicle is
circu lated and fi ltered . This prevents the unfil ­
tered air outside the vehicle from enteri ng the
ve hicle interio r. We recommend sw itching recir ­
culation mode on when dr iv ing through a tunne l
or when sitting in traffic
c> ,& .
The IAU TO I button o r I® FRONT I button switches
reci rc ul ation mode off .
IAUTO I Switching automatic mode on
Automatic mode m ainta ins a con stant tem pera­
ture inside the vehicle. A ir tem per atu re, ai rflow
and a ir distribution are controlled automa tica lly .
Adjusting the temperature
Temperatures between 60 °F (+16 °C) and 84 °F
( + 28 °C) ca n be set. O utside of this range,
LO o r
HI will appear in the climat e control sys tem d is ­
p la y. At bo th of these setti ngs, the climate con­
trol system r uns con tinuously at maximum cool ­
i ng or heating power. There is no tempe rat ure
regulat ion.
[!] Adjusting the airflow
You can a dju st the airflow manu ally to s uit your
needs . To have the airf low reg ulate d automatic al­
l y, press the
IAUTOI button .
~ Adjusting the air distribution
You can manually se lect the vents whe re the air
will flow. To h ave the air distr ibution reg ulated
a utom atic ally, pres s the
!AUTO I bu tto n.
QJ Adjusting seat heating*
Press ing the button switches the seat heat ing on
at the highest set ting (level 3). The LEDs indicate
the tempe ratu re leve l. To red uce the tempe ra­
ture, press the b utt on again . To swi tch the seat
h eat ing off, pres s the bu tto n repea tedly unt il th e
L ED turns off .
Afte r 10 minutes, the seat heat ing automatica lly
sw itches from leve l 3 to leve l 2.
[ill Adjusting seat ventilation*
Pressi ng the button switches the seat venti lation
on at the highest se tt ing ( leve l 3) . T he L EDs ind i-
Warm and cold
cate the ventilat ion leve l. To reduce the vent ila ­
t ion level , press t he b utton again. To switch the
seat venti lation off, press the button repeatedly
u nt il the LED t urns off.
I@ FRONT I Switch the defroster on /off
T he w indshield and side w indows are defros ted
o r cl eared of condensation as q uick ly as possib le .
The maxim um amount of air flows mainly from
the vents below the windsh ield. Recircu lation
mode switches off. The temperature should be
set to 72 °F (22 °C) or higher. The temperature is
controlled automatica lly .
The
! AUTO I button sw itches the defroster off.
lliil REAR I Switching rear window heater on/
off
T he rea r window heate r o nly operates w hen the
engine is running . It switches off a utomat ica lly
after a few minutes, dependi ng on the outside
temperature.
T o p revent the rea r window heate r from switch­
ing off automatically, press and hold the
l oo REAR I
button f or more than 2 sec onds. T his re mains
stored until the ignit io n is switched off.
Air vents
You can open and close t he center and rear air
vents using the thumbwhee ls . T he levers ad just
the d irection of the a irflow from the vents.
In veh icles with a 3-zone deluxe au toma tic cli­
mate control system *, yo u can adjust the air tem­
perature in the rear by tu rning the th umbwheel
toward the red side to make it warmer or toward
t h e b lue side to make it cooler.
A WARNING
-
- Do not use the recirc ulation for extended
peri ods of time. The w indows could fog up
since no fresh air can en ter the vehicle. If
the windows fog up, pre ss the ai r rec ircula­
tion button agai n immed iate ly to sw itch off
the air recir culation func tion or se lec t d e­
frost.
- I ndivi duals w ith re duced s ensi tivi ty to p ain
or tem pera ture could deve lop burns when
using the sea t heat ing f unct ion . To re duce
69

"' N
0:: l­oo
rl I.O
"' N
"' rl
Driving
Steering
Manually adjustable steering wheel
The steering wheel position is fully adjus table up
and down and forward and back .
Fig. 74 Lever under the st eering column
First, adjust the driver's seat correctly.
• Pull the lever~
fig. 74 ~ .&, .
• Move the steering wheel to the desired posi­
tion.
• Push the lever against the steering column un-
til it locks.
There must be at least 10 inches (25 cm) be­ tween your chest and the center of the steering
wheel. If you cannot sit more than 10 inches (25
cm) from the steering wheel, see if adaptive
eq uipment is available to help you reach the ped­
als and increase the distance from the steering
wheel.
Fo r detailed information on how to adjust the
driver's seat, see
~ page 54 .
.&_ WARNING
Improper use of steering wheel adjustment
and improper seating position can cause seri­
ous personal injury.
- Adjust the steering wheel column only when
the vehicle is not moving to prevent loss of
vehicle control.
- Adjust the driver's seat or steering wheel so
that there is a minimum of 10 inches (25
cm) between your chest and the steering
wheel
~page 112, fig. 118 . If you cannot
-
Driving
maintain this minimum distance, the airbag
system cannot protect you properly.
-If phys ical limitations prevent you from sit­
ting 10 inches (25 cm) or more from the
steering wheel, check with your authorized
Audi dealer to see if adaptive equipment is
available.
- If the steering wheel is aligned with your
face, the supplemental driver's airbag can­
not provide as much protection in an acci­
dent. Always make sure that the steering
wheel is aligned with your chest.
- Always hold the steering wheel with your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury if
the driver's airbag deploys.
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub. Holding the steering wheel the
wrong way can cause serious injuries to the
hands, arms and head if the driver's airbag
deploys .
Ignition lock
Starting engine with the key
Applies to vehicles: with ignition lock
The ignition is switched on and the engine start­
ed with the ignition key .
Fig. 75 Igni tion key
Starting the engine
• Insert the key into the ignition lock .
• Step on the brake pedal and move the selector
lever to the P or N position.
• Press the key~
fig. 75 -the engine will start.
71

Driving
Sw itching the ignition on /off
If you would like to switch the ignition o n wit h­
out starting the engine, fo llow these steps:
• Inse rt the key into the ignition lock.
• Press the key brief ly
wi thout p ress ing the b rake
pedal.
• To sw itch the ignition off , press the key again.
When starting the engine, major e lectr ica l loads
are sw itched off temporar ily.
You ca n only remove the key with the ignition
sw itched off .
If the engine should not start immedia tely , the
starti ng process is automatically stopped after a
short time . Repeat sta rting procedure .
A WARNING
-Never allow the engine to run in confined
spaces - dange r of asp hyxiation.
- Never remove the ignition key from the ign i­
t ion loo k while the vehicle is moving . Other­
wise, the steering lock cou ld sudden ly en­
gage and you would not be able to steer the
vehicle.
- Always ta ke the key with yo u wheneve r you
leave your vehi cle. Otherwise, the engine
could be started or electrical eq uipment
s uch as the power windows cou ld be operat­
ed . T his can lead to ser ious injury.
- Never leave ch ildren or persons requiring as­
sistance unattended in the vehicle. The
doors can be locked using the remote trans­
mitter, preventing peop le from escap ing
from the vehicle on their own in the event of an emergency . Depending on the time of
year, people inside the vehicle can be ex­ posed to very high o r very low tempe ra­
t ur es.
([) Note
Avoid high engine rpm, full throttle and heavy
eng ine loads until the eng ine has reached op­
erati ng temperature - otherwise you risk en­
gine dam age.
72
-
@) For the sake of the env ironment
Do not let the engine run while pa rked to
warm up. Begin dr iv ing immediately. Th is re­
d uces unnecessary em iss ions .
@ Tips
-If the key cannot be removed from the igni­
t ion lock, you have to pu ll the mechan ica l
key out of the master key in order to be able
to lock the vehicle
c::, page 33.
- After starting a co ld engine, there may be a
br ief per iod of increased noise because the
oil pressure must first build up in the hy­
draulic valve adjusters. This is norma l and
not a cause fo r concern .
- If you leave the veh icle with the ignition
switched on, the ig nition w ill switch off af­
ter a ce rtain period of t ime . Pleas e note tha t
ele ct rical eq uipme nt such as e xterior lights
w ill switch off a s well when that hap pens.
Starting the vehicle with the emergency
key
Applies to vehicles: with ignition lock
You can use the emergen cy key as an igni tion key
in an emergency.
F ig. 76 Glove co mp art men t: Adapte r fo r em erge ncy key
Fi g. 77 Insert e merg ency key into t he ad ap ter
