425 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEPartly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Front position lights
Turn the bulb base counterclock-
wise.
STEP3
STEP4
STEP5
STEP1

426 4-3. Do-it-yourself maintenance
VERSO-S_EERemove the light bulb.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP2
STEP1
STEP2

427 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEStop/tail lights and rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
STEP1
STEP2
STEP3

428 4-3. Do-it-yourself maintenance
VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2

429 4-3. Do-it-yourself maintenance
4
Maintenance and care

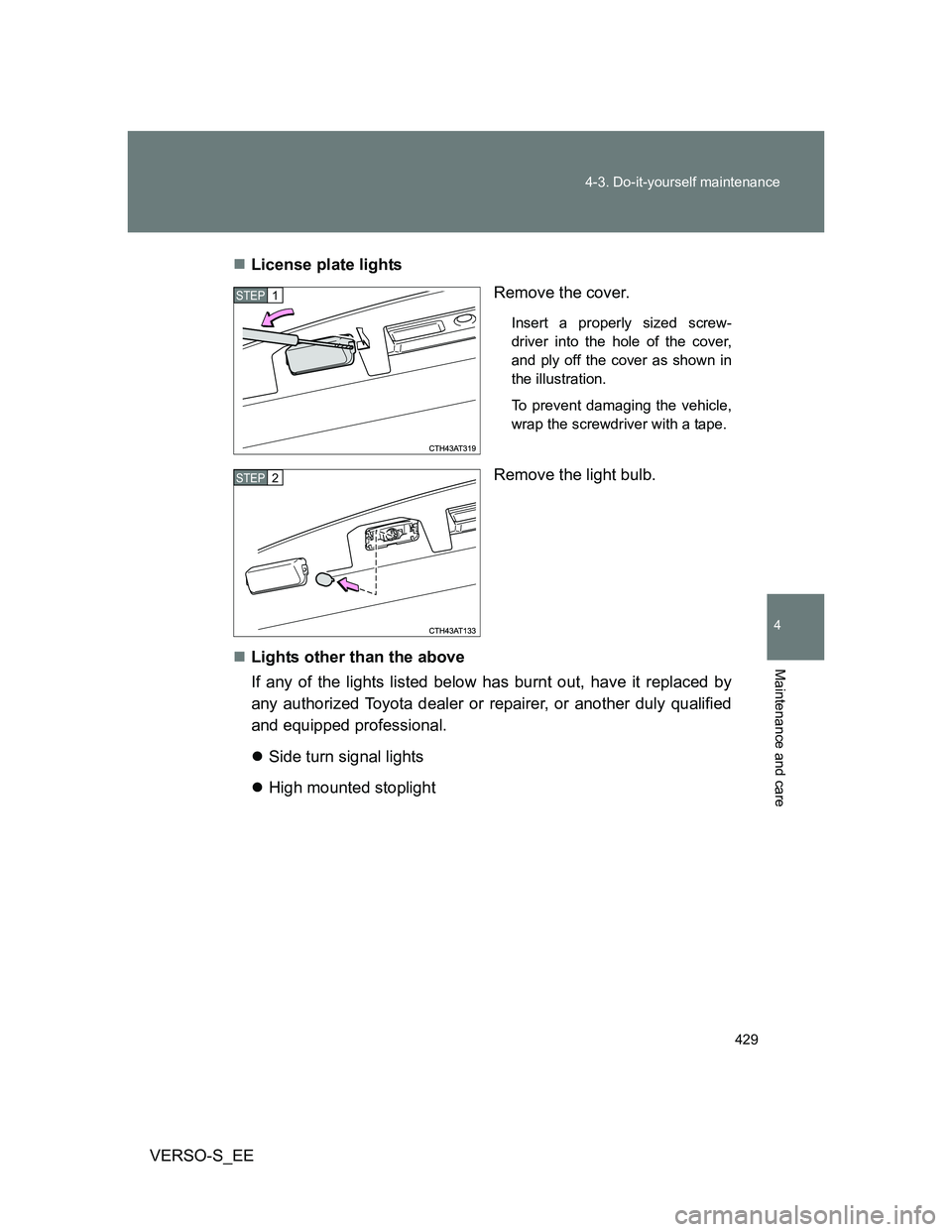

VERSO-S_EELicense plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
High mounted stoplight
STEP1
STEP2

430 4-3. Do-it-yourself maintenance
VERSO-S_EE
LED light bulbs
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 421
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
