2014 TOYOTA VERSO S Owners Manual

65 1-2. Opening, closing and locking the doors
1
Before driving
VERSO-S_EE

66 1-2. Opening, closing and locking the doors
VERSO-S_EE

67 1-2. Opening, closing and locking the doors
1
Before driving
VERSO-S_EE

68
1-2. Opening, closing and locking the doors
VERSO-S_EE
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
Entry function (vehicles with a smart entry & start system)
P. 3 4
Wireless remote control
P. 5 9
Keys
Turning the key operates the doors as follows:
Vehicles without a smart entry & start system
Unlocks all the doors
Locks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 492)
Door lock switch
Unlocks all the doors
Locks all the doors

69 1-2. Opening, closing and locking the doors
1
Before driving
VERSO-S_EE
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
STEP1
STEP2

70 1-2. Opening, closing and locking the doors
VERSO-S_EE

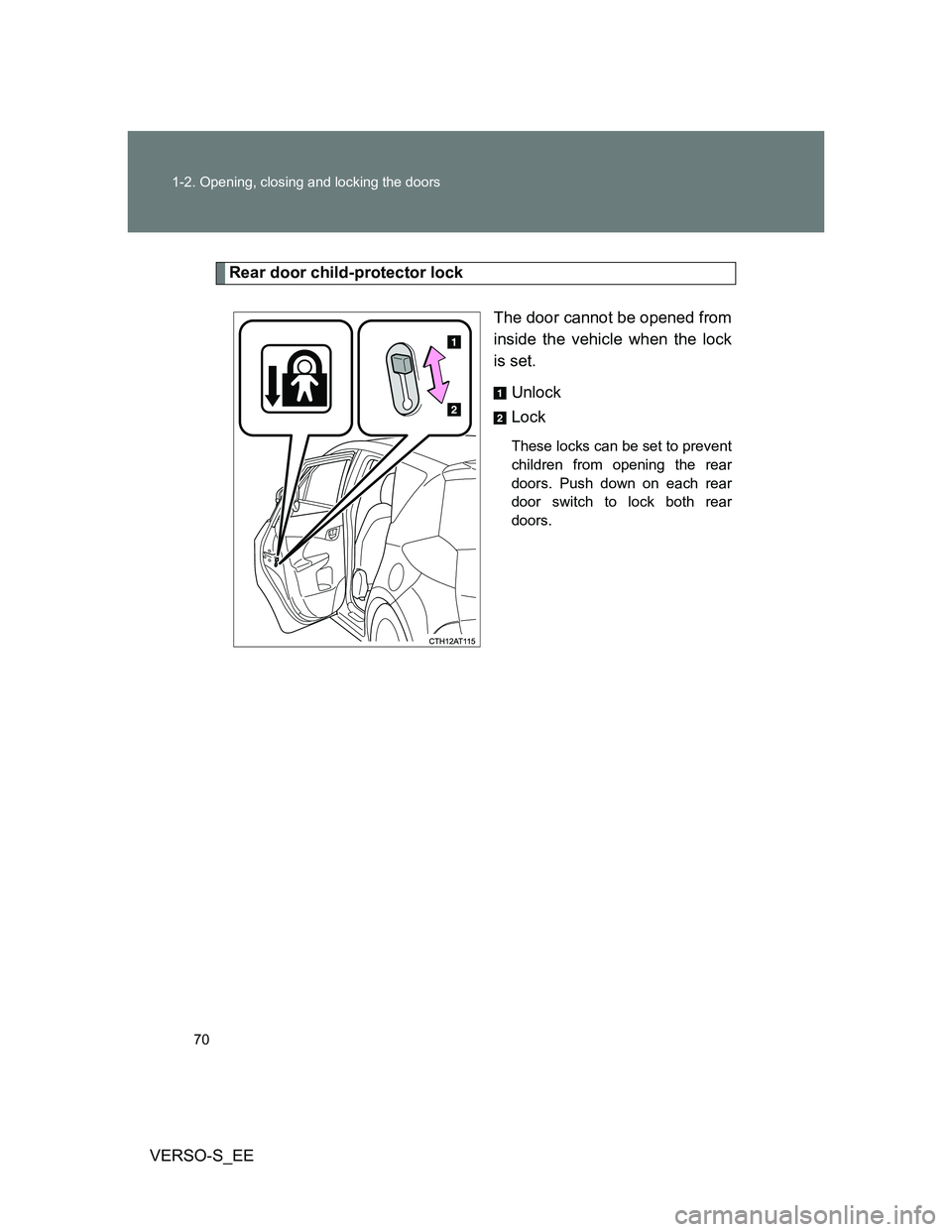

Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

71 1-2. Opening, closing and locking the doors
1
Before driving
VERSO-S_EE
Automatic door locking and unlocking systems
The following functions can be set or canceled:
*: Vehicles with a Multidrive only
Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below.
Vehicles without a smart entry & start system
Close all the doors and turn the engine switch to the “ON”
position. (Perform step 2 within 20 seconds.)
Vehicles with a smart entry & start system
Close all the doors and turn the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform step 2 within 20 sec-
onds.)
FunctionOperation
Shift position linked
door locking function*Shifting the shift lever out of P locks all the
doors.
Shift position linked
door unlocking func-
tion*Shifting the shift lever to P unlocks all the
doors.
Speed linked door lock-
ing functionAll the doors are locked when the vehicle
speed is approximately 20 km/h (12 mph) or
higher.
Driver's door linked door
unlocking function
(
vehicles without a
smart entry & start sys-
tem
)All
the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the engine switch to “ACC” or “LOCK”.
Driver's door linked door
unlocking function
(
vehicles with a smart
entry & start system
)All
the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the “ENGINE START STOP” switch off.
STEP1

72 1-2. Opening, closing and locking the doors

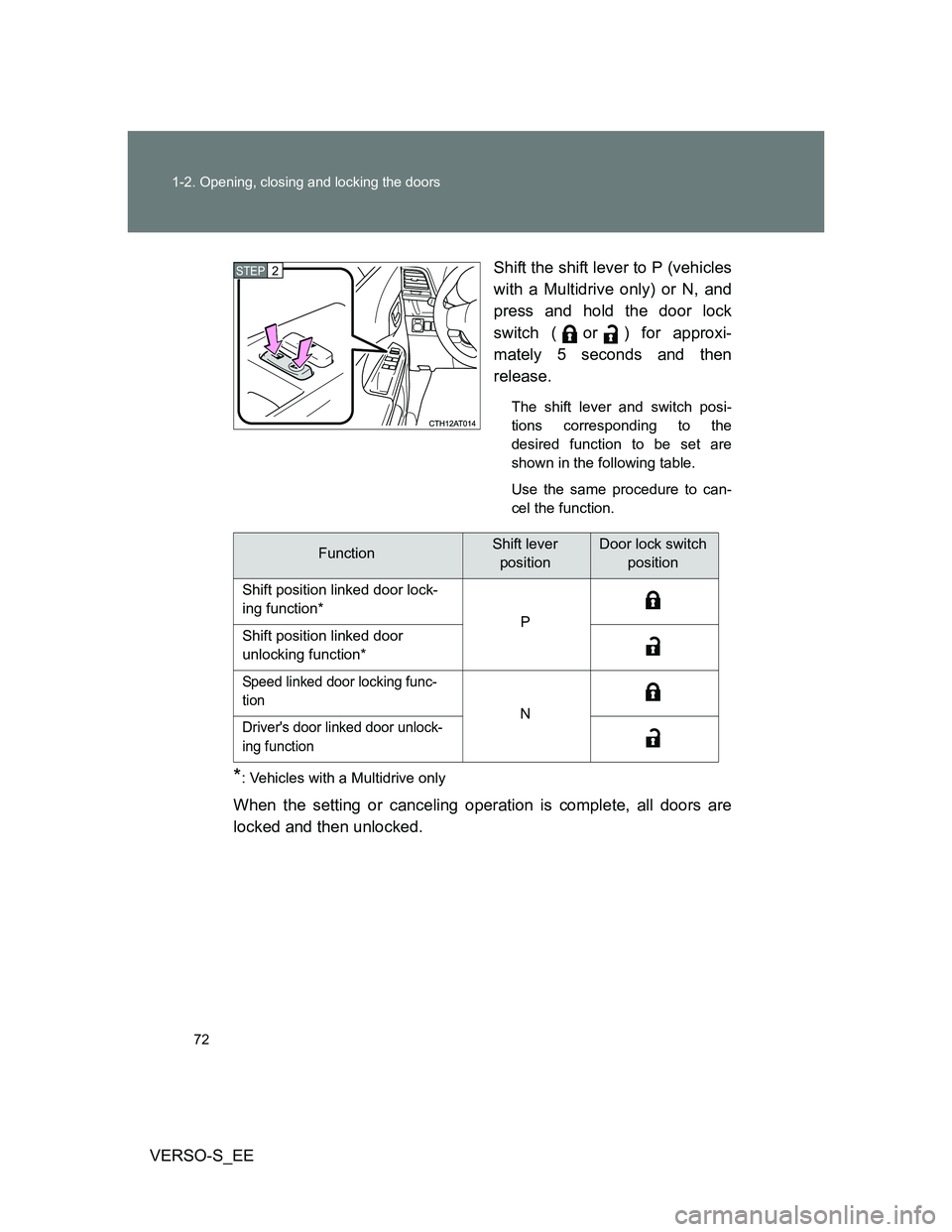

VERSO-S_EEShift the shift lever to P (vehicles
with a Multidrive only) or N, and
press and hold the door lock
switch (or) for approxi-
mately 5 seconds and then
release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown in the following table.
Use the same procedure to can-
cel the function.
*: Vehicles with a Multidrive only
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP2
FunctionShift lever
positionDoor lock switch
position
Shift position linked door lock-
ing function*
P
Shift position linked door
unlocking function*
Speed linked door locking func-
tion
NDriver's door linked door unlock-
ing function
