2014 TOYOTA VERSO S Owners Manual

145 1-7. Safety information
1
Before driving
VERSO-S_EE
CAUTION
Child restraint precautions
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 135)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seri-
ously injured.
Vehicles without SRS curtain shield airbags: Do not allow the child to lean
his/her head or any part of his/her body against the door or the area of the
seat from which the SRS side airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags inflate,
and the impact could cause death or serious injury to the child.
Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy even if the child is seated in the
child restraint system. It is dangerous if the SRS side airbags and curtain
shield airbags inflate, and the impact could cause death or serious injury to
the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.

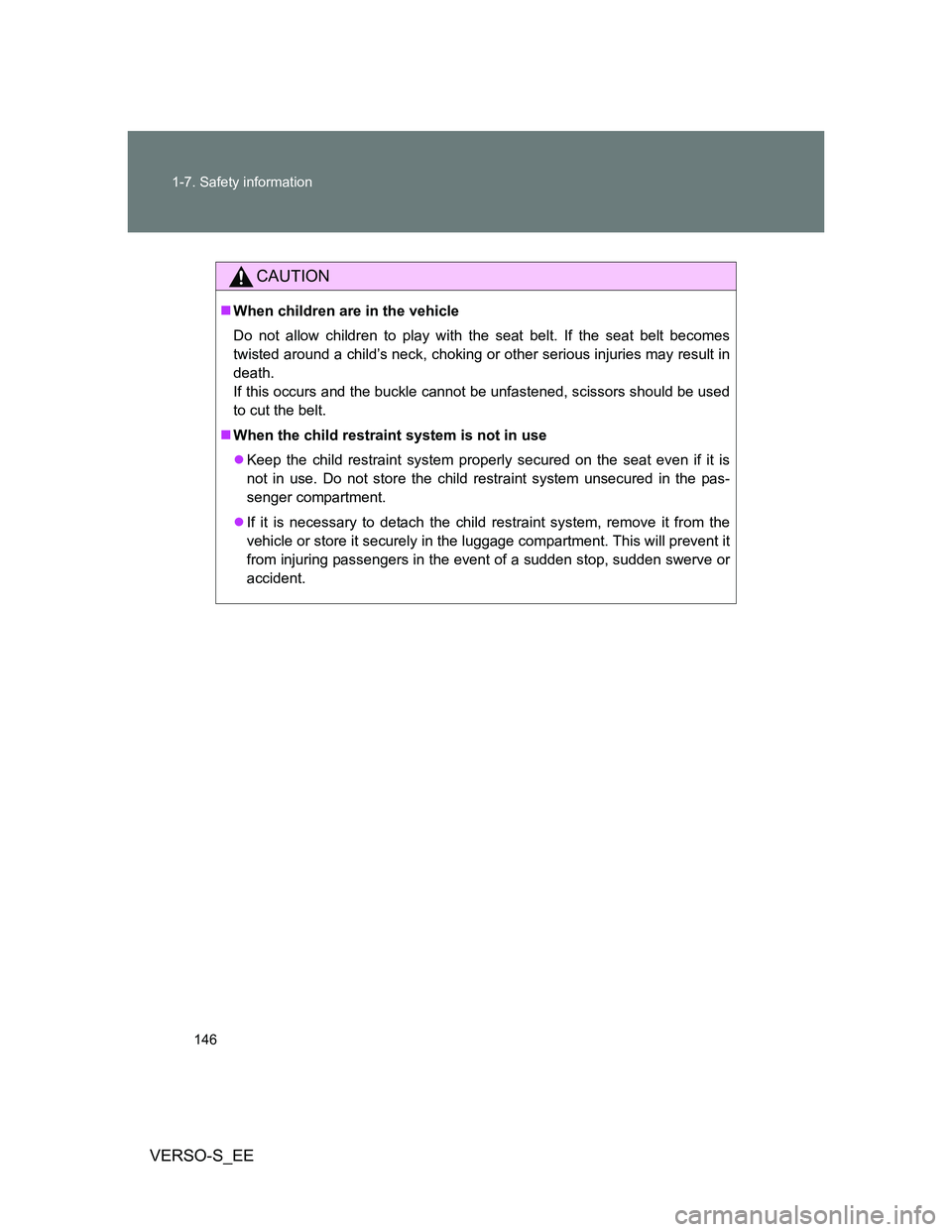

146 1-7. Safety information
VERSO-S_EE
CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, choking or other serious injuries may result in
death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

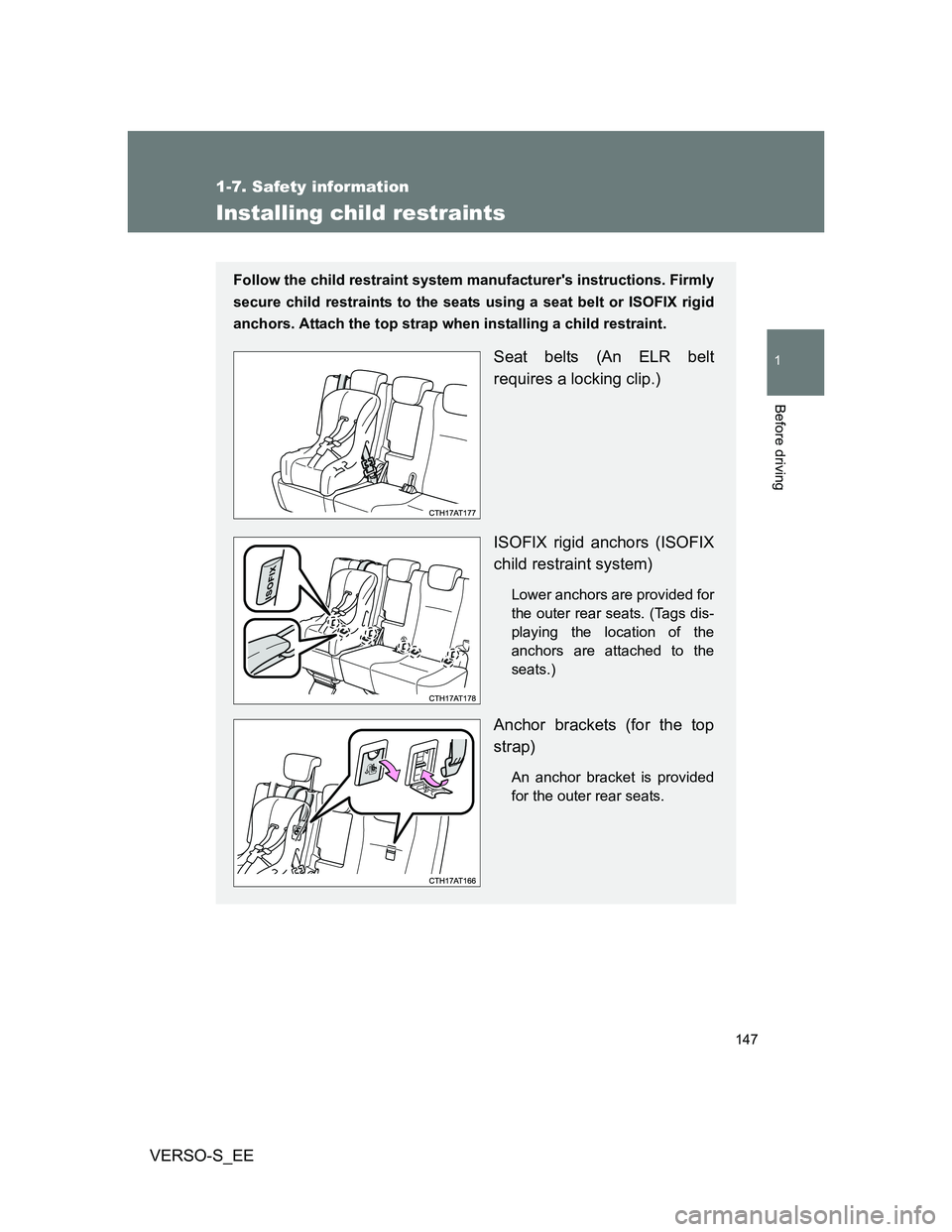

147
1
1-7. Safety information
Before driving
VERSO-S_EE
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap when installing a child restraint.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for
the outer rear seats. (Tags dis-
playing the location of the
anchors are attached to the
seats.)
Anchor brackets (for the top
strap)
An anchor bracket is provided
for the outer rear seats.

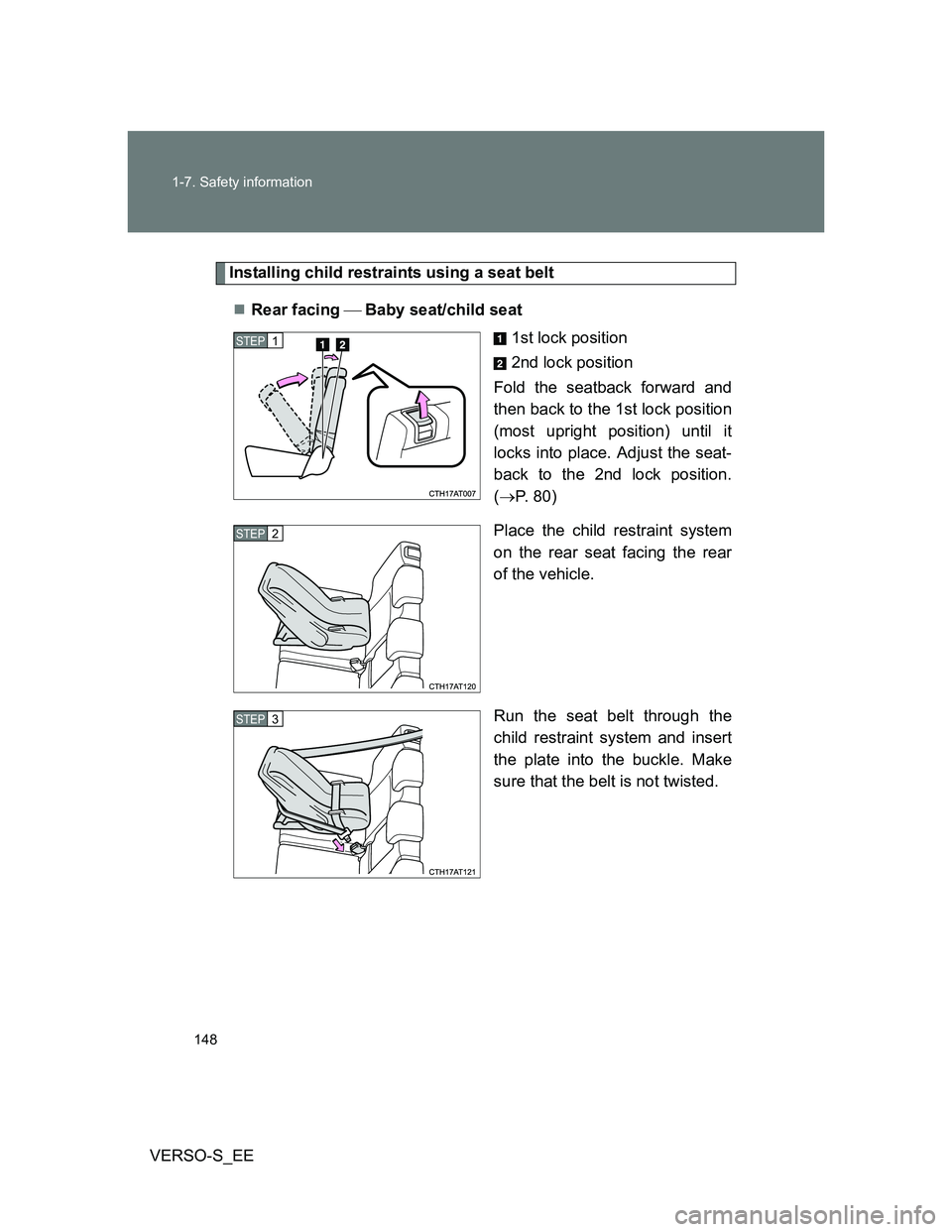

148 1-7. Safety information
VERSO-S_EE
Installing child restraints using a seat belt
Rear facing Baby seat/child seat
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 8 0 )
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP1
STEP2
STEP3

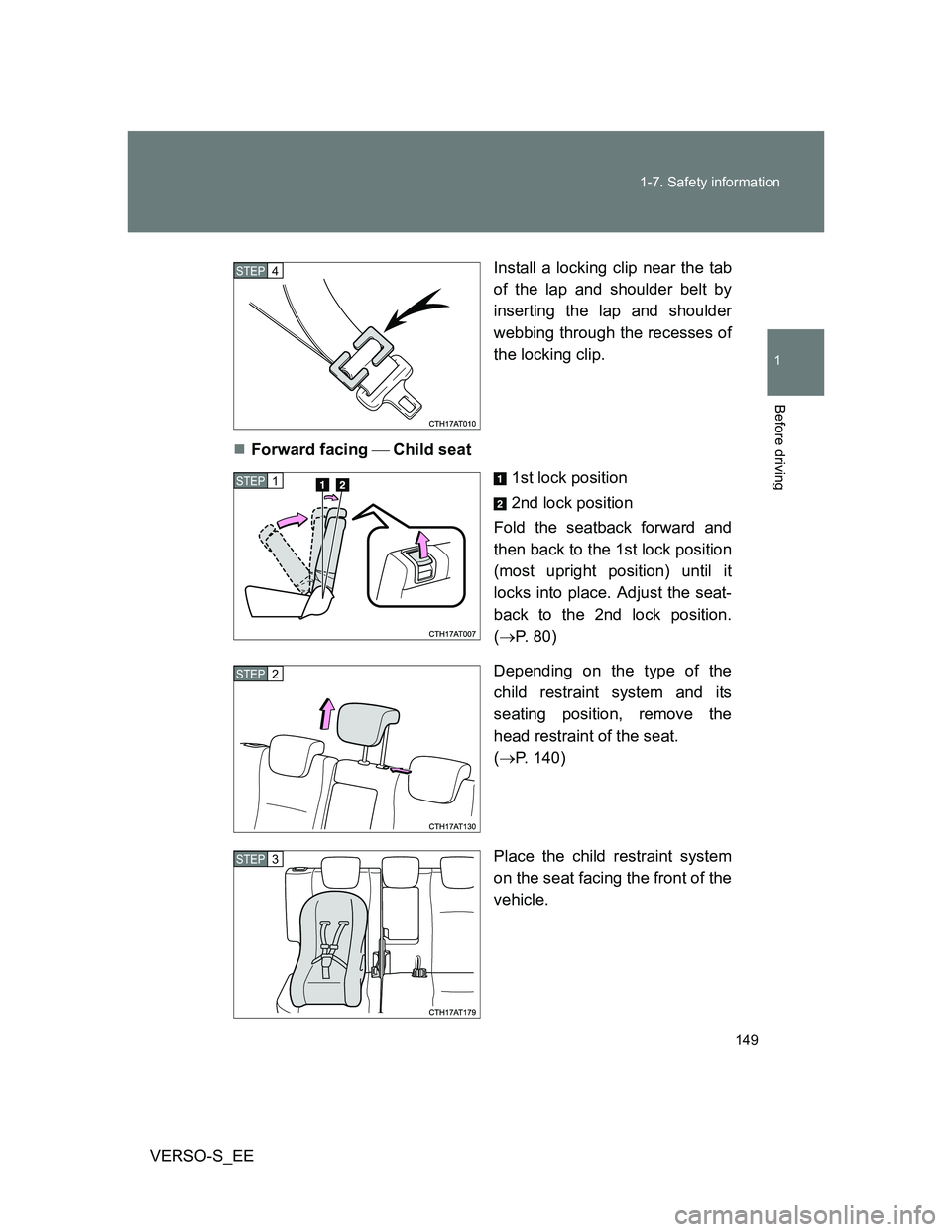

149 1-7. Safety information
1
Before driving
VERSO-S_EEInstall a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
Forward facing Child seat
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 8 0 )
Depending on the type of the
child restraint system and its
seating position, remove the
head restraint of the seat.
(P. 140)
Place the child restraint system
on the seat facing the front of the
vehicle.
STEP4
STEP1
STEP2
STEP3

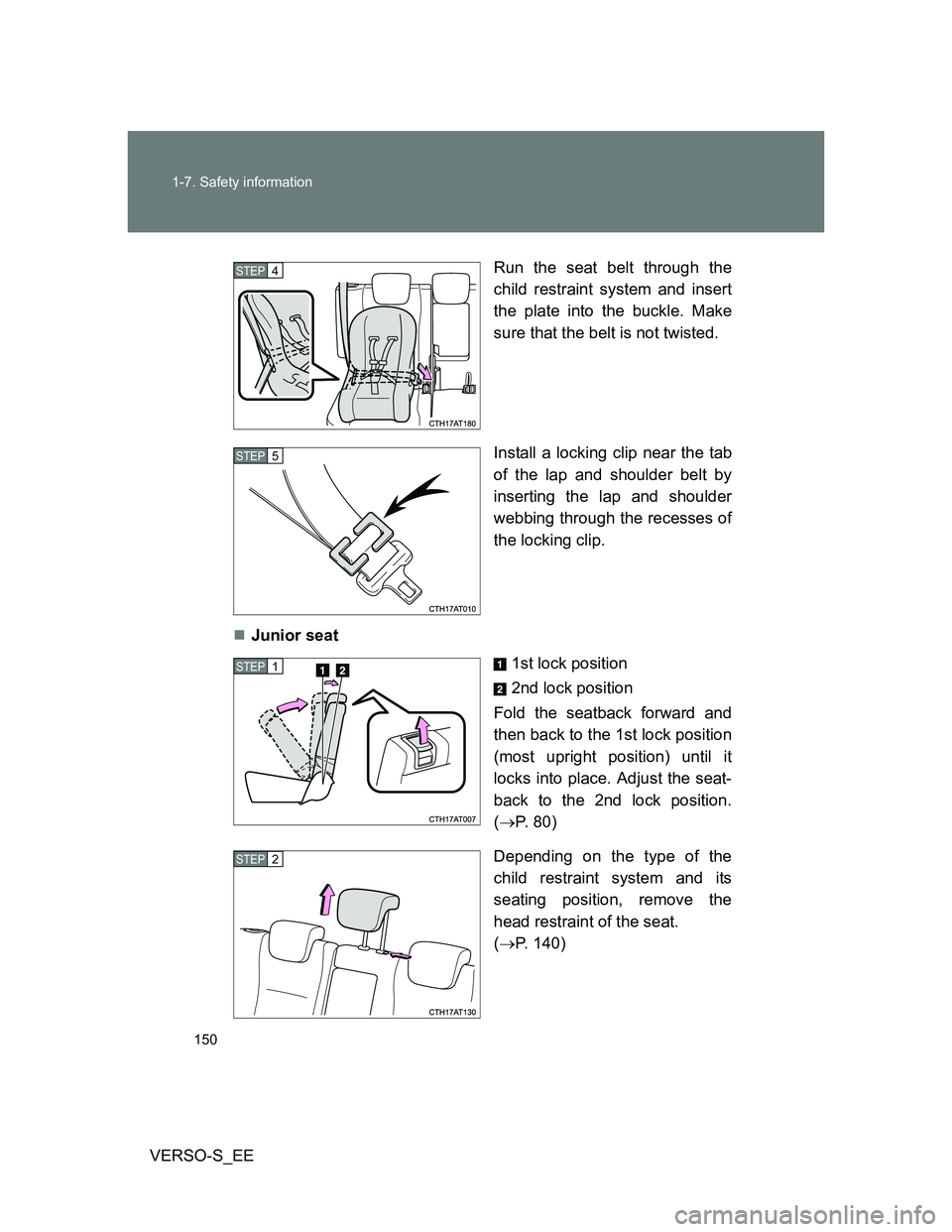

150 1-7. Safety information
VERSO-S_EERun the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
Junior seat
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 8 0 )
Depending on the type of the
child restraint system and its
seating position, remove the
head restraint of the seat.
(P. 140)
STEP4
STEP5
STEP1
STEP2

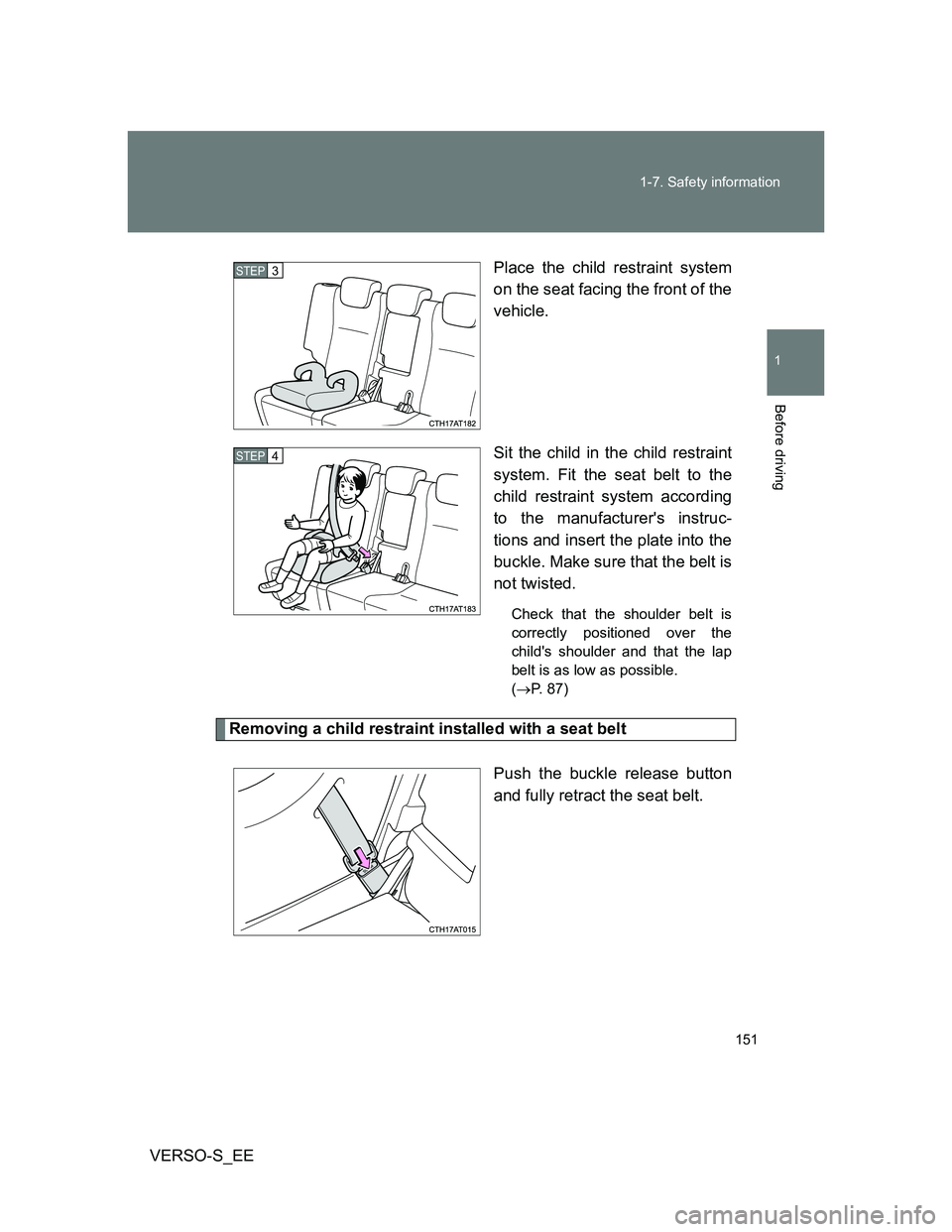

151 1-7. Safety information
1
Before driving
VERSO-S_EEPlace the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer's instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child's shoulder and that the lap
belt is as low as possible.
(P. 87)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
STEP3
STEP4

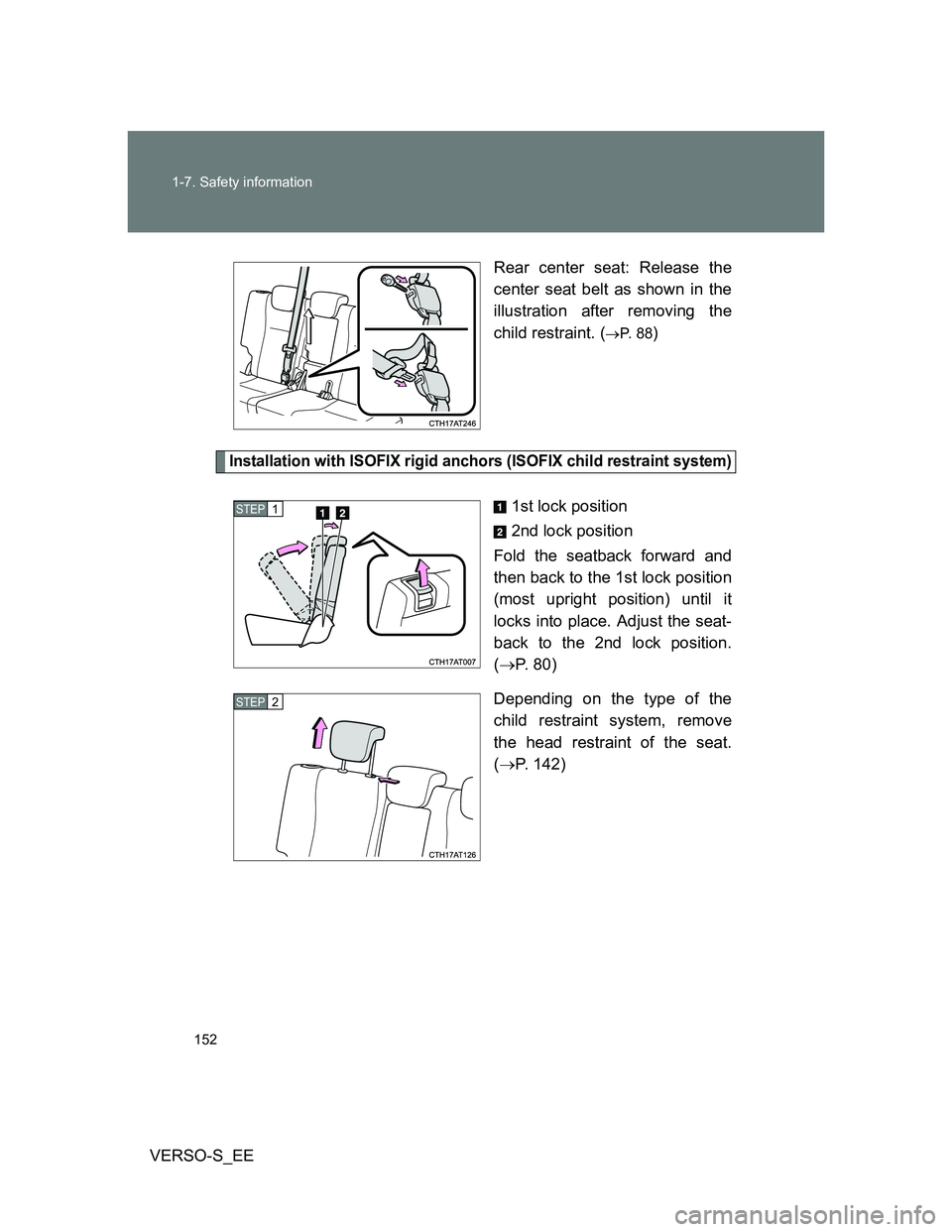

152 1-7. Safety information
VERSO-S_EERear center seat: Release the
center seat belt as shown in the
illustration after removing the
child restraint. (
P. 8 8)
Installation with ISOFIX rigid anchors (ISOFIX child restraint system)
1st lock position
2nd lock position
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place. Adjust the seat-
back to the 2nd lock position.
(P. 8 0 )
Depending on the type of the
child restraint system, remove
the head restraint of the seat.
(P. 142)STEP1
STEP2
