2014 TOYOTA VERSO S Owners Manual

337 3-4. Using the storage features
3
Interior features
VERSO-S_EE

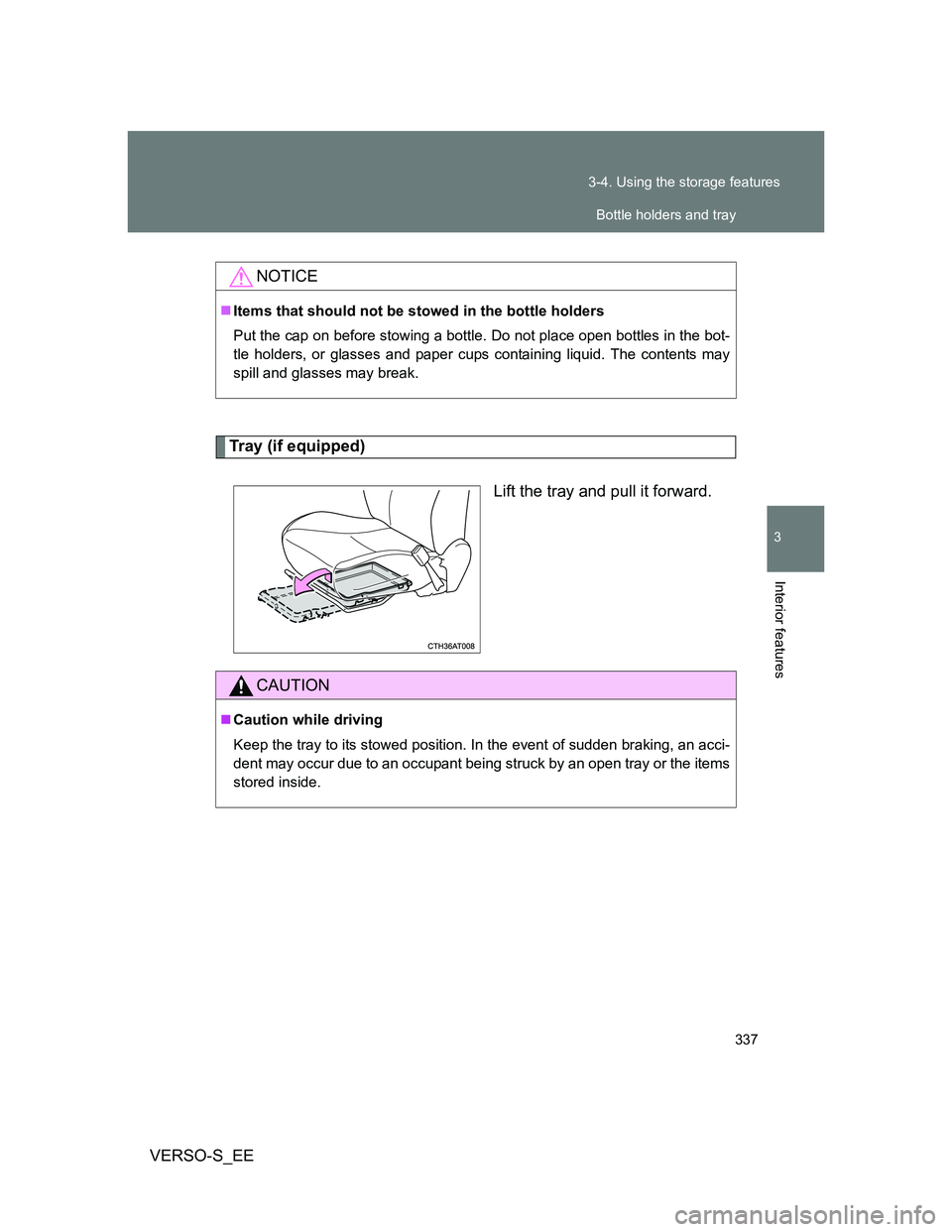

Tray (if equipped)
Lift the tray and pull it forward.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
CAUTION
Caution while driving
Keep the tray to its stowed position. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open tray or the items
stored inside.
Bottle holders and tray

338 3-4. Using the storage features
VERSO-S_EE

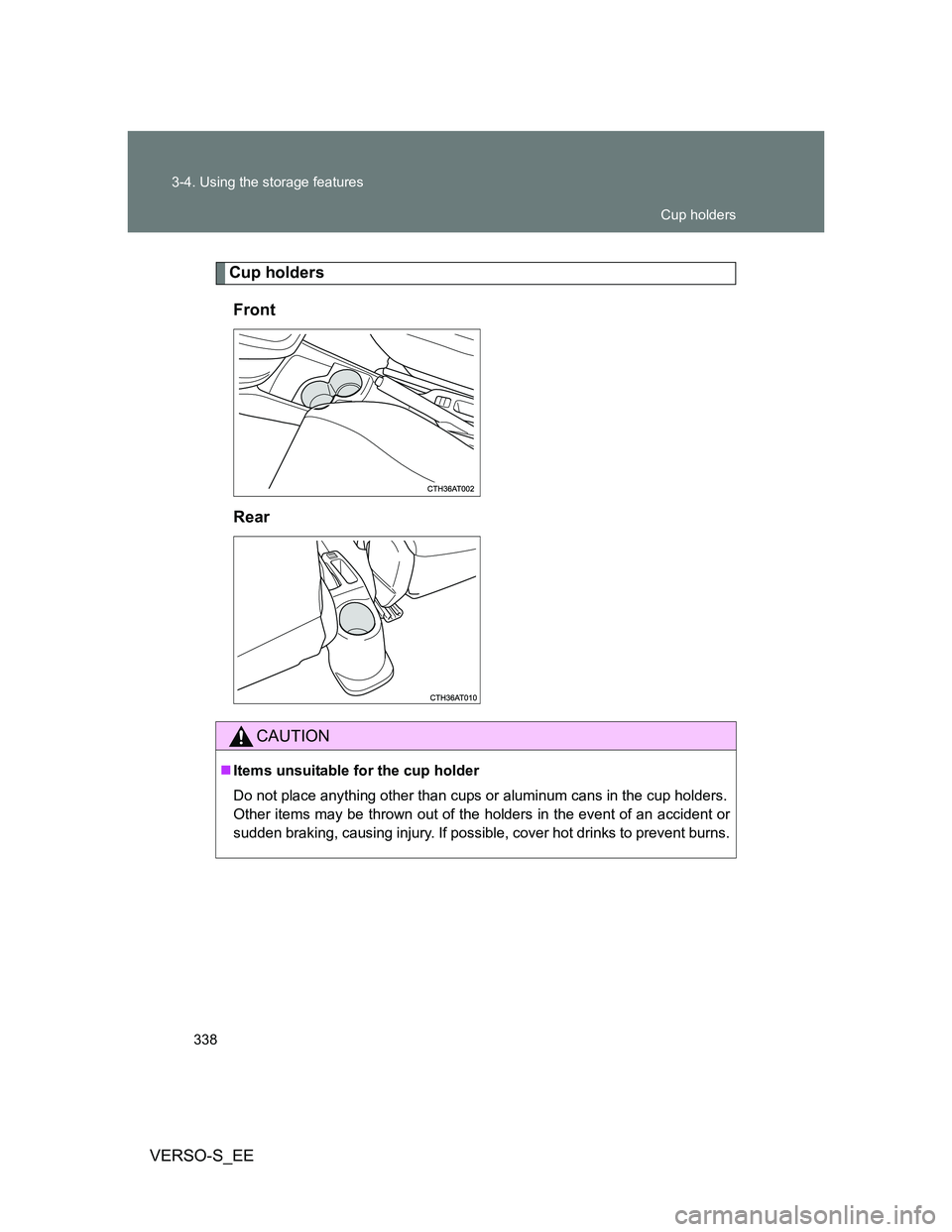

Cup holders
Front
Rear
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
Cup holders

339
3
Interior features
VERSO-S_EE
3-5. Other interior features

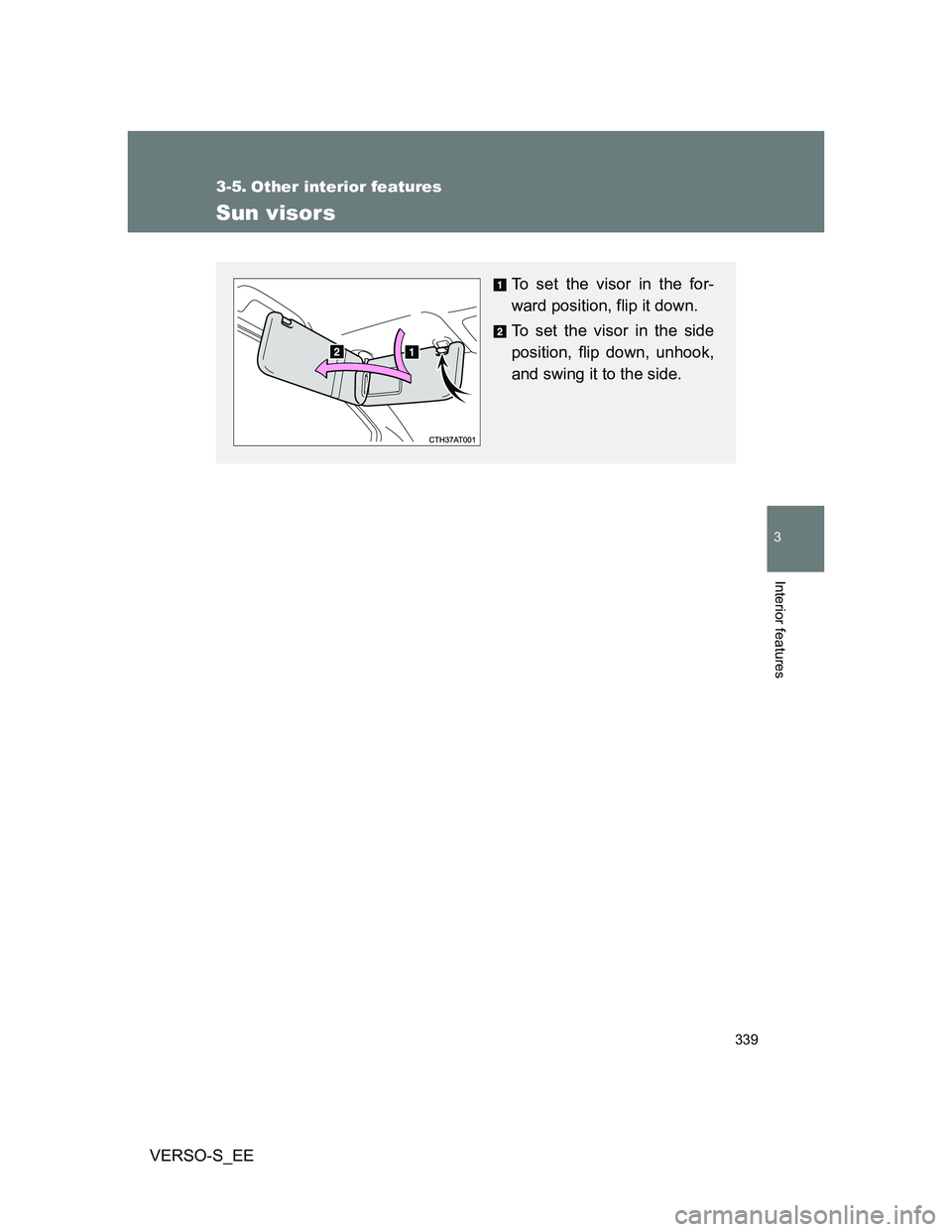

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

340
3-5. Other interior features
VERSO-S_EE

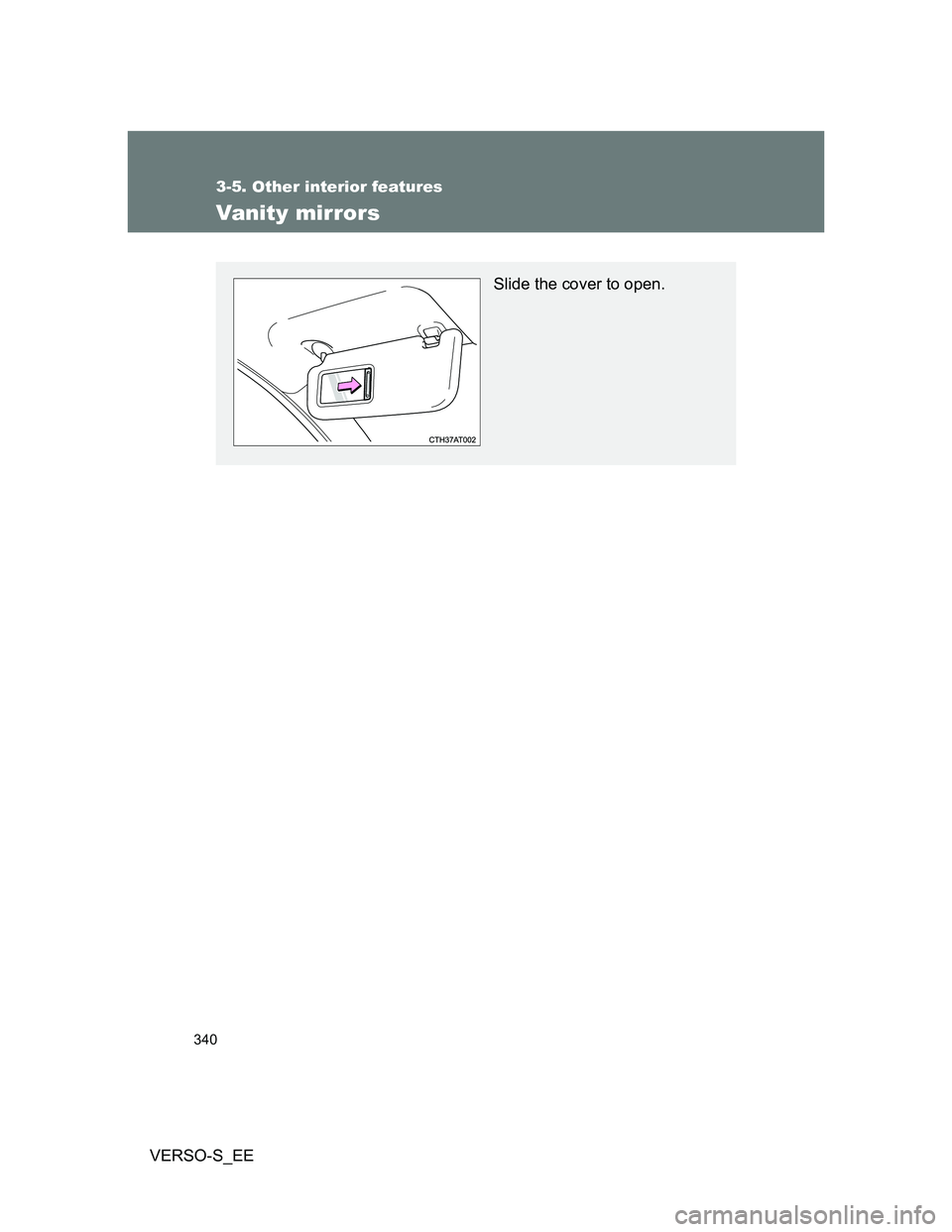

Vanity mirrors
Slide the cover to open.

341
3-5. Other interior features
3
Interior features
VERSO-S_EE
Clock
The clock is displayed when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The clock data will be reset.
Adjusts the hours
Adjusts the minutes

342
3-5. Other interior features
VERSO-S_EE
Outside temperature display
The outside temperature is displayed when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
When the vehicle is stopped, or moving at low speeds (less than 25 km/h
[16 mph])
When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “” or “E” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified professional.
The temperature display shows temperatures within the range of
-40°C (-40°F) and 50°C (122°F).

343
3-5. Other interior features
3
Interior features
VERSO-S_EE
Power outlets
The power outlet can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W). When using electronic
goods, make sure that the power consumption of all the connected
power outlets is less than 120 W.
Center console
Luggage compartment

344 3-5. Other interior features
VERSO-S_EE
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
