2014 TOYOTA TUNDRA Owners Manual

5059-1. Specifications
9
Vehicle specifications
*1: The model code is indicated on the Certification Label. (P. 506)
*2: Vehicles with electric moon roof
*3: Vehicles with towing package
*4: Vehicles with towing package and electric moon roof
USK56L-PSTZKA
3UR-FE
engine 4WD
Short
1415 lb. (640 kg)
1380 lb. (625 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4
USK56L-PSTSGA 3UR-FBE engine 4WD
1440 lb. (650 kg)
1410 lb. (635 kg)*2
1360 lb. (615 kg)*3
1330 lb. (600 kg)*4
USK56L-PSTLGA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4
USK56L-PSTZGA
1415 lb. (640 kg)
1380 lb. (625 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4
Model code*1EngineDriving
systemBed type
Vehicle capacity
weight
(Occupants + luggage)

5069-1. Specifications

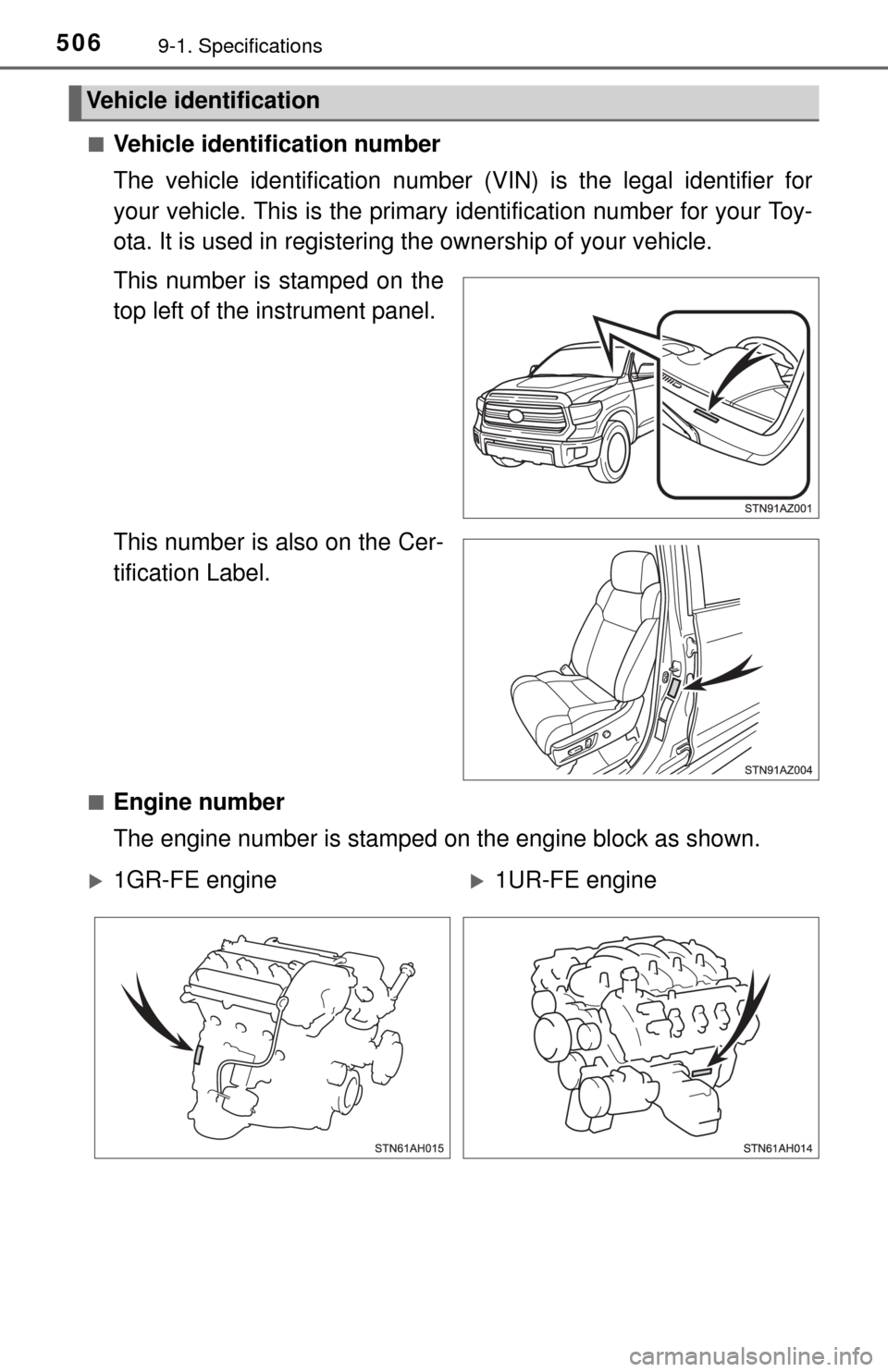

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification
1GR-FE engine1UR-FE engine

5079-1. Specifications
9
Vehicle specifications
1GR-FE engine
1UR-FE, 3UR-FE and 3UR-FBE engines
3UR-FE and 3UR-FBE engines

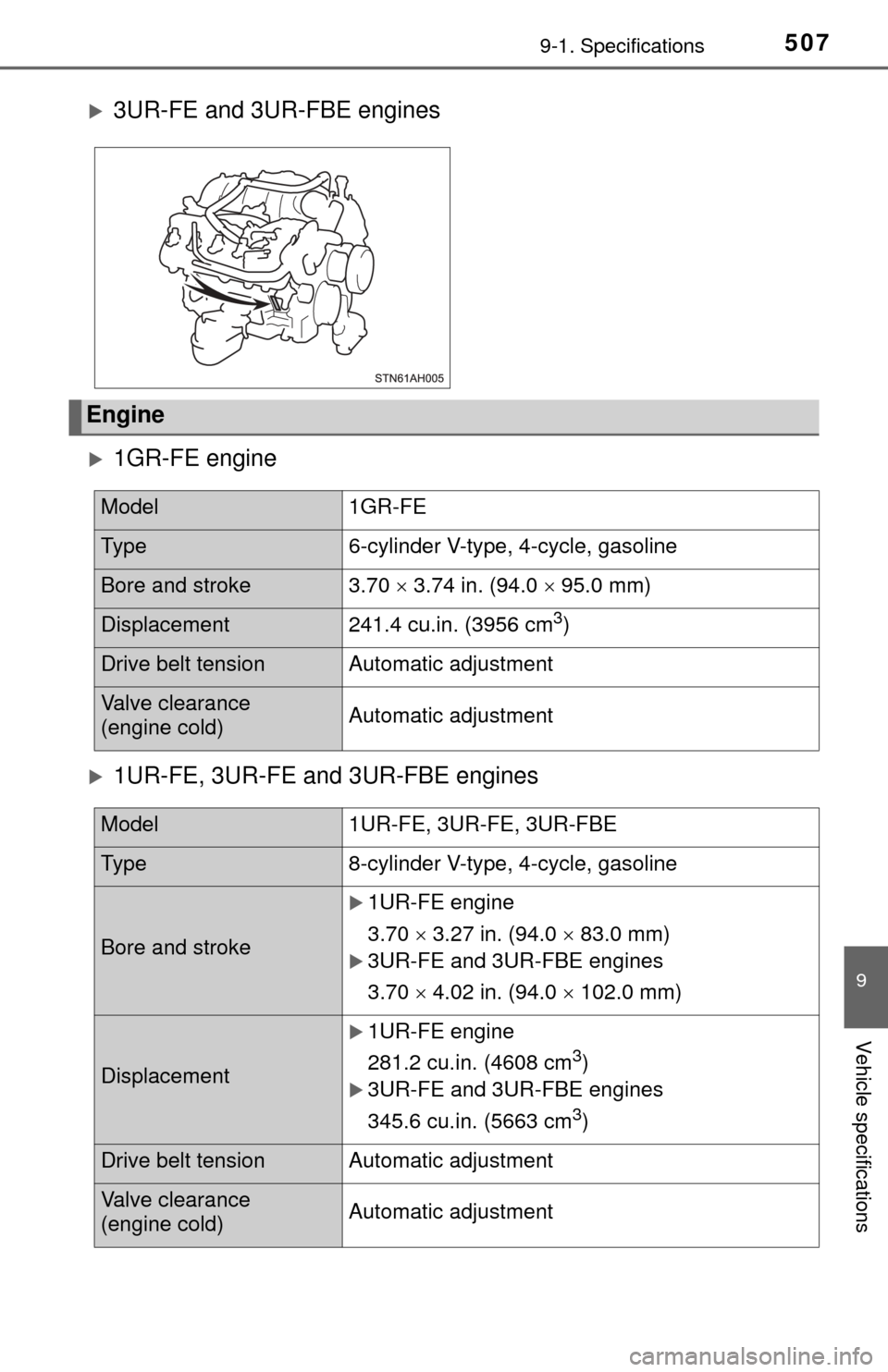

Engine
Model1GR-FE
Ty p e6-cylinder V-type, 4-cycle, gasoline
Bore and stroke3.70  3.74 in. (94.0  95.0 mm)
Displacement241.4 cu.in. (3956 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Model1UR-FE, 3UR-FE, 3UR-FBE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke
1UR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3UR-FE and 3UR-FBE engines
3.70  4.02 in. (94.0  102.0 mm)
Displacement
1UR-FE engine
281.2 cu.in. (4608 cm
3)
3UR-FE and 3UR-FBE engines
345.6 cu.in. (5663 cm
3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment

5089-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

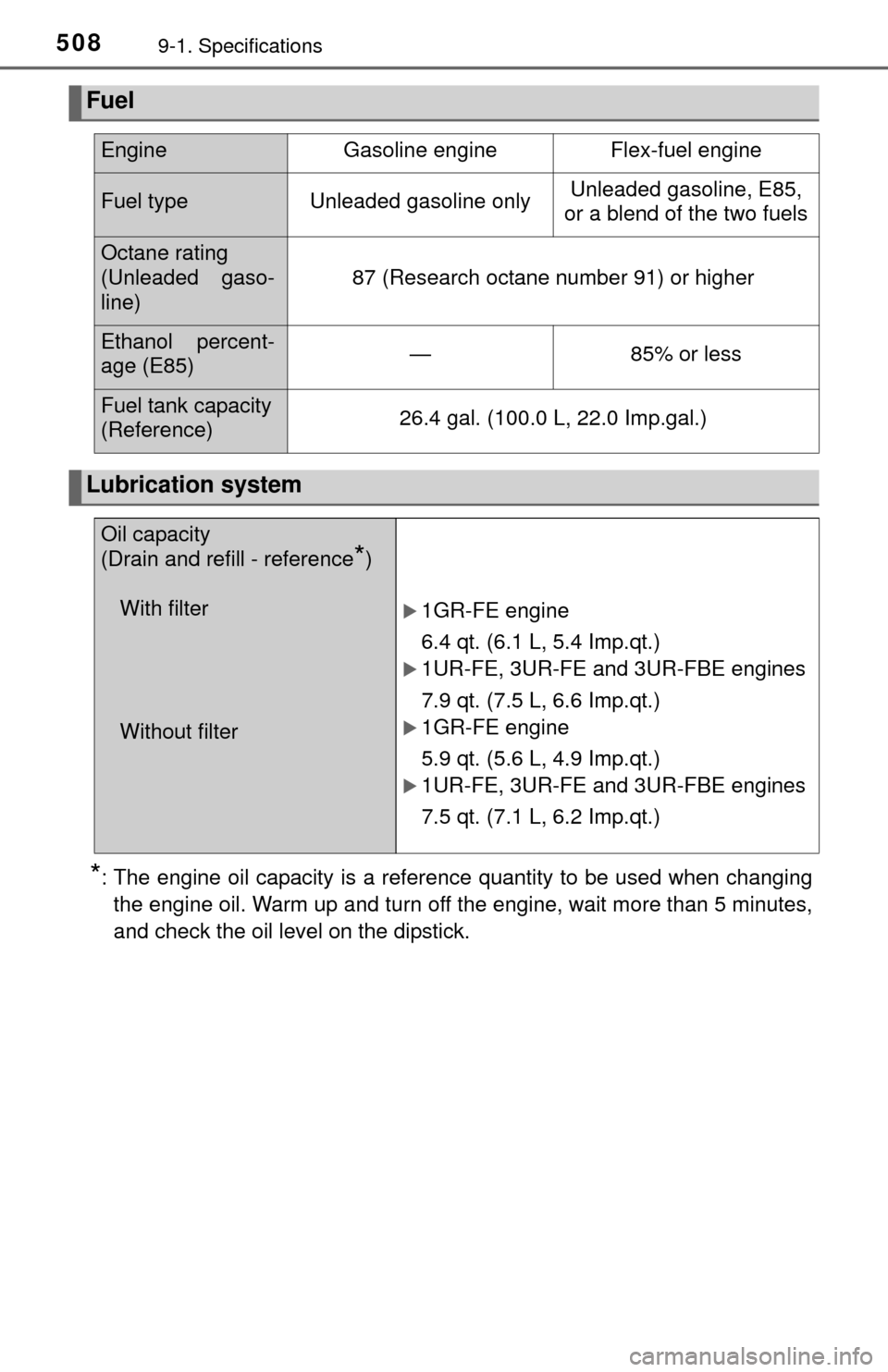

Fuel
EngineGasoline engineFlex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gaso-
line)
87 (Research octane number 91) or higher
Ethanol percent-
age (E85)—85% or less
Fuel tank capacity
(Reference)26.4 gal. (100.0 L, 22.0 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill - reference
*)
With filter
Without filter
1GR-FE engine
6.4 qt. (6.1 L, 5.4 Imp.qt.)
1UR-FE, 3UR-FE and 3UR-FBE engines
7.9 qt. (7.5 L, 6.6 Imp.qt.)
1GR-FE engine
5.9 qt. (5.6 L, 4.9 Imp.qt.)
1UR-FE, 3UR-FE and 3UR-FBE engines
7.5 qt. (7.1 L, 6.2 Imp.qt.)

5099-1. Specifications
9
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Outside temperature

5109-1. Specifications

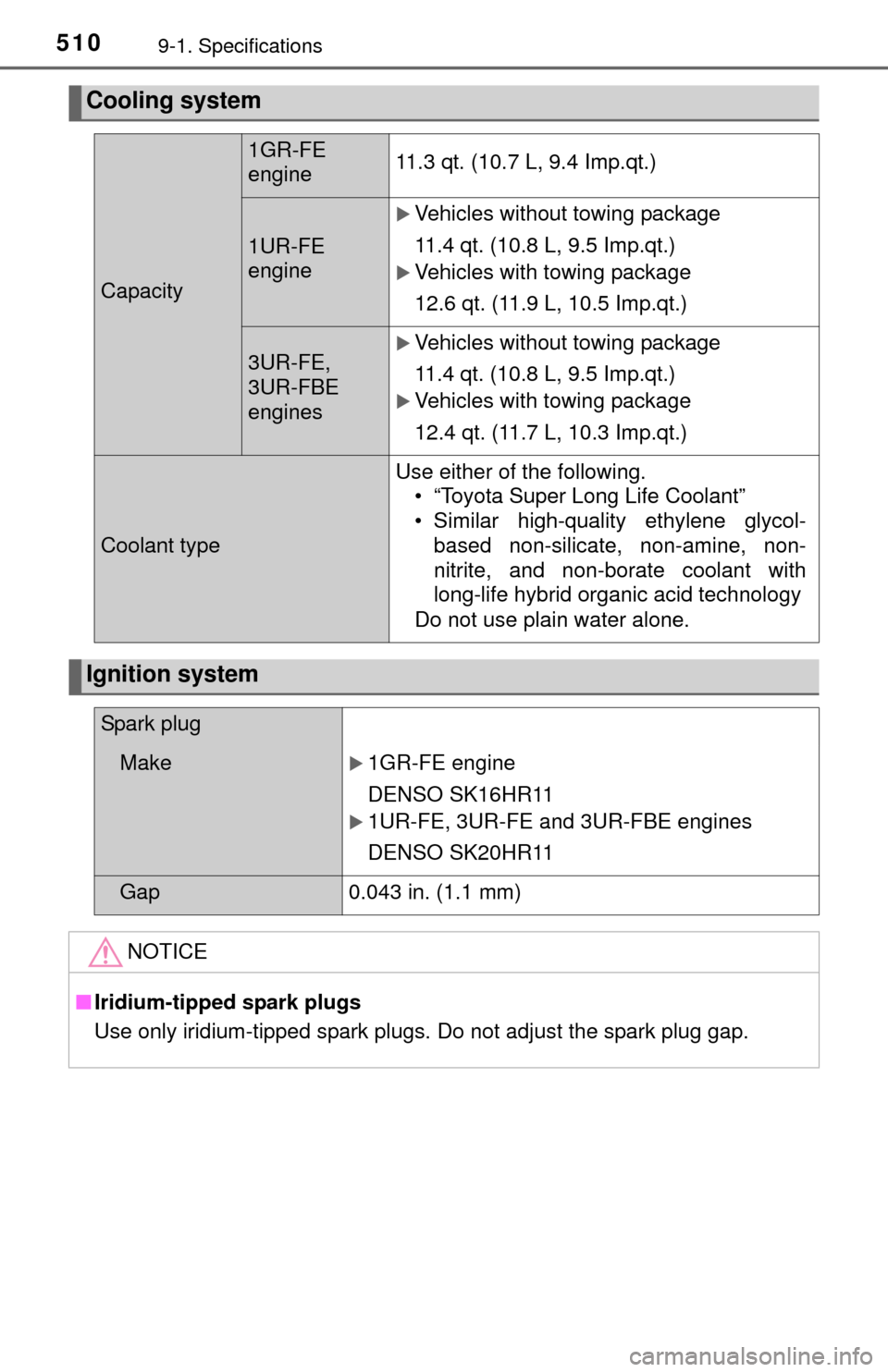

Cooling system
Capacity
1GR-FE
engine11.3 qt. (10.7 L, 9.4 Imp.qt.)
1UR-FE
engine
Vehicles without towing package
11.4 qt. (10.8 L, 9.5 Imp.qt.)
Vehicles with towing package
12.6 qt. (11.9 L, 10.5 Imp.qt.)
3UR-FE,
3UR-FBE
enginesVehicles without towing package
11.4 qt. (10.8 L, 9.5 Imp.qt.)
Vehicles with towing package
12.4 qt. (11.7 L, 10.3 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make1GR-FE engine
DENSO SK16HR11
1UR-FE, 3UR-FE and 3UR-FBE engines
DENSO SK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

5119-1. Specifications
9
Vehicle specifications
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” atthe factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.
Electrical system
Battery
Open voltage at 68 F
(20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Differential
Oil
capacity
Front (4WD models) 2.2 qt. (2.05 L, 1.8 Imp.qt.)
Rear
1GR-FE and
1UR-FE engines4.9 qt. (4.60 L, 4.0 Imp.qt.)
3UR-FE
and
3UR-FBE
engines
Regular Cab
models3.8 qt. (3.60 L, 3.2 Imp.qt.)
Double Cab
models
With standard bed
3.8 qt. (3.60 L, 3.2 Imp.qt.)
With long bed
4.0 qt. (3.75 L, 3.3 Imp.qt.)
CrewMax
models
2WD models
4.0 qt. (3.75 L, 3.3 Imp.qt.)
4WD models
3.8 qt. (3.60 L, 3.2 Imp.qt.)
Oil type and viscosity*
Toyota Genuine Differential
Gear Oil LT 75W-85 GL-5 or
equivalent

5129-1. Specifications
*: The fluid capacity is the quantity of reference. If replacement is necessary, contact your Toyota dealer.

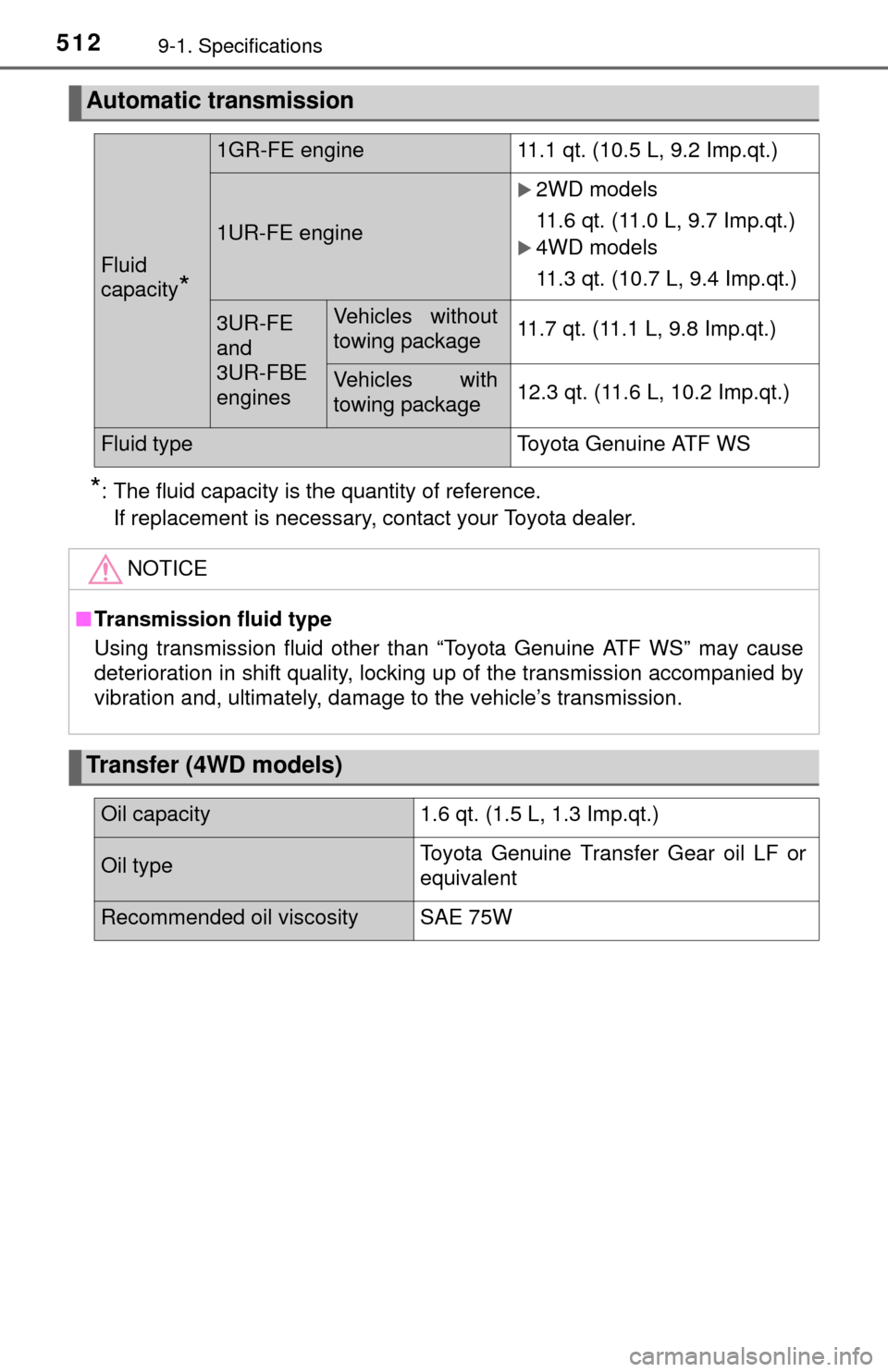

Automatic transmission
Fluid
capacity
*
1GR-FE engine 11.1 qt. (10.5 L, 9.2 Imp.qt.)
1UR-FE engine
2WD models
11.6 qt. (11.0 L, 9.7 Imp.qt.)
4WD models
11.3 qt. (10.7 L, 9.4 Imp.qt.)
3UR-FE
and
3UR-FBE
enginesVehicles without
towing package11.7 qt. (11.1 L, 9.8 Imp.qt.)
Vehicles with
towing package12.3 qt. (11.6 L, 10.2 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
Transfer (4WD models)
Oil capacity 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Oil typeToyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscosity SAE 75W
