2014 TOYOTA TUNDRA Owners Manual

892. Instrument cluster
2
Instrument cluster
Vehicles with multi-information display
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
“ODO/TRIP” and instrument panel light control button
P. 90, 93
Multi-information display
Presents the driver with a variety of driving-related data (P. 93)
Engine oil pressure gauge
Displays the engine oil pressure
1
2
3
4
5
6
7
8

902. Instrument cluster
The brightness of the instrument panel lights can be adjusted by turn-
ing the “TRIP/INFO” button (vehicle s without multi-information dis-
play) or “ODO/TRIP” button (vehicle s with multi-information display).
Darker
Brighter
■ The meters and display illuminate when
The engine switch is in the “ON” position.
Instrument panel light control
1
2
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 496)

912. Instrument cluster
2
Instrument cluster
Trip information display
The trip information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
● Trip information ( P. 9 1 )
Displays trip meters, fuel consump-
tion, driving range and outside tem-
perature
● Odometer
Displays the total distance the
vehicle has been driven.
●Shift range
Displays the selected shift range.
(P. 181)
■

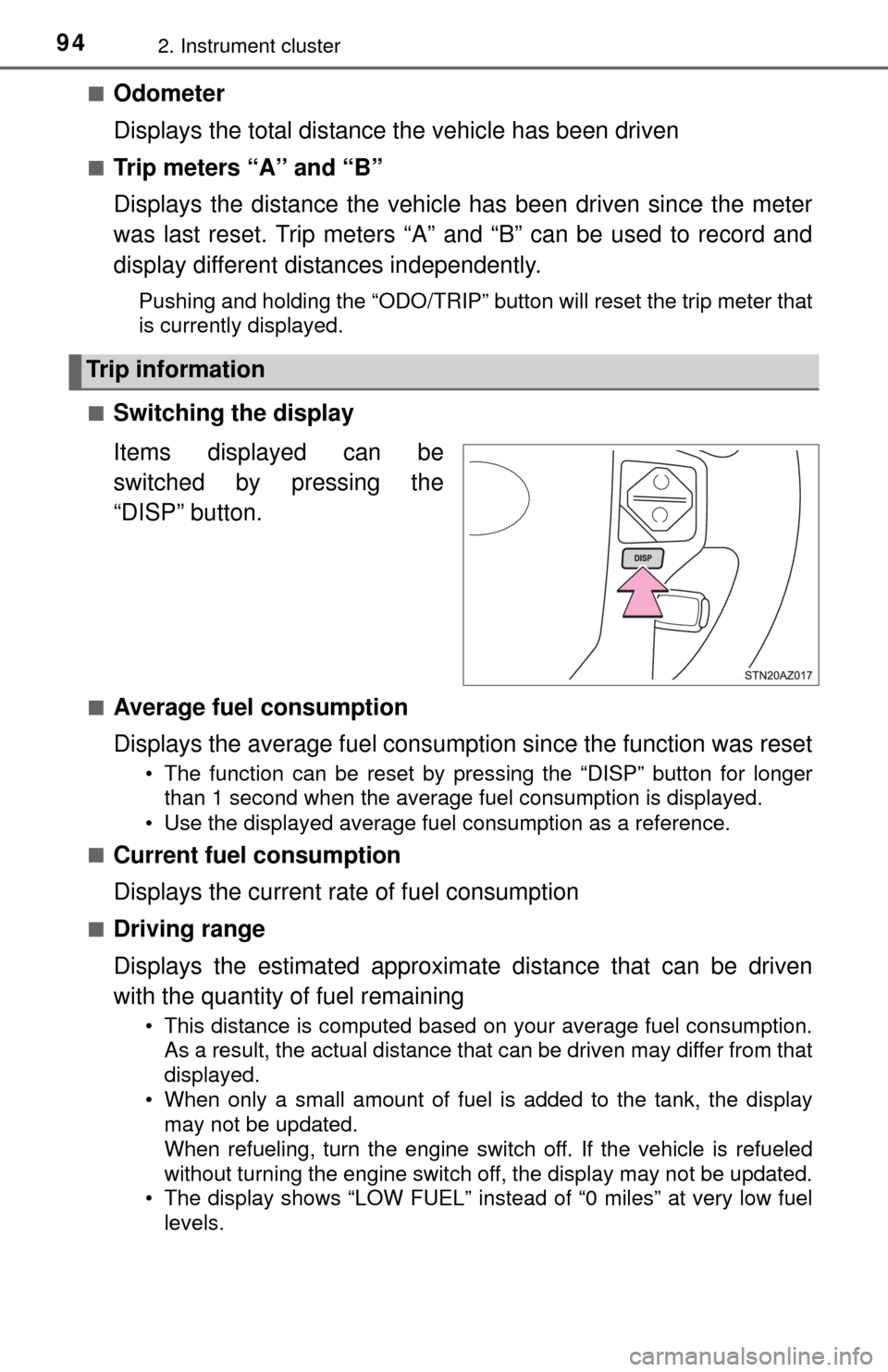

Switching the display
Items displayed can be
switched by pushing the “TRIP/
INFO” button.
Push and hold the “TRIP/INFO”
button to change the units to US
(ENGLISH) or METRIC.
(
P. 92)
■
Trip meters “A” and “B”
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Pushing and holding the “TRIP/INFO” button will reset the trip meter that
is currently displayed.
: If equipped
Display contents
Trip information

922. Instrument cluster
■Average fuel consumption
Displays the average fuel consumption since the function was reset
• The function can be reset by pushing the “TRIP/INFO” button forlonger than 1 second when the average fuel consumption is dis-
played.
• Use the displayed average fuel consumption as a reference.
■
Driving range
Displays the estimated approxim ate distance that can be driven
with the quantity of fuel remaining
• This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display
may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled
without turning the engine switch off, the display may not be updated.
■
Outside temperature
 P. 3 7 6
■When disconnecting and reco nnecting battery terminals
The following information data will be reset:
● Trip meters “A” and “B”
● Average fuel consumption
● Driving range
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ To select the US (ENGLISH) or METRIC
InformationUS (ENGLISH)METRIC
Average fuel consumptionMPGL/100 km
Driving rangemileskm
Outside temperature displayFC
NOTICE
■ The trip information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

932. Instrument cluster
2
Instrument cluster

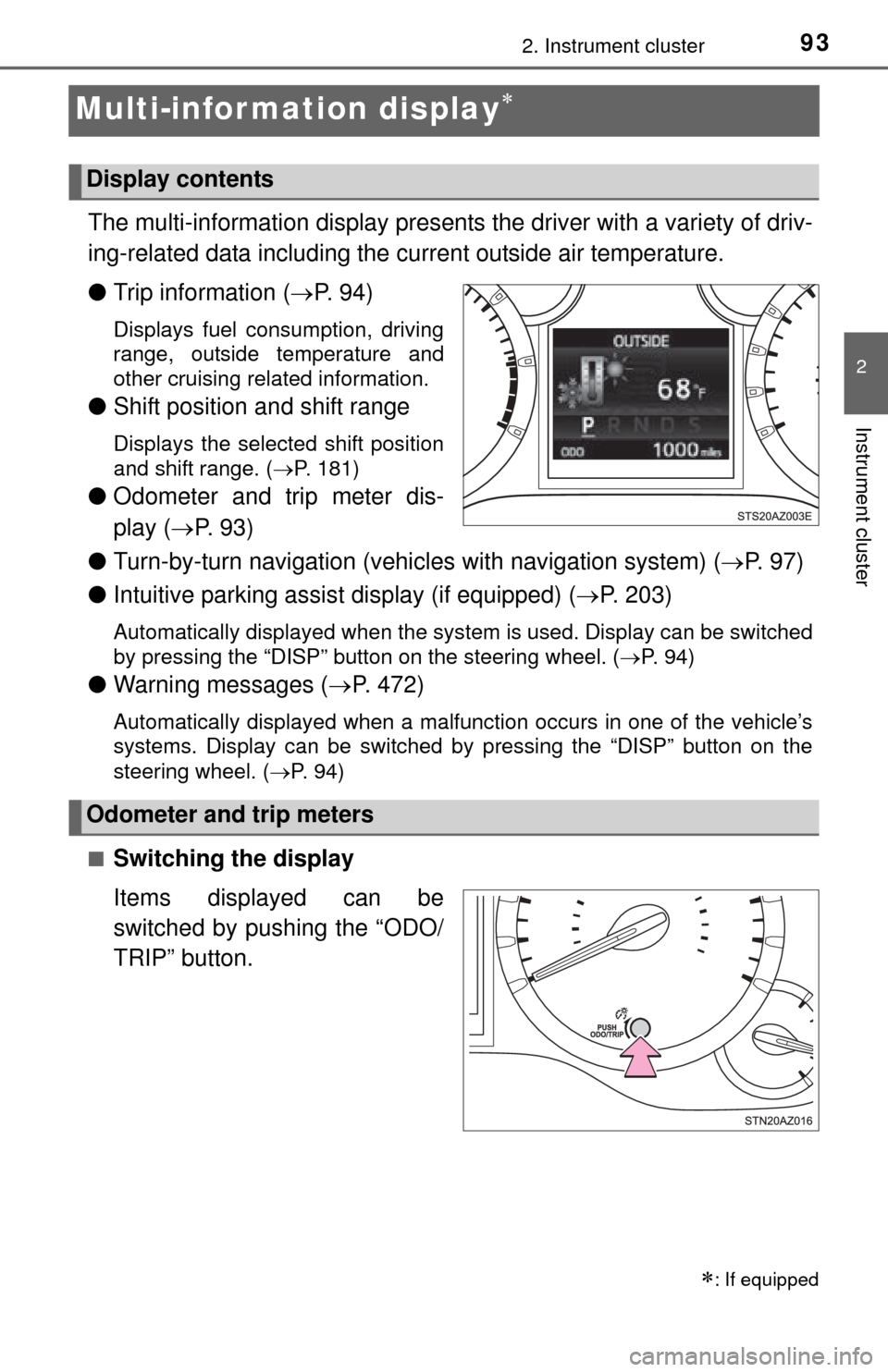

Multi-infor mation display
The multi-information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
● Trip information ( P. 9 4 )
Displays fuel consumption, driving
range, outside temperature and
other cruising related information.
● Shift position and shift range
Displays the selected shift position
and shift range. ( P. 181)
●Odometer and trip meter dis-
play ( P. 9 3 )
● Turn-by-turn navigation (vehicl es with navigation system) (P. 9 7 )
● Intuitive parking assist display (if equipped) ( P. 203)
Automatically displayed when the system is used. Display can be switched
by pressing the “DISP” button on the steering wheel. ( P. 9 4 )
● Warning messages ( P. 472)
Automatically displayed when a malfunction occurs in one of the vehicle’s
systems. Display can be switched by pressing the “DISP” button on the
steering wheel. ( P. 94)
■
Switching the display
Items displayed can be
switched by pushing the “ODO/
TRIP” button.
: If equipped
Display contents
Odometer and trip meters

942. Instrument cluster
■Odometer
Displays the total distance the vehicle has been driven
■Trip meters “A” and “B”
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Pushing and holding the “ODO/TRIP” button will reset the trip meter that
is currently displayed.
■
Switching the display
Items displayed can be
switched by pressing the
“DISP” button.
■Average fuel consumption
Displays the average fuel consumption since the function was reset
• The function can be reset by pressing the “DISP” button for longer than 1 second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■
Current fuel consumption
Displays the current rate of fuel consumption
■Driving range
Displays the estimated approxim ate distance that can be driven
with the quantity of fuel remaining
• This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled
without turning the engine switch off, the display may not be updated.
• The display shows “LOW FUEL” instead of “0 miles” at very low fuel
levels.
Trip information

952. Instrument cluster
2
Instrument cluster
■Elapsed time
Displays the elapsed time since the engine was started
■Average vehicle speed
Displays the average vehicle speed since the engine was started
■Outside temperature
P. 3 7 6
■Settings display
P. 9 5
■Display off
A blank screen is displayed
■Before setting
Press the “DISP” button until
the “SETTINGS” screen
appears.
This can only be done while the
vehicle is stopped.
Press and hold the “DISP” but-
ton until the screen changes.
Press and hold the “DISP” but-
ton after selecting the desired
setting item (“TURN BY TURN
NAVI”, “LANGUAGE” or
“UNITS”) by pressing the
“DISP” button.
Setting up the displays
1
2
3

962. Instrument cluster

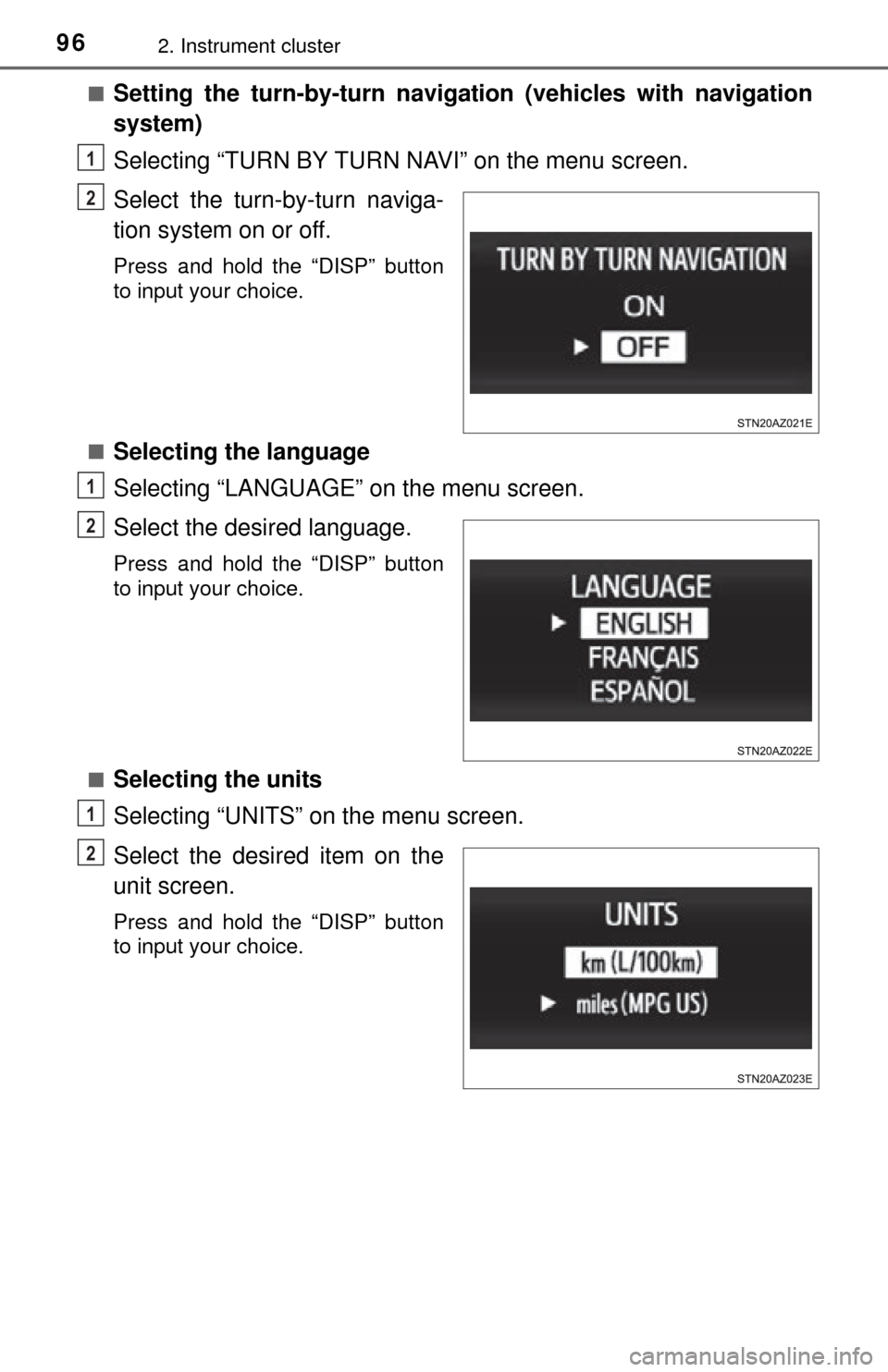

■Setting the turn-by-turn navigation (vehicles with navigation
system)
Selecting “TURN BY TURN NAVI” on the menu screen.
Select the turn-by-turn naviga-
tion system on or off.
Press and hold the “DISP” button
to input your choice.
■
Selecting the language
Selecting “LANGUAGE” on the menu screen.
Select the desired language.
Press and hold the “DISP” button
to input your choice.
■
Selecting the units
Selecting “UNITS” on the menu screen.
Select the desired item on the
unit screen.
Press and hold the “DISP” button
to input your choice.
1
2
1
2
1
2
