2014 TOYOTA DYNA 100/150 Owners Manual (in English)

DO−IT−YOURSELF MAINTENANCE: Electrical components203
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Instrument panel
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 182 in Sec-
tion 7−1 for locations of the fuses.
Turn the engine switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 219 in Section 8 for the functions
controlled by each circuit.
Type A fuses can be pulled out by the
pull−out tool. The location of the pull−out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “CIG”,
“DOME” or “A/C” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
Dyna100/150_EE
Checking and replacing fuses

204DO−IT−YOURSELF MAINTENANCE: Electrical components
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If a new fuse immediately blows out, there
is a problem with the electrical system.
Have any authorized Toyota dealer or re-
pairer, or another duly qualified and
equipped professional, correct it as soon
as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If washer fluid does not come out, the
washer fluid tank may be empty. To
check the washer fluid level, simply
look at the transparent tank. If the level
is low, add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
or repairer and most auto parts stores or
another duly qualified professional. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Dyna100/150_EE
Adding washer fluid

DO−IT−YOURSELF MAINTENANCE: Electrical components205
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
DTo prevent burning yourself, do not
replace the light bulbs while they
are hot.
DHalogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact any
authorized Toyota dealer or repairer, or
another duly qualified and equipped
professional.Light bulbs
WTy p e
Headlights60/55A
Front position lights21/5B
Front turn signal lights21B
Side turn signal lights21B
Rear turn signal lights21B
Stop/tail lights21/5B
Back−up lights21B
Rear fog light21B
License plate lights10B
Interior light10C
A: H4 halogen bulbs
B: Single end bulbs
C: Double end bulbs
Dyna100/150_EE
Replacing light bulbs—

206DO−IT−YOURSELF MAINTENANCE: Electrical components

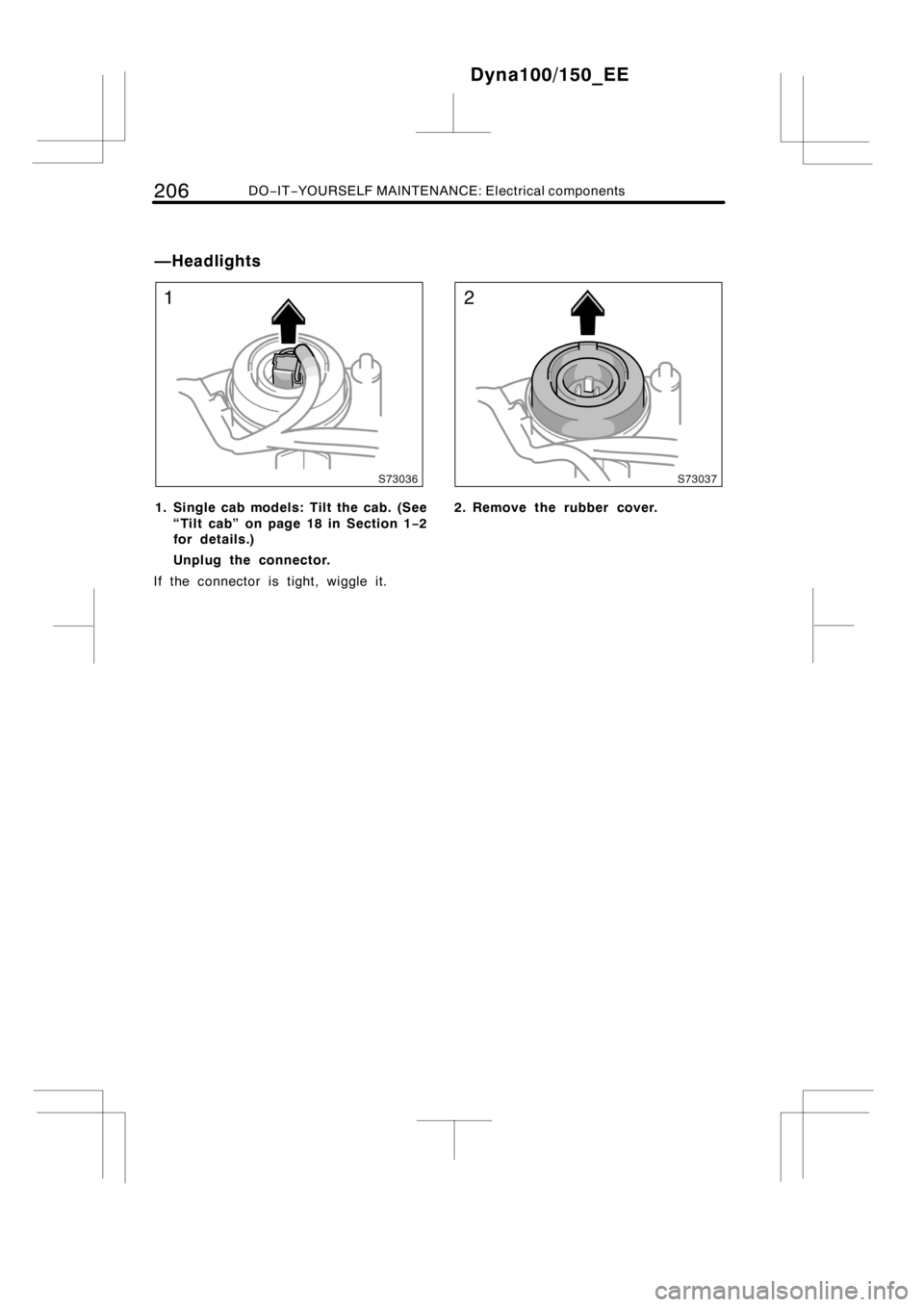

1. Single cab models: Tilt the cab. (See
“Tilt cab” on page 18 in Section 1−2
for details.)
Unplug the connector.
If the connector is tight, wiggle it.2. Remove the rubber cover.
Dyna100/150_EE
—Headlights

DO−IT−YOURSELF MAINTENANCE: Electrical components207
3. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.4. Install the rubber cover with the
“TOP” mark upward, and fit it se-
curely on the boss. Plug in the con-
nector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact any authorized Toyota
dealer or repairer, or another duly quali-
fied and equipped professional.
Dyna100/150_EE

208DO−IT−YOURSELF MAINTENANCE: Electrical components

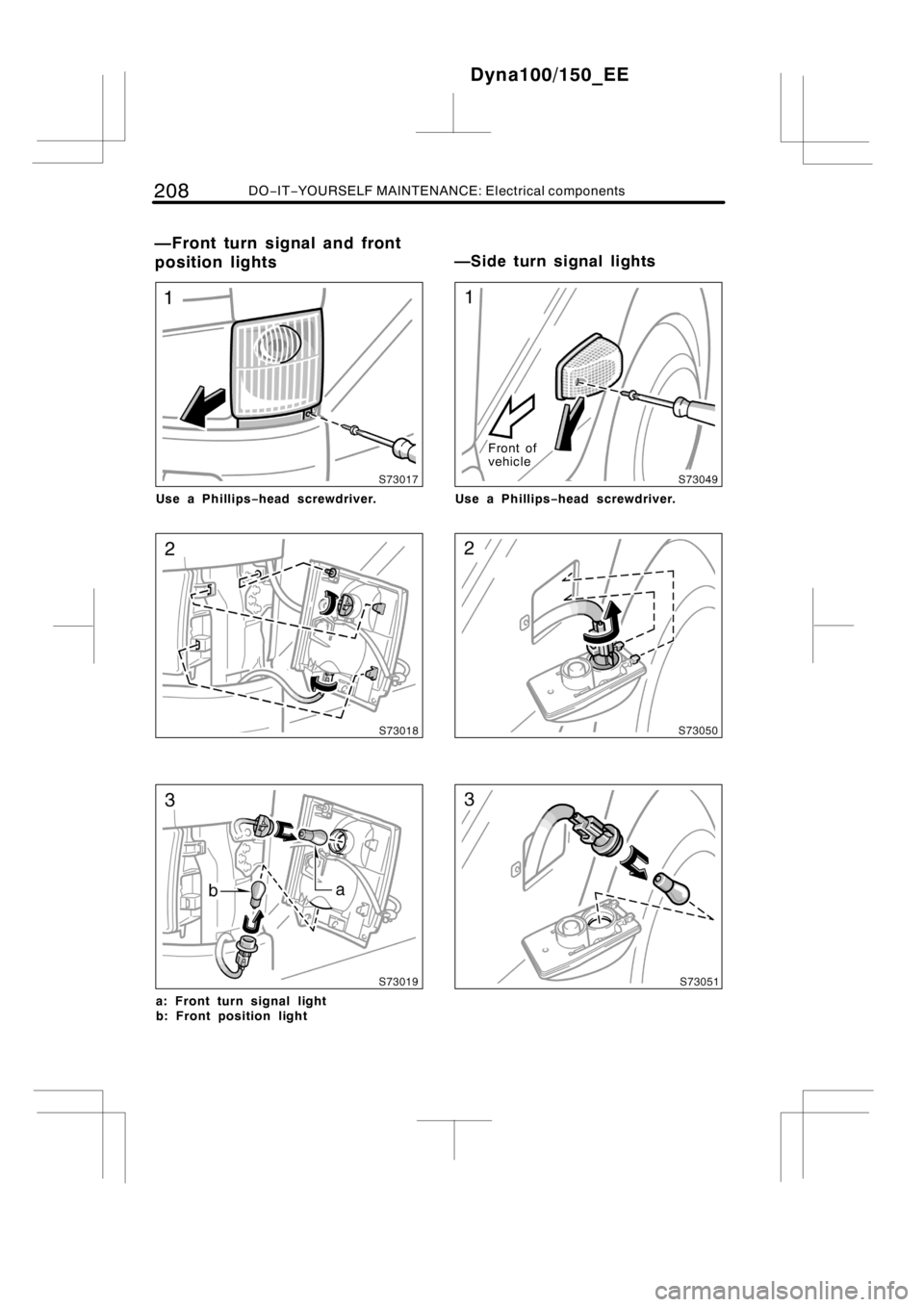

Use a Phillips−head screwdriver.
a: Front turn signal light
b: Front position light
Front of
vehicle
Use a Phillips−head screwdriver.
Dyna100/150_EE
—Front turn signal and front
position lights
—Side turn signal lights

DO−IT−YOURSELF MAINTENANCE: Electrical components209

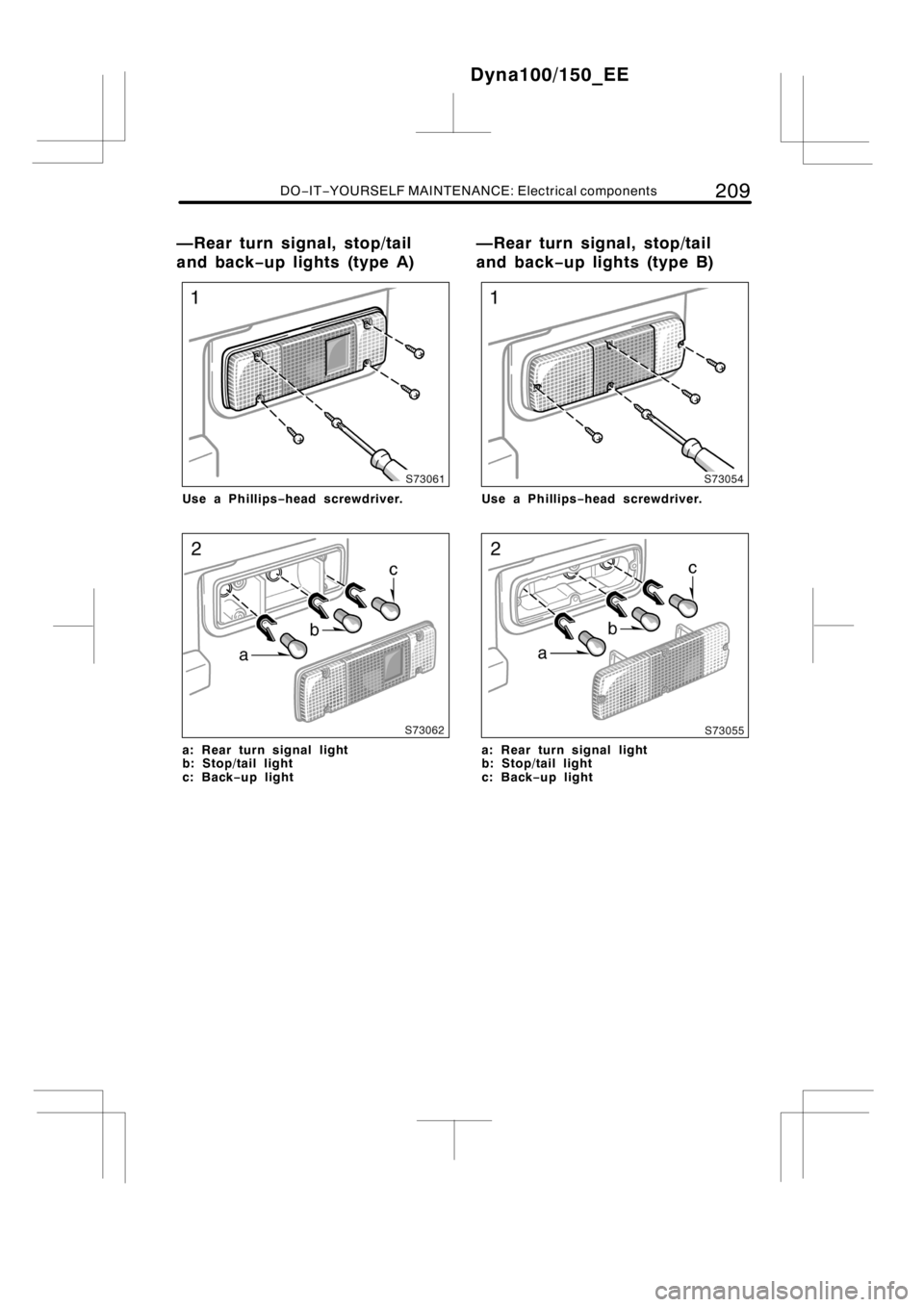

Use a Phillips−head screwdriver.
a: Rear turn signal light
b: Stop/tail light
c: Back−up light
Use a Phillips−head screwdriver.
a: Rear turn signal light
b: Stop/tail light
c: Back−up light
Dyna100/150_EE
—Rear turn signal, stop/tail
and back−up lights (type A)—Rear turn signal, stop/tail
and back−up lights (type B)

210DO−IT−YOURSELF MAINTENANCE: Electrical components

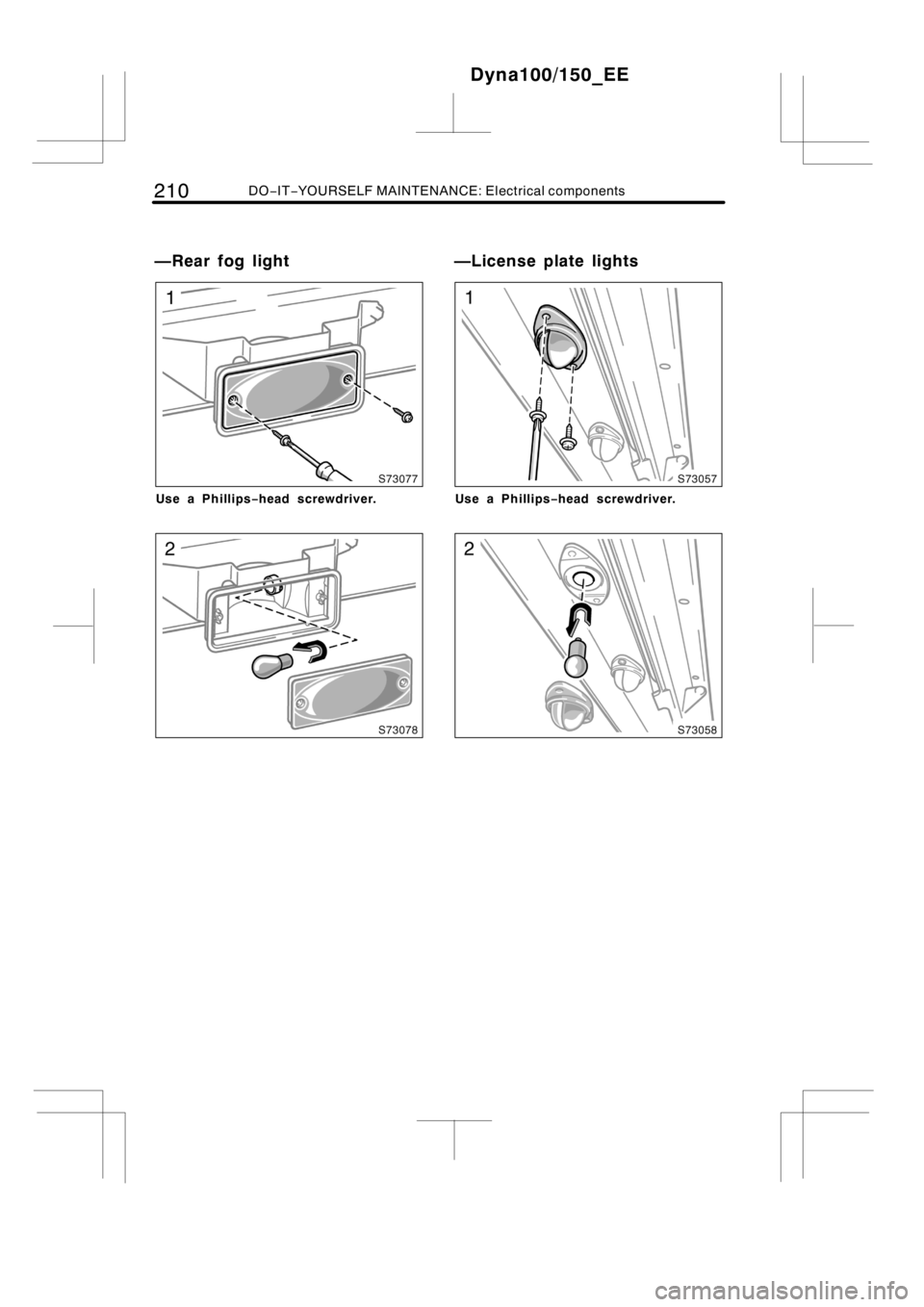

Use a Phillips−head screwdriver.Use a Phillips−head screwdriver.
Dyna100/150_EE
—Rear fog light —License plate lights
