AIR CONDITIONING SYSTEM91
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
Dyna100/150_EE
Side vents

92AIR CONDITIONING SYSTEM
1. Fan speed selector
Turn the knob to adjust the fan speed—to
the “HI” to increase, to the “OFF” to de-
crease.
2. Temperature selector
Move the lever to adjust the tempera-
ture—move it up for higher temperature,
down for lower temperature.
Dyna100/150_EE
Rear heater system

AIR CONDITIONING SYSTEM93
Push the switch to increase engine
speed. Push the switch once again to
return the engine to the normal idle
speed.
Use the heater idle up switch to boost the
heating effect in extremely cold conditions
when the vehicle is not moving.
When the engine coolant is hot (normal
operating temperature), thesystem may
not operate.Outside filter
Inside filter
There are both inside and outside air
conditioning filter. The filters are on the
passenger ’s side. Refer to theillustra-
tions above.
The filters may become clogged after
long use. If the operating efficiency of
the heater becomes poor, or if the win-
dows begin to fog up easily, the filters
may need to be cleaned.
Dyna100/150_EE
Heater idle up switch Air conditioning filters—

94AIR CONDITIONING SYSTEM
: Upper clips
: Lower clips
1. Before cleaning the air conditioning
filter,besuretoturnoffthefan.
Remove the front grille bolt with a
Phillips−head screwdriver. Then, re-
move the clips at the lower part of
the front grille first, and at the up-
per part next, and take off the front
grille.
NOTICE
To remove the front grille without
damaging it, pull it straight as shown
in the illustrations.
Dyna100/150_EE
—Cleaning the outside filter

AIR CONDITIONING SYSTEM95
2. Clean the filter, which is above the
passenger ’s side headlight, with a
soft brush or cloth.
After cleaning the filter, replace the front
grille.1. Before cleaning the air conditioning
filter,besuretoturnoffthefan.
Remove the bolt and clip, and then
remove the lower cover located near
the floor on the passenger ’s side.
Dyna100/150_EE
—Cleaning the inside filter

96AIR CONDITIONING SYSTEM

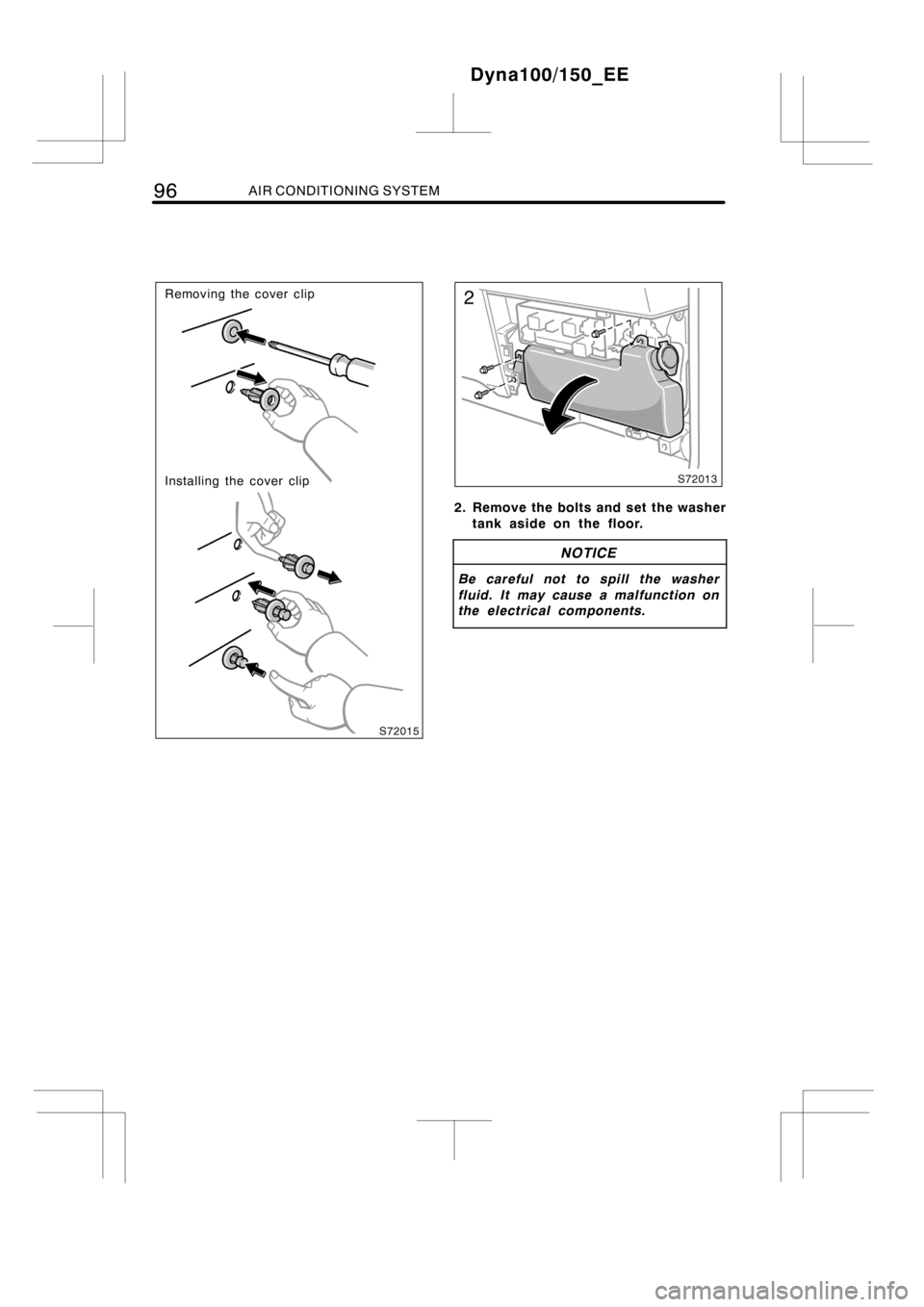

Removing the cover clip
Installing the cover clip
2. Remove the bolts and set the washer
tank aside on the floor.
NOTICE
Be careful not to spill the washer
fluid. It may cause a malfunction on
the electrical components.
Dyna100/150_EE

AIR CONDITIONING SYSTEM97
3. Pull out the filter.
After washing with a mild detergent,
rinse and dry.
After cleaning the filter, replace in reverse
order of removal.
INFORMATION
The air conditioning filter should be
installed properly. The use of air con-
ditioning system with the filter re-
moved may cause deteriorated dust-
proof performance and then affect
overall air conditioning system perfor-
mance.
Dyna100/150_EE
