2014 TOYOTA DYNA 100/150 Owners Manual (in English)

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS51
To remove the child seat:
Press the buckle release button.(A) BABY SEAT INSTALLATION
A baby seat is used in rear−facing posi-
tion only.
An ELR (Emergency Locking Retractor)
belt requires a locking clip to install a
child restraint system.
Dyna100/150_EE
—Installation with 3−point
type seat belt

52SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS
To install the baby seat:
1. Run the lap and shoulder belt through
or around the baby seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
slack out of the lap portion of the belt.
Holding the tab in that position, release
the buckle.2. Install a locking clip near the tab of
the lap and shoulder belt by inserting
the lap and shoulder webbing through
the recesses of the locking clip. Buckle
the belt again. If the belt has any
slack, release the buckle and reinstall
the locking clip.
If your child restraint systemdoes not
provide a locking clip, you can purchase
one at any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional. (See “—Child re-
straint system” onpage 45 for details.)
CAUTION
DAfter inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
DIf the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact any authorized Toyota
dealer or repairer, or another duly
qualified and equipped professional,
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
Dyna100/150_EE

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS53
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
To remove the baby seat:
Press the buckle release button and allow
the belt to retract completely.
CAUTION
Always remove the locking clip when
the child restraint system is not
installed.
Dyna100/150_EE

54SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS
(B) CHILD SEAT INSTALLATION
A child seat is used in forward−facing
or rear−facing position depending on
the child’s age and size. When instal-
ling, follow the manufacturer ’s instruc-
tion about the applicable child’s age
and size as well as directions for
installing the child restraintsystem.
An ELR (Emergency Locking Retractor)
belt requires a locking clip to install a
child restraint system.To install the child seat:
1. Run the lap and shoulder belt through
or around the child seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
slack out of the lap portion of the belt.
Holding the tab in that position, release
the buckle.
Dyna100/150_EE

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS55

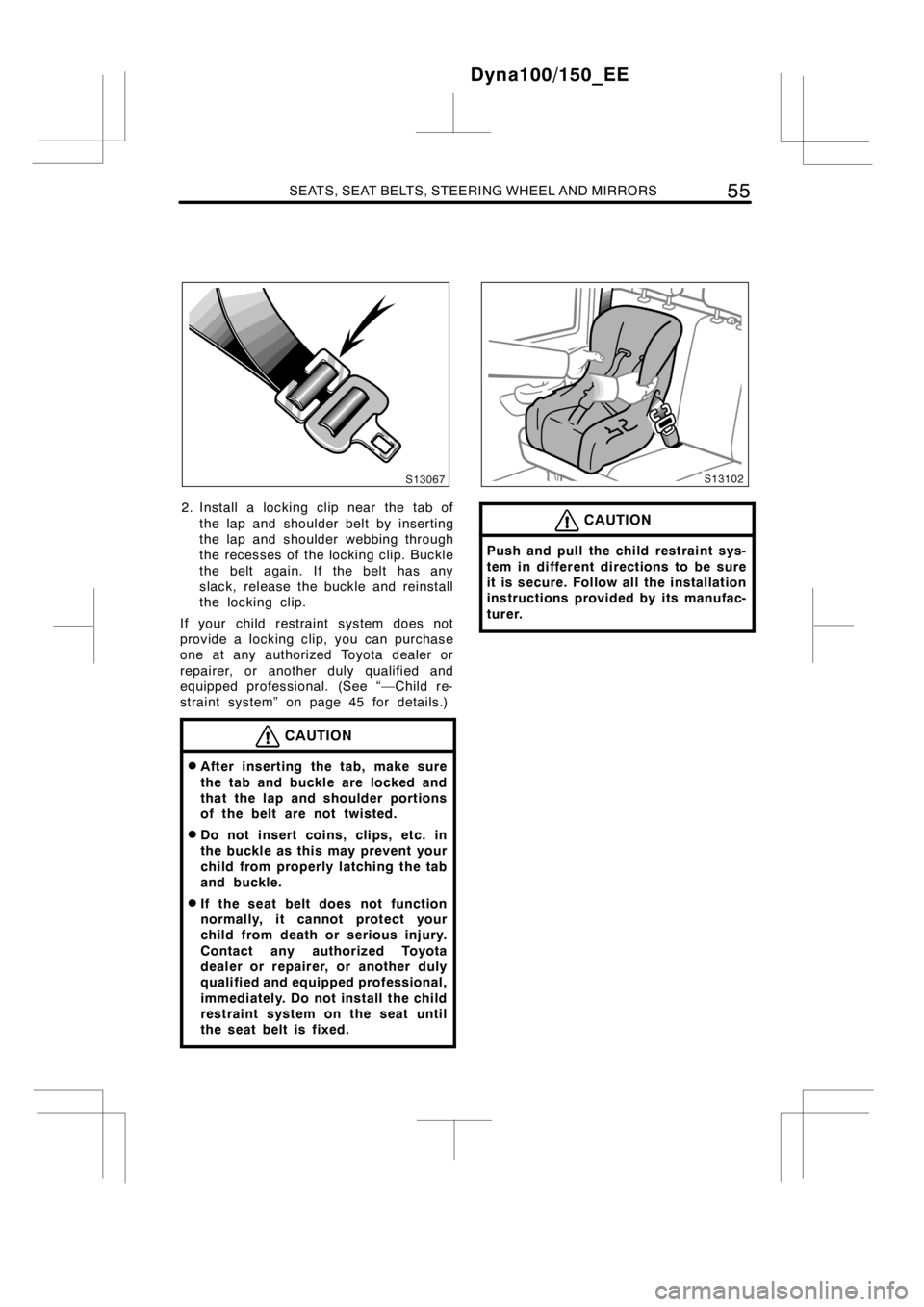

2. Install a locking clip near the tab of
the lap and shoulder belt by inserting
the lap and shoulder webbing through
the recesses of the locking clip. Buckle
the belt again. If the belt has any
slack, release the buckle and reinstall
the locking clip.
If your child restraint systemdoes not
provide a locking clip, you can purchase
one at any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional. (See “—Child re-
straint system” onpage 45 for details.)
CAUTION
DAfter inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
DIf the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact any authorized Toyota
dealer or repairer, or another duly
qualified and equipped professional,
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
Dyna100/150_EE

56SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS

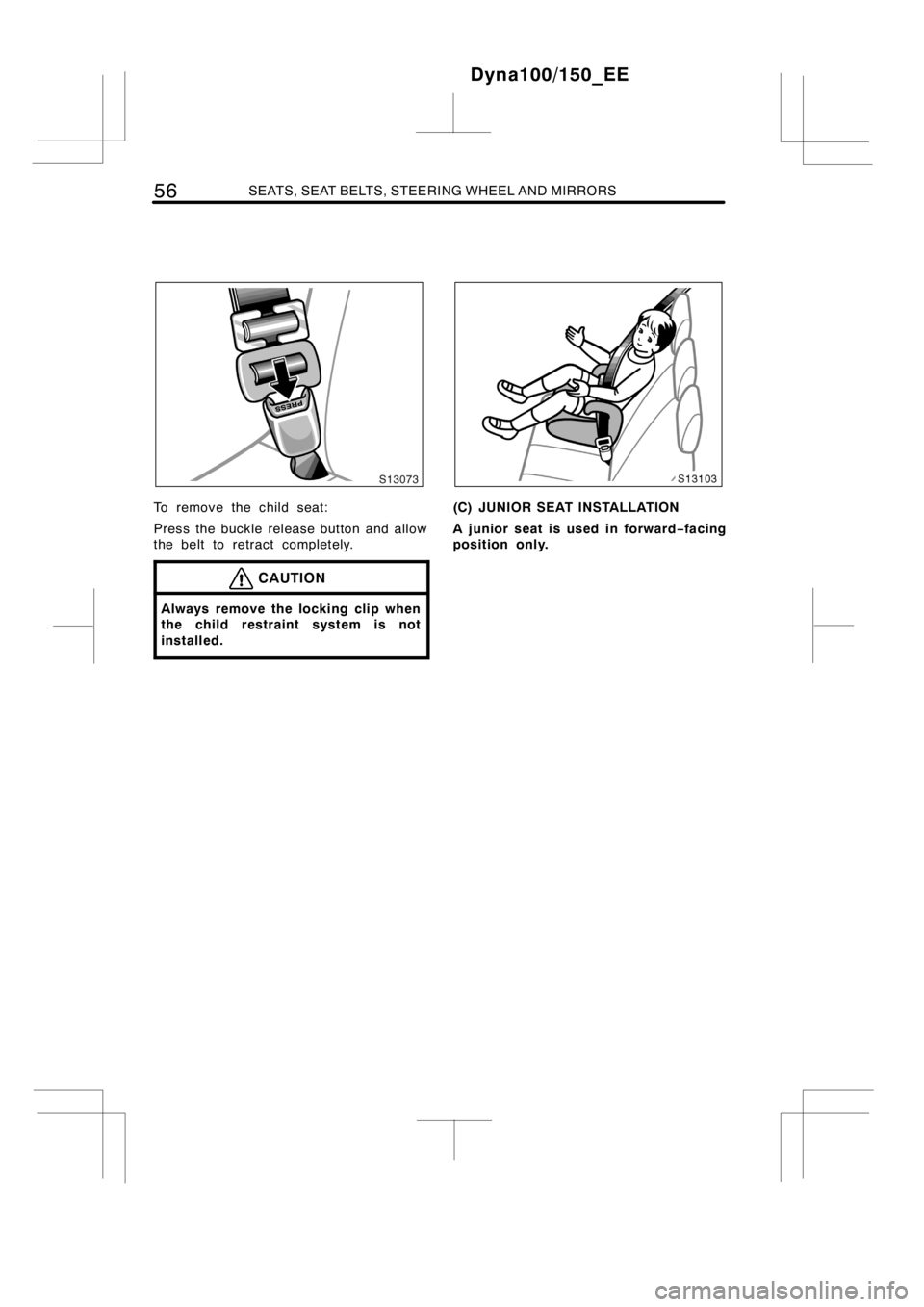

To remove the child seat:
Press the buckle release button and allow
the belt to retract completely.
CAUTION
Always remove the locking clip when
the child restraint system is not
installed.
(C) JUNIOR SEAT INSTALLATION
A junior seat is used in forward−facing
position only.
Dyna100/150_EE

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS57

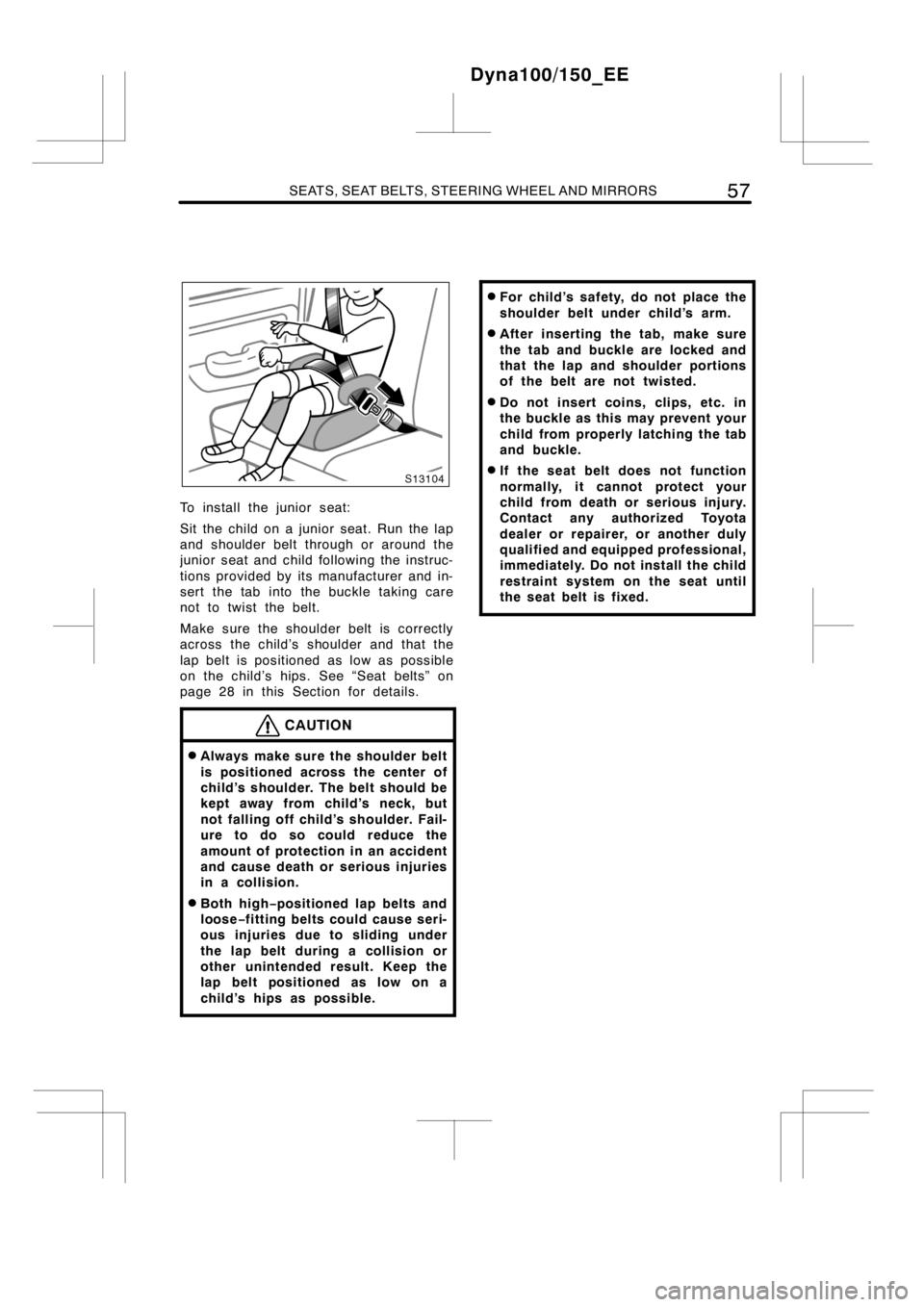

To install the junior seat:
Sit the child on a junior seat. Run the lap
and shoulder belt through or around the
junior seat and child following the instruc-
tions provided by its manufacturer and in-
sert the tab into the buckle taking care
not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 28 in this Section for details.
CAUTION
DAlways make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’sshoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause death or serious injuries
in a collision.
DBoth high−positioned lap belts and
loose−fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
DFor child’s safety, do not place the
shoulder belt under child’s arm.
DAfter inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
DIf the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact any authorized Toyota
dealer or repairer, or another duly
qualified and equipped professional,
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
Dyna100/150_EE

58SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS

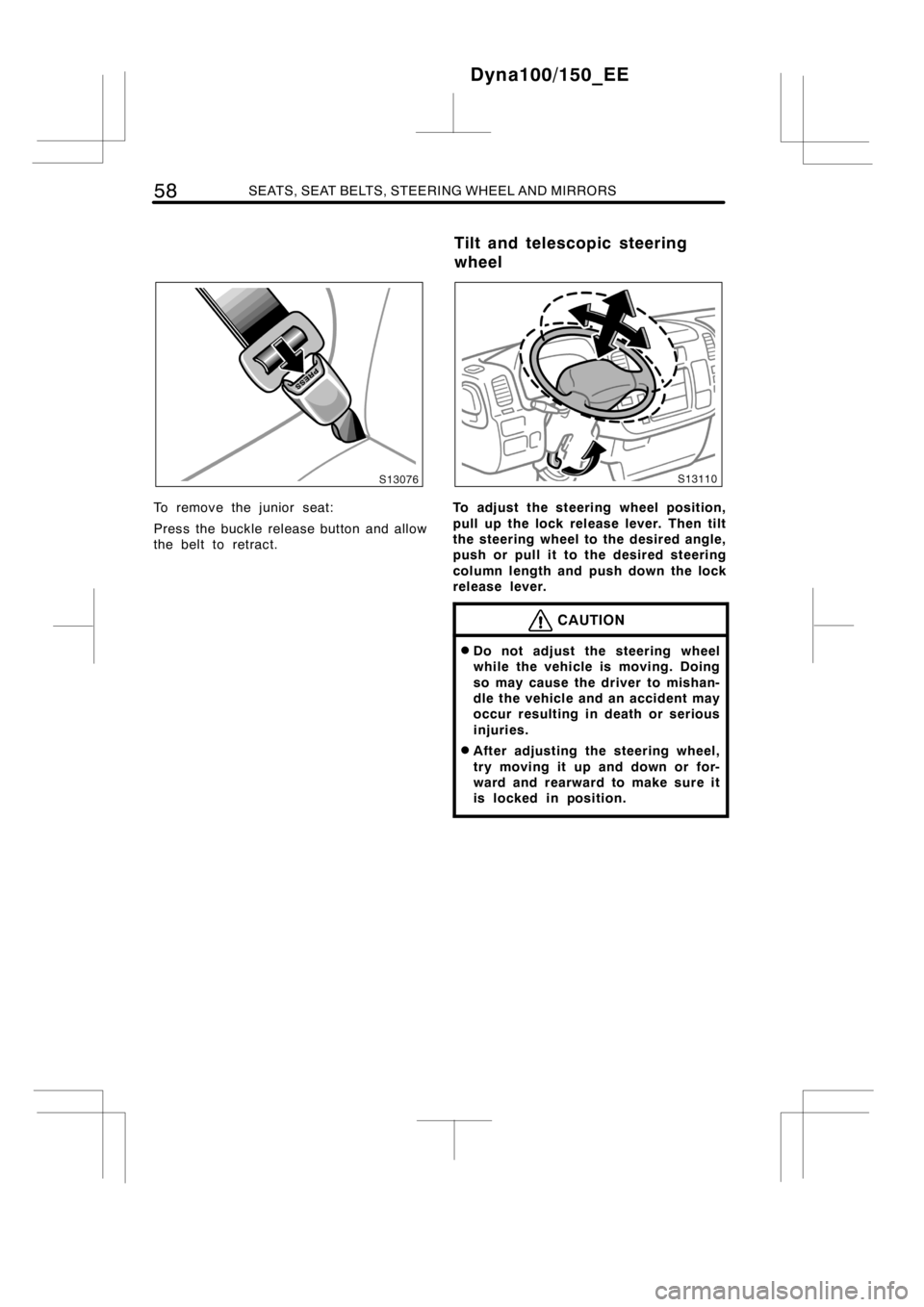

To remove the junior seat:
Press the buckle release button and allow
the belt to retract.To adjust the steering wheel position,
pull up the lock release lever. Then tilt
the steering wheel to the desired angle,
push or pull it to the desired steering
column length and push down the lock
release lever.
CAUTION
DDo not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
DAfter adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
Dyna100/150_EE
Tilt and telescopic steering
wheel
