2014 SUBARU TRIBECA Owners Manual

11-36Maintenance and service
Installation of accessories
Always consult your SUBARU dealerbefore installing fog lights or any otherelectrical equipment in your vehicle. Suchaccessories may cause the electronicsystem to malfunction if they are incor-rectly installedor if they are not suited forthe vehicle.
Replacing bulbs
WARNING
Bulbs may become very hot whileilluminated. Before replacing bulbs,turn off the bulbs and wait until thebulbs cooldown. Otherwise, there isa risk of sustaining a burn injury.
CAUTION
Replaceany bulb only with a newbulb of the specified wattage. Usinga bulb of different wattage couldresult in a fire. For the specifiedwattage of each bulb, refer to“Bulbchart”F12-12.
&Headlights (models with HID
headlights)
WARNING
High-intensity-discharge (HID) bulbsare used for the low beams of theheadlights. These HID bulbs use anextremelyhigh voltage. To avoid therisk of an electric shock that couldresult in serious injury, observe the
following precautions.
.Do not replace any headlightbulbs (both low beam and highbeam) by yourself.
.Do not remove/restore the head-light assemblies by yourself.
.Do not remove any headlight-assembly components by your-self.
For replacement, contact yourSUBARU dealer.
&Headlights (models without
HID headlights)
CAUTION
Halogen headlight bulbs becomevery hot while in use. If you touchthebulb surface with bare hands orgreasy gloves, fingerprints orgrease on the bulb surface willdevelop into hot spots, causing thebulb to break. If there are fingerprints or grease on the bulb surface,wipe them away with a soft clothmoistened with alcohol.

NOTE
.If headlight aiming is required, con-sult your SUBARU dealer for properadjustment of the headlight aim..It may be difficult to replace thebulbs. Have the bulbs replaced by yourSUBARU dealer if necessary.
!Low beam light bulbs (right-handside)
1. Use a screwdriver to undo the clips onthe air intake duct, then remove the airintake duct.
2. Use a screwdriver to remove the bulbcover.
3. Disconnect the electrical connector.
4. Remove the retainer spring.
5. Replace the bulb, then set the retainerspring securely.
6. Reconnect the electrical connector.
7. Install the bulb cover with the fixingscrews.
8. Install the air intake duct with the clips.
NOTE
Contact your SUBARU dealer for thebulb replacement of the left-hand side.
!Highbeam light bulbs
Right-hand side
1. Use a screwdriver to undo the clips onthe air intake duct, then remove the airintake duct (right-hand side).
Maintenance and service11-37
–CONTINUED–

11-38Maintenance and service
Left-hand side
2. Use a screwdriver to remove thesecured clip of the washer tank. To makeit easy to access the bulb, move thewasher tank to the horizontal direction(left-hand side).
3. Disconnect the electrical connectorfrom the bulb.
4. Remove the bulb from the headlightassembly by turning it counterclockwise.
5. Replace the bulb with new one. At thistime, use care not to touch the bulbsurface.
6. Reconnect the electrical connector.
7. To install the bulb to the headlightassembly, turn it clockwise until it clicks.
8. Install the air intake duct with clips(right-hand side).
9. Set the washer tank to the originalplace andsecure it by clip (left-hand side).
&Parking light (right-hand
side)
1. Remove the bulb socket from the
headlight assembly by turning it counter-clockwise.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Set the bulb socket into the headlightassembly and turn it clockwise until itlocks.
NOTE
Contact your SUBARU dealer for thebulb replacement of the left-hand side.

&Front turn signal light (right-
hand side)
1. Remove the bulb socket from theheadlight assembly by turning it counter-clockwise.
2. Remove the bulb from the socket bypushing it and turning counterclockwise.
3. Install a new bulb.
4. Set the bulb socket into the headlightassembly and turn it clockwise until itlocks.
NOTE
Contact your SUBARU dealer for thebulb replacement of the left-hand side.
&Front fog light
It may be difficult to replace the bulbs.Have the bulbs replaced by your SUBARUdealer if necessary.

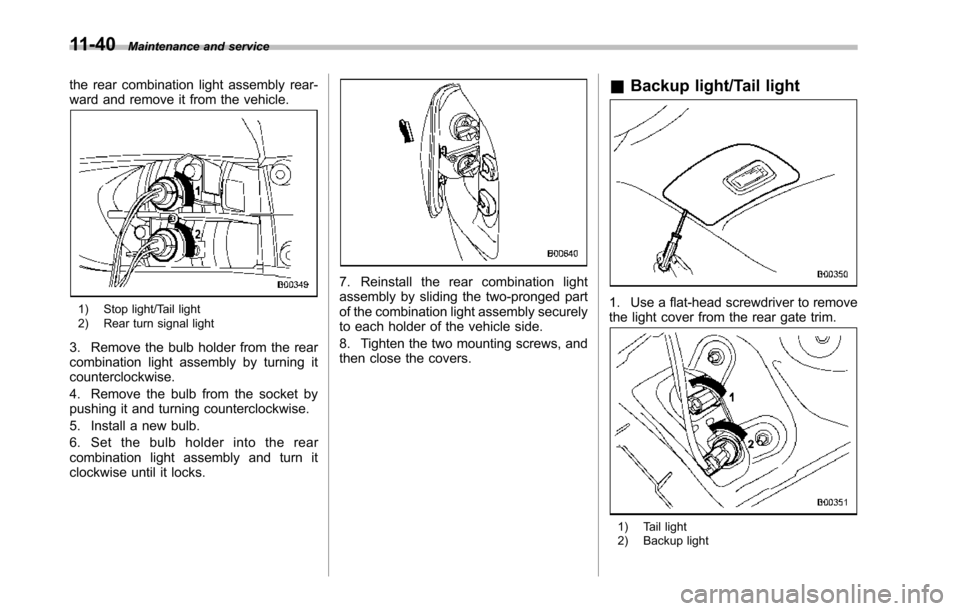

&Rear combination lights
1. Remove the two covers by insertingthe tip of a flat-head screwdriver.
2. Using a Phillips screwdriver, removethe upper and lower screws. Then, slide
Maintenance and service11-39
–CONTINUED–

11-40Maintenance and service
the rear combination light assembly rear-ward and remove it from the vehicle.
1) Stop light/Tail light2) Rear turn signal light
3. Remove the bulb holder from the rearcombination light assembly by turning itcounterclockwise.
4. Remove the bulb from the socket bypushing it and turning counterclockwise.
5. Install a new bulb.
6. Set the bulb holder into the rearcombination light assembly and turn itclockwise until it locks.
7. Reinstall the rear combination lightassembly by sliding the two-pronged partof the combination light assembly securelyto each holder of the vehicle side.
8. Tighten the two mounting screws, andthen close the covers.
&Backup light/Tail light
1. Use a flat-head screwdriver to removethe light cover from the rear gate trim.
1) Tail light2) Backup light

2. Turn the bulb socket counterclockwiseand remove it.
3. Pull the bulb out of the bulb socket andreplace it with a new one.
4. Install the bulb socket by turning itclockwise.
5. Install the light cover on the rear gate.

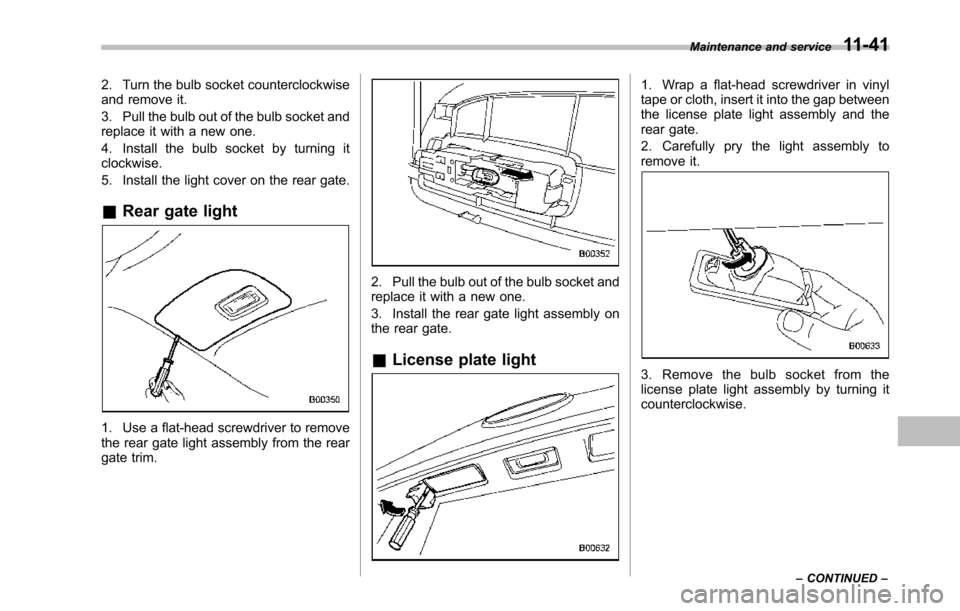

&Rear gate light
1. Use a flat-head screwdriver to removetherear gate light assembly from the reargate trim.
2. Pull the bulb out of the bulb socket andreplace it with a new one.
3. Install the rear gate light assembly onthe rear gate.
&License plate light
1. Wrap a flat-head screwdriver in vinyltape or cloth, insert it into the gap betweenthe license plate light assembly and therear gate.
2. Carefully pry the light assembly toremove it.
3. Remove the bulb socket from thelicense plate light assembly by turning itcounterclockwise.
Maintenance and service11-41
–CONTINUED–

11-42Maintenance and service
4. Pull the bulb out of the socket. Install anew bulb.
5. Set the bulb socket into the licenseplate light assembly and turn it clockwiseuntil it locks.
6. Reinstall the license plate light assem-bly to the rear gate.

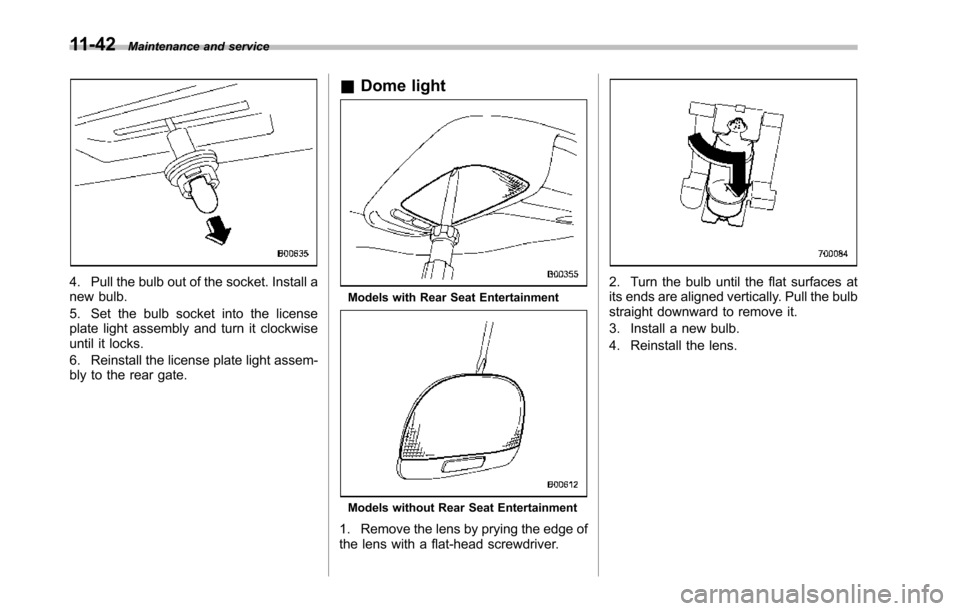

&Dome light
Models with Rear Seat Entertainment
Models without Rear Seat Entertainment
1. Remove the lens by prying the edge ofthe lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces atits ends are aligned vertically. Pull the bulbstraight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.

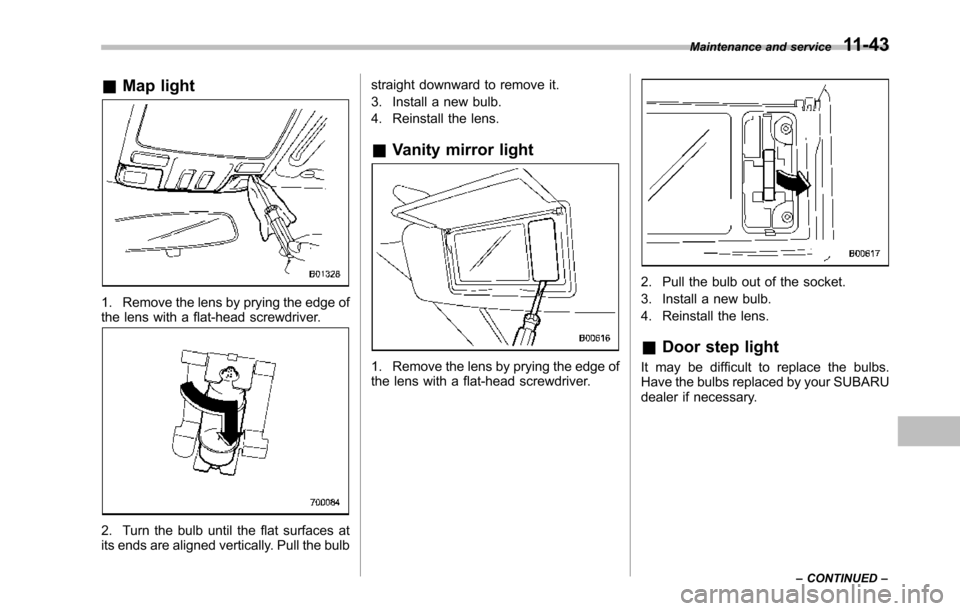

&Map light
1. Remove the lens by prying the edge ofthe lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces atits ends are aligned vertically. Pull the bulb
straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.
&Vanity mirror light
1. Remove the lens by prying the edge ofthe lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the lens.
&Door step light
It may be difficult to replace the bulbs.Have the bulbs replaced by your SUBARUdealer if necessary.
