2014 SUBARU TRIBECA Owners Manual

11-44Maintenance and service

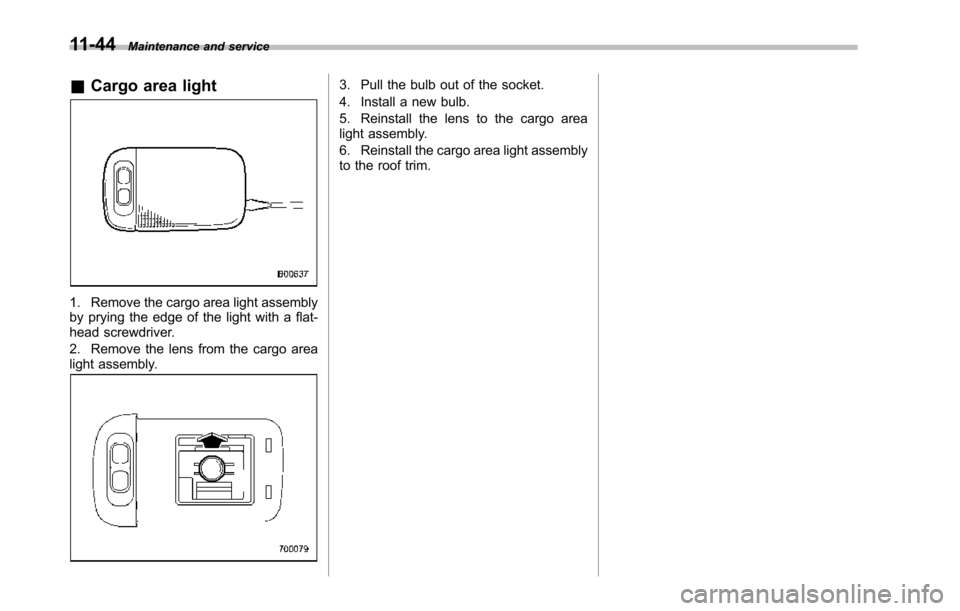

&Cargo area light
1. Remove the cargo area light assemblyby prying the edge of the light with a flat-head screwdriver.
2. Remove the lens from the cargo arealight assembly.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the lens to the cargo arealight assembly.
6. Reinstall the cargo area light assemblyto the roof trim.

Specifications........................................................ 12-2Dimensions........................................................... 12-2Engine.................................................................. 12-2Fuel...................................................................... 12-3Engine oil............................................................. 12-4Front differential and rear differential gear oil......... 12-6Fluids................................................................... 12-7Enginecoolant...................................................... 12-7Electrical system................................................... 12-7
Tires..................................................................... 12-8
Fuses and circuits.................................................12-9Fuse panel located in the passengercompartment...................................................... 12-9Fuse panel located in the enginecompartment..................................................... 12-11
Bulb chart.............................................................12-12
Vehicle identification...........................................12-15
Specifications
12

12-2Specifications
Specifications
These specifications are subject to change without notice.
&Dimensions
in (mm)
Overall length191.5 (4,865)
Overall width73.9 (1,878)
Overall heightWithout roof rail 66.7 (1,695)
With roof rail 68.1 (1,730)
Wheel base108.1 (2,745)
TreadFront 62.0 (1,575)
Rear 62.0 (1,575)
Ground clearance8.3 (211)
&Engine
Engine modelEZ36D(3.6 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 6 cylinder, 4 strokegasoline engine
Displacement cc (cu-in) 3,630 (221.5)
Bore6Stroke in (mm) 3.6263.58 (92.0691.0)
Compression ratio10.5 : 1
Firing order1–6–3–2–5–4

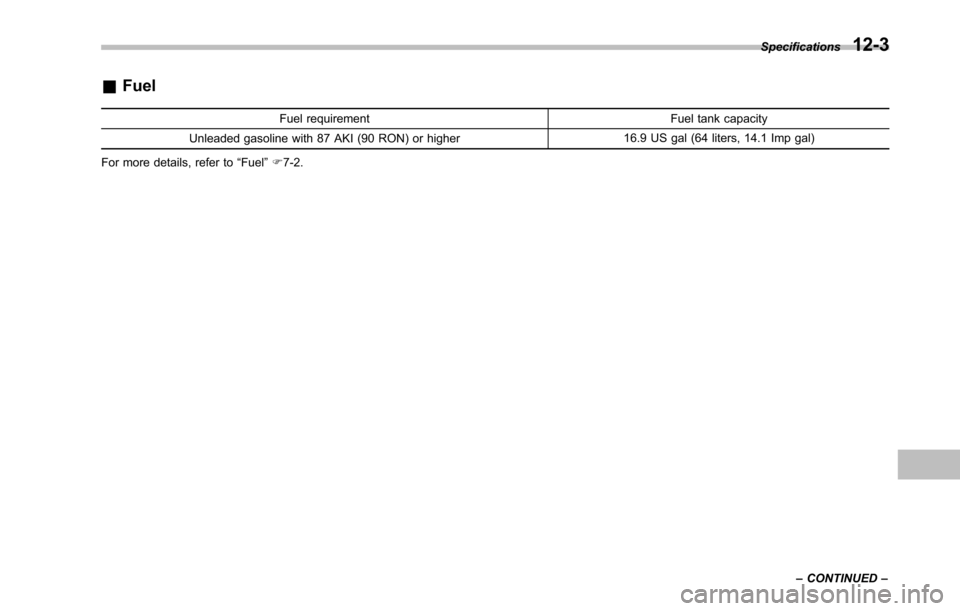

&Fuel
Fuel requirement Fuel tank capacity
Unleaded gasoline with 87 AKI (90 RON) or higher16.9 US gal (64 liters, 14.1 Imp gal)
For more details, refer to“Fuel”F7-2.
Specifications12-3
–CONTINUED–

12-4Specifications
&Engine oil
For the checking, adding and replacing procedure or other details, refer to“Engine oil”F11-7.
NOTE
The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommendedthat you have this service performed by your SUBARU dealer.
!Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
!Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTE
.Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on thetemperature and other factors..In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lowerviscosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate theengine. The following table lists the recommended viscosities and applicable temperatures..When adding oil, different brands may be used togetheras long as they are the same API classification and SAE viscosityas those recommended by SUBARU.

Oil gradeSAE viscosity No. andapplicable temperatureEngine oil capacity
API classification SM or SN withthe words“ENERGY CONSERVING”or“RESOURCE CONSERVING”
or
ILSAC GF-4 or GF-5, which canbe identified with the ILSACcertification mark (Starburstmark)
Your vehicle is designed to use 5W-30conventional motor oil, however 5W-30synthetic may be used for optimumengine performance.
If you do choose to use synthetic oil,we recommend that you continue usingsynthetic for the life of your vehicle.
–Adding the oil from L to F level:1.1 US qt (1.0 liter, 0.9 Imp qt)–Changing the oil and oil filter:6.9 US qt (6.5 liters, 5.7 Imp qt)
Specifications12-5
–CONTINUED–

12-6Specifications

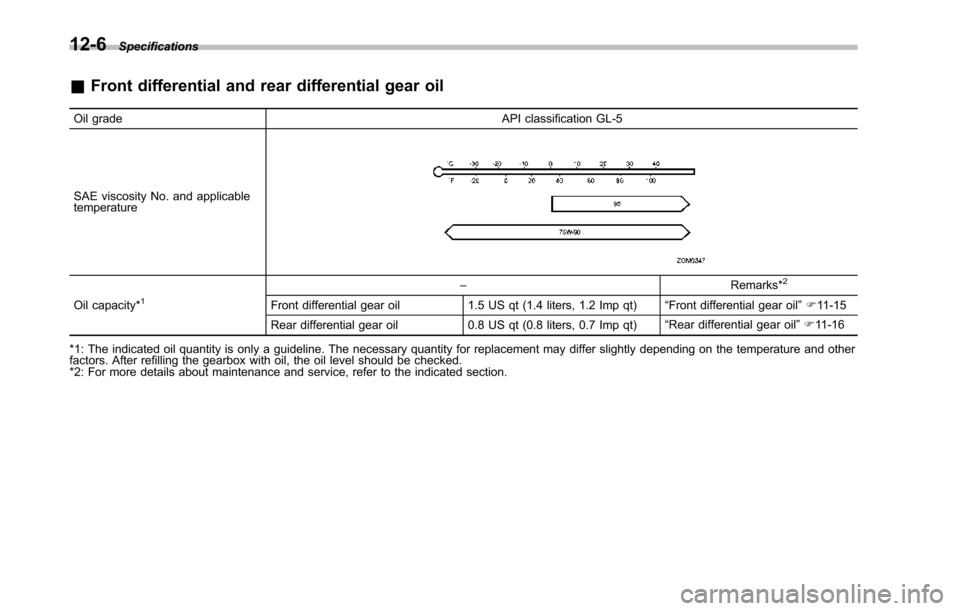

&Front differential and rear differential gear oil
Oil grade API classification GL-5
SAE viscosity No. and applicabletemperature
Oil capacity*1–Remarks*2
Front differential gear oil 1.5 US qt (1.4 liters, 1.2 Imp qt)“Front differential gear oil”F11-15
Rear differential gear oil 0.8 US qt (0.8 liters, 0.7 Imp qt)“Rear differential gear oil”F11-16
*1: The indicated oil quantity is only a guideline.The necessary quantityfor replacement may differ slightlydepending on the temperature and otherfactors. After refilling the gearbox with oil, the oil level should be checked.*2: For more details about maintenance and service, refer to the indicated section.

&Fluids
FluidFluid type*1Fluid capacity*2Remarks*3
Automatic transmission fluid· SUBARU ATF· IDEMITSU ATF HP10.4 US qt (9.8 liters, 8.6 Imp qt)“Automatic transmission fluid”F11 -14
Power steering fluid
· SUBARU ATF· IDEMITSU ATF HP·“Dexron III”Type AutomaticTransmission Fluid
0.95 US qt (0.9 liters, 0.79 Imp qt)·“Power steering”F7-18·“Power steering fluid”F11-16
Brake fluidFMVSSNo. 116, fresh DOT 3 or DOT 4brake fluid–“Brake fluid”F11-17
*1: Use one of the indicated types of fluid.*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and otherfactors.*3: For moredetails about maintenance and service,referto the indicated section.
&Engine coolant
Coolant type Coolant capacity
SUBARU Super Coolant8.0 US qt (7.6 liters, 6.7 Imp qt)
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and otherfactors. For more details about maintenance and service, refer to“Cooling system”F11-10.
&Electrical system
Battery type and capacity (5HR) 75D23L (12V-52AH)
Alternator12V-130A
Spark plugsSILFR6C11 (NGK)
Specifications12-7
–CONTINUED–
