1-66Seat, seatbelt and SRS airbags

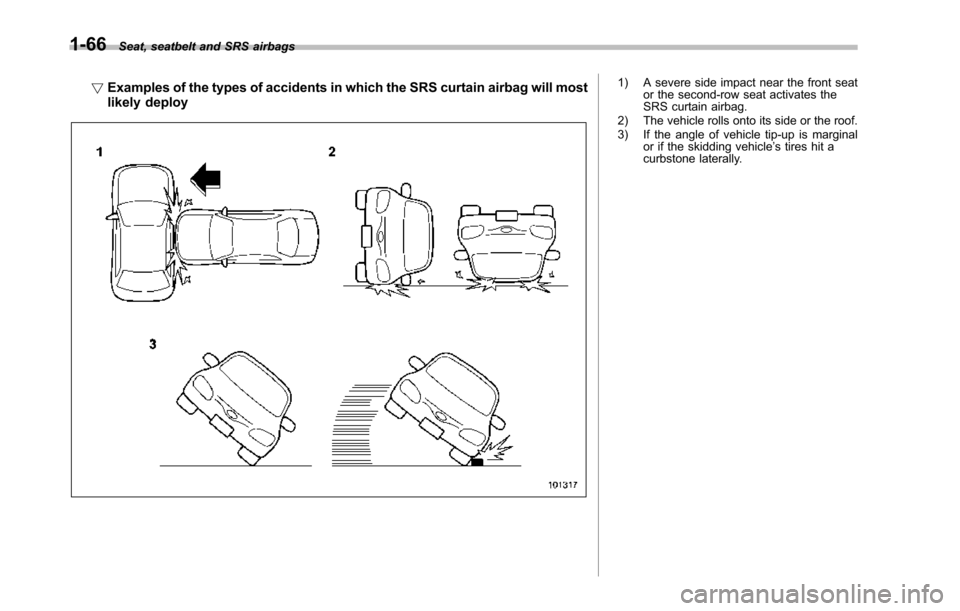

!Examples of the types of accidents in which the SRS curtain airbag will mostlikely deploy
1) A severe side impact near the front seator the second-row seat activates theSRS curtain airbag.2) The vehicle rolls onto its side or the roof.3) If the angle of vehicle tip-up is marginalor if the skidding vehicle’s tires hit acurbstone laterally.

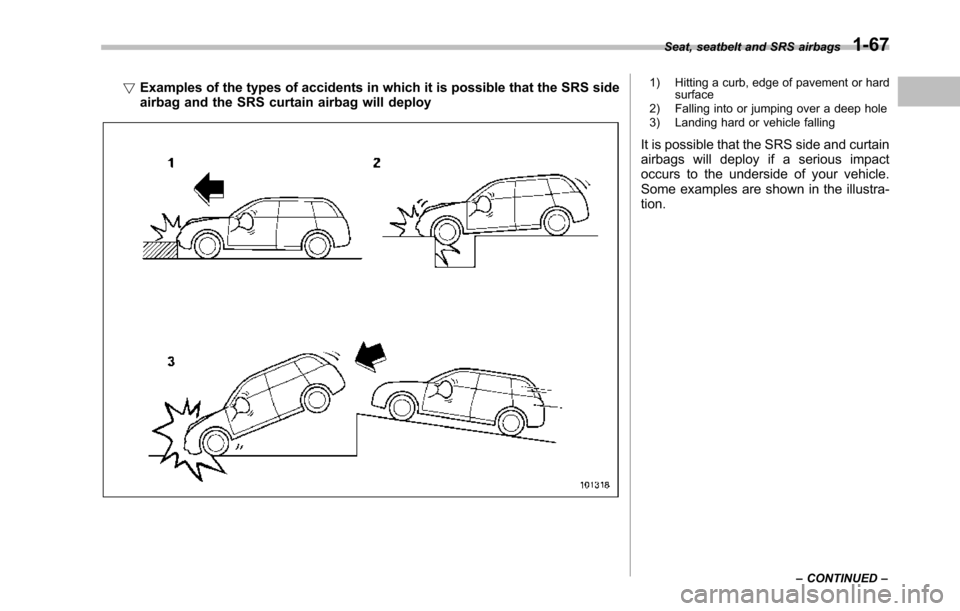

!Examples of the types of accidents in which it is possible that the SRS sideairbag and the SRS curtain airbag will deploy
1) Hitting a curb, edge of pavement or hardsurface2) Falling into or jumping over a deep hole3) Landing hard or vehicle falling
It is possible that the SRS side and curtainairbags will deploy if a serious impactoccurs to the underside of your vehicle.Some examples are shown in the illustra-tion.
Seat, seatbelt and SRS airbags1-67
–CONTINUED–

1-68Seat, seatbelt and SRS airbags

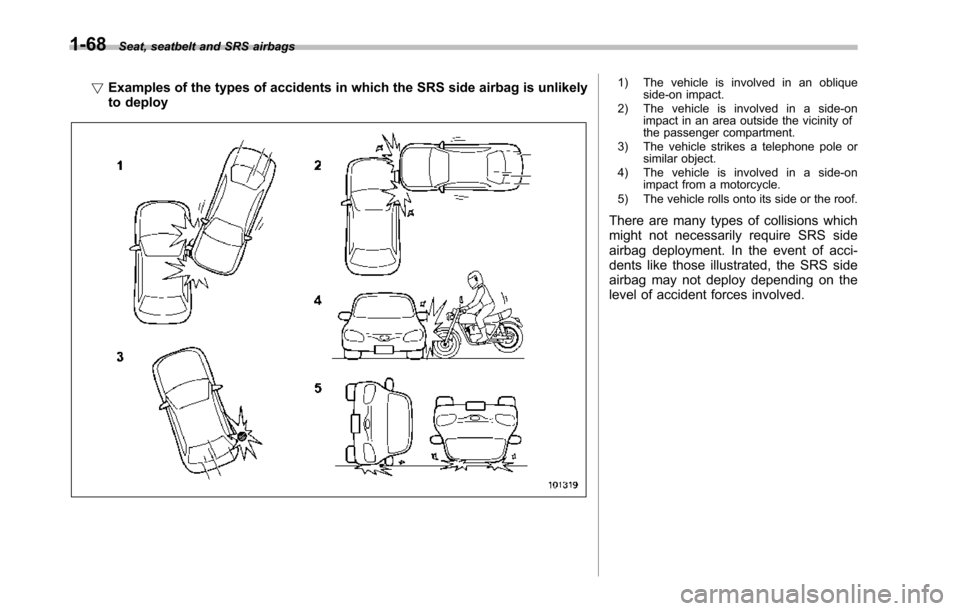

!Examples of the types of accidents in which the SRS side airbag is unlikelyto deploy
1) The vehicle is involved in an obliqueside-on impact.2) The vehicle is involved in a side-onimpact in an area outside the vicinity ofthe passenger compartment.3) The vehicle strikes a telephone pole orsimilar object.4) The vehicle is involved in a side-onimpact from a motorcycle.5) The vehicle rolls onto its side or the roof.
There are many types of collisions whichmight not necessarily require SRS sideairbag deployment. In the event of acci-dents like those illustrated, the SRS sideairbag may not deploy depending on thelevel of accident forces involved.

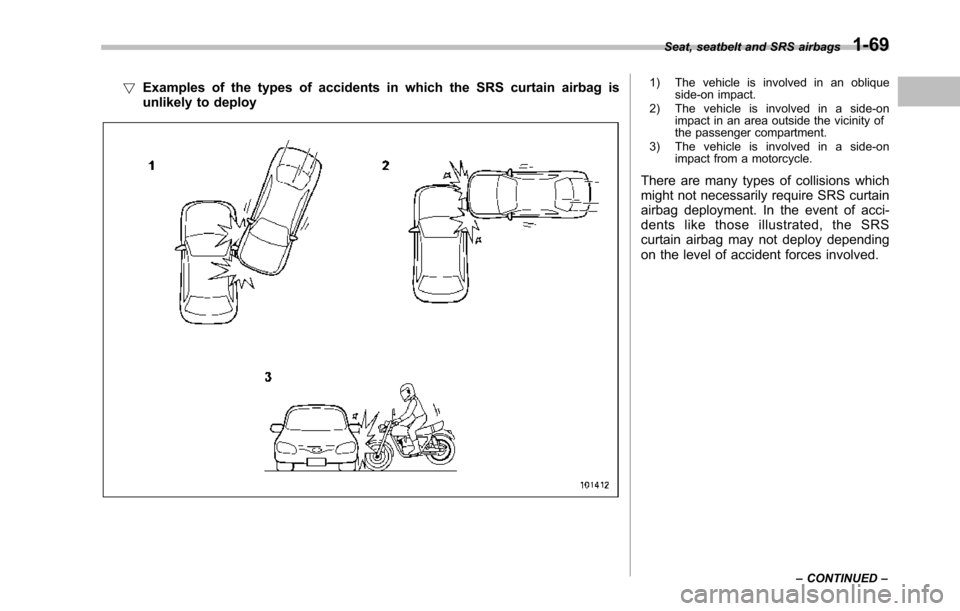

!Examples of the types of accidents in which the SRS curtain airbag isunlikely to deploy
1) The vehicle is involved in an obliqueside-on impact.2) The vehicle is involved in a side-onimpact in an area outside the vicinity ofthe passenger compartment.3) The vehicle is involved in a side-onimpact from a motorcycle.
There are many types of collisions whichmight not necessarily require SRS curtainairbag deployment. In the event of acci-dents like those illustrated, the SRScurtain airbag may not deploy dependingon the level of accident forces involved.
Seat, seatbelt and SRS airbags1-69
–CONTINUED–

1-70Seat, seatbelt and SRS airbags

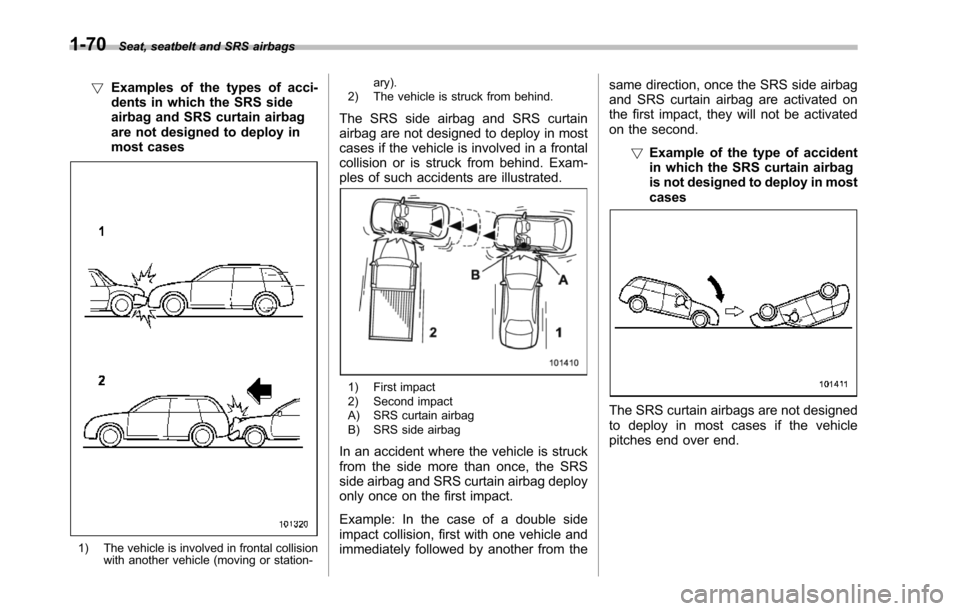

!Examples of the types of acci-dents in which the SRS sideairbag and SRS curtain airbagare not designed to deploy inmost cases
1) The vehicle is involved in frontal collisionwith another vehicle (moving or station-
ary).2) The vehicle is struck from behind.
The SRS side airbag and SRS curtainairbag are not designed to deploy in mostcases if the vehicle is involved in a frontalcollision or is struck from behind. Exam-ples of such accidents are illustrated.
1) First impact2) Second impactA) SRS curtain airbagB) SRS side airbag
In an accident where the vehicle is struckfrom the side more than once, the SRSside airbag and SRS curtain airbag deployonly once on the first impact.
Example: In the case of a double sideimpact collision, first with one vehicle andimmediately followed by another from the
same direction, once the SRS side airbagand SRS curtain airbag are activated onthe first impact, they will not be activatedon the second.
!Example of the type of accidentin which the SRS curtain airbagis not designed to deploy in mostcases
The SRS curtain airbags are not designedto deploy in most cases if the vehiclepitches end over end.

&SRS airbag system monitors

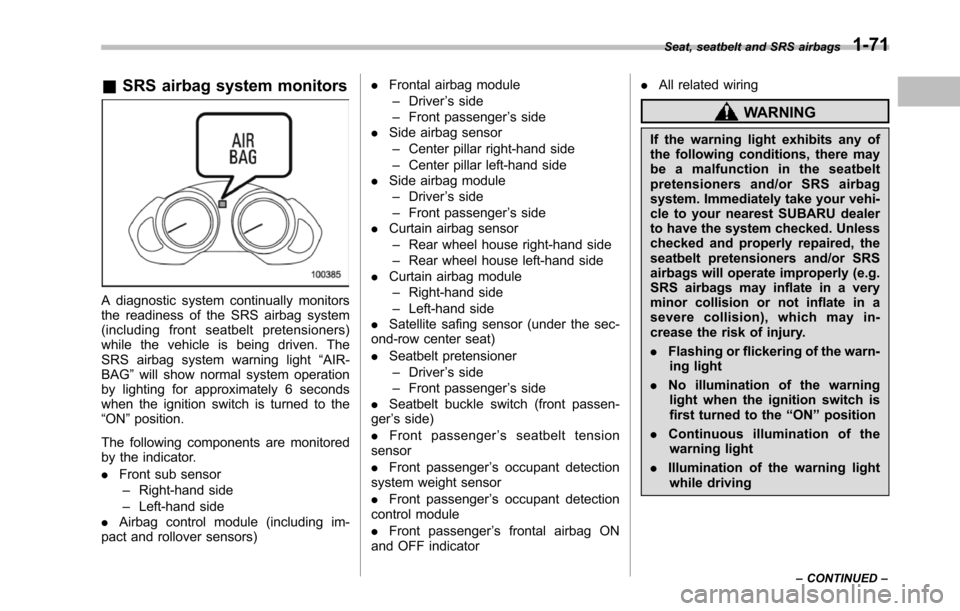

A diagnostic system continually monitorsthe readiness of the SRS airbag system(including front seatbelt pretensioners)while the vehicle is being driven. TheSRS airbag system warning light“AIR-BAG”will show normal system operationby lighting for approximately 6 secondswhen the ignition switch is turned to the“ON”position.
The following components are monitoredby the indicator.
.Front sub sensor–Right-hand side–Left-hand side.Airbag control module (including im-pact and rolloversensors)
.Frontal airbag module–Driver’s side–Front passenger’s side.Side airbag sensor–Center pillar right-hand side–Center pillar left-hand side.Side airbag module–Driver’s side–Front passenger’s side.Curtain airbag sensor–Rear wheel house right-hand side–Rear wheel house left-hand side.Curtain airbag module–Right-hand side–Left-hand side.Satellite safing sensor (under the sec-ond-row center seat)
.Seatbelt pretensioner–Driver’s side–Front passenger’s side.Seatbelt buckleswitch (front passen-ger’s side)
.Front passenger’sseatbelttensionsensor
.Front passenger’s occupant detectionsystem weight sensor
.Front passenger’s occupant detectioncontrolmodule
.Front passenger’s frontal airbag ONand OFF indicator
.All related wiring
WARNING
If the warning light exhibits any ofthe following conditions, there maybe a malfunction in the seatbeltpretensioners and/or SRS airbagsystem. Immediately take your vehi-cle to your nearest SUBARU dealerto have the system checked. Unlesschecked and properly repaired, theseatbelt pretensioners and/or SRSairbags will operate improperly (e.g.SRS airbags may inflate in a veryminor collision or not inflate in asevere collision), which may in-crease the risk of injury.
.Flashing or flickering of the warn-ing light
.No illumination of the warninglight when the ignition switch isfirst turned to the“ON”position
.Continuous illumination of thewarning light
.Illumination of the warning lightwhile driving
Seat, seatbelt and SRS airbags1-71
–CONTINUED–

1-72Seat, seatbelt and SRS airbags
&SRS airbag system servicing
WARNING
.When discarding an airbag mod-ule or scrapping the entire vehi-cle damaged by a collision, con-sult your SUBARU dealer.
.The SRS airbag has no user-serviceable parts. Do not useelectrical test equipment on anycircuit related to the SRS airbagsystem. For required servicing ofthe SRS airbag, consult yournearest SUBARU dealer. Tamper-ing with or disconnecting thesystem’s wiring could result inaccidental inflation of the SRSairbag or could make the systeminoperative, which may result inserious injury.
CAUTION
If you need service or repair in areasindicated in the following list, havethe work performed by an author-ized SUBARU dealer. The SRS air-bag control module, impact sensorsand airbag modules are stored inthese areas.
.Under the center console
.Inside each front fender
.Steering wheel and column andnearby areas
.Top of the dashboard on frontpassenger’ssideandnearbyareas
.Each front seat and nearby area
.Inside each center pillar
.In each roof side (from the frontpillar to a point over the second-row seat)
.Between the second-row seatcushion and rear wheel houseon each side
.Under the second-row centerseat
In the event that the SRS airbag isdeployed, replacement of the systemshould be performed only by an author-ized SUBARU dealer. When the compo-nents of the SRS airbag system arereplaced, use only genuine SUBARUparts.
NOTE
In the following cases, contact yourSUBARU dealer as soon as possible.
.The front part of the vehicle was
involved in an accident in which onlythe driver’s SRS frontal airbag or bothdriver’sandfrontpassenger’sSRSfrontal airbags did not deploy..The pad of the steering wheel, thecover over the front passenger’s SRSfrontal airbag, or either roof side (fromthe front pillar to a point over thesecond-row seat) is scratched,cracked, or otherwise damaged..Center pillar, rear wheel house orrearfloor pan, or an area near theseparts, was involved in an accident inwhich the SRS side airbag and SRScurtain airbag did not deploy..The fabric or leather of either frontseatback is cut, frayed, or otherwisedamaged..The rear part of the vehicle wasinvolved in an accident in which noSRS airbag was deployed.
&Precautions against vehicle
modification
WARNING
To avoid accidental activation of thesystem or rendering the systeminoperative, which may result inserious injury, no modificationsshould be made to any components

or wiring of the SRS airbag system.
This includes following modifica-tions.
.Installation of custom steeringwheels
.Attachment of additional trimmaterials to the dashboard
.Installation of custom seats
.Replacement of seat fabric orleather
.Installation of additional fabric orleather on the front seat
.Attachment of a hands-free mi-crophone or any other accessoryto a front pillar, a center pillar, arear pillar, the windshield, a sidewindow, an assist grip, or anyother cabin surface that would benear a deploying SRS curtainairbag.
.Installation of additional electri-cal/electronic equipment such asa mobile two-way radio on ornear the SRS airbag systemcomponents and/or wiring is notadvisable. This could interferewith proper operation of theSRS airbag system.
CAUTION
Do not perform any of the followingmodifications. Such modificationscan interfere with proper operationof the SRS airbag system.
.Attachment of any equipment(bush bar, winches, snow plow,skid plate, etc.) other than genu-ine SUBARU accessory parts.
.Modificationof the suspensionsystem or front end structure.
.Installation of a tire of differentsize and construction from thetires specified on the vehicleplacardattached to the driver’sdoor pillar or specified for indivi-dual vehicle models in this Own-er’s Manual.
.Attachment of any equipment(side steps or side sill protectors,etc.) other than genuine SUBARUaccessory parts to the side body.
Always consult your SUBARU dealer ifyou want to install any accessory parts onyour vehicle.
