2014 SKODA ROOMSTER Owner's Manual

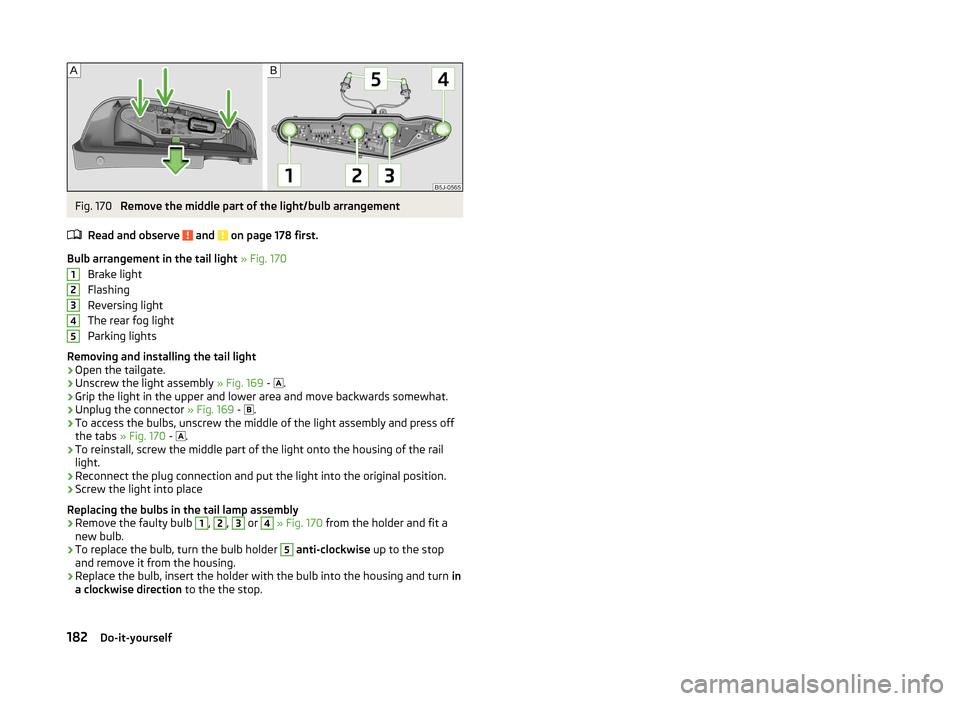

Fig. 170
Remove the middle part of the light/bulb arrangement
Read and observe
and on page 178 first.
Bulb arrangement in the tail light » Fig. 170
Brake light
Flashing
Reversing light
The rear fog light
Parking lights
Removing and installing the tail light
›
Open the tailgate.
›
Unscrew the light assembly » Fig. 169 -
 .
›
Grip the light in the upper and lower area and move backwards somewhat.
›
Unplug the connector
» Fig. 169 -
 .
›
To access the bulbs, unscrew the middle of the light assembly and press off
the tabs » Fig. 170 -
 .
›
To reinstall, screw the middle part of the light onto the housing of the rail
light.
›
Reconnect the plug connection and put the light into the original position.
›
Screw the light into place
Replacing the bulbs in the tail lamp assembly
›
Remove the faulty bulb
1
,
2
,
3
or
4
» Fig. 170 from the holder and fit a
new bulb.
›
To replace the bulb, turn the bulb holder
5
anti-clockwise up to the stop
and remove it from the housing.
›
Replace the bulb, insert the holder with the bulb into the housing and turn in
a clockwise direction to the the stop.
12345182Do-it-yourself

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle characteristics
183
Operating weight and payload
184
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
184
Dimensions
185
Vehicle-specific details per engine type
186
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc- ing equipment, e.g. air conditioning system.
Vehicle characteristics
Fig. 171
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 171 -
 is located on the base of the luggage
compartment and is also fixed into the service schedule.
The vehicle data sticker contains the following data.
Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine
code
Partial vehicle description
Type plate
The type plate » Fig. 171 - 
is located at the bottom of the B-pillar on the right
driver's side.
The type plate contains the following data. Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped on
the right hand suspension strut dome in the engine compartment. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
Engine number
The engine number (three-digit code letter and serial number) is stamped onto
the engine block.
Supplementary Information (applies to Russia)
The full type approval number of the means of transport is indicated in the
registration documents.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!123456789183Technical data

Operating weight and payload
Operating weight
This value represents the minimum operating weight without additional
weight-increasing equipment such as air conditioning system, spare wheel, or
trailer hitch.
The specified operating weight is for orientation purposes only.
The operating weight also contains the weight of the driver (75 kg), the weight
of the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
Operating weight of the vehicle » page 186, Vehicle-specific details per en-
gine type .
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
› The weight of the passengers.
› The weight of all items of luggage and other loads.
› The weight of the roof, including the roof rack system.
› The weight of the equipment that is excluded from the operating weight.
› Trailer drawbar load when towing a trailer (max. 50 kg).
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Measurement of fuel consumption and CO 2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation.
The measurement of the intra-urban cycle begins with a cold start of the en-
gine. Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in
all gears, corresponding to daily routine driving conditions. The driving speed
varies between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of
about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
Note
■ The fuel consumption and emission levels given on the ŠKODA websites or in
the commercial and technical vehicle documentation have been established in
accordance with rules and under conditions that are set out by legal or techni-
cal rules for the determination of operational and technical data of motor vehi-
cles.■
Depending on the extent of the equipment, the driving style, traffic condi-
tions, weather influences and vehicle condition, consumption values can in
practice result in fuel economy figures in the use of the vehicle that differ from
the fuel consumption values listed on the ŠKODA websites or in the commer-
cial and technical vehicle documentation.
184Technical data

Dimensions
Vehicle dimensions for operating weight without driver (in mm) ROOMSTERPRAKTIKSCOUTLength421442134240Width168416841695Width including exterior mirror188218821882Height160716071650Clearance140140141Wheel base262026202620Track gauge front/rear1436/1500
(1420/1484) a)1436/1500
(1420/1484) a)1427/1494a)
Valid for vehicles, which have factory-fitted 15" wheels.
185Technical data

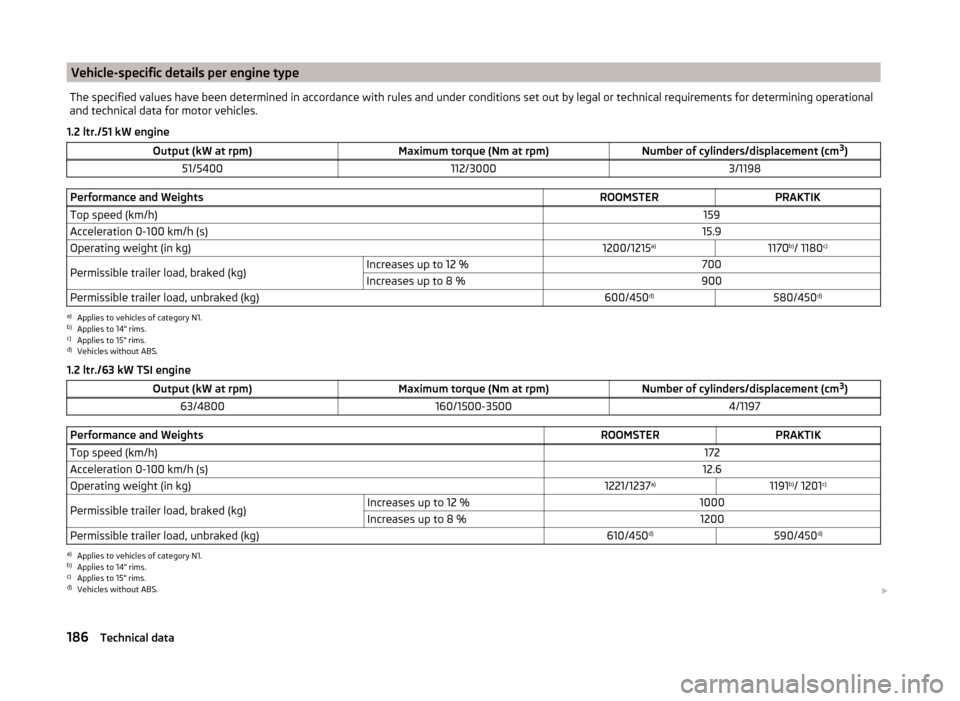

Vehicle-specific details per engine typeThe specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational
and technical data for motor vehicles.
1.2 ltr./51 kW engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)51/5400112/30003/1198Performance and WeightsROOMSTERPRAKTIKTop speed (km/h)159Acceleration 0-100 km/h (s)15.9Operating weight (in kg)1200/1215 a)1170b)
/ 1180 c)Permissible trailer load, braked (kg)Increases up to 12 %700Increases up to 8 %900Permissible trailer load, unbraked (kg)600/450 d)580/450d)a)
Applies to vehicles of category N1.
b)
Applies to 14" rims.
c)
Applies to 15" rims.
d)
Vehicles without ABS.
1.2 ltr./63 kW TSI engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)63/4800160/1500-35004/1197Performance and WeightsROOMSTERPRAKTIKTop speed (km/h)172Acceleration 0-100 km/h (s)12.6Operating weight (in kg)1221/1237 a)1191b)
/ 1201 c)Permissible trailer load, braked (kg)Increases up to 12 %1000Increases up to 8 %1200Permissible trailer load, unbraked (kg)610/450 d)590/450 d)a)
Applies to vehicles of category N1.
b)
Applies to 14" rims.
c)
Applies to 15" rims.
d)
Vehicles without ABS.

186Technical data

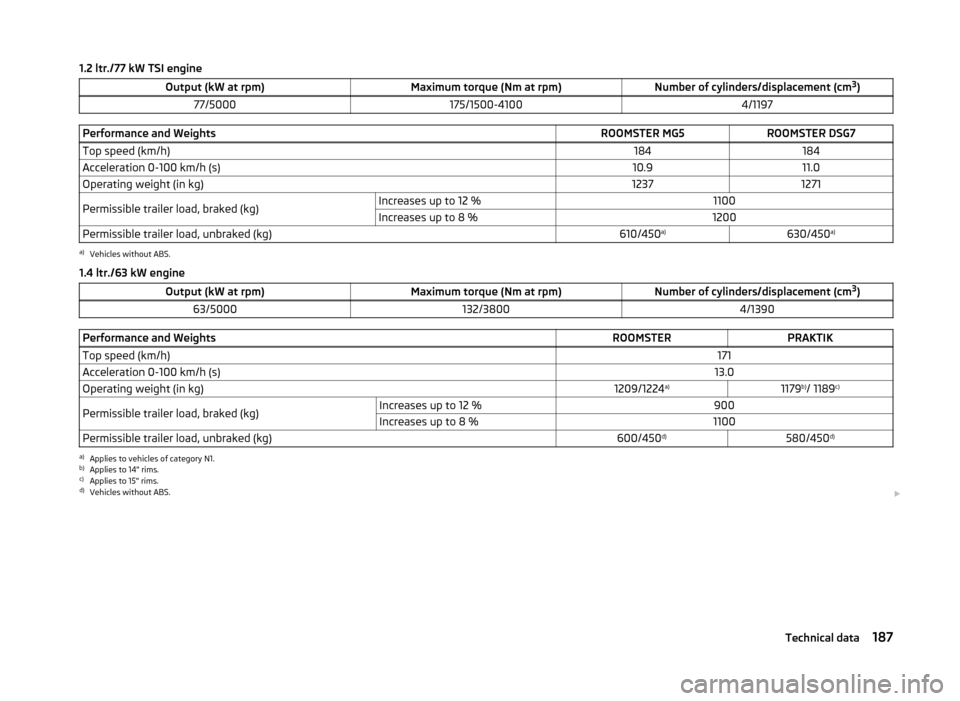

1.2 ltr./77 kW TSI engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/5000175/1500-41004/1197Performance and WeightsROOMSTER MG5ROOMSTER DSG7Top speed (km/h)184184Acceleration 0-100 km/h (s)10.911.0Operating weight (in kg)12371271Permissible trailer load, braked (kg)Increases up to 12 %1100Increases up to 8 %1200Permissible trailer load, unbraked (kg)610/450 a)630/450 a)a)
Vehicles without ABS.
1.4 ltr./63 kW engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)63/5000132/38004/1390Performance and WeightsROOMSTERPRAKTIKTop speed (km/h)171Acceleration 0-100 km/h (s)13.0Operating weight (in kg)1209/1224 a)1179b)
/ 1189 c)Permissible trailer load, braked (kg)Increases up to 12 %900Increases up to 8 %1100Permissible trailer load, unbraked (kg)600/450 d)580/450d)a)
Applies to vehicles of category N1.
b)
Applies to 14" rims.
c)
Applies to 15" rims.
d)
Vehicles without ABS.

187Technical data

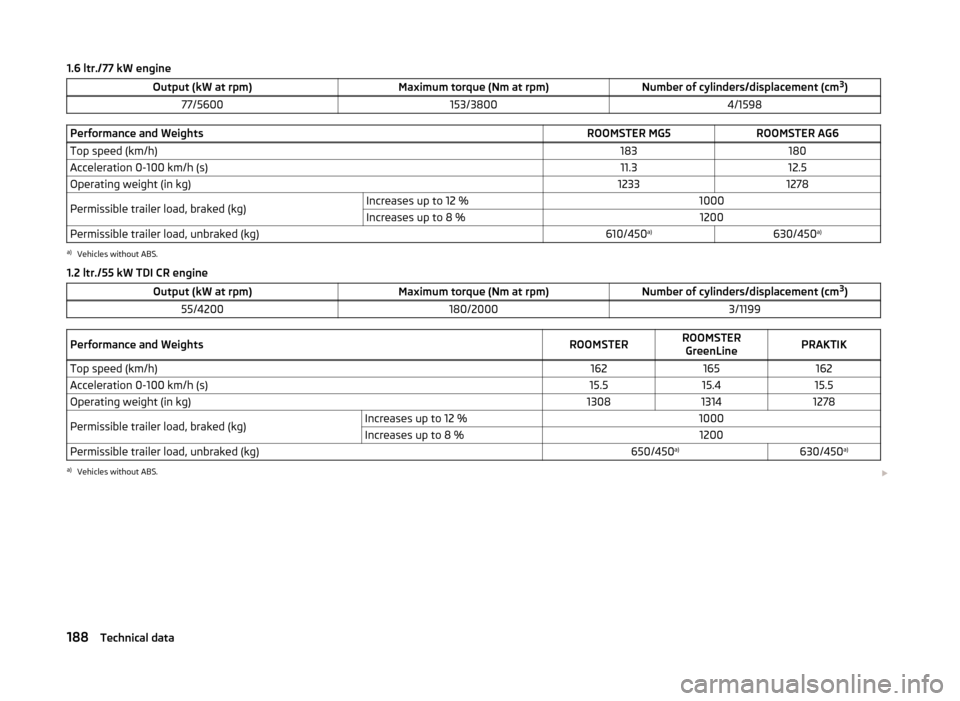

1.6 ltr./77 kW engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/5600153/38004/1598Performance and WeightsROOMSTER MG5ROOMSTER AG6Top speed (km/h)183180Acceleration 0-100 km/h (s)11.312.5Operating weight (in kg)12331278Permissible trailer load, braked (kg)Increases up to 12 %1000Increases up to 8 %1200Permissible trailer load, unbraked (kg)610/450 a)630/450 a)a)
Vehicles without ABS.
1.2 ltr./55 kW TDI CR engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)55/4200180/20003/1199Performance and WeightsROOMSTERROOMSTER
GreenLinePRAKTIKTop speed (km/h)162165162Acceleration 0-100 km/h (s)15.515.415.5Operating weight (in kg)130813141278Permissible trailer load, braked (kg)Increases up to 12 %1000Increases up to 8 %1200Permissible trailer load, unbraked (kg)650/450 a)630/450 a)a)
Vehicles without ABS.

188Technical data

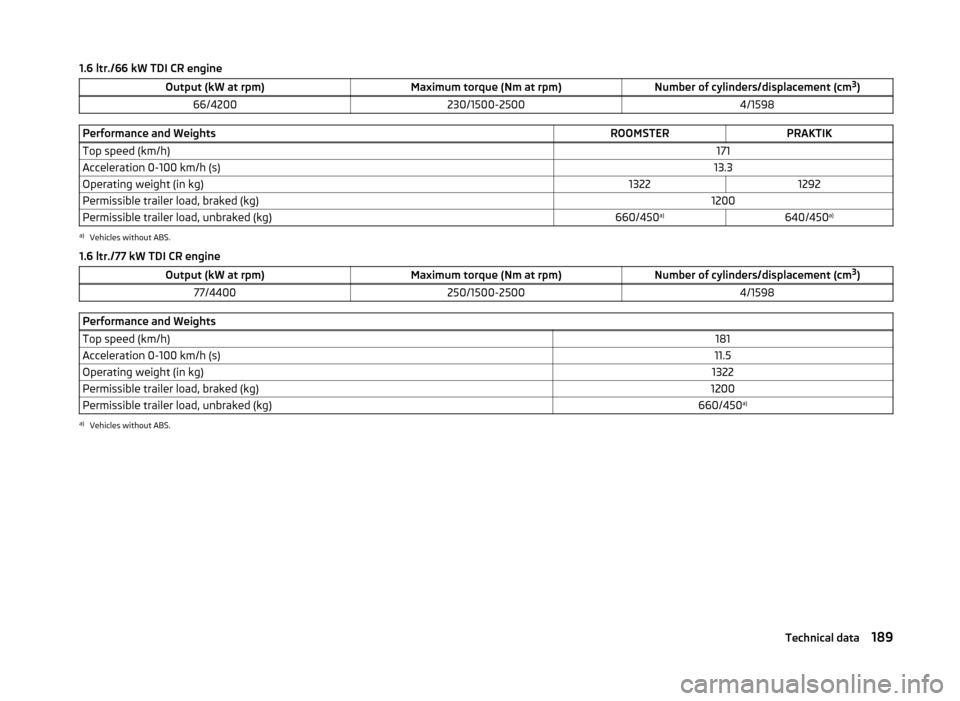

1.6 ltr./66 kW TDI CR engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)66/4200230/1500-25004/1598Performance and WeightsROOMSTERPRAKTIKTop speed (km/h)171Acceleration 0-100 km/h (s)13.3Operating weight (in kg)13221292Permissible trailer load, braked (kg)1200Permissible trailer load, unbraked (kg)660/450 a)640/450a)a)
Vehicles without ABS.
1.6 ltr./77 kW TDI CR engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)77/4400250/1500-25004/1598Performance and WeightsTop speed (km/h)181Acceleration 0-100 km/h (s)11.5Operating weight (in kg)1322Permissible trailer load, braked (kg)1200Permissible trailer load, unbraked (kg)660/450 a)a)
Vehicles without ABS.
189Technical data
