Cruise control 5-94 Features and controls
5
Warning display type 2
N00546300057 N00518301583
Cruise control is an automatic speed control system that keeps a set speed. It can be acti- vated at speeds from about 25 mph (40 km/h). Cruise control does not work atspeeds below about 25 mph (40 km/h).
NOTE
 The combination of items shown on the dis- play varies depending on the vehicle model.CAUTION The system may be malfunctioning. Park your vehicle in a safe place and stop theengine. Restart the engine and check whether the dis- play/indicator goes out. If they go out, there is no abnormal condition. If they do not go out or if they turn on frequently, it is not nec-essary to stop the vehicle immediately, but you should have your vehicle inspected by an authorized Mitsubishi Motors dealer or arepair facility of your choice as soon as pos- sible.
To w i n g
CAUTION When towing the vehicle with only the front wheels or only the rear wheels raised off the ground, do not place the ignition switch in the “ON” position. Placing the ignitionswitch in the “ON” position could cause the ASC to operate, resulting in an accident. Note that the correct towing method dependson the transmission type and the vehicle’s drive configuration. For details, refer to
“Towing” on page 8-13.
Cruise control
CAUTIONWhen you do not wish to drive at a set speed, turn off the cruise control for safety. Do not use cruise control when driving con- ditions will not allow you to stay at the same speed, such as in heavy traffic or on roadsthat are winding, icy, snow-covered, wet, slippery, on a steep downhill slope.
 On vehicles equipped with manual transaxle, do not move the gearshift lever to the “N” (Neutral) position while driving at a set speed without depressing the clutch pedal. The engine will run too fast and might bedamaged.NOTE
 Cruise control may not be able to keep your speed on uphills or downhills.  Your speed may decrease on a steep uphill. You may use the accelerator pedal if you want to stay at your set speed.  Your speed may increase to more than the set speed on a steep downhill. You have to usethe brake to control your speed. As a result, the set speed driving is deactivated.CAUTION
BK0200700US.bo
ok 94 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Cruise control 5-96 Features and controls
5
2. Confirm that the Twin Clutch SST control mode is set to “NORMAL” (on vehicles equipped with Twin Clutch SST). Refer to “Twin Clutch SST control mode”on page 5-75. 3. Accelerate or decelerate to your desired speed, then press and release the “COAST SET” switch (B) when the “CRUISE”indicator light is illuminated. The vehicle will then maintain the desired speed.
N00518500315
There are 2 ways to increase the set speed. Press and hold the “ACC RES” switch (C) while driving at the set speed, and your speedwill then gradually increase. When you reach your desired speed, release the switch. Your new cruising speed is nowset.
NOTE
 If the cruise control is on when the ignition switch is turned to “LOCK” or “ACC” posi- tion, cruise control will be on automatically the next time you start the engine. The“CRUISE” indicator light will also be on.  If the battery voltage is insufficient, the memory data for the cruise control may be erased. As a result, the “CRUISE” indicator light may not come on when you restart the engine.If this happens, press the “ON OFF” switch once again to turn on the cruise control.Type 2
NOTE
 The cruising speed cannot be set when the Twin Clutch SST control mode is set to“SPORT” mode.Type 1 Ty p e 2
NOTE
 When you release the “COAST SET” switch, the vehicle speed will be set.
To increase the set speed “ACC RES” switch
BK0200700US.bo
ok 96 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Cruise control
Features and controls 5-99
5
 Depress the brake pedal.
The set speed driving is deactivated automati- cally in any of the following ways.  When you depress the clutch pedal (on vehicles equipped with manual transaxle). When your speed slow
s to about 10 mph
(15 km/h) or more below the set speed because of a hill, etc. When your speed slow
s to about 25 mph
(40 km/h) or less.  When the Twin Clutch SST control mode is set to “Sport” mode (on vehicles equipped with Twin Clutch SST). Refer to “Twin Clutch SST control mode”on page 5-75.
 When the active stability control (ASC) starts operating. Refer to “Active stability control (ASC)” on page 5-91.
Also, the set speed driving may be deacti- vated as follow:  When the engine speed rises and approaches the tachometer’s red zone (the red-colored part of the tachometer dial).
N00518900250
If the set speed driving is deactivated by thecondition described in “To deactivate” onpage 5-98, you can resume the previously set speed by pressing the “ACC RES” switch (C) while driving at a speed of about 25 mph (40km/h) or higher.
Type 1 Type 2
WA R N I N G On vehicles equipped with continuously variable transmission (CVT) or TwinClutch SST, although the set speed driving will be deactivated when shifting to the “N” (NEUTRAL) position, never move theselector lever (CVT) or the gearshift lever (Twin Clutch SST) to the “N” (NEU- TRAL) position while driving.You would have no engine braking and could cause a serious accident.
CAUTION When the set speed driving is deactivated automatically in any situation other than those listed above, there may be a system malfunction. Press the “ON OFF” switch to turn off thecruise control and have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.
To resume the set speed
BK0200700US.bo
ok 99 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Tire pressure monitoring system
Features and controls 5-101
5
N00532700122
When the ignition switch is turned to the “ON” position, the tire pressure monitoringsystem warning light normally illuminatesand goes off a few seconds later. If one or more of the vehicle tires (except for the spare tire) is significantly under-inflated, the warning light will remain illuminatedwhile the ignition switch is in the “ON” posi- tion. Refer to “If the warning light/display illumi-nates while driving” on page 5-102 and take the necessary measures. Type 1
Type 2
Tire pressure monitoring sys- tem warning light/display
NOTE
 In addition, the warning display is displayed on the information screen in the multi-infor- mation display.
CAUTION If the tire pressure monitoring system warn- ing light does not illuminate when the igni- tion switch is turned to the “ON” position, it means that the tire pressure monitoring sys-tem is not working properly. Have the sys- tem inspected by an authorized Mitsubishi Motors dealer.In such situations,
a malfunctioning of the
system may be preventing the monitoring of the tire pressure. Avoid sudden braking, sharp turning and high-speed driving.
 If a malfunction is detected in the tire pres- sure monitoring system, the tire pressure monitoring system warning light will blink for approximately 1 minute and then remain continuously illuminated. The warning lightwill issue further warn
ings each time the
engine is restarted as long as the malfunction exists.Check to see whether the warning light goes off after few minutes driving. If it then goes off during driving, there is noproblem. However, if the warning light does not go off, or if it blinks again when the engine isrestarted, have the vehicle inspected by an authorized Mitsubishi Motors dealer. In such situations,
a malfunctioning of the
system may be preventing the monitoring of the tire pressure. For safety reasons, when the warning light appears while driving,avoid sudden braking, sharp turning and high-speed driving.NOTE
 In addition, the warning display is displayed on the information screen in the multi-infor- mation display.CAUTION
BK0200700US.book
101 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Instrument cluster 5-106 Features and controls
5
N00519000362 N00519100233
The speedometer shows the vehicle speed in miles per hour (mph) or kilometers per hour (km/h).
N00519200247
The tachometer shows engine revolutions perminute. This allows the driver to determinethe most efficient shift position (manual transaxle), selector position {continuously variable transmission (CVT)} or shift posi-
NOTE
 Monitor brightness is adjusted automatically by sensors.  On vehicles equipped with Mitsubishi Multi- Communication System, it is possible to change the display language of the screen.For details, please refer to the separate owner’s manual.  Under certain circumstances, it may become difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or condensation are on the lens. • When sun light or headlights shine directly into the lens.

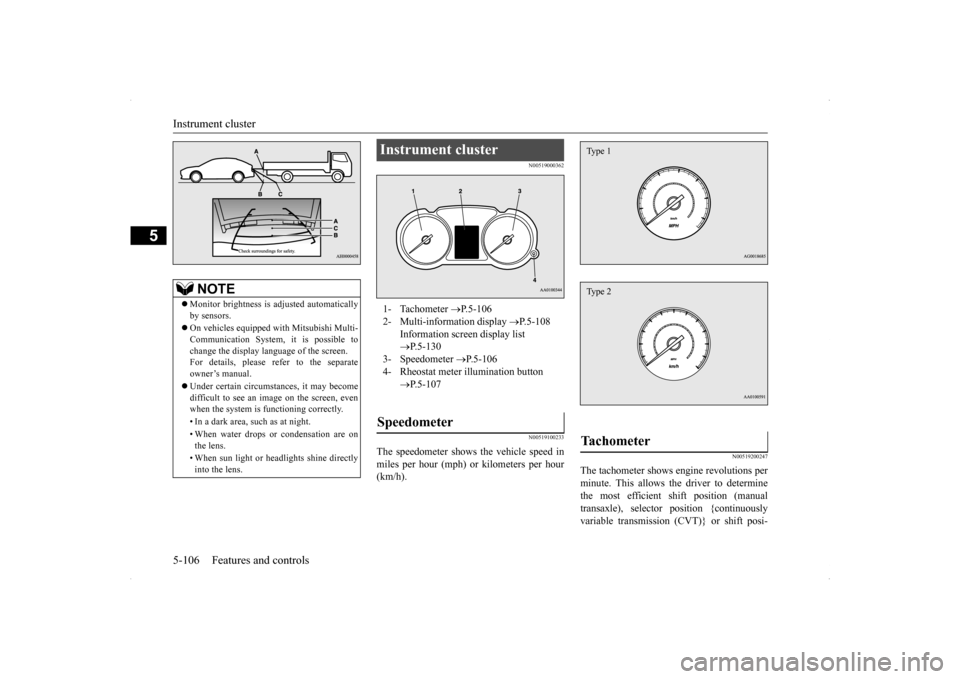

Instrument cluster 1- Tachometer
P.5-106
2- Multi-information display
P.5-108
Information screen display list  P.5-130
3- Speedometer
P.5-106
4- Rheostat meter illumination button
 P.5-107
Speedometer
Tachometer Type 1Type 2
BK0200700US.book
106 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Instrument cluster
Features and controls 5-107
5
tion (Twin Clutch SST) and engine speed combinations. This gauge also assists in evaluating engine performance.
N00554900179
Each time you press this button, there is asound and the brightness of the instrumentschanges.

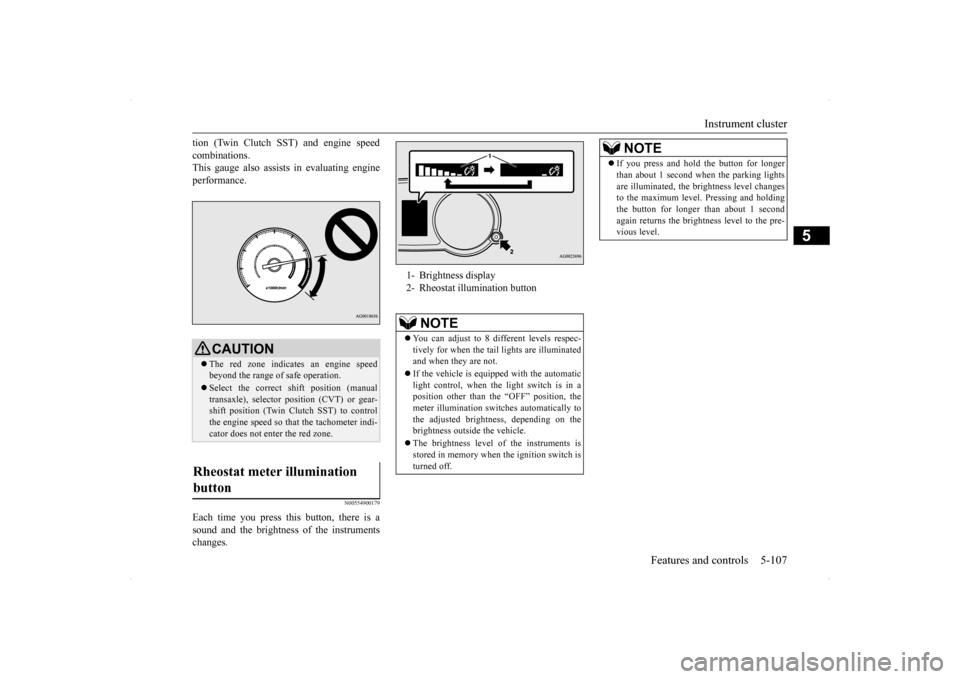

CAUTION The red zone indicates an engine speed beyond the range of safe operation. Select the correct shift position (manual transaxle), selector position (CVT) or gear- shift position (Twin Clutch SST) to controlthe engine speed so that the tachometer indi- cator does not enter the red zone.
Rheostat meter illumination button
1- Brightness display 2- Rheostat illumination button
NOTE
 You can adjust to 8 different levels respec- tively for when the tail
lights are illuminated
and when they are not.  If the vehicle is equipped with the automatic light control, when the light switch is in aposition other than the “OFF” position, the meter illumination switches automatically to the adjusted brightness, depending on thebrightness outside the vehicle.  The brightness level of the instruments is stored in memory when the ignition switch is turned off.
 If you press and hold the button for longer than about 1 second when the parking lights are illuminated, the brightness level changes to the maximum level. Pressing and holding the button for longer than about 1 secondagain returns the brightness level to the pre- vious level.NOTE
BK0200700US.book
107 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Multi-information display 5-108 Features and controls
5
N00555000249
The multi-information display displays warn
ings, the odometer, trip odometer, service re
minder, engine coolant temperature, fue
l remaining, out-
side temperature, Twin Clutch SST control mode, ACD control
mode, gearshift lever position, selector lever position, average an
d momentary
fuel consumption, driving range, average speed, instrument brightness, etc. It is also possible to change elements such as th
e language and units used on the multi-information display.
Multi-information display
W i t h i g n i t i o n s w i t c h i s “ O N ” p o s i t i o n { C o nt i n u o us l y
v a r i a b l e t r a n s m i s s i o n ( C V T ) , Tw
i n C l u t c h S ST }
With ignition switch is “OFF” position
With ignition switch is “ON” position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With igni- tion switch in the “OFF” position)  P.5-109
2- Information screen (With ignition
switch in the “OFF” position)  P.5-110 Interrupt display screen (With ignition switch in the “OFF” position)  P.5-111
3- Door ajar warning display screen (With
ignition switch in the “OFF” position)  P.5-112
4-
Warning display screen (With igni- tion switch in the “ON” position)  P.5-114
5- Active stability control (ASC) OFF dis-
play screen (if so equipped)
P.5-114
6- Information screen (With ignition
switch in the “ON” position)
P. 5 - 1 1 4
Interrupt display screen (With ignition switch in the “ON” position)
P. 5 - 1 1 7
7- Outside temperature display screen
 P.5-118
8- Fuel remaining display screen
 P.5-119
BK0200700US.book
108 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Multi-information display
Features and controls 5-109
5
N00555100178
The multi-information meter switch is a but- ton marked “INFO” on the left side of thedash. Each time the multi-information meter switch is operated, a sound is emitted and the multi-information display changes between infor- mation such as warnings, service reminder, average and momentary fuel consumption,driving range, average speed and ACD con- trol mode display (if so equipped). It is also possible to change elements such asthe language and units used on the multi-
information display by operating the multi- information meter switch.
N00555200212
If you press the multi-information meter switch and return from the warning display screen to the previous screen, the warning is displayed. Refer to “Returning to the display screen from before the warning display” on page5-111. This mark is also displayed if there is another warning other than the one displayed. Whenthe cause of the warning display is elimi- nated, the warning goes out automatically.
9- Engine coolant temperature display (if
so equipped)
P.5-114
10- Twin Clutch SST control mode display
screen (Twin Clutch SST)
P. 5 - 7 6
11- Selector lever position display screen
(CVT)
P.5-64
Gearshift lever position display screen (Twin Clutch SST)
P. 5 - 7 2
12- ACD control mode display screen
(Twin Clutch SST)
P. 5 - 8 4
13- ECO mode indicator (if so equipped)
 P. 5 - 1 1 9
14- Gearshift indicator display screen (if so
equipped)
P. 5 - 6 0
NOTE
The fuel units, temperature units, display language, and other settings can be changed.Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 5-121.
 The display screen is different depending on whether the ignition switch in the “OFF” or “ON” position. Refer to “Information screen (With ignition switch in the “OFF” position)” on page5-110. Refer to “Warning displa
y list (With ignition
switch in the “OFF” position)” on page5-131. Refer to “Information screen (With ignition switch turned from “OFF” to “ON” posi-tion)” on page 5-113. Refer to “Information screen (With ignition switch in the “ON” position)” on page 5-114.Refer to “Warning displa
y list (With ignition
switch in the “ON” position)” on page 5-134.
Multi-information meter switch
NOTE
warning display screen (With ignition switch in the “OFF” position)
