2014 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

*Some models.6–68
Maintenance and Care
Appearance Care
Aluminum Wheel Maintenance *
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
NOTE



y Do not use a wire brush or any
abrasive cleaner, polishing compound,
or solvent on aluminum wheels. They
may damage the coating.



y Always use a sponge or soft cloth to
clean the wheels.
  Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure
to clean the wheels after driving on
dusty or salted roads to help prevent
corrosion.



y Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.



y If your aluminum wheels lose luster,
wax the wheels.
Plastic Part Maintenance













y When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectifi ed spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a signifi cant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, fl ush with water
immediately.



y If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fl uids such as
gasoline, oil, engine coolant, or battery
fl uid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fl uids using a
soft cloth immediately.



y High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.



y Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.



y In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.6–69
Maintenance and Care
Appearance Care
Interior Care
WARNING
Do not spray water in the cabin:
Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fi re.
Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They will damage and discolor
the dashboard. If these solutions get on the
dashboard, wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
Instrument panel top (soft pad)





y Extremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean towel
dampened in a mild detergent to remove
soiling.



y If the soft pad surface is rubbed harshly,
it could result in the surface being
damaged leaving white scratch marks.
Cleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
*
Remove dust and sand fi rst using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
NOTE



y Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.



y To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.



y Sand and dust on the seat surface may
damage the overcoat of the genuine
leather surfaces and accelerate wear.



y Greasy soiling on genuine leather may
cause molding and stains.



y Rubbing hard with a stiff brush or cloth
may cause damage.



y Do not wipe the leather using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, or gasoline.
Otherwise, it may cause discoloration
or stains.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.6–70
Maintenance and Care
Appearance Care



y If the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.



y Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.



y Do not leave vinyl products on the seats
for long periods as they may affect
the leather quality and coloring. If the
cabin temperature becomes hot, the
vinyl may deteriorate and adhere to the
genuine leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and fresh,
take care of it. Otherwise its color will be
affected, it can be stained easily, and its
fi re-resistance may be reduced.
CAUTION
Use only recommended cleaners
and procedures. Others may aff ect
appearance and fi re-resistance.
Panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting
from the use of a hard brush or cloth may
not be repairable.
Be particularly careful when cleaning the
following areas which are installed with
specially coated panels.



y Piano black panel




y Decoration panel *
Maintenance of the Active Driving
Display
The combiner and mirror surface have a
special coating. When cleaning, do not use
a hard or rough-surface cloth, or cleaning
detergent. In addition, if a chemical
solvent gets on the active driving display,
wipe it off immediately. Otherwise, the
combiner and mirror could be damaged
and the surface coating could be scratched.
Use a fi ne, soft cloth such as those used
for cleaning eyeglasses.
/C\FCA&('#*A'FKVKQPKPFD

6–71
Maintenance and Care
Appearance Care
Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Do not bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is no
remaining moisture before retracting them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy fi lm, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION



¾ Do not scrape or scratch the inside of
the window glass. It could damage the
thermal fi laments and the antenna
lines.



¾ When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal fi laments and the antenna
lines.
  Use of glass cleaning products could
damage the thermal fi laments and the
antenna lines.
Cleaning the Floor Mats
Rubber fl oor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber fl oor mats:
Cleaning the rubber fl oor mats with
rubber cleaning products makes the
fl oor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transaxle) pedal or
when getting in or out of the vehicle.
After removing the fl oor mats for cleaning,
always reinstall them securely. 3-46
/C\FCA&('#*A'FKVKQPKPFD

6–72
MEMO
/C\FCA&('#*A'FKVKQPKPFD

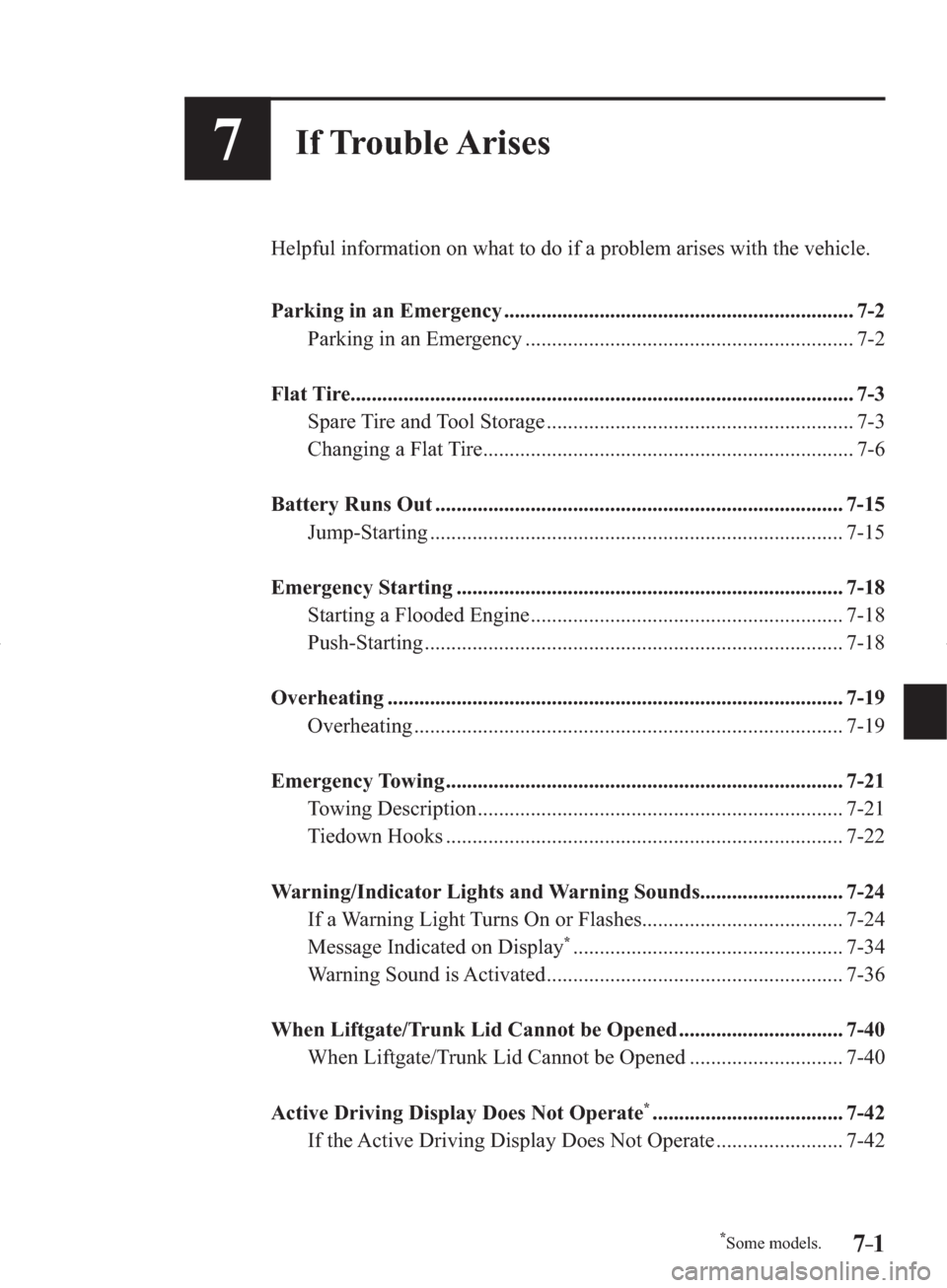

*Some models.7–1
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.


Parking in an Emergency .................................................................. 7-2
Parking in an Emergency .............................................................. 7-2
Flat Tire............................................................................................... 7-3
Spare Tire and Tool Storage .......................................................... 7-3
Changing a Flat Tire ...................................................................... 7-6
Battery Runs Out ............................................................................. 7-15
Jump-Starting .............................................................................. 7-15
Emergency Starting ......................................................................... 7-18
Starting a Flooded Engine ........................................................... 7-18
Push-Starting ............................................................................... 7-18
Overheating ...................................................................................... 7-19
Overheating ................................................................................. 7-19
Emergency Towing ........................................................................... 7-21
Towing Description ..................................................................... 7-21
Tiedown Hooks ........................................................................... 7-22
Warning/Indicator Lights and Warning Sounds ........................... 7-24
If a Warning Light Turns On or Flashes...................................... 7-24
Message Indicated on Display
* ................................................... 7-34
Warning Sound is Activated ........................................................ 7-36
When Liftgate/Trunk Lid Cannot be Opened ............................... 7-40
When Liftgate/Trunk Lid Cannot be Opened ............................. 7-40
Active Driving Display Does Not Operate
* .................................... 7-42
If the Active Driving Display Does Not Operate ........................ 7-42
/C\FCA&('#*A'FKVKQPKPFD

7–2
If Trouble Arises
Parking in an Emergency
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffi c hazard
and that they must take extreme caution
when near it.
Depress the hazard warning fl asher and
all the turn signals will fl ash. The hazard
warning indicator lights in the instrument
cluster fl ash simultaneously.
NOTE




y The turn signals do not work when the
hazard warning lights are on.



y Check local regulations about the use
of hazard warning lights while the
vehicle is being towed to verify that it is
not in violation of the law.
/C\FCA&('#*A'FKVKQPKPFD

7–3
If Trouble Arises
Flat Tire
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Tiedown eyelet
Flat tire belt
Spare tire Jack Spare tire hold-down bolt
Lug wrenchTool bag Jack lever
Tiedown eyelet
Flat tire belt
Jack lever
Lug wrench
Spare tire Jack Spare tire hold-down bolt 5-Door 4-Door
Some models.
/C\FCA&('#*A'FKVKQPKPFD
