4–52
When Driving
Switches and Controls
NOTE



y If an indicator light stays on without
fl ashing or if it fl ashes abnormally, one
of the turn signal bulbs may be burned
out.



y A personalized function is available
to change the turn indicator sound
volume. (page 9-12 )
Lane-Change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicator fl ashes— and hold it there. It will
return to the off position when released.
Three-Flash Turn Signal
To signal a lane change, operate the turn
signal lever up or down slightly and
release. After releasing the lever, the turn
signal indicator fl ashes three times.
NOTE
The three-fl ash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-12 .
Windshield Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windshield washer fl uid or
plain water in the reservoir:
Using radiator antifreeze as washer
fl uid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
aff ect your visibility, and could result in
an accident.

Only use windshield washer fl uid mixed
with anti-freeze protection in freezing
weather conditions:
Using windshield washer fl uid without
anti-freeze protection in freezing
weather conditions is dangerous as
it could freeze on the windshield and
block your vision which could cause
an accident. In addition, make sure
the windshield is suffi ciently warmed
using the defroster before spraying the
washer fl uid.
/C\FCA&('#*A'FKVKQPKPFD

4–53
When Driving
Switches and Controls
NOTE
Because heavy ice and snow can jam the
wiper blades, the wiper motor is protected
from motor breakdown, overheating
and possible fi re by a circuit breaker.
This mechanism will automatically stop
operation of the blades, but only for about
5 minutes.
If this happens, turn off the wiper switch
and park off the right-of-way, and remove
the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they do not resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road and
park off the right-of-way. Wait until the
weather clears before trying to drive with
the wipers inoperative.
Windshield Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch
Position Wiper operation
MIST Single wipe cycle (mist)
INT Intermittent
LO Low speed
HI High speed
With auto-wiper control
Switch
Position Wiper operation
MIST Single wipe cycle (mist)
AUTO Auto control
LO Low speed
HI High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ringFast
Slow
/C\FCA&('#*A'FKVKQPKPFD

4–54
When Driving
Switches and Controls
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the amount
of rainfall on the windshield and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher sensitivity
(faster response) or rotate it upward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Center
position
CAUTION



¾ Do not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain sensor
will not operate correctly.





¾ When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:



¾ If the windshield above the rain
sensor is touched or wiped with a
cloth.



¾ If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
  Keep hands and scrapers clear of the
windshield when the wiper lever is in
the AUTO position and the ignition
is switched ON as fi ngers could be
pinched or the wipers and wiper blades
damaged when the wipers activate
automatically.
  If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
/C\FCA&('#*A'FKVKQPKPFD

4–55
When Driving
Switches and Controls
NOTE



y Switching the auto-wiper lever from the
to the position while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.



y The auto-wiper control may not operate
when the rain sensor temperature is
about -10 °C (14 °F) or lower, or about
85 °C (185 °F) or higher.



y If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and the auto-wiper control
may not operate properly.



y If dirt or foreign matter (such as ice or
matter containing salt water) adheres
to the windshield above the rain sensor,
or if the windshield is iced, it could
cause the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the auto-
wiper control will stop operation. In
this case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the
ice, dirt or foreign matter by hand to
restore the auto-wiper operation.



y If the auto-wiper lever is left in the
position, the wipers could
operate automatically from the effect of
strong light sources, electromagnetic
waves, or infrared light because the
rain sensor uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the
position other
than when driving the vehicle under
rainy conditions.



y The auto-wiper control functions can
be turned off. Refer to Personalization
Features on page 9-12 .
Windshield Washer
Pull the lever toward you and hold it to
spray washer fl uid.
Washer OFF
NOTE
With the wiper lever in the or
intermittent position/
position, the
wipers will operate continuously until the
lever is released.
If the washer does not work, inspect the
fl uid level (page 6-31 ). If the fl uid level
is normal, consult an Authorized Mazda
Dealer.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–56
When Driving
Switches and Controls
Rear Window Wiper and
Washer
*
The ignition must be switched ON to use
the wiper.
Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch
Position Wiper operation
INT Intermittent
ON Normal
Rear Window Washer
To spray washer fl uid, turn the rear wiper/
washer switch to the
position. After the
switch is released, the washer will stop.
If the washer does not work, inspect the
fl uid level (page 6-31 ). If the fl uid level is
normal and the washer still does not work,
consult an Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears fog from
the rear window.
The ignition must be switched ON to use
the defroster.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and then turns off automatically.
The indicator light illuminates when the
defroster is operating.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Manual Climate Control
Indicator light
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–57
When Driving
Switches and Controls
Automatic Climate Control
Indicator light
Dual-Zone Automatic Climate Control
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting
snow. If there is an accumulation of snow
on the rear window, remove it before using
the defroster.
Mirror Defroster *
To turn on the mirror defrosters, switch
the ignition ON and press the rear window
defroster switch (page 4-56 ).
/C\FCA&('#*A'FKVKQPKPFD

4–58
When Driving
Switches and Controls
Horn
To sound the horn, press the mark on
the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffi c hazard
and that they must take extreme caution
when near it.
Depress the hazard warning fl asher and
all the turn signals will fl ash. The hazard
warning indicator lights in the instrument
cluster fl ash simultaneously.
NOTE




y The turn signals do not work when the
hazard warning lights are on.



y Check local regulations about the use
of hazard warning lights while the
vehicle is being towed to verify that it is
not in violation of the law.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–59
When Driving
Switches and Controls

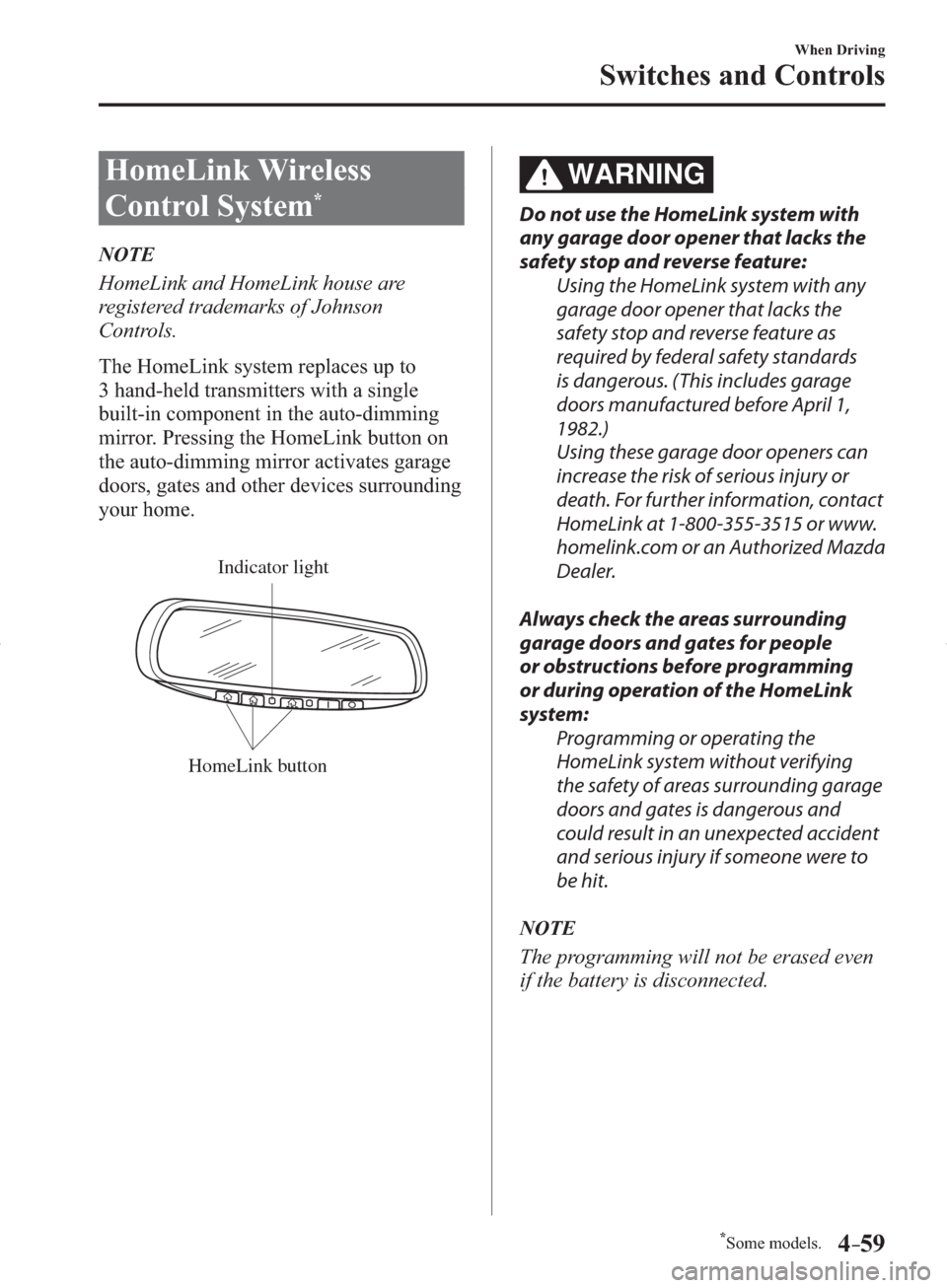

HomeLink Wireless
Control System
*
NOTE
HomeLink and HomeLink house are
registered trademarks of Johnson
Controls.
The HomeLink system replaces up to
3 hand-held transmitters with a single
built-in component in the auto-dimming
mirror. Pressing the HomeLink button on
the auto-dimming mirror activates garage
doors, gates and other devices surrounding
your home.
HomeLink button
Indicator light
WARNING
Do not use the HomeLink system with
any garage door opener that lacks the
safety stop and reverse feature:
Using the HomeLink system with any
garage door opener that lacks the
safety stop and reverse feature as
required by federal safety standards
is dangerous. (This includes garage
doors manufactured before April 1,
1982.)
Using these garage door openers can
increase the risk of serious injury or
death. For further information, contact
HomeLink at 1-800-355-3515 or www.
homelink.com or an Authorized Mazda
Dealer.

Always check the areas surrounding
garage doors and gates for people
or obstructions before programming
or during operation of the HomeLink
system:
Programming or operating the
HomeLink system without verifying
the safety of areas surrounding garage
doors and gates is dangerous and
could result in an unexpected accident
and serious injury if someone were to
be hit.
NOTE
The programming will not be erased even
if the battery is disconnected.
