2014 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

5–104
Interior Features
Bluetooth®
NOTE
If the contact is long-pressed when the
favorites list is displayed, the contact
information can be edited (deleted,
moved).
Telephone Number Input
NOTE
Practice this while parked until you are
confi dent you can do it while driving in a
non-taxing road situation. If you are not
completely comfortable, make all calls
from a safe parking position, and only
start driving when you can devote your full
attention to driving.
1. Input the telephone number using the
numerical keypad.
2. Select the
icon to make the call.
Numeral or symbol entry
Use the numerical keypad.
Long-press the
icon to input +.
Select the
icon to delete the currently
input value.
Long-press the
icon to delete all input
values.
Mobile 911 (U.S.A./Canada only)
If the vehicle is involved in a moderate
to severe collision, a call is made
automatically to 911 from the connected
device. The “Mobile 911” setting must be
on.
Refer to Communication Settings on page
5-110 .
CAUTION



¾ Mobile 911 is a secondary function
of the audio entertainment system.
Therefore, the Mobile 911 function
cannot assure that a call will always
be made to 911 in the event that the
vehicle is involved in an accident. Also,
a hands-free device must be paired
and connected. The 911 operator can
verify the vehicle's position information
using the GPS on the hands-free device
if equipped. The 911 operator can verify
the vehicle's position information.



¾ Though the system can be set to not call
911, doing so will defeat the purpose
of the system to immediately contact
rescue personnel to assist you after your
accident. For the safety of the driver and
all passengers, Mazda recommends that
the Mobile 911 system remain activated
so that a call will be made to 911 when
needed.
1. If the vehicle is involved in a moderate
to severe collision, notifi cation of the
call to 911 is made via audio and screen
display. To cancel the call, press the
icon or hang-up
button within 10 seconds.
2. If the
icon or
hang-up button is not pressed within 10
seconds, the call is made to 911
automatically.
/C\FCA&('#*A'FKVKQPKPFD

5–105
Interior Features
Bluetooth®

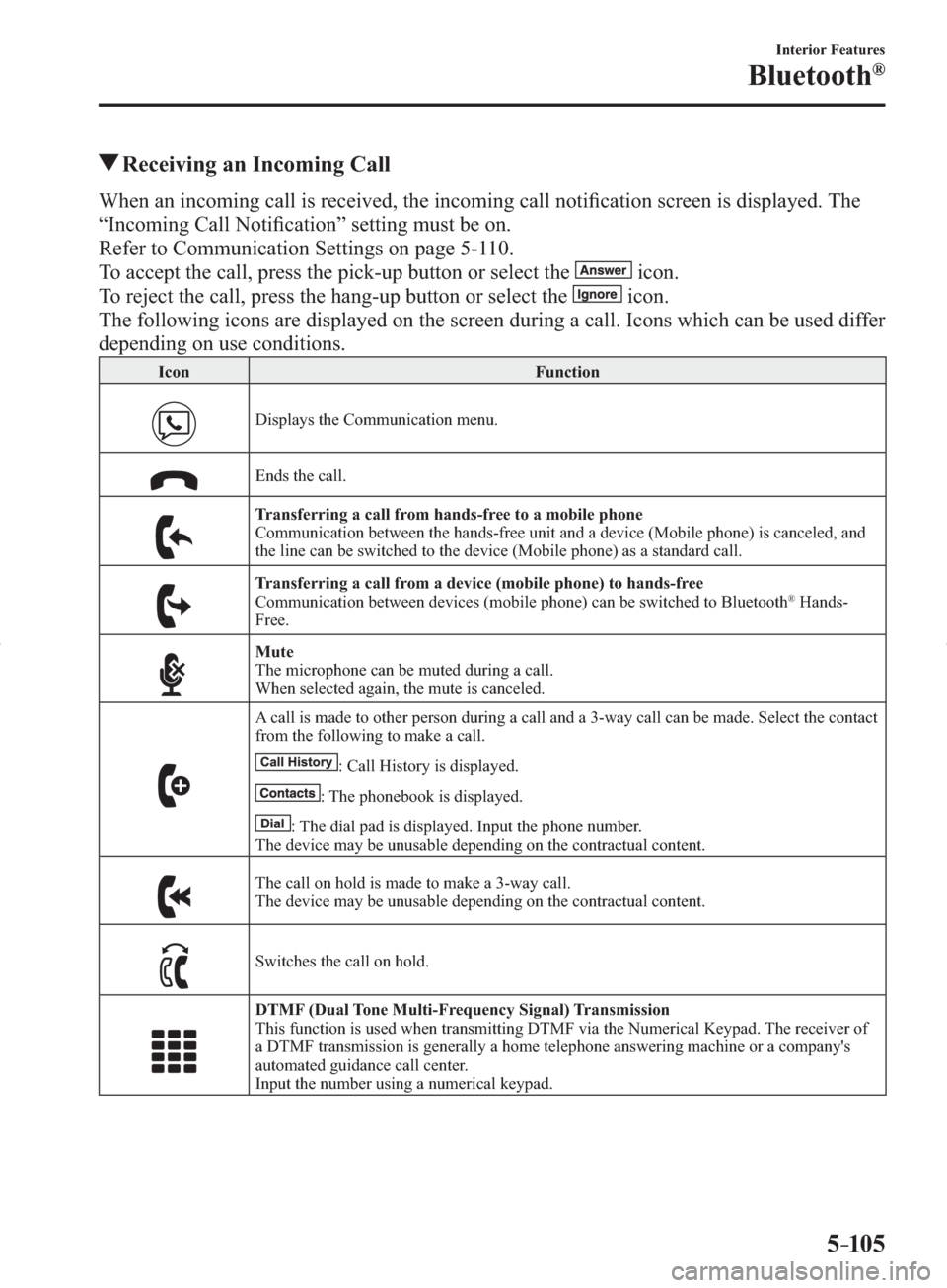

Receiving an Incoming Call
When an incoming call is received, the incoming call notifi cation screen is displayed. The
“Incoming Call Notifi cation” setting must be on.
Refer to Communication Settings on page 5-110 .
To accept the call, press the pick-up button or select the
icon.
To reject the call, press the hang-up button or select the
icon.
The following icons are displayed on the screen during a call. Icons which can be used differ
depending on use conditions.
Icon Function
Displays the Communication menu.
Ends the call.
Transferring a call from hands-free to a mobile phone
Communication between the hands-free unit and a device (Mobile phone) is canceled, and
the line can be switched to the device (Mobile phone) as a standard call.
Transferring a call from a device (mobile phone) to hands-free
Communication between devices (mobile phone) can be switched to Bluetooth ® Hands-
Free.
Mute
The microphone can be muted during a call.
When selected again, the mute is canceled.
A call is made to other person during a call and a 3-way call can be made. Select the contact
from the following to make a call.
: Call History is displayed.
: The phonebook is displayed.
: The dial pad is displayed. Input the phone number.
The device may be unusable depending on the contractual content.
The call on hold is made to make a 3-way call.
The device may be unusable depending on the contractual content.
Switches the call on hold.
DTMF (Dual Tone Multi-Frequency Signal) Transmission
This function is used when transmitting DTMF via the Numerical Keypad. The receiver of
a DTMF transmission is generally a home telephone answering machine or a company's
automated guidance call center.
Input the number using a numerical keypad.
/C\FCA&('#*A'FKVKQPKPFD

5–106
Interior Features
Bluetooth®
NOTE



y If the ignition is switched off during a
hands-free call, the line is transferred
to the device (Mobile phone)
automatically.



y If the DTMF code has two or more
digits or symbols, each one must be
transmitted individually.
Call Interrupt
A call can be interrupted to receive an
incoming call from a third party.
The device may be unusable depending on
the contractual content.
When the
icon is selected or
the pick-up button on the steering wheel is
pressed, the current call is held and the
system switches to the new incoming call.
When the
icon is selected, the
current call is ended and the system
switches to the new incoming call.
When the
icon is selected or the
hang-up button on the steering wheel is
pressed, an incoming call is refused.
/C\FCA&('#*A'FKVKQPKPFD

5–107
Interior Features
Bluetooth®
Receiving and Replying to Messages (available only with Email/SMS
compatible phones)
SMS (Short Message Service) messages,
MMS (Multimedia Messaging Service)
messages, and E-mail received by
connected devices can be downloaded,
displayed, and played (read by the
system).
Additionally, replies can also be made
to calls and messages in the received
messages.
Downloading messages
Up to 20 new messages can be
downloaded and displayed from a
connected device.
NOTE
For e-mail, 20 messages for each account
can be downloaded.
(Automatic downloading)
The “Auto Download Email” (E-mail)
or “Auto Download Text” (SMS/MMS)
setting must be on. When the hands-free
unit is connected to the device, a message
is downloaded automatically.
Refer to Communication Settings on page
5-110 .
(Manually downloading)
When the “Auto Download Email”
(E-mail) or “Auto Download Text” (SMS/
MMS) setting is off, the phonebook
is downloaded using the following
procedure.
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon or icon to
display the Inbox.
3. Select the
icon.
4. Download will be started from the
mobile phone.
NOTE



y Attached data is not downloaded.



y Messages up to 1 kilobyte (e-mail)/160-
bytes (SMS/MMS) can be downloaded.



y A message list is created for each
device.



y If the connected device does not
correspond to MAP 1.0, the AT
command is used to download. The
downloaded message indicates that it is
already read.



y Downloading using the AT command
may not function depending on the
connected device.
Receiving messages
(Method 1)
When a device receives a message, a
message received notifi cation is displayed.
The “E-mail/SMS Notifi cations” setting
must be on.
Refer to Communication Settings on page
5-110 .
Select the
icon and display the
message.
(Method 2)
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon and display
the new message list for e-mail and
SMS/MMS.
3. Select the message you would like to
display.
/C\FCA&('#*A'FKVKQPKPFD

5–10 8
Interior Features
Bluetooth®
The following icons are displayed in the lower part of the details on the message. Icons
which can be used differ depending on use conditions.
Icon Function
Displays the Communication menu.
Displays the inbox.
Plays back a message.
When selected again, playback is temporarily stopped.
Displays the previous message.
Displays the next message.
Only replies to the sender of the currently displayed message.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select the
icon.
(Only E-mail)
Replies to all members including CC.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select the
icon.
Makes a call to a person who sent a message.
For E-mail, if a phone number of a person who sent a message is in the phonebook, a call
can be made.
Deletes a message.
The messages stored in a device is also deleted.
NOTE
Up to three preset messages can be selected.
/C\FCA&('#*A'FKVKQPKPFD

5–109
Interior Features
Bluetooth®
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon to display the
inbox.
3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.
Changing account for displaying
(E-mail only)
1. Select the
icon.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.
Editing preset messages
1. Select the
icon on the home screen
and display the Communication screen.
2. Select the
icon.
3. Select the
icon.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.
NOTE



y Select the icon to change the
language.



y Select the icon to switch between
capitalized and lower-case characters.



y Select the icon to return to the
previous screen without storing the edit.
/C\FCA&('#*A'FKVKQPKPFD

5–110
Interior Features
Bluetooth®
Communication Settings
Select the icon on the home screen and display the Communication screen.
Select the
icon to change the setting.
Item Setting Function
Email/SMS
Notifi cations On/Off Notifi es when a new messages is received.
Incoming Call
Notifi cation On/Off Notifi es when an incoming call is received.
Auto Download Call
history On/Off Downloads Call History automatically when the hands-free unit is
connected to the device.
Auto Download
Contacts
* On/Off Downloads the phonebook automatically when the hands-free unit is
connected to the device.
Auto Download Text On/Off Downloads SMS/MMS automatically when the hands-free unit is
connected to the device.
Auto Download
Email
* On/Off Downloads E-mail automatically when the hands-free unit is connected
to the device.
Ringtone Fixed/In-band/
Off Changes the ringtone setting.
Phone Volume Adjusts using
the slider. Adjusts the conversation volume.
VR and Ringtone Adjusts using
the slider. Adjusts the voice guidance and ringtone volume.
Contacts Sort Order First Name,
Last Name Displays the contact information in alphabetical order of the fi rst name.
Last Name,
First Name Displays the contact information in alphabetical order of the last name.
Preset Messages — Edits the preset message.
Refer to Receiving and Replying to Messages (available only with
E-mail/SMS compatible phones) on page 5-107 .
Mobile 911 On/Off Mobile Utilizes the Mobile 911 function.
Reset Communication
Settings — Initializes all Communication Settings.




*
 Depending on the device, it may be necessary to acquire download permission on the
device side.
/C\FCA&('#*A'FKVKQPKPFD

5–111
Interior Features
Bluetooth®
Audio Operation Using Voice Recognition
Main audio operation
When the talk button is pressed and the following command is spoken out, the audio can be
operated. The commands in the () can be omitted. The specifi ed name and number are put
into the {}.
Voice command Function Corresponding audio
source
(Go to/Play) AM (Radio) Switches the audio source to AM radio. All
(Go to/Play) FM (Radio) Switches the audio source to FM radio. All
(Go to/Play) Bluetooth (Audio) Switches the audio source to BT audio. All
(Go to/Play) Pandora Switches the audio source to Pandora
® All
(Go to/Play) Aha (Radio) Switches the audio source to Aha™ Radio. All
(Go to/Play) Stitcher Switches the audio source to Stitcher™ Radio. All
(Go to/Play) USB 1 Switches the audio source to USB 1. All
(Go to/Play) USB 2 Switches the audio source to USB 2. All
Play Playlist {Playlist name} Plays the selected playlist. USB
Play Artist {Artist name} Plays the selected artist. USB
Play Album {Album name} Plays the selected album. USB
Play Genre {Genre name} Plays the selected genre. USB
Play Folder {Folder name} Plays the selected folder. USB
Play Audiobooks Displays the list at the top level of the Audiobooks. USB
Play Podcasts Displays the list at the top level of the Podcasts. USB
NOTE



y The above commands are examples of the available commands.



y Some commands cannot be used depending on devices and use conditions.



y If the Bluetooth ® device, USB, or AUX is not connected, the related commands cannot be
used.
/C\FCA&('#*A'FKVKQPKPFD
