2014 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

4–20
When Driving
Instrument Cluster and Display

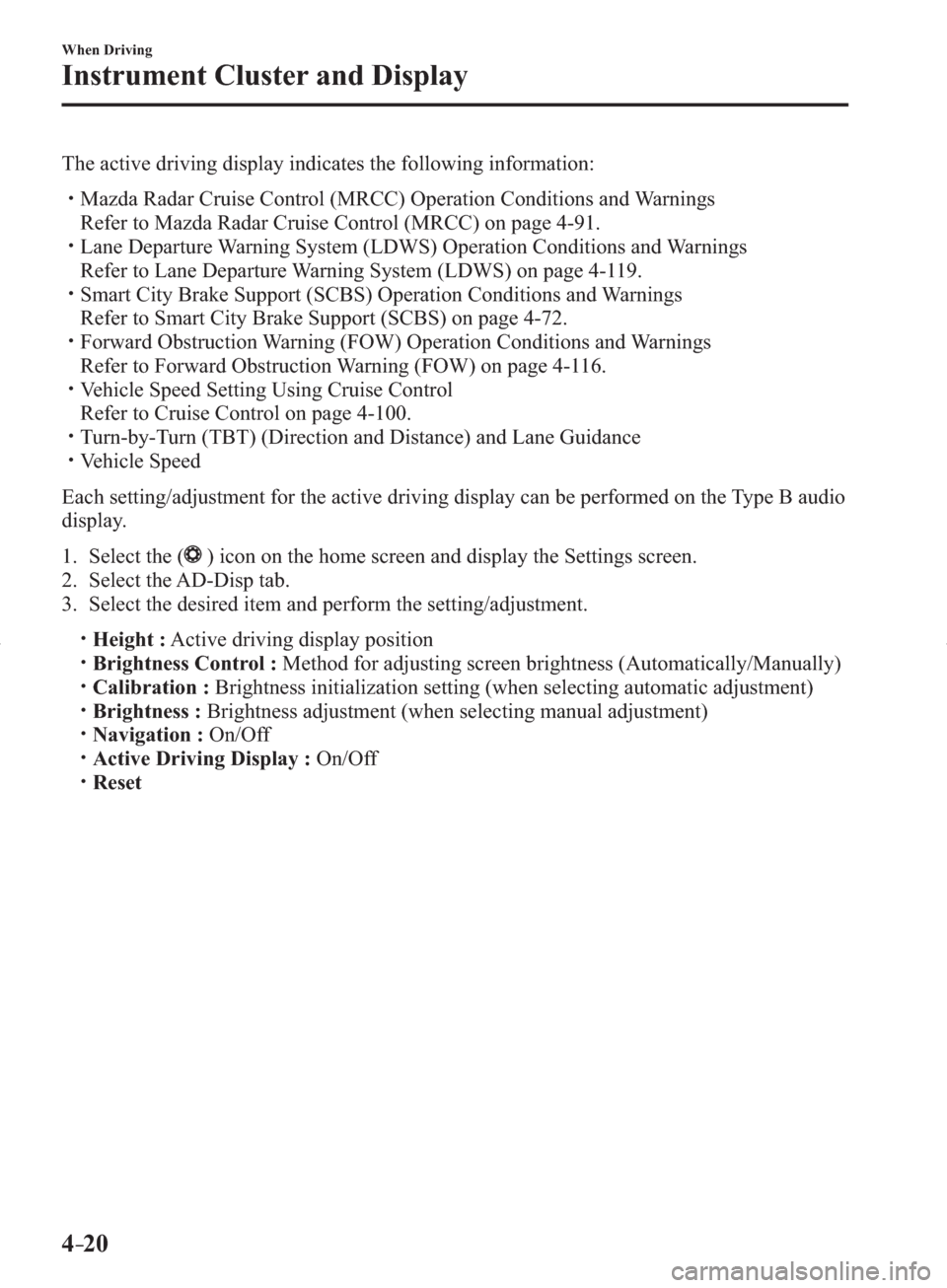

The active driving display indicates the following information:



y Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-91 .



y Lane Departure Warning System (LDWS) Operation Conditions and Warnings
 Refer to Lane Departure Warning System (LDWS) on page 4-119 .



y Smart City Brake Support (SCBS) Operation Conditions and Warnings
 Refer to Smart City Brake Support (SCBS) on page 4-72 .



y Forward Obstruction Warning (FOW) Operation Conditions and Warnings
 Refer to Forward Obstruction Warning (FOW) on page 4-116 .



y Vehicle Speed Setting Using Cruise Control
 Refer to Cruise Control on page 4-100 .



y Turn-by-Turn (TBT) (Direction and Distance) and Lane Guidance



y Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the Type B audio
display.
1. Select the (
) icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.


y
Height : Active driving display position


y
Brightness Control : Method for adjusting screen brightness (Automatically/Manually)


y
Calibration : Brightness initialization setting (when selecting automatic adjustment)


y
Brightness : Brightness adjustment (when selecting manual adjustment)


y
Navigation : On/Off


y
Active Driving Display : On/Off


y
Reset
/C\FCA&('#*A'FKVKQPKPFD

4–21
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifi cations.
Warning/Indicator lights will appear in any of the highlighted areas Type A
Type B
Type C
Center of Dashboard(Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer)) Instrument Cluster
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–22
When Driving
Instrument Cluster and Display
Warning Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.
Signal Warning Lights Page
Master Warning Light *1 7-24
Brake System Warning Light *1*2 7-24
ABS Warning Light *1 7-24
Charging System Warning Light *1 7-24
Engine Oil Warning Light *1 7-24
Check Engine Light *1 7-24
(Red) High Engine Coolant Temperature Warning Light
*1 7-24
* Automatic Transaxle Warning Light *1 7-24
Power Steering Malfunction Indicator Light *1 7-24
Air Bag/Front Seat Belt Pretensioner System Warning Light *1 7-24
Low Fuel Warning Light 7-24
Check Fuel Cap Warning Light *1 7-24
Seat Belt Warning Light 7-24
Door-Ajar Warning Light 7-24
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–23
When Driving
Instrument Cluster and Display
Signal Warning Lights Page
Low Washer Fluid Level Warning Light 7-24
* Tire Pressure Monitoring System Warning Light *1 7-24
(Red) KEY Warning Light 7-24
(Red)
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Warning Light *1 4-78 ,
4-118
(Amber)
* Lane Departure Warning System (LDWS) Warning Light *1*3 7-24
(Amber)
* High Beam Control System (HBC) Warning Light *1 7-24
(Amber)
* Mazda Radar Cruise Control (MRCC) Warning Light *1 7-24
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
*3 The light turns on when the system on stand-by. The light fl ashes when the system has a malfunction.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–24
When Driving
Instrument Cluster and Display
Indicator Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.
Signal Indicator Lights Page
* BSM OFF Indicator Light 4-114
(Green)
* Lane Departure Warning System (LDWS) Indicator Light 4-122
(Green) KEY Indicator Light 3-9
(Green)
* High Beam Control System (HBC) Indicator Light 4-50
Wrench Warning Indicator Light *1 4-26
TCS/DSC Indicator Light *1 4-80 ,
4-81
DSC OFF Indicator Light *1 4-82
* AFS OFF Indicator Light *1 4-46
(Amber)
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Indicator Light *1 4-78
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS) OFF
Indicator Light *1 4-78
* i-ELOOP Indicator Light 4-85
(Blue) Low Engine Coolant Temperature Indicator Light 4-26
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–25
When Driving
Instrument Cluster and Display
Signal Indicator Lights Page
* Shift Position Indication 4-31
* SPORT Mode Indicator Light 4-89
Headlight High-Beam Indicator Light 4-45 ,
4-45
Turn Signal/Hazard Warning Indicator Lights 4-51 ,
4-58
Security Indicator Light *1 3-42
(Green)
* Mazda Radar Cruise Control (MRCC) Indicator Light 4-95
(Amber)
* Cruise Main Indicator Light 4-101
(Green)
* Cruise Set Indicator Light 4-101
Lights-On Indicator Light 4-41
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

4–26
When Driving
Instrument Cluster and Display
Wrench Warning Indicator Light
When the ignition is switched ON, the
warning light is illuminated and then turns
off after a few seconds.
The wrench warning indicator light is
illuminated when the preset maintenance
period arrives. Verify the content and
perform maintenance.
Refer to Maintenance Monitor on page
6-20 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suffi ciently warmed
up, the temperature sensor could have
a malfunction. Consult an Authorized
Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

4–27
When Driving
Transaxle
Manual Transaxle
Operation
Manual Transaxle Shift Pattern
Neutral position
The shift pattern of the transaxle is
conventional, as shown.
Depress the clutch pedal all the way down
while shifting; then release it slowly.
Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift
to R.
WARNING
Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tire speed could
cause the tires to skid. This could
lead to loss of vehicle control and an
accident.

Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.
CAUTION



¾ Keep your foot off the clutch pedal
except when shifting gears. Also, do not
use the clutch to hold the vehicle on an
upgrade. Riding the clutch will cause
needless clutch wear and damage.



¾ Do not apply any excessive lateral force
to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the transaxle.



¾ Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transaxle.
