2014 Lexus GS450h Owner's Manual

88
GS450h_OM_OM30D52U_(U)

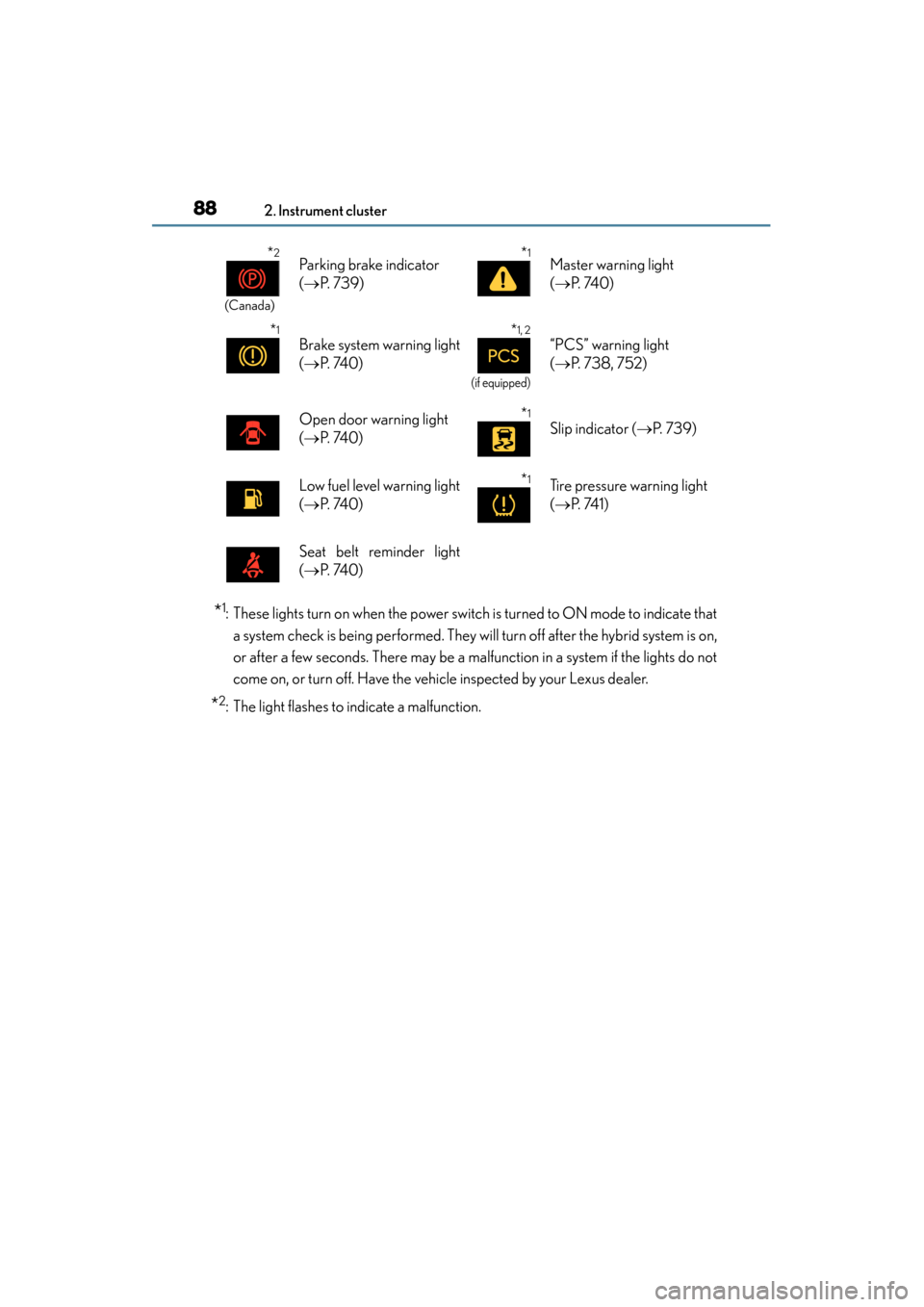

2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indicate thata system check is being performed. They will turn off after the hybrid system is on,
or after a few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*2
(Canada)
Parking brake indicator
(→ P. 7 3 9 )*1Master warning light
(→ P. 74 0 )
*1
Brake system warning light
(→ P. 74 0 )*1, 2
(if equipped)
“PCS” warning light
(→ P. 738, 752)
Open door warning light
(→ P. 74 0 )*1
Slip indicator ( →P. 7 3 9 )
Low fuel level warning light
(→ P. 74 0 )*1Tire pressure warning light
(→ P. 74 1 )
Seat belt reminder light
(→ P. 74 0 )
GS450h_OM_OM30D52U_(U).book Page 88 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
892. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(→ P. 2 0 9 )
(if equipped)
LKA (Lane-Keeping
Assist) indicator
(→ P. 2 7 1 )
(U.S.A.)
Headlight indicator
(→ P. 2 1 7 )
(if equipped)
Intuitive parking assist indi-
cator ( →P. 2 8 1 )
(Canada)
Tail light indicator
(→ P. 2 1 7 ) *1
(if equipped)
“AFS OFF” indicator
(→ P. 219)
Headlight high beam indi-
cator ( →P. 2 1 8 )
*1, 2Slip indicator
(→ P. 3 1 0 )
(if equipped)
Front fog light indicator
(→ P. 222)*1VSC OFF indicator
(→ P. 3 1 0 )
“READY” indicator
( → P. 1 9 3 )
*1, 3
(if equipped)
“PCS” warning light
(→ P. 3 1 6 )
EV indicator ( →P. 74 )
(U.S.A.)
Parking brake indicator
(→ P. 211)
Cruise control indicator
( → P. 2 3 6 , 2 4 0 )
(Canada)
Parking brake indicator
(→ P. 211)
(if equipped)
Radar cruise control indi-
cator ( →P. 2 4 0 )*1Brake hold standby indica-
tor ( →P. 2 1 4 )
Cruise control “SET” indi-
cator ( →P. 236, 240)
*1Brake hold operated indi-
cator ( →P. 2 1 4 )
GS450h_OM_OM30D52U_(U).book Page 89 Monday, July 29, 2013 12:07 PM

90
GS450h_OM_OM30D52U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indicate thata system check is being performed. They will turn off after the hybrid system is on,
or after a few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster thanusual to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-nate in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*4
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 3 2 4 )*1“A I R B A G O N /
OFF” indicator
(→ P. 4 9 )
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the hybrid system, this could mean that these systems are not avail-
able to help protect you in an accident, which could result in death or serious injury.
Have the vehicle inspected by your Lexus dealer immediately if this occurs.
GS450h_OM_OM30D52U_(U).book Page 90 Monday, July 29, 2013 12:07 PM

91
GS450h_OM_OM30D52U_(U)2. Instrument cluster
2
Instrument cluster
Gauges and meters
XWhen driving mode is in other than sport mode ( →P. 305)
XWhen driving mode is in sport mode ( →P. 305)
The units used on the speedometer may differ depending on the target region.
GS450h_OM_OM30D52U_(U).book Page 91 Monday, July 29, 2013 12:07 PM

92
GS450h_OM_OM30D52U_(U)
2. Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (→P. 74 )
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
(→ P. 9 5 )
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 9 6 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range ( →P. 2 0 3 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Tachometer
Displays the engine speed in revolutions per minute
1
2
3
4
5
6
7
8
9
GS450h_OM_OM30D52U_(U).book Page 92 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
932. Instrument cluster
2
Instrument cluster
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.Darker
Brighter
Changing the display
Instrument panel light control
1
2
GS450h_OM_OM30D52U_(U).book Page 93 Monday, July 29, 2013 12:07 PM

94
GS450h_OM_OM30D52U_(U)
2. Instrument cluster
■The meters and display illuminate when
The power switch is in ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change the instrument panel brightness. At this time,
any adjustments made to the instrument panel brightness levels will be applied to
both settings at once.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to either the brightest or darkest setting, the
automatic adjustment will not be performed.
■Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
●By keeping the indicator needle within Eco area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Po w e r a r e a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 94 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
952. Instrument cluster
2
Instrument cluster
■ECO lamp and SPORT lamp
●When sport mode is selected, SPORT lamp (red) will illuminate.
●When all of the following conditions are satisfied and Eco-friendly driving, ECO
lamp (blue) will illuminate. (ECO lamp will become brighter the more Eco-friendly
driving you perform. Also, while the vehicle is stopped or the acceleration exceeds
Zone of Eco driving, ECO lamp turns off. [→P. 94] However, when Eco drive
mode is selected, while the vehicle is stopped or the acceleration exceeds Zone of
Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D
• Paddle shift switch is not operated.
• Either normal mode or Eco drive mode is selected.
• The vehicle speed is approximately 80 mph (130 km/h) or below.
■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport
mode.
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehi-
cle operation and driving conditions are the same.
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features: → P. 8 3 3 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 800)
