2014 Lexus GS450h Owner's Manual

808
GS450h_OM_OM30D52U_(U)

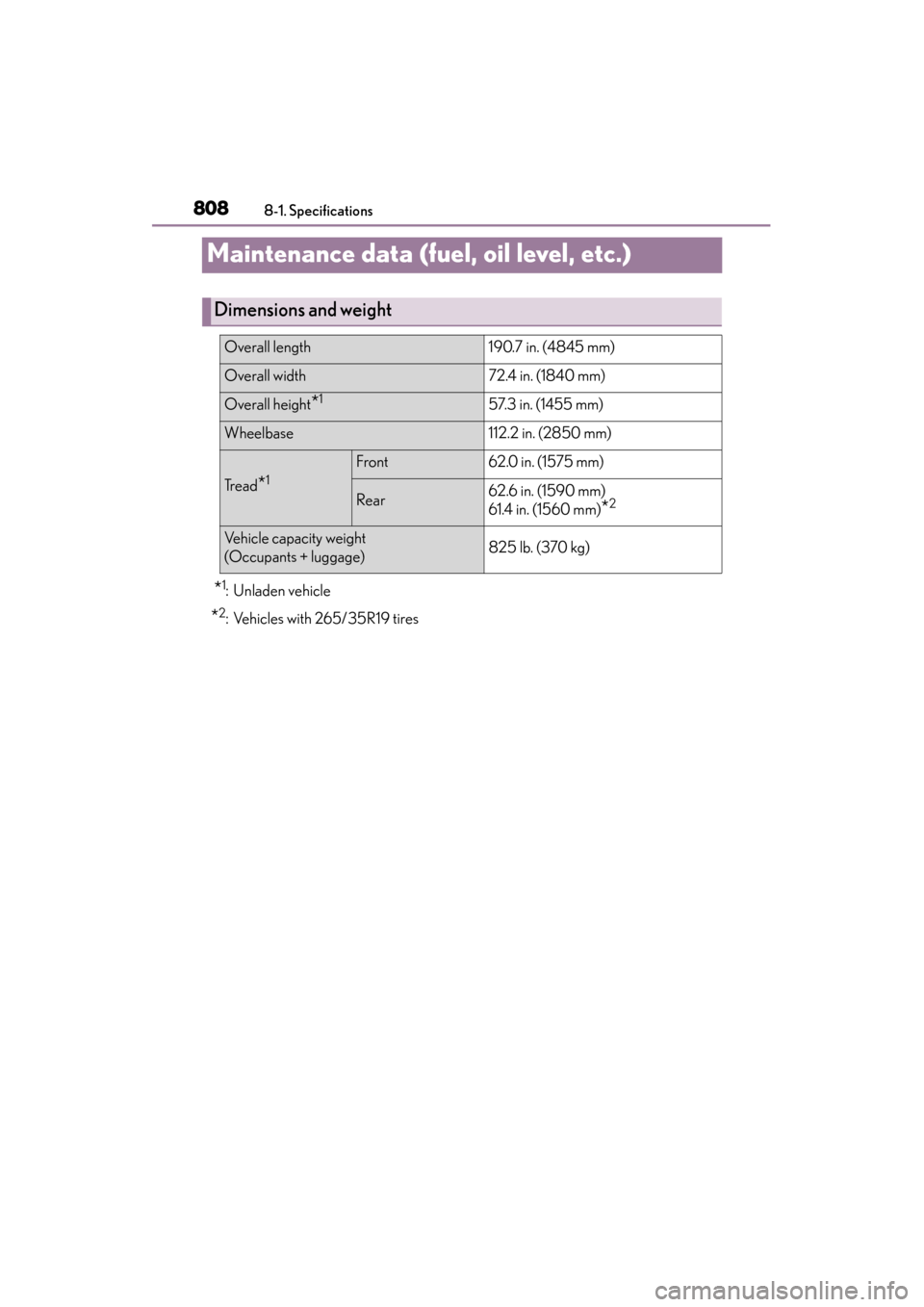

8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
Dimensions and weight
Overall length190.7 in. (4845 mm)
Overall width72.4 in. (1840 mm)
Overall height*157.3 in. (1455 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
GS450h_OM_OM30D52U_(U).book Page 808 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
8098-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
GS450h_OM_OM30D52U_(U).book Page 809 Monday, July 29, 2013 12:07 PM

810
GS450h_OM_OM30D52U_(U)
8-1. Specifications
Engine
Model3.5 L 6-cylinder (2GR-FXE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque202.8 ft•lbf (275 N•m, 28.0 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V
GS450h_OM_OM30D52U_(U).book Page 810 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
8118-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
Wi t h f il te r
Wi t h o u t fi lt er
6.6 qt. (6.2 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)
GS450h_OM_OM30D52U_(U).book Page 811 Monday, July 29, 2013 12:07 PM

812
GS450h_OM_OM30D52U_(U)
8-1. Specifications
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.
Outside temperature
GS450h_OM_OM30D52U_(U).book Page 812 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
8138-1. Specifications
8
Vehicle specifications
Cooling system
Capacity
Gasoline
engine9.9 qt. (9.4 L, 8.3 Imp.qt.)
Pow e r
control unit3.3 qt. (3.1 L, 2.7 Imp.qt.)
Coolant typeUse either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
Spark plug
Make
GapDENSO FK20HBR8
0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
GS450h_OM_OM30D52U_(U).book Page 813 Monday, July 29, 2013 12:07 PM

814
GS450h_OM_OM30D52U_(U)
8-1. Specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.

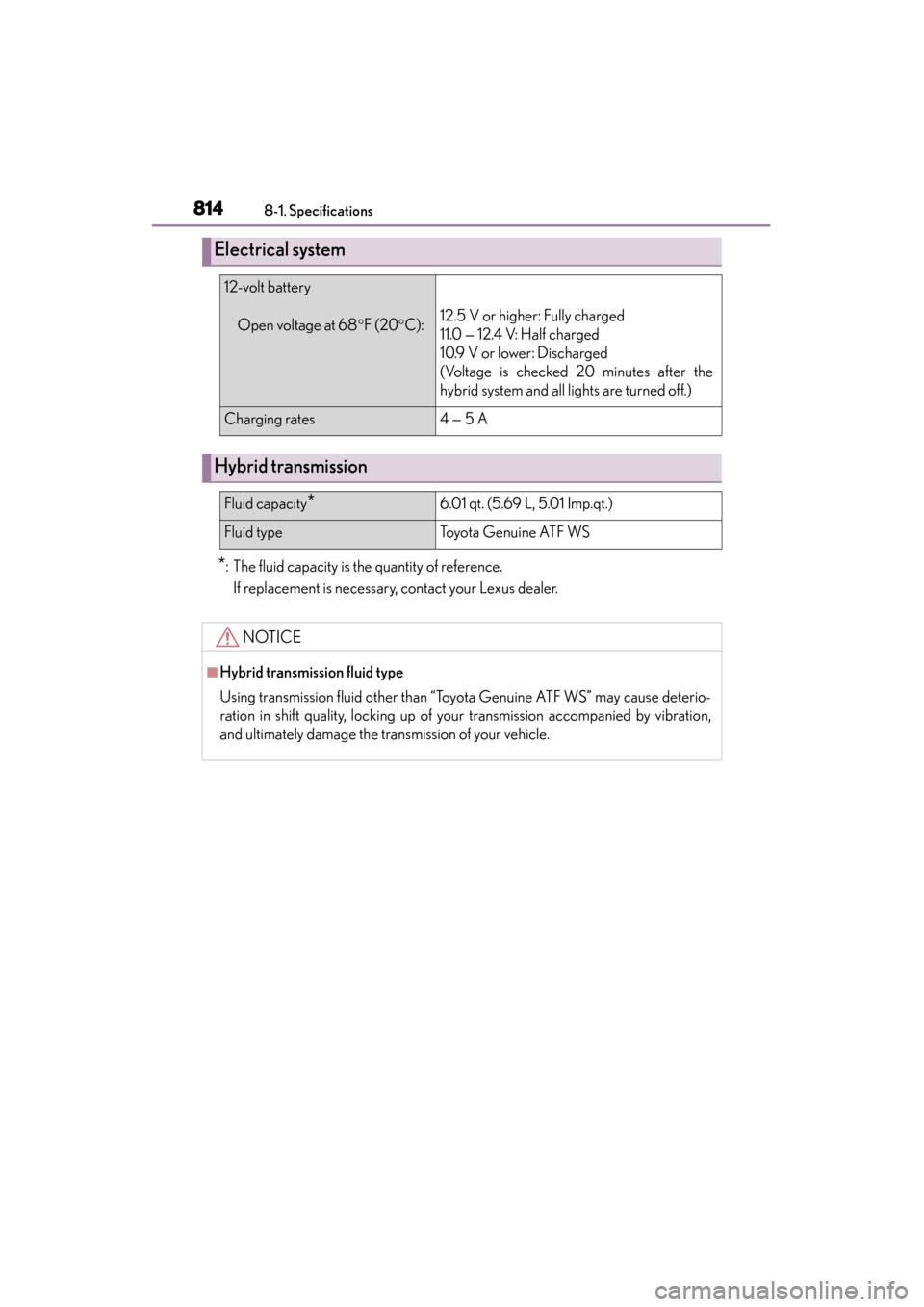

Electrical system
12-volt battery
Open voltage at 68 °F (20 °C):12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates4 — 5 A
Hybrid transmission
Fluid capacity*6.01 qt. (5.69 L, 5.01 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration,
and ultimately damage the transmission of your vehicle.
GS450h_OM_OM30D52U_(U).book Page 814 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
8158-1. Specifications
8
Vehicle specifications
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N,51.0 kgf) while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illuminated when the hybrid system is operating
(If the brake system warning light is illuminated, refer to P. 737).
Differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*4.5 in. (115 mm) Min.
Pe d a l f r e e p l a y0.04 — 0.08 in. (1.0 — 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
GS450h_OM_OM30D52U_(U).book Page 815 Monday, July 29, 2013 12:07 PM
