2014 Lexus GS450h Owner's Manual

544
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)
Once the Bluetooth® phone is registered, you can make a call using the
following procedure:
■Dialing
Display the “Phone” screen. ( →P. 5 3 9 )
Input the phone number.
To delete the inputted phone num-
ber, select .
Select or press on the steering wheel.
Depending on the type of Bluetooth® phone being connected, it may be nec-
essary to perform additional steps on the phone.
■Dialing from the phonebook
You can dial a number from the phonebook data imported from your
cellular phone. The system has one phonebook for each phone. Up to
1000 entries may be stored in each phonebook. ( →P. 562)
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Choose the desired data to
call from the list.
Making a call
1
2
3
1
2
3
GS450h_OM_OM30D52U_(U).book Page 544 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5455-4. Using the hands-free phone system (for cellular phone)
5
Interior features

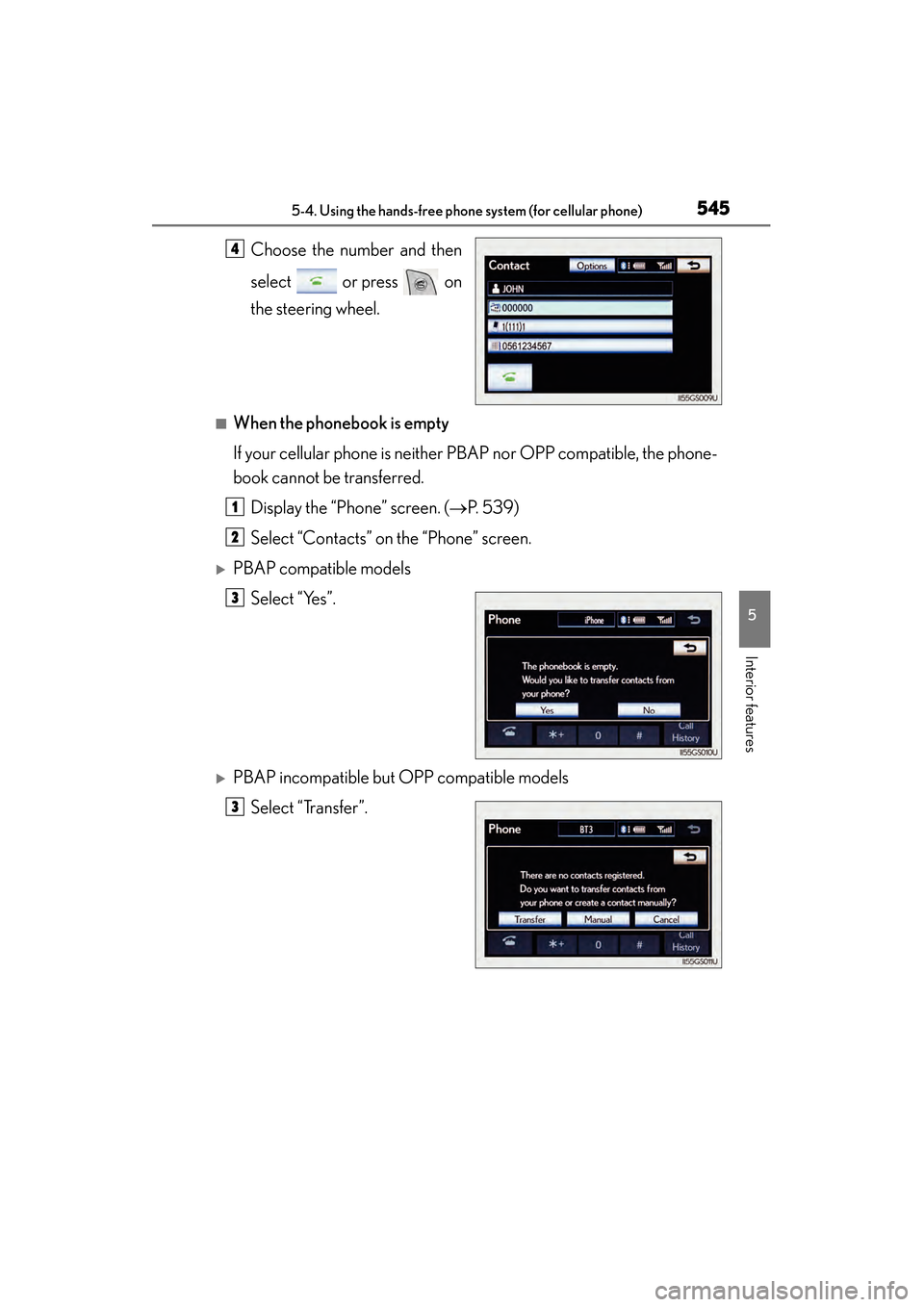

Choose the number and then
select or press on
the steering wheel.
■When the phonebook is empty
If your cellular phone is neither PBAP nor OPP compatible, the phone-
book cannot be transferred.Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
XPBAP compatible models Select “Yes”.
XPBAP incompatible but OPP compatible modelsSelect “Transfer”.
4
1
2
3
3
GS450h_OM_OM30D52U_(U).book Page 545 Monday, July 29, 2013 12:07 PM

546
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)
Transfer the phonebook data
to the system using the
Bluetooth
® phone.
This screen appears while transfer-
ring. To cancel this function, select
“Cancel”.
Depending on the type of
Bluetooth
® phone:
• It may be necessary to perform additional steps on the phone
when transferring phonebook
data.
• The registered image on the phonebook may not appear
when phonebook data is trans-
ferred.
• OBEX authentication may be required when transferring
phonebook data. Enter “1234”
into the Bluetooth
® phone.
When the data transfer from a
PBAP incompatible but OPP
compatible model is complete,
“Done” will appear on the
screen. Select “Done”.
4
5
GS450h_OM_OM30D52U_(U).book Page 546 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5475-4. Using the hands-free phone system (for cellular phone)
5
Interior features

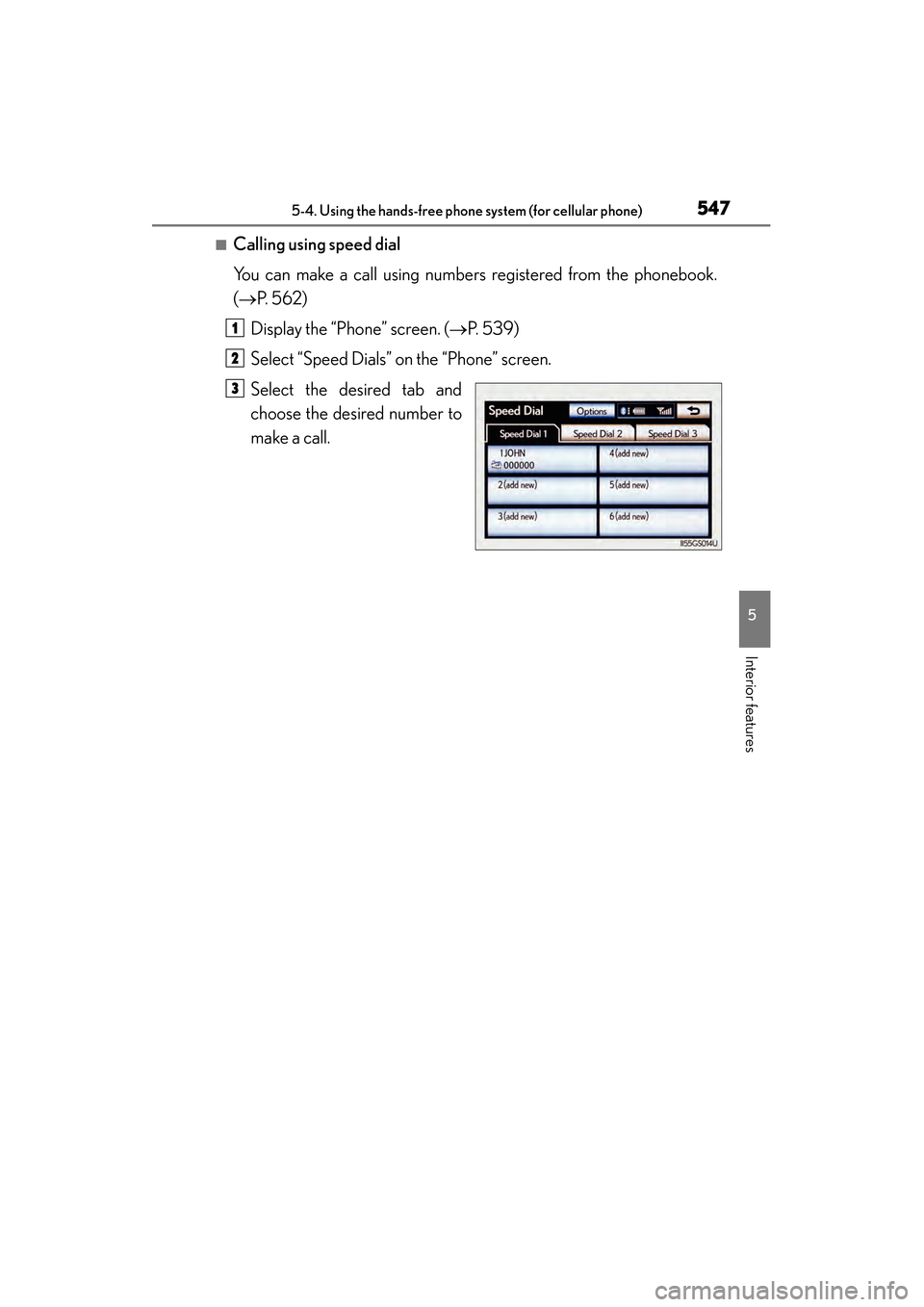

■Calling using speed dial
You can make a call using numbers registered from the phonebook.
(→P. 562)
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Speed Dials” on the “Phone” screen.
Select the desired tab and
choose the desired number to
make a call.
1
2
3
GS450h_OM_OM30D52U_(U).book Page 547 Monday, July 29, 2013 12:07 PM

548
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

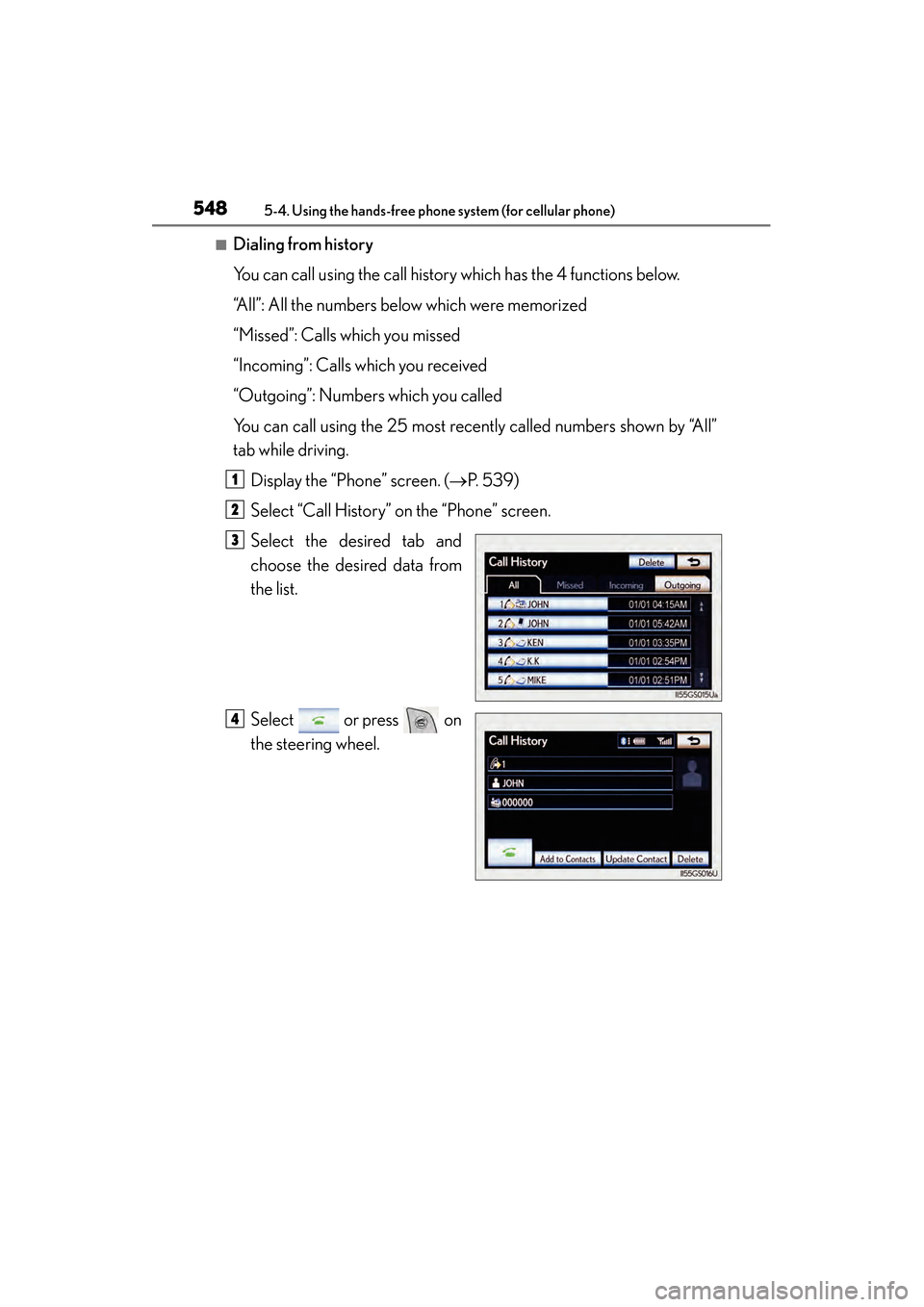

■Dialing from history
You can call using the call history which has the 4 functions below.
“All”: All the numbers below which were memorized
“Missed”: Calls which you missed
“Incoming”: Calls which you received
“Outgoing”: Numbers which you called
You can call using the 25 most recently called numbers shown by “All”
tab while driving.Display the “Phone” screen. ( →P. 5 3 9 )
Select “Call History” on the “Phone” screen.
Select the desired tab and
choose the desired data from
the list.
Select or press on
the steering wheel.
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 548 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5495-4. Using the hands-free phone system (for cellular phone)
5
Interior features
■Calling using voice recognition
You can call by giving a voice command. (
→P. 375)
Press .
The “Call ” and “Dial ” operating procedures are
explained here. Other operating procedures are also similar.
●Calling by name
You can call by giving a name registered in the phonebook.
(→ P. 562)
Press .
Following the system guid-
ance, wait for the beep and
then after saying “Call” say the
desired name, or the name and
type of phone.
Following the system guidance, wait for the beep and then say “Dial”.
(You can also call by pressing on the steering wheel.)
1
2
3
GS450h_OM_OM30D52U_(U).book Page 549 Monday, July 29, 2013 12:07 PM

550
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)
●Calling by dial number
You can call by giving a phone number
Press .
Following the system guid-
ance, wait for the beep and
then after saying “Dial” say the
phone number.
Following the system guidance, wait for the beep and then say “Dial”.
(You can also call by pressing on the steering wheel.)
■Calling using SMS/MMS message
You can call using the SMS (Short Message Service)/MMS (Multime-
dia Messaging Service) message sender’s phone number.Display the “Phone” screen. ( →P. 5 3 9 )
Select “Messages”.
When “Message Transfer” is set to
“Off”, a confirmation screen will be
displayed. Select “Yes”.
Select the “SMS/MMS” tab and then select the desired received
message from the list.
The tab display may vary depending on the type of cellular phone.
Select or press on the steering wheel.
■Calling using POI (vehicles with the navigation system)
You can make a call using a Point Of Interest.
1
2
3
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 550 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5515-4. Using the hands-free phone system (for cellular phone)
5
Interior features
■Call history list
●If you make a call to or receive a call from a number registered in the phone book,
the name is displayed in the call history.
●If you make multiple calls to the same number, only the last call made is displayed in
the call history.
●Number-withheld calls are also memorized in the system.
■When driving
The functions “Dialing”, “Dialing from the phonebook”, and “Dialing from history”
(except for call using the 25 most recently called numbers shown by “All” tab) are
unavailable.
■When calling by registered name in the phonebook
●When “Call ” on the “Shortcut Menu” screen is dimmed, the phone-
book’s voice command recognition cannot be used. Check the Bluetooth® con-
nection and if the contacts have been transferred to the system.
●Short or abbreviated names in the phonebook may not be recognized. Change
names in the phonebook to full names.
●Sometimes a voice recognition result confirmation screen will be displayed. After
confirming the result, say “Yes” or “No”.
●When the system recognizes multiple names from the phonebook, a name candi-
date list will be displayed on the screen. If the desired name is not displayed on the
top of the screen, say the number of the name from the candidate list (number 1 and
number 2) to select a name from the candidate list.
●When a contact has multiple phone numbers registered in the phonebook, a candi-
date list will be displayed. If the desired phone number is not displayed on the top of
the screen, say the number of the desired phone number from the candidate list
(number 1 and number 2) to select a phone number from the candidate list.
GS450h_OM_OM30D52U_(U).book Page 551 Monday, July 29, 2013 12:07 PM
