2014 Lexus GS350 Navigation manual

89
3. OTHER SETTINGS
BASIC FUNCTION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
21Select the desired part or component
screen button.
2Set the conditions.
1Select “Dealer” .
2Select the desired item to search for the
location. ( →P.118)
zThe editing dealer screen appears after
setting the location.
MAINTENANCE
INFORMATION SETTING
No.Function
Select to enter the next maintenance
date.
Select to enter the driving distance
until the next maintenance check.
Select to cancel the conditions which
have been entered.
Select to reset the conditions which
have expired.
INFORMATION
●
For scheduled maintenance information,
please refer to “Lexus Service Booklet”,
“Lexus Warranty Booklet” or “Owner’s
Manual”.
●Depending on driving or road conditions,
the actual date and distance maintenance
should be performed may differ from the
stored date and distance in the system.
DEALER SETTING
Dealer information can be registered in
the system. With dealer information reg-
istered, route guidance to the dealer is
available.
GS_Navi+MM_OM30E40E_(EE).book Page 89 Thursday, July 24, 2014 3:57 PM

90
3. OTHER SETTINGS
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
3Select the desired item to be edited.■EDITING DEALER OR CONTACT
NAME
1Select “Dealer” or “Contact” .
2Enter the name and select “OK”.
■EDITING THE LOCATION
1Select “Location” .
2Scroll the map to the desired point
(→ P.105) and select “OK”.
■EDITING TELEPHONE NUMBER
1Select “Tel. no.” .
2Enter the telephone number and select
“OK”.
No.FunctionPage
Select to enter the name of
a dealer.90
Select to enter the name of
a dealer member.90
Select to set the location.90
Select to set the telephone
number.90
Select to set the displayed
dealer as a destination.133
Select to delete the dealer
information displayed on
the screen.

GS_Navi+MM_OM30E40E_(EE).book Page 90 Thursday, July 24, 2014 3:57 PM

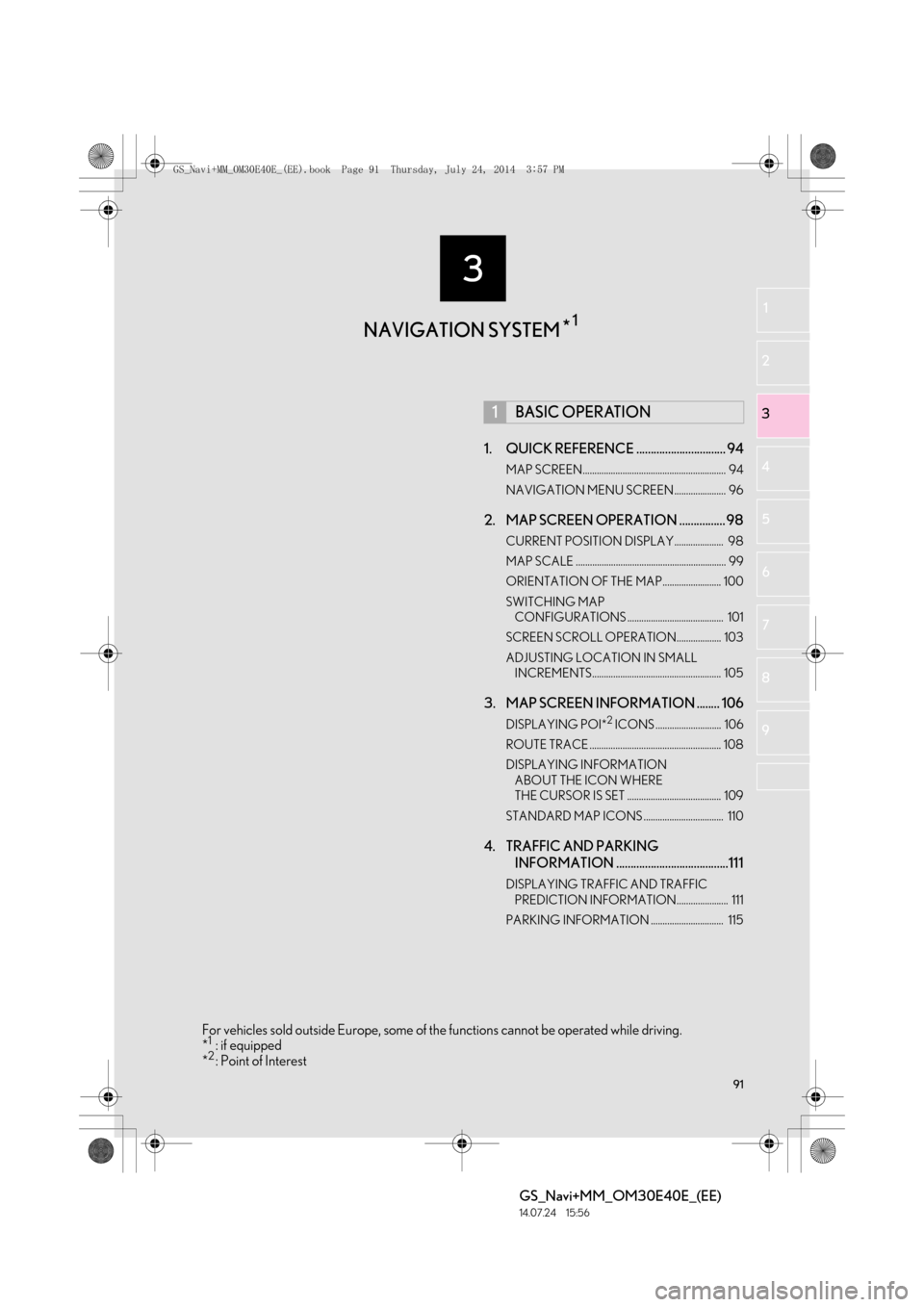

3
91
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
9
1. QUICK REFERENCE ............................... 94
MAP SCREEN............................................................. 94
NAVIGATION MENU SCREEN ...................... 96
2. MAP SCREEN OPERATION ................ 98
CURRENT POSITION DISPLAY..................... 98
MAP SCALE ................................................................ 99
ORIENTATION OF THE MAP......................... 100
SWITCHING MAP CONFIGURATIONS ......................................... 101
SCREEN SCROLL OPERATION................... 103
ADJUSTING LOCATION IN SMALL INCREMENTS....................................................... 105
3. MAP SCREEN INFORMATION ........ 106
DISPLAYING POI*2 ICONS ............................ 106
ROUTE TRACE ........................................................ 108
DISPLAYING INFORMATION ABOUT THE ICON WHERE
THE CURSOR IS SET ........................................ 109
STANDARD MAP ICONS .................................. 110
4. TRAFFIC AND PARKING INFORMATION .......................................111
DISPLAYING TRA FFIC AND TRAFFIC
PREDICTION INFORMATION...................... 111
PARKING INFORMATION ............................... 115
1BASIC OPERATION
NAVIGATION SYSTEM *1
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
*1: if equipped
*2: Point of Interest
GS_Navi+MM_OM30E40E_(EE).book Page 91 Thursday, July 24, 2014 3:57 PM

92
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. DESTINATION SEARCH SCREEN......................................................118
2. SEARCH OPERATION ......................... 120
SELECTING THE SEARCH AREA ................. 121
SETTING HOME AS DESTINATION............ 121
SETTING QUICK ACCESS AS DESTINATION...................................................... 122
SEARCHING BY ADDRESS ............................. 122
SEARCHING BY POI*
2...................................... 125
SEARCHING BY MAP......................................... 126
SEARCHING BY MEMORY POINTS ......... 126
SEARCHING FROM PREVIOUS DESTINATIONS ................................................... 127
SEARCHING BY INTERSECTION ............... 128
SEARCHING BY MOTORWAY ENTRANCE/EXIT ............................................... 129
SEARCHING BY COORDINATES .............. 130
SEARCHING BY TELEPHONE NUMBER.................................................................. 130
SEARCHING BY POI*
2 NEAR
CURSOR ................................................................... 131
SEARCHING BY UK/NL POSTAL CODE ........................................................................ 132
3. STARTING ROUTE GUIDANCE ...... 133
STARTING ROUTE GUIDANCE................... 133
SUSPENDING GUIDANCE ............................. 137
1. ROUTE GUIDANCE SCREEN .......... 138
ROUTE GUIDANCE SCREEN....................... 138
DURING MOTORWAY DRIVING ............... 142
WHEN APPROACHING INTERSECTION ................................................... 143
TURN LIST SCREEN .............................................. 144
ARROW SCREEN .................................................. 144
2. TYPICAL VOICE GUIDANCE PROMPTS.................................................145
3. EDITING ROUTE ......................................146
ADDING DESTINATIONS ................................ 147
REORDERING DESTINATIONS.................... 148
DELETING DESTINATIONS............................. 148
SETTING SEARCH CONDITION ................. 149
DETOUR SETTING ................................................ 149
ROAD PREFERENCE .......................................... 150
ROUTE OVERVIEW............................................... 151
2DESTINATION SEARCH3ROUTE GUIDANCE
GS_Navi+MM_OM30E40E_(EE).book Page 92 Thursday, July 24, 2014 3:57 PM

93
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
1. MY MEMORY SETTINGS .................... 152
SETTING UP HOME ............................................. 153
SETTING UP QUICK ACCESS ...................... 155
SETTING UP MEMORY POINTS .................. 157
SETTING UP AREA TO AVOID ..................... 163
SETTING UP ROUTE TRACE .......................... 166
BACKUP TO A USB MEMORY ..................... 168
COPYING FROM A USB MEMORY.......... 170
1. NAVIGATION SETTINGS .................... 172
NAVIGATION SETTINGS SCREEN ........... 173
2. TRAFFIC AND PARKING SETTINGS..................................................177
TRAFFIC AND PARKING SETTINGS
SCREEN ................................................................... 178
1. GPS (GLOBAL POSITIONING SYSTEM) ................................................... 186
LIMITATIONS OF THE NAVIGATION
SYSTEM .................................................................... 186
2. MAP DATABASE VERSION AND COVERED AREA ................................. 189
MAP DATA ................................................................. 189
ABOUT THE MAP DATA ................................... 190
4MY MEMORY
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
GS_Navi+MM_OM30E40E_(EE).book Page 93 Thursday, July 24, 2014 3:57 PM

94
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
XUsing the “MENU” button
To display this screen, press the “MENU” button on the Remote Touch, then select
“Nav” , and select if the navigation menu screen is displayed.
XUsing the “MAP/VOICE” button
To display this screen, press the “MAP/VOICE” button on the Remote Touch.
No.NameFunctionPage
2D north up, 2D
heading up or 3D
heading up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. In 3D map, only a head-
ing-up view is available.
100
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS186
GS_Navi+MM_OM30E40E_(EE).book Page 94 Thursday, July 24, 2014 3:57 PM

95
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION SYSTEM
3
Status bar
Displays the condition of Wi-Fi® and Bluetooth®
connections, the level of reception and the
amount of battery charge left for a cellular phone.20
Border guidanceWhen a vehicle crosses a borderline, the national
flag of that country is displayed.
Speed limit iconDisplays speed limits172
Route informa-
tion change but-
tonSelect to display the current street name, expect-
ed travel time/arrival time to the destination, or
the traffic information bar.
138
Route informa-
tion barDisplays the current street name, expected travel
time/arrival time to the destination or the traffic in-
formation bar as selected.
Current position
buttonSelect to display the current position address or
repeat the voice guidance.
“Menu”Select to utilize functions such as setting a destina-
tion and registering a memory point.96
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
99
Scale indicatorThis figure indicates the map scale.
Manual update
buttonSelect to update the traffic or parking lot informa-
tion manually. 181
Traffic indicatorShows that traffic information is received. Select
to start voice guidance for the traffic information.111
No.NameFunctionPage
GS_Navi+MM_OM30E40E_(EE).book Page 95 Thursday, July 24, 2014 3:57 PM

96
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION MENU SCREEN
This screen is used for functions such as setting a destination and registering memory
points.
XUsing the “MENU” button
Press the “MENU” button on the Remote Touch. Select “Nav”, and select “Menu” to
display the navigation menu screen.
X Using the “MAP/VOICE” button
Press the “MAP/VOICE” button on the Remote Touch, and select “Menu” to display
the navigation menu screen.
GS_Navi+MM_OM30E40E_(EE).book Page 96 Thursday, July 24, 2014 3:57 PM
