2014 Lexus GS350 Navigation manual

209
2. RADIO OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4

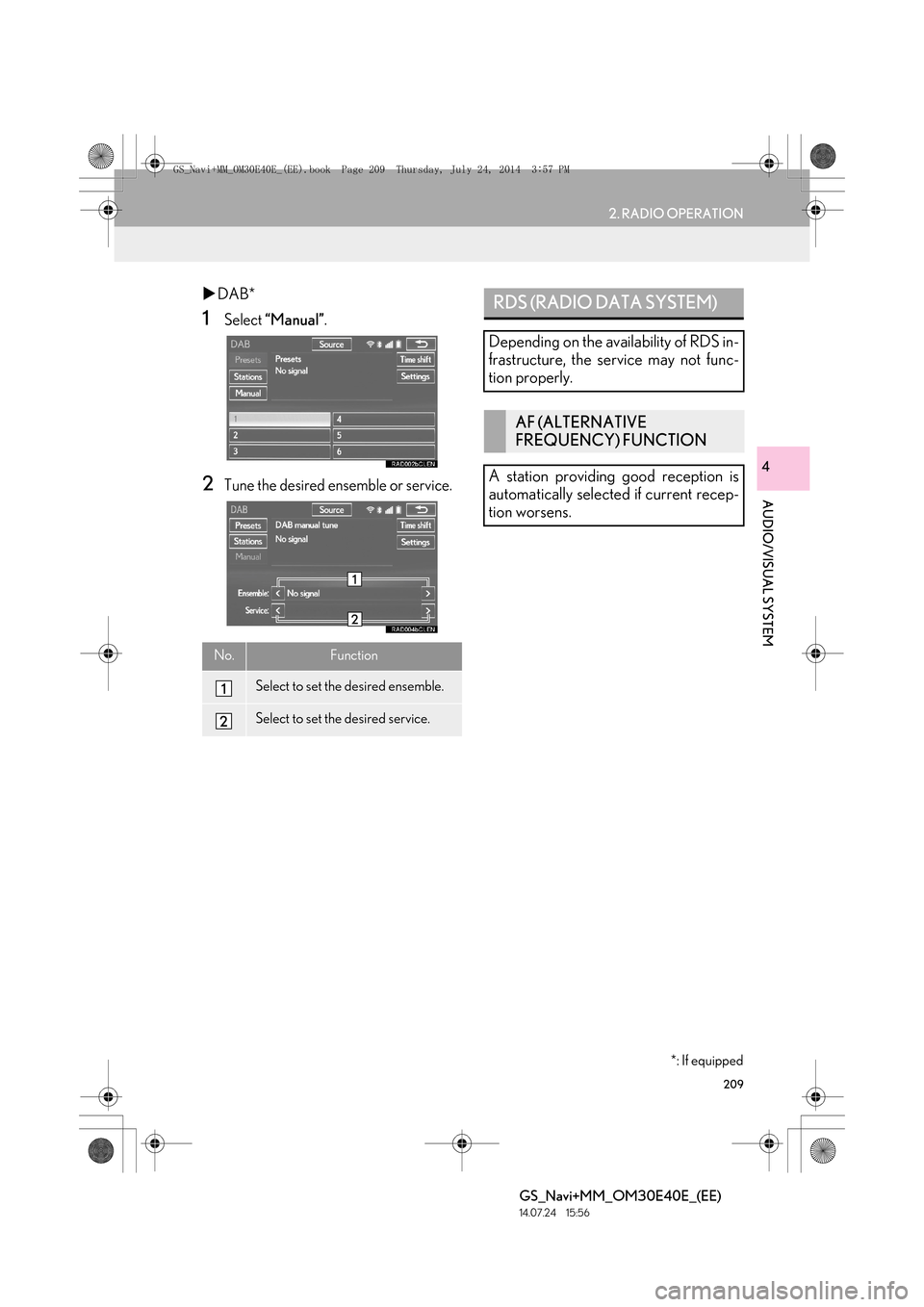

XDAB*
1Select “Manual” .
2Tune the desired ensemble or service.
No.Function
Select to set the desired ensemble.
Select to set the desired service.
RDS (RADIO DATA SYSTEM)
Depending on the availability of RDS in-
frastructure, the service may not func-
tion properly.
AF (ALTERNATIVE
FREQUENCY) FUNCTION
A station providing good reception is
automatically selected if current recep-
tion worsens.
*: If equipped
GS_Navi+MM_OM30E40E_(EE).book Page 209 Thursday, July 24, 201 4 3:57 PM

210
2. RADIO OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1A pop-up message is displayed on the
screen when the radio seeks out a TP
station.
2Select “Continue” .
■TRAFFIC ANNOUNCEMENT
VOLUME FUNCTIONTA (TRAFFIC
ANNOUNCEMENT)
FUNCTION
The tuner will automatically seek a sta-
tion that regularly broadcasts traffic in-
formation and the station broadcasts
when the traffic information program
starts.
INFORMATION
●
When TA is set to “On” ( →P. 2 6 2 ) , t h e
radio will begin seeking a TP station.
●When the program ends, the initial oper-
ation resumes.
The volume level when receiving the
traffic announcement is memorized.
GS_Navi+MM_OM30E40E_(EE).book Page 210 Thursday, July 24, 201 4 3:57 PM

211
2. RADIO OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4

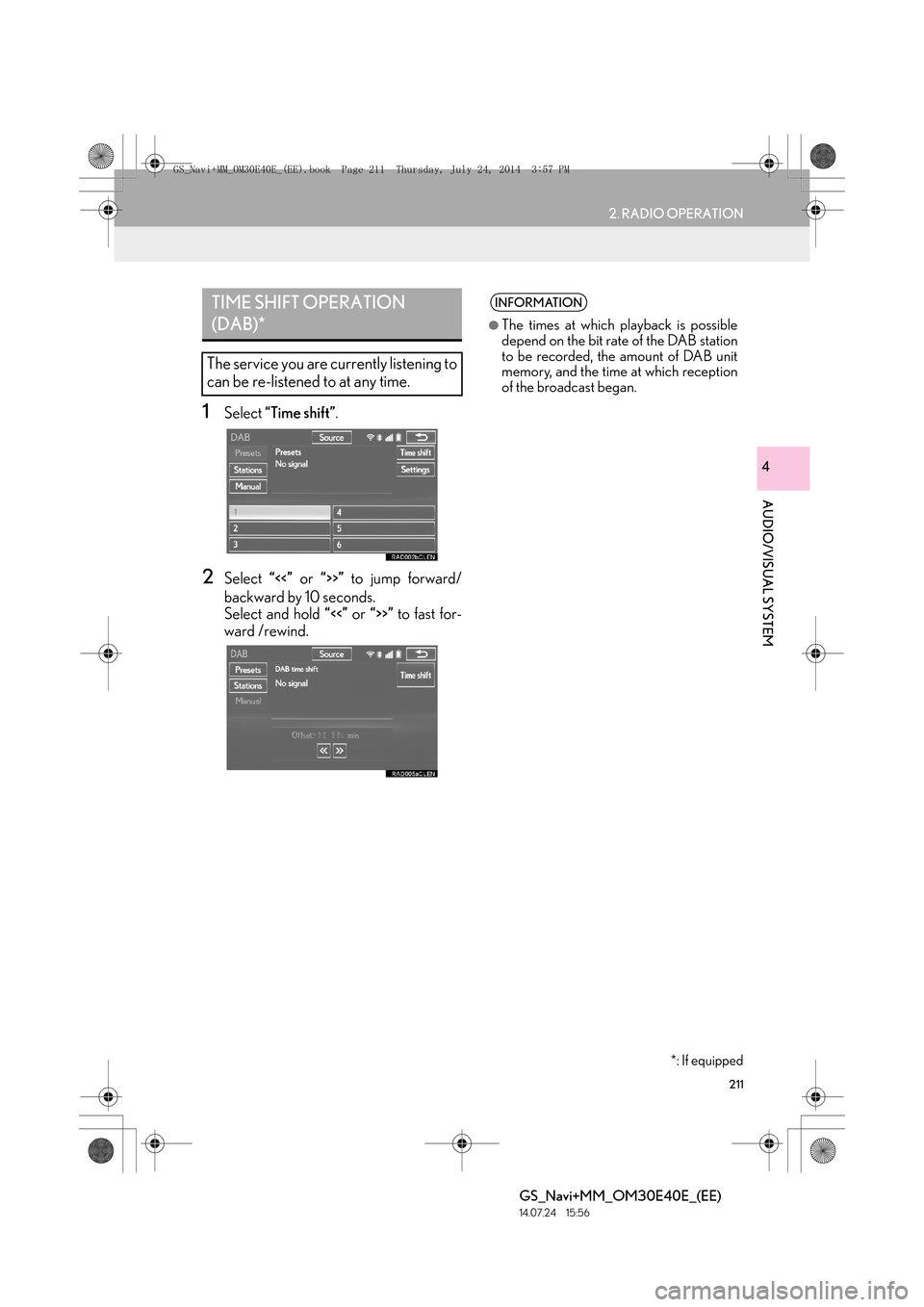

1Select “Time shift” .
2Select “<<” or “>>” to jump forward/
backward by 10 seconds.
Select and hold “<<” or “>>” to fast for-
ward /rewind.
TIME SHIFT OPERATION
(DAB)*
The service you are currently listening to
can be re-listened to at any time.
INFORMATION
●
The times at which playback is possible
depend on the bit rate of the DAB station
to be recorded, the amount of DAB unit
memory, and the time at which reception
of the broadcast began.
*: If equipped
GS_Navi+MM_OM30E40E_(EE).book Page 211 Thursday, July 24, 201 4 3:57 PM

212
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
3. MEDIA OPERATION
1. CD
■CONTROL SCREEN
OVERVIEW
The CD operation screen can be reached by the following methods:
X Inserting a disc ( →P.199)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Audio” to display the au-
dio control screen.
X Audio CD
XMP3/WMA/AAC disc
GS_Navi+MM_OM30E40E_(EE).book Page 212 Thursday, July 24, 201 4 3:57 PM

213
3. MEDIA OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
■CONTROL PANEL
GS_Navi+MM_OM30E40E_(EE).book Page 213 Thursday, July 24, 201 4 3:57 PM

214
3. MEDIA OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
No.Function
Select to display the audio source selection screen.
Select to select a track/file.
•Displays cover art
• Select to display a track/file list.
•Audio CD: Select to display a track list.
• MP3/WMA/AAC disc: Select to display a folder list. To return to the top screen, select
“Now playing” on the list screen.
Select to display the audio setting screen.
Select to set random playback.
Select to set repeat playback.
Shows progress
Select to play/pause.
Select to select a folder.
Power/Volume knob:
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
Press to eject a disc.
Disc slot
Press to play/pause.
Tune/Scroll knob:
•Turn to select a track/file.
• Turn to move up/down the list.
•Press to select a track/file.
• Press and hold to fast forward/rewind.
•Press to select a media mode.
• While in a media mode, pressing the “MEDIA” button changes media modes.
GS_Navi+MM_OM30E40E_(EE).book Page 214 Thursday, July 24, 201 4 3:57 PM

215
3. MEDIA OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
INFORMATION
●
If a disc contains CD-DA files and MP3/WM A/AAC files, only the CD-DA files can be
played back.
●If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32 char-
acters can be displayed.
GS_Navi+MM_OM30E40E_(EE).book Page 215 Thursday, July 24, 201 4 3:57 PM

216
3. MEDIA OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Select .
zEach time is selected, the mode
changes as follows:
•track repeat
→ off
1Select .
zEach time is selected, the mode
changes as follows:
• random (1 disc random)
→ off
PLAYING AN AUDIO CD
REPEATING
The track currently being listened to can
be repeated.
INFORMATION
●
When is selected, “RPT” appears
on the screen.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
INFORMATION
●
When is selected, “RAND”
appears on the screen.
GS_Navi+MM_OM30E40E_(EE).book Page 216 Thursday, July 24, 201 4 3:57 PM
