2014 Lexus ES300h Navigation Manual

24
3. QUICK REFERENCE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
2. “Destination” SCREEN
The “Destination” screen enables a destination search. Press the “MENU” button on
the Remote Touch, then select “Destination” to display the “Destination” screen.
No.NameFunctionPa g e
“Address”Select to input a house nu mber and the street ad-
dress using the input keys.70
“Point of Interest”Select one of the POIs that have already been
stored in the system’s database.73, 367
“Destination
Assist”Select to provide you with live assistance finding
destinations via the Le xus Enform with Safety
Connect response center.
80, 365
“Previous
Destinations”Select a destination from any of the last 100 previ-
ously set destinations and from the previous start-
ing point.
80
“Del.Dest.”Select to delete set destinations.86

3. QUICK REFERENCE
1
QUICK GUIDE
25
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10

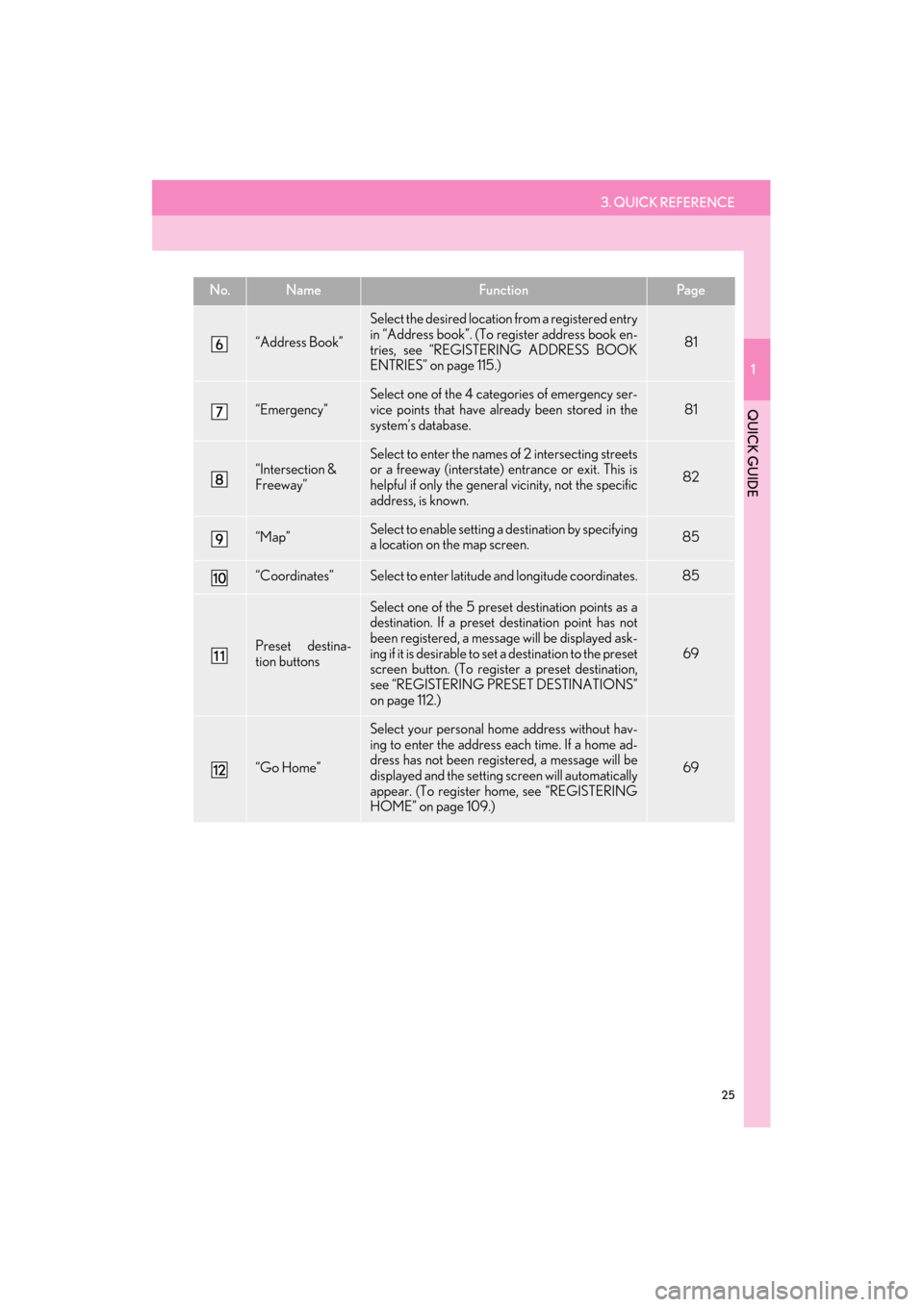

“Address Book”
Select the desired location from a registered entry
in “Address book”. (To re gister address book en-
tries, see “REGISTERING ADDRESS BOOK
ENTRIES” on page 115.)
81
“Emergency”Select one of the 4 categories of emergency ser-
vice points that have already been stored in the
system’s database.81
“Intersection &
Freeway”
Select to enter the names of 2 intersecting streets
or a freeway (interstate) entrance or exit. This is
helpful if only the general vicinity, not the specific
address, is known.
82
“Map”Select to enable setting a destination by specifying
a location on the map screen.85
“Coordinates”Select to enter latitude and longitude coordinates.85
Preset destina-
tion buttons
Select one of the 5 preset destination points as a
destination. If a preset destination point has not
been registered, a message will be displayed ask-
ing if it is desirable to set a destination to the preset
screen button. (To register a preset destination,
see “REGISTERING PRESET DESTINATIONS”
on page 112.)
69
“Go Home”
Select your personal home address without hav-
ing to enter the address each time. If a home ad-
dress has not been regist ered, a message will be
displayed and the setting screen will automatically
appear. (To register home, see “REGISTERING
HOME” on page 109.)
69
No.NameFunctionPa g e

26
3. QUICK REFERENCE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
3. “Setup” SCREEN
The items shown on the “Setup” screen can be set. Press the “MENU” button on the
Remote Touch, then select “Setup” to display the “Setup” screen.

3. QUICK REFERENCE
1
QUICK GUIDE
27
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
No.NameFunctionPa g e
“General”Select to change the selected language, opera-
tion sound, automatic screen change settings, etc.51
“Voice”Select to set the voice guidance settings.62
“Navigation”
Select to set home, pres et destinations, address
book, areas to avoid, etc. or to delete previous
destinations.
108
“Vehicle”Select to set vehicle info rmation such as mainte-
nance information.133
“Other”Select to set Lexus Insider, XM Sports, XM
Stocks and XM Fuel Prices.346, 373
“Audio”Select to set iPod and HD Radio™ channel set-
tings.288
“Bluetooth*”Select to set Bluetooth® phones and Bluetooth®
audio devices.194
“Phone”Select to set the phone sound, phonebook, mes-
sage settings, etc.172
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.

28
3. QUICK REFERENCE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4. “Information” SCREEN
This screen can be used to display the XM satellite system, fuel consumption, etc.
Press the “MENU” button on the Remote Touch, then select “Info/Apps” (“Info” ) to
display the “Information” screen.

3. QUICK REFERENCE
1
QUICK GUIDE
29
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
No.NameFunctionPa g e
“Apps”Select to display the “Apps” screen.358, 361
“Fuel
Consumption”Select to display the fuel consumption screen.Owner’s Manual
“Traffic Incidents”Select to display traffic incidents.343
“Map Data”Select to display map data information.324
“LEXUS Insider”Select to display the “LEXUS Insider” screen.370
“XM
NavWeather”Select to display weather information.339
“XM Stocks”Select to display persona lly selected stocks infor-
mation.332
“XM Sports”Select to display personally selected sports teams
information.329
“XM Fuel Prices”Select to display current fuel prices and gas sta-
tion locations information.335

30
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10

1
2
3
4
5
6
7
8
9
2
31
ES350/300h_Navi_OM33A66U_(U)13.07.11 09:52
10
1. INITIAL SCREEN ....................................... 32
2. HOW TO USE THE Remote Touch...... 33
3. INPUTTING LETTERS AND NUMBERS/LIST SCREEN
OPERATION............................................ 35
4. SCREEN ADJUSTMENT ........................ 38
SCREEN SETTINGS ADJUSTMENT ............. 38
5. MAP SCREEN OPERATION ............... 40
CURRENT POSITION DISPLAY ..................... 40
SCREEN SCROLL OPERATION .................... 40
SWITCHING THE SCREENS ............................ 45
MAP SCALE................................................................ 48
FOOT PRINT MAP .................................................. 48
ORIENTATION OF THE MAP ........................... 49
STANDARD MAP ICONS .................................. 50
1. GENERAL SETTINGS............................... 51
SCREENS FOR GENERAL SETTINGS .......... 51
2. VOICE SETTINGS ..................................... 62
SCREEN FOR VOICE SETTINGS ................... 62
1BASIC INFORMATION BEFORE
OPERATION
2SETUP
BASIC FUNCTION
