2014 Lexus ES300h Navigation Manual

320
1. VOICE COMMAND SYSTEM OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
XSelect audio mode
When Expanded Voice Commands are turned “On”. (See page 316.)
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
X Climate command
When Expanded Voice Commands are turned “On”. (See page 316.)
CommandActionShortcut
Menu
“Radio”Sets the audio mode to radio.O
“AM”Selects the AM band.O
“FM”Selects the FM band.O
“Satellite radio”Selects the satellite radio mode.O
“Disc”Selects the disc audio mode.O
“Auxiliary”Selects the auxiliary audio mode.O
“Bluetooth* audio”Selects the Bluetooth® audio mode.O
“iPod”Selects the iPod audio mode.O
“USB audio”Selects the USB audio mode.O
“Audio on”Turns the audio system on.O
“Audio off”Turns the audio system off.O
CommandActionShortcut Menu
“Automatic climate control”Turns air conditioning system on and off.O
“Warmer”Turns temperature up.O
“Cooler”Turns temperature down.O
INFORMATION
●
Commands that have a “O” in the Shortcut Menu column can be recognized from the
“Shortcut Menu” screen.
●Commands that have a “” in the Shortcut Menu column can only be recognized from the
screen that they are displayed in.

321
ES350/300h_Navi_OM33A66U_(U)13.07.12 11:24
7
VOICE COMMAND SYSTEM
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold the on the steering
wheel
until you hear the beeps that indi-
cate the system is listening.
2The Mobile Assistant can be used only
when the following screen is displayed.
z To cancel the Mobile Assistant, select
“Cancel” , or press and hold the on the
steering wheel.
z To restart the Mobile Assistant for addi-
tional commands, press the on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice com-
mand. • After some phone and music commands,
the Mobile Assistant feature will automat-
ically end to complete the requested
action.
The Mobile Assistant feature on this
system allows the activation of Apple’s
Siri
® Eyes Free mode via the steering
wheel switches. To operate the Mobile
Assistant, a compatible cellular phone
must be registered and connected to
this system via Bluetooth
®. (See page
152.)
z The volume of the Mobile Assistant can
be adjusted using the “PWR·VOL” knob
or steering wheel volume control
switches. The Mobile Assistant and
phone call volumes are synchronized.
INFORMATION
●
The available features and functions may
vary based on the iOS version installed
on the connected device.
●Some Siri features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri will inform you
that the function is not available.
●If Siri is not enabled on the cellular phone
connected via Bluetooth®, an error mes-
sage will be displayed on the screen.
●While a phone call is active, the Mobile
Assistant cannot be used.
●If using the navigation feature of the cellu-
lar phone, ensure the active audio source
is Bluetooth
® audio or iPod in order to
hear turn by turn direction prompts.

322
2. MOBILE ASSISTANT OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10

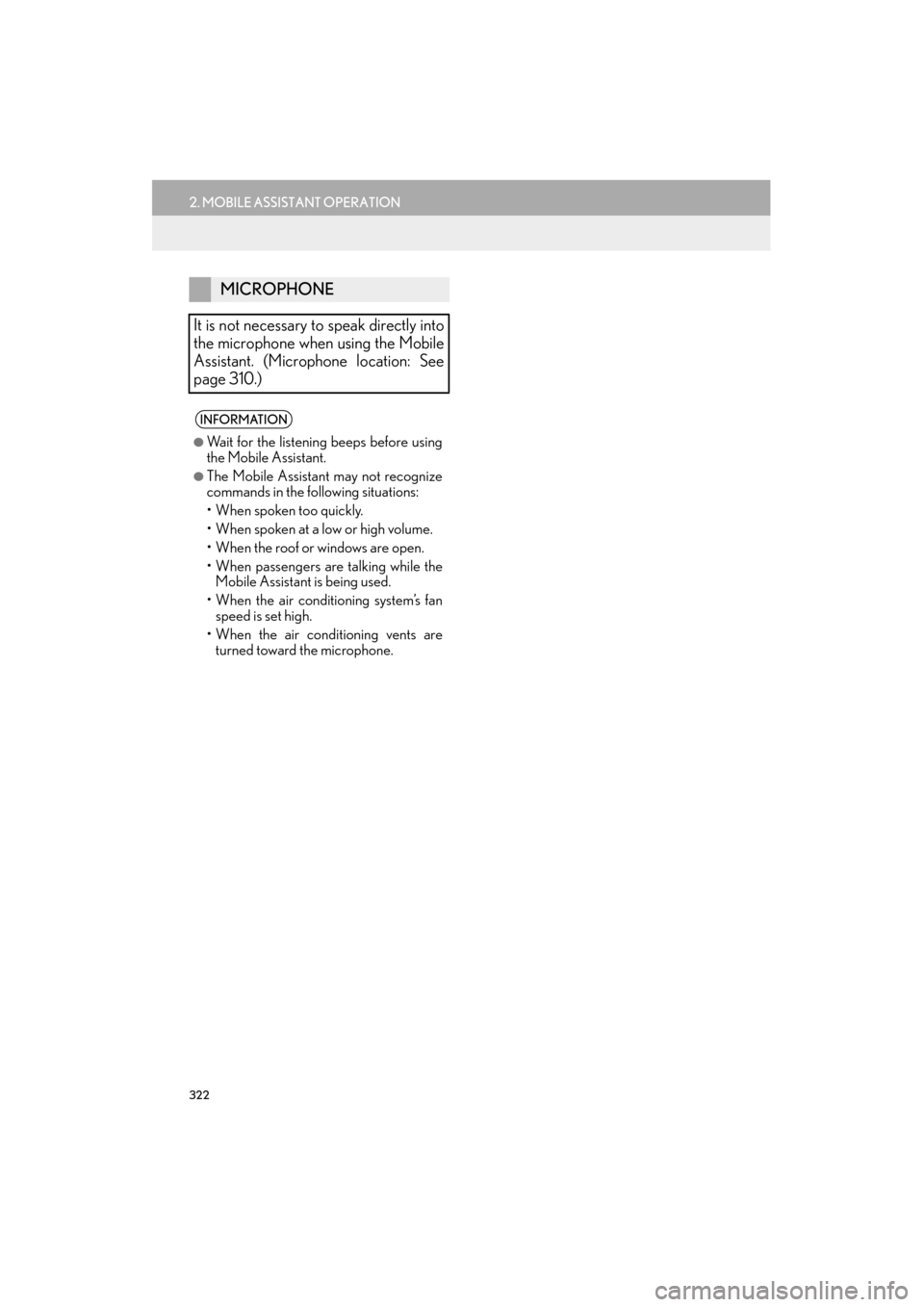

MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location: See
page 310.)
INFORMATION
●
Wait for the listening beeps before using
the Mobile Assistant.
●The Mobile Assistant may not recognize
commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while the Mobile Assistant is being used.
• When the air conditioning system’s fan speed is set high.
• When the air conditioning vents are turned toward the microphone.

8
323
1
2
3
4
5
6
7
8
9
ES350/300h_Navi_OM33A66U_(U)13.07.11 09:52
10
1. MAP DATABASE VERSION AND COVERAGE AREA ............................ 324
MAP INFORMATION ......................................... 324
CERTIFICATION................................................... 325
1. XM SERVICES ......................................... 326 1. XM Sports .................................................. 329
RECEIVE SPORTS INFORMATION .......... 329
XM Sports SETTINGS —
ADD OR
DELETE TEAMS.................................................. 330
2. XM Stocks .................................................. 332
RECEIVE STOCK DATA................................... 333
XM Stocks SETTINGS — ADD OR
DELETE STOCKS .............................................. 333
3. XM Fuel Prices ......................................... 335
SHOW XM Fuel Prices INFORMATION ................................................. 335
VIEW DETAILED FUEL PRICE INFORMATION ................................................. 335
XM Fuel Prices SETTINGS ................................ 336
4. XM NavWeather™ ................................. 339
SHOW XM NavWeather™ INFORMATION ................................................. 339
WEATHER INFORMATION ............................. 341
WEATHER WARNINGS ................................... 342
XM NavWeather™ INDICATOR .................. 342
5. XM NavTraffic®....................................... 343
SHOW TRAFFIC EVENT .................................. 343
SHOW XM NavTraffic®
INFORMATION ................................................. 344
1. XM SETTINGS ......................................... 346
1INFORMATION DISPLAY
2XM FUNCTION-OVERVIEW
3XM FUNCTION OPERATION
4SETUP
INFORMATION

324
ES350/300h_Navi_OM33A66U_(U)13.07.11 09:52
1. INFORMATION DISPLAY
1. MAP DATABASE VERSION AND COVERAGE AREA
1Press the “MENU” button on the
Remote Touch.
2Select “Info/Apps” .
3Select “Map Data” .
zThe “Map Information” screen will be dis-
played.
1Press the “MENU” button on the
Remote Touch, then select “Info/Apps”.
2Select “Map Data” on the “Information”
screen.
3Select “Legal Info.” .
zThe “Legal Information” screen will be dis-
played.
MAP INFORMATION
Coverage areas and legal information
can be displayed and map data can be
updated.
INFORMATION
●
Map data updates are available for a fee.
Contact your Lexus dealer for further
information.
●The “Map Information” screen displays “Map Version” and “Map Update
ID”. This data is needed to perform a map
data update.
LEGAL INFORMATION
Legal information related to the map
data can be displayed.

8
INFORMATION
325
1. INFORMATION DISPLAY
ES350/300h_Navi_OM33A66U_(U)13.07.11 09:52
1Press the “MENU” button on the
Remote Touch, then select “Info/Apps”.
2Select “Map Data” on the “Information”
screen.
3Select “Map Coverage” .
zThe “Map Data Coverage” screen will be
displayed.
X For vehicles sold in Canada
MAP COVERAGE
Map data coverage areas can be dis-
played.CERTIFICATION
z This device complies with Industry
Canada licence -exempt RSS
standard(s). Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of this device.
z Le présent appareil est conforme aux
CNR d’Industrie Canada applicables
aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux
conditions suivantes: (1) l’appareil ne doit
pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en
compromettre le fonctionnement.
z This device complies with RSS-310 of
Industry Canada. Operation is subject to
the condition that th is device does not
cause harmful interference.
z Cet appareil est conforme au CNR-310
d’Industrie Canada. Son exploitation est
autorisée sous réserve que l’appareil ne
cause pas de brouillage préjudiciable.

326
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
2. XM FUNCTION-OVERVIEW
1. XM SERVICES
zWith an active XM subscription, the follow-
ing features are available:
•XM Sports
*1 (See page 329.)
•XM Stocks
*1 (See page 332.)
• XM Fuel Prices
*2 (See page 335.)
• XM NavWeather™
*2 (See page 339.)
•XM NavTraffic®*2 (See page 343.)
*1: Available at no extra charge with an ac- tive XM Satellite Radio subscription.
*
2: Available via separate XM subscrip- tion(s).
z XM NavTraffic®, XM NavWeather™ and
XM TravelLink require separate XM sub-
scription(s). XM Sports
*, XM Stocks* and
XM Fuel Prices are available with an XM
TravelLink subscription. After a 90-day
trial, you must contact XM and set up the
appropriate XM subscription(s) to con-
tinue receiving these services.
*: XM Sports and XM Stocks are included with an XM Satellite Radio subscription.
z The XM NavTraffic® service is available in
the contiguous 48 U.S. states and Canada.
z The XM NavWeather™, XM Sports, XM
Stocks and XM Fuel Prices services are
available in the contig uous 48 U.S. states.
z To receive XM NavTraffic
®, XM
NavWeather™, XM Sports, XM Stocks
and XM Fuel Prices services, the XM ser-
vice must be activated. To activate the ser-
vice, call the XM Listener Care Center at 1-
866-635-2349 (U.S.A.) or 1-877-438-
9677 (Canada).
z Customers should have their radio ID
ready. The radio ID can be found by select-
ing “CH 000” on the radio. For details, see
“DISPLAYING THE RADIO ID” on page
227.
XM services are subscription-based
XM Satellite Radio services to provide
convenient features to subscribers.
SUBSCRIPTION(S)
AVAILABILITY OF SERVICE(S)
ACTIVATION OF SERVICE(S)
INFORMATION
●
For further details about the service, con-
tact your Lexus dealer.
●XM Satellite Radio is responsible for all
fees and services, which are subject to
change.

327
2. XM FUNCTION-OVERVIEW
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
8
INFORMATION
■RADIO AND ENTERTAINMENT
XM offers more than 170 satellite radio
channels of commercial-free music and
premier sports, news, talk, and
entertainment. XM is broadcast via
satellites to millions of listeners across the
continental United States. XM
subscribers listen to XM on satellite radio
receivers for the car, home, and portable
use. More information about XM is
available online at www.siriusxm.com
(U.S.A.) or www.xmradio.ca (Canada).
■ INFOTAINMENT AND DATA SER-
VICES
XM offers a variety of advanced Infotain-
ment and data services. For XM Services requiring a subscription
(such as XM Radio, and some Infotain-
ment & data services), the following para-
graph shall be included.
Required XM Radio and some
Infotainment & data services monthly
subscriptions sold separately after trial
period. Subscription fee is consumer only.
All fees and programming subject to
change. Subscriptions are subject to the
Customer Agreement available at
www.siriusxm.com (U.S.A.) or
www.xmradio.ca
(Canada). XM service
only available in the 48 contiguous
United States and 10 Canadian
provinces. © 2011 Sirius XM Radio Inc.
Sirius, XM and all related marks and logos
are trademarks of Sirius XM Radio Inc.
All other marks, channel names and logos
are the property of their respective
owners.
For more information, program sched-
ules, and to subscribe or extend subscrip-
tion after complimentary trial period;
more information is available at:
X U.S.A. Customers
Visit www.siriusxm.com
or call 1-866-
635-2349
X Canadian Customers
Visit www.xmradio.ca
or call 1-877-
438-9677
XM RADIO SERVICES —
DESCRIPTIONSXM RADIO SERVICES —
SUBSCRIPTION
INSTRUCTIONS
