1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
5. MAP SCREEN OPERATION
zThe current position mark ( ) appears in
the center or bottom center of the map
screen.
z A street name will appe ar on the bottom of
the screen, depending on the scale of the
map ( ).
z The screen can be returned to this map
screen that shows the current position at
any time, from any screen by pressing the
“MAP/VOICE” button on the Remote
To u c h . z
Use the scroll feature to move the desired
point to the center of the screen for looking
at a point on the map that is different from
the current position.
z To scroll over the map, place the pointer in
a position near the desired destination and
then press and hold the Remote Touch
knob. The map will cont inue scrolling in that
direction until the knob is released.
z A street name, city name, etc. of the
selected point will be shown, depending on
the scale of the map ( ). Distance from
the current position to will also be
shown ( ).
CURRENT POSITION DISPLAY
When starting the navigation system,
the current position is displayed first.
This screen displays the current position
and a map of the surrounding area.
zTo correct the current position manually,
see page 130.
INFORMATION
●
While driving, the current position mark
is fixed on the screen and the map moves.
●The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
INFORMATION
●
After 12-volt battery disconnection, or on
a new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
SCREEN SCROLL
OPERATION
When any point on the map is selected,
that point moves to the center of the
screen and is shown by the cursor mark
().

41
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select “Enter ”.
zThe screen changes and displays the map
location of the select ed destination and the
route preference. (See “STARTING
ROUTE GUIDANCE” on page 87.)
1Select “Mark” .
2This screen is displayed.
zThe registered point is shown by on the
map.
zAfter the screen is scrolled, the map
remains centered at the selected location
until another function is activated. The
current position mark will continue to
move along your actual route and may
move off the screen. When the “MAP/
VOICE” button on the Remote Touch is
pressed, the current position mark
returns to the center of the screen and
the map moves as the vehicle proceeds
along the designated route.
z When the scroll feature is used, the cur-
rent position mark may disappear from
the screen. Press the “MAP/VOICE”
button on the Remote Touch to display
the current position on the map screen.
TO SET THE CURSOR
POSITION AS A DESTINATION
A specific point on the map can be set as
a destination using the scroll function.
TO REGISTER THE CURSOR
POSITION AS AN ADDRESS
BOOK ENTRY
Address book entry registration enables
easy access to a specific point.
z To change the icon or name, etc., see
“EDITING ADDRESS BOOK
ENTRIES” on page 115.
INFORMATION
●
Up to 100 address book entries can be
registered. If there is an attempt to regis-
ter more than 100 address book entries,
an error message will appear.

42
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zTo display information about an icon, set
the cursor on it.
■ POI INFORMATION
1Select “Info”.
2Information such as the name, address,
position and phone number are dis-
played.
TO SEE INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is set on a POI icon, the
name and “Info” are displayed at the top
of the screen.z If “Enter ” is selected, the cursor posi-
tion will be set as a destination.
z If a destination has already been set, “Go
Directly” and “Add to Route” will be dis-
played.
“Go Directly” : Select to delete the exist-
ing destination(s) and set a new one.
“Add to Route” : Select to add a destina-
tion.
z To register this POI as an address book
entry, select “Mark”. (See “REGISTER-
ING ADDRESS BOOK ENTRIES” on
page 115.)
z If is selected, the registered
phone number can be called.
z The desired POI can be displayed on the
map screen. (See “DISPLAY POI
ICONS” on page 104.)

43
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
■ADDRESS BOOK ENTRY INFOR-
MATION
1Select “Info”.
2Information such as the name, address,
position and phone number are dis-
played.
When the cursor is set on an address
book entry icon, the name and “Info” are
displayed at the top of the screen.
z If “Enter ” is selected, the cursor posi-
tion will be set as a destination.
z If a destination has already been set, “Go
Directly” and “Add to Route” will be dis-
played.
“Go Directly” : Select to delete the exist-
ing destination(s) and set a new one.
“Add to Route” : Select to add a destina-
tion.
z To edit an address book entry, select
“Edit” . (See “EDITING ADDRESS
BOOK ENTRIES” on page 115.)
z To delete an address book entry, select
“Delete” .
z If is selected, the registered
phone number can be called.

44
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
■DESTINATION INFORMATION
1Select “Info”.
2Information such as the name, address,
position and phone number are dis-
played.
zTo delete a destination, select “Delete”.
■XM NavTraffic® TEXT INFORMA-
TION
1Select “Info”.
2Traffic information will be displayed on
the screen.
zTo display detailed traffic event information,
select “Detail”.
When the cursor is set on a destination
icon, the name and “Info” are displayed
on the top of the screen.
z If is selected, the registered
phone number can be called.
When the XM NavTraffic® icon on the
map screen is selected, the XM
NavTraffic
® information bar will appear
on the upper part of the screen.

45
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select “Map Mode” .
2Select the screen buttons to select the
desired configuration.
zDepending on the conditions, certain
screen configuration buttons cannot be
selected.
SWITCHING THE SCREENS
Any of the screen configurations can be
selected.
Screen buttonFunction
“Map Only”Select to display the single
map screen. (See page
46.)
“Turn List”Select to display the turn
list screen. (See page 92.)
“Intersection”
Select to display the inter-
section guidance screen
or the guidance screen on
the freeway. (See page
91.)
“A u d i o ”Select to disp lay the audio
screen. (See page 46.)
“Fuel Con- sumption”Select to display the fuel
consumption screen. (See
page 46.)
“Other
Information”
Select to display the fol-
lowing 4 screen configu-
rations: “Dual map”,
“Compass”, “Turn-by-
Turn Arrow” and “Freeway
Exit List”.
“Dual map”Select to display the dual
map screen. (See page
46.)
“Compass”
Select to display the com-
pass mode screen. (See
page 47.)
“Turn-by-
Tu r n A r r o w ”Select to display the turn-
by-turn arrow screen. (See
page 92.)
“Freeway Exit List”Select to disp lay the free-
way exit list screen. (See
page 90.)
Screen buttonFunction

46
1. BASIC INFORMATION BEFORE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
■MAP ONLY
zThe screen shows the single map.
■ AUDIO
zInformation on the current radio station or
track is displayed.
■ FUEL CONSUMPTION
zSelecting “” or “” allows selection of the
desired mode (“Energy Monitor”*, “Trip
Information” or “Past Record”).
*: Hybrid vehicle
■ DUAL MAP
zThis screen shows the dual map. The map
on the left is the main map.
SCREEN CONFIGURATIONS
This is a regular map screen.
z While on a different screen, selecting
“Map Only” will display the single map
screen.
The audio screen and the map screen
are displayed.
z If a different screen is displayed, select
“A u d i o ” on the “Map Mode” screen.
z For audio system operation, refer to
“AUDIO/VIDEO SYSTEM OPERA-
TION”. (See page 208.)
The fuel consumption screen and the
map screen are displayed.
zIf a different screen is displayed, select
“Fuel Consumption” on the “Map
Mode” screen.
z For an explanation on each fuel con-
sumption mode, refer to “FUEL CON-
SUMPTION”. For details, refer to
“Owner ’s Manual”.
The map screen can be split into two.

47
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10

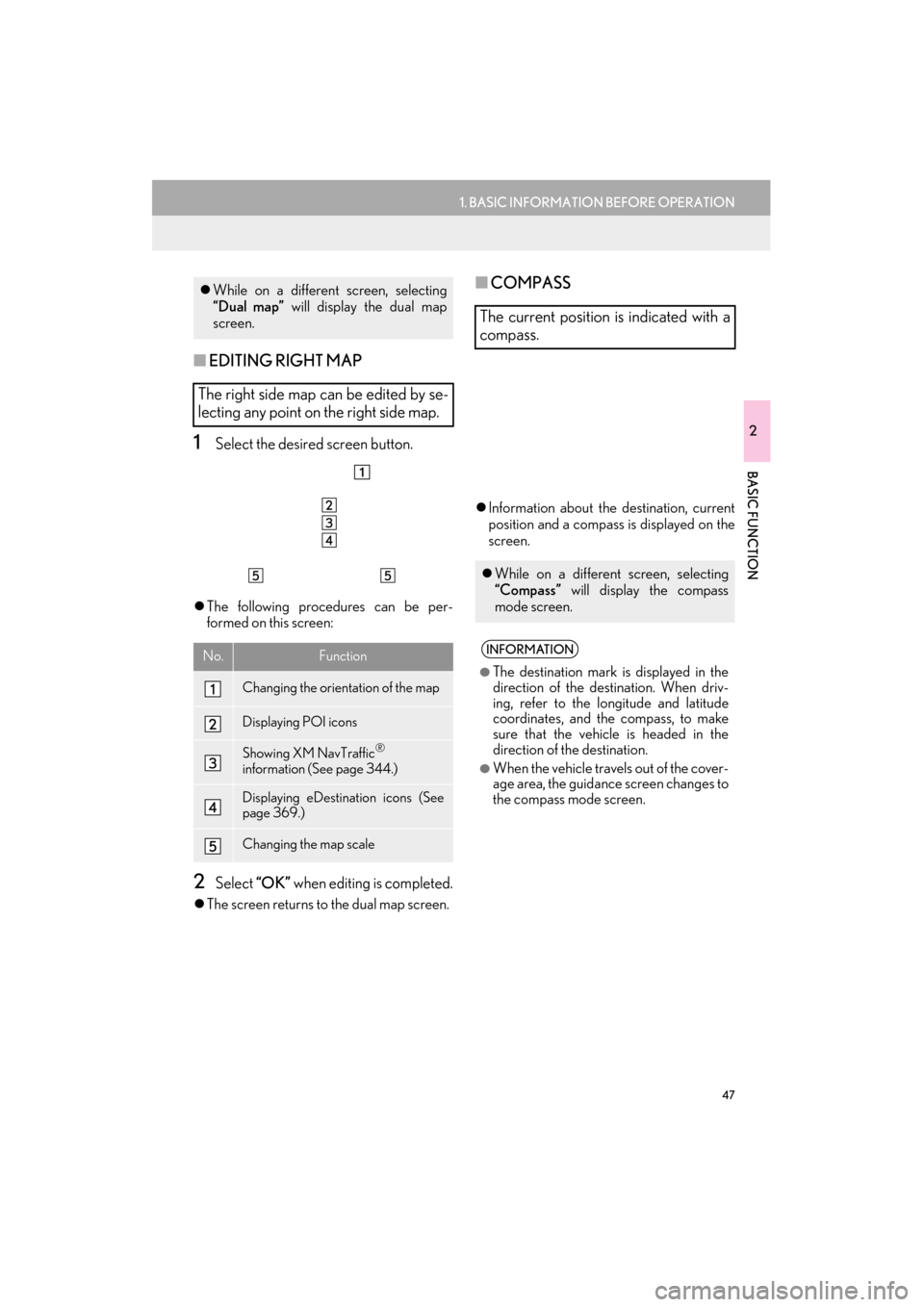

■EDITING RIGHT MAP
1Select the desired screen button.
zThe following procedures can be per-
formed on this screen:
2Select “OK” when editing is completed.
zThe screen returns to the dual map screen.
■ COMPASS
zInformation about the destination, current
position and a compass is displayed on the
screen.
zWhile on a different screen, selecting
“Dual map” will display the dual map
screen.
The right side map can be edited by se-
lecting any point on the right side map.
No.Function
Changing the orient ation of the map
Displaying POI icons
Showing XM NavTraffic®
information (See page 344.)
Displaying eDestination icons (See
page 369.)
Changing the map scale
The current position is indicated with a
compass.
z While on a different screen, selecting
“Compass” will display the compass
mode screen.
INFORMATION
●
The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
●When the vehicle travels out of the cover-
age area, the guidance screen changes to
the compass mode screen.
