1. PHONE OPERATION
1. QUICK REFERENCE
Bluetooth® phones can be operated via the navigation system’s screen. To displa\
y the
hands-free operation screen, press the “MENU” button on the Remote Touch and
then select “Phone” , or the switch on the steering wheel.

145
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
No.NameFunction
The condition
of Bluetooth®
connection
No connection Good
An antenna for the Bluetooth® connection is built in the instrument
panel. The conditio n of the Bluetooth® connection may deteriorate
and the system may not function when a Bluetooth® phone is used in
the following conditions and/or places:
• The cellular phone is obstructed by certain objects (such as when
it is behind the seat or in the glove box and console box).
• The cellular phone touches or is covered with metal materials.
Leave the Bluetooth
® phone in a place where the condition of the
Bluetooth® connection is good.
When the cellular phone is not connected, “No Connect” is dis-
played.
The amount of
battery charge
leftEmpty Full
This is not displayed when the Bluetooth® is not connected.
The amount displayed does not al ways correspond with the amount
displayed on the cellular phone. Th e amount of battery charge left
may not be displayed depending on the type of phone you have. This
system does not have a charging function.
The receiving
area“Rm” is displayed when receiving in a roaming area.
The receiving area may not be displayed depending on the type of
phone you have.
The level of
receptionPoor Excellent
The level of reception does not alwa ys correspond with the level dis-
played on the cellular phone. The level of reception may not be dis-
played depending on the phone you have.
When the cellular phone is out of th e service area or in a place inac-
cessible by radio waves, “No Service” is displayed.

146
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10

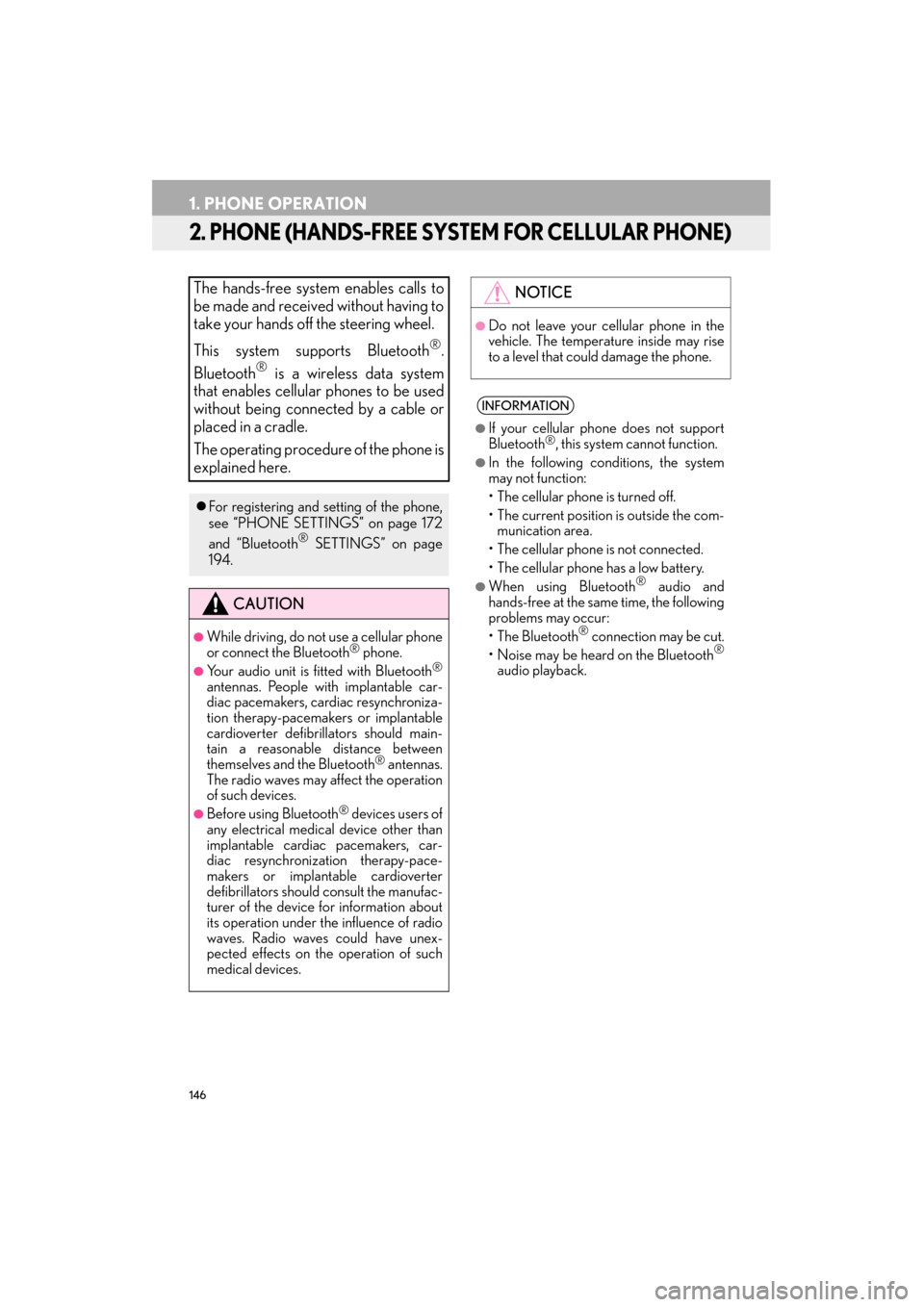

2. PHONE (HANDS-FREE SYSTEM FOR CELLULAR PHONE)
The hands-free system enables calls to
be made and received without having to
take your hands off the steering wheel.
This system supports Bluetooth
®.
Bluetooth
® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone is
explained here.
z For registering and setting of the phone,
see “PHONE SETTINGS” on page 172
and “Bluetooth
® SETTINGS” on page
194.
CAUTION
●While driving, do not use a cellular phone
or connect the Bluetooth® phone.
●Your audio unit is fitted with Bluetooth®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Bluetooth
® antennas.
The radio waves may affect the operation
of such devices.
●Before using Bluetooth® devices users of
any electrical medical device other than
implantable cardiac pacemakers, car-
diac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves. Radio waves could have unex-
pected effects on the operation of such
medical devices.
NOTICE
●Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
●
If your cellular phone does not support
Bluetooth®, this system cannot function.
●In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the com- munication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
●When using Bluetooth® audio and
hands-free at the same time, the following
problems may occur:
•The Bluetooth
® connection may be cut.
• Noise may be heard on the Bluetooth®
audio playback.

147
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
*: This profile is necessary when usingApps. (See “APPS” on page 358.)
Bluetooth is a regi stered trademark of
Bluetooth SIG, Inc.
z The microphone can be used when talking
on the phone.
INFORMATION
●
This system supports the following ser-
vices:
• Bluetooth
® Specification
Ver.1.1 or higher
(Recommended: Ver.2.1 + EDR or
higher)
• Profiles HFP (Hands Free Profile)
Ve r.1 . 0 o r h i g h e r
(Recommended: Ver.1.5 or higher)
OPP (Object Push Profile)
Ver.1.1 or higher
PBAP (Phone Book Access Profile)
Ve r.1 . 0 o r h i g h e r
MAP (Message Access Profile)
Ve r.1 . 0 o r h i g h e r
SPP (Serial Port Profile)
Ver.1.1 or higher*
●If your cellular phone does not support
HFP, registering the Bluetooth® phone
or using OPP, PBAP, MAP or SPP pro-
files individually will not be possible.
●If the connected Bluetooth® phone ver-
sion is older than recommended or
incompatible, this function may not be
used.
●Refer to http://www.lexus.com/
MobileLink to find approved Bluetooth®
phones for this system.
USING THE PHONE SWITCH
By pressing the phone switch, a call can
be received or ended without taking
your hands off the steering wheel.

148
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
Volume control switch
z Press the “+” side to increase the volume.
z Press the “-” side to decrease the volume.
Back switch
z Press the back switch to return to the previ-
ous screen.
INFORMATION
●
The other party’s voice will be heard from
the front speakers. The audio/video sys-
tem will be muted during phone calls or
when hands-free voice commands are
used.
●Talk alternately with the other party on
the phone. If both parties speak at the
same time, the other party may not hear
what has been said. (This is not a malfunc-
tion.)
●Keep call volume down. Otherwise, the
other party’s voice may be audible out-
side the vehicle and voice echo may
increase. When ta lking on the phone,
speak clearly towards the microphone.
●The other party may not hear you clearly
when:
• Driving on an unpaved road. (Making
excessive traffic noise.)
• Driving at high speeds.
• The roof or windows are open.
• The air conditioning vents are pointed towards the microphone.
• The sound of the air-conditioning fan is loud.
•There is a negative effect on sound quality due to the phone and/or network
being used.
USING THE STEERING
SWITCHES

149
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zThe following data is stored for every regis-
tered phone. When an other phone is con-
nected, the following registered data
cannot be read:
•Phonebook data
• Call history data
• Speed dial data
•Image data
• All phone settings
• Message settings z
The following data in the system can be ini-
tialized:
• Phonebook data
•Call history data
• Speed dial data
• Image data
• All phone settings
• Message settings
ABOUT THE PHONEBOOK IN
THIS SYSTEM
INFORMATION
●
When a phone’s registration is deleted,
the above-mentioned data is also
deleted.
WHEN SELLING OR
DISPOSING OF THE VEHICLE
A lot of personal data is registered when
the hands-free system is used. When
selling or disposing of the vehicle, initial-
ize the data. (See “DELETING PER-
SONAL DATA” on page 61.)
INFORMATION
●
Once initialized, the data and settings will
be erased. Pay much attention when ini-
tializing the data.

150
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
XU.S.A. XCanada
zFCC ID : BABFT0033A
z This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
CAUTION
●FCC WARNING
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
●CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of RF
energy that it deemed to comply without
maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated with at
least 20 cm and more between the
radiator and person’s body (excluding
extremities: hands, wrists, feet and
ankles).
●Co-location: This transmitter must not be
co-located or operated in conjunction
with any other antenna or transmitter.
zIC: 2024B-FT0033A
z This device complies with Industry
Canada licence-exempt RSS
standard(s). Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
z Le présent appareil est conforme aux
CNR d’Industrie Canada applicables
aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2)
l’utilisateur de l’ap pareil doit accepter
tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en
compromettre le fonctionnement.

151
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
CAUTION
●CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with IC
radiation exposure limits set forth for
uncontrolled equipment and meets RSS-
102 of the IC radio frequency (RF)
Exposure rules. This equipment has very
low levels of RF energy that it deemed to
comply without maximum permissive
exposure evaluation (MPE). But it is
desirable that it should be installed and
operated with at least 20 cm and more
between the radiator and person’s body
(excluding extremities: hands, wrists, feet
and ankles).
●ATTENTION : Exposition aux radiations
des fréquences radioélectriques
Cet équipement se conforme aux limites
d’exposition aux radiations établies par
Industrie Canada pour un environnement
non contrôlé ainsi qu’aux directives
d’exposition aux fréquences
radioélectriques (RF) émises par
Industrie Canada dans la norme
CNR-102. Cet équipement émet un
niveau d’énergie RF faible à un point tel
qu’il se conforme sans devoir effectuer
d’évaluation d’exposition maximum
admissible (MPE). Lorsque l’équipement
est installé et utilisé, il est toutefois
souhaitable de laisser au moins 20 cm
entre l’antenne et le corps (à l’exception
des extrémités : mains, poignets, pieds et
chevilles).
●This Category II radiocommunication
device complies with Industry Canada
Standard RSS-310.
●Ce dispositif de radiocommunication de
catégorie II respecte la norme CNR-310
d’Industrie Canada.
