2014 Lexus ES300h Navigation Manual

168
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select or press the switch
on the steering wheel to start talking
with the other party.
INCOMING CALL WAITING
When a call is interrupted by a third par-
ty while talking, this screen is displayed.
zSelect or press the switch
on the steering wheel to refuse the call.
zEach time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who
is on hold will be switched.
INFORMATION
●
If your cellular phone does not support
HFP Ver. 1.5, this function cannot be used.
●The ring tone that has been set in the
“Phone Sound Settings” screen sounds
when there is an incoming call. Depend-
ing on the type of Bluetooth
® phone,
both the navigation system and
Bluetooth
® phone may sound simulta-
neously when there is an incoming call.
(See “RING TONE SETTING” on page
173.)

169
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
7. Bluetooth® PHONE MESSAGE FUNCTION
1Press the “MENU” button on the
Remote Touch. (See “Remote Touch”
on page 10.)
2Select “Phone” on the “Menu” screen.
zThe “Phone” screen can be displayed by
pressing
on the steering wheel.
3Select “Messages” .
zDepending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
z When “Message Transfer” is set to “Off ”, a
confirmation screen will be displayed.
Select “Yes”. (See page 187.)
4Select the screen button corresponding
to the desired message.
zMessages are displayed in the appropriate
connected Bluetooth® phone’s registered
mail address folder. Select the tab of the
desired folder to be displayed.
5Messages can be checked.
z Selecting “Previous” or “Next” displays the
previous or next message.
z Only received messages on the connected
Bluetooth
® phone can be displayed.
z The text of the message is not displayed
while driving.
Received messages can be forwarded
from the connected Bluetooth
® phone,
enabling checking and replying using
the navigation system (Quick reply).
CHECKING MESSAGES

170
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
6Select “Play” to start reading out of the
message. Select “Stop” to stop the func-
tion.
z Select “-” or “+”, turn the “PWR·VOL”
knob, or use the volume switch on the
steering wheel to adjust the message read
out volume.
z The message read out function is available
even while driving.1Select “Reply” .
2Select the screen button corresponding
to the desired message.
3Select “Send” .
zWhile the message is being sent, a sending
message screen is displayed.
4This screen will be displayed if message
delivery fails.
zSelect “Retry” to attempt to send the mes-
sage again or select “Cancel” to cancel.
zWhen the received message is an e-mail
and “Update Message Read Status on
Phone” is set to “On”, “Mark as Unread”
or “Mark as Read” can be selected.
Select “Mark as Unread” to mark mails
that have been read on the Bluetooth
®
phone as unread. Conversely, select
“Mark as Read” to mark mails that have
not been read on the Bluetooth
® phone
as read. (See “MESSAGE SETTINGS”
on page 187.)
z For SMS/MMS, selecting or
pressing the switch on the steering
wheel calls the sender. (See page 164.)
z Select “Reply” to reply to the message.
(See page 170.)
REPLYING (QUICK REPLY)

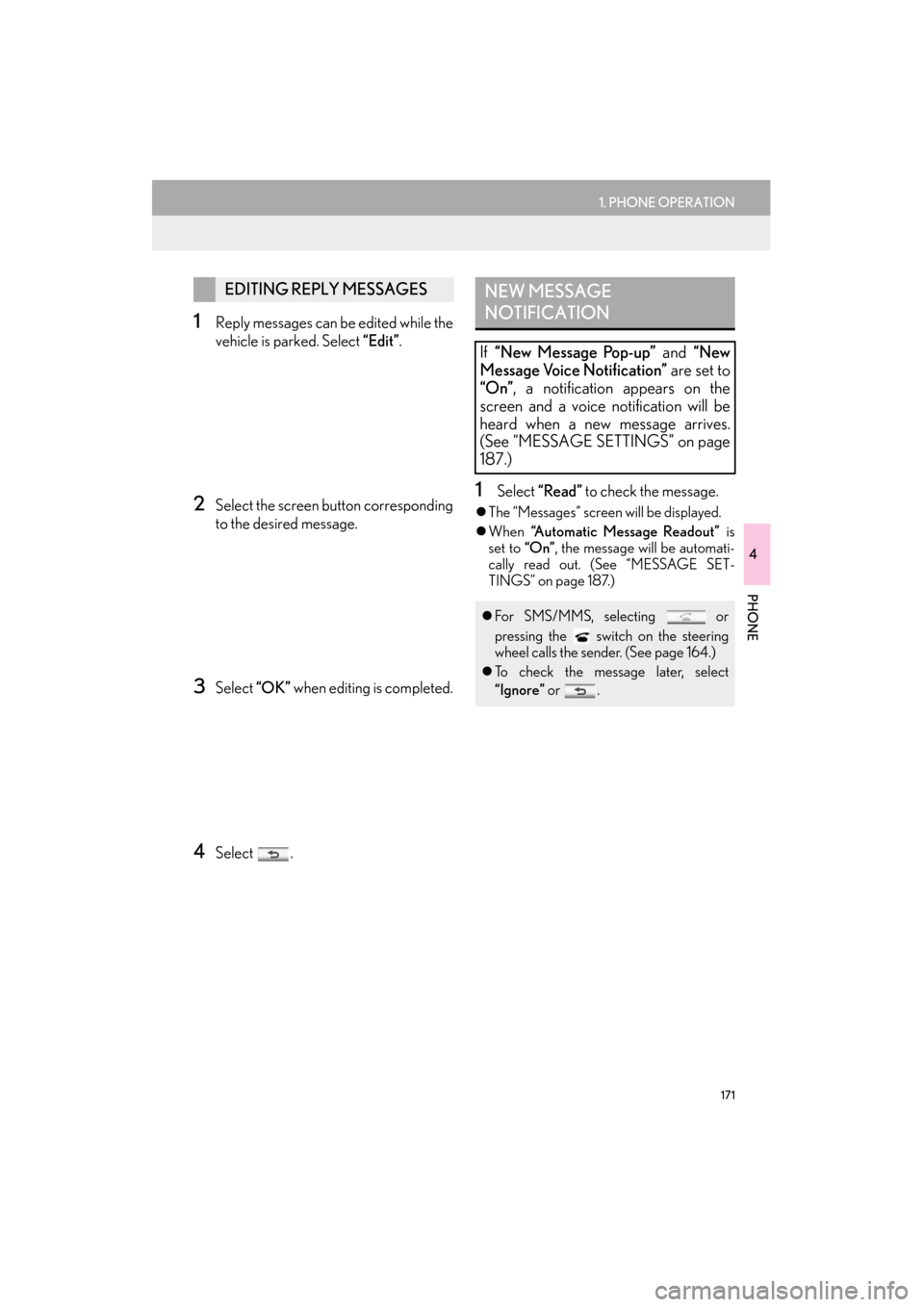

171
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Reply messages can be edited while the
vehicle is parked. Select “Edit”.
2Select the screen bu tton corresponding
to the desired message.
3Select “OK” when editing is completed.
4Select .
1Select “Read” to check the message.
zThe “Messages” screen will be displayed.
z When “Automatic Message Readout” is
set to “On”, the message will be automati-
cally read out. (See “MESSAGE SET-
TINGS” on page 187.)
EDITING REPLY MESSAGESNEW MESSAGE
NOTIFICATION
If “New Message Pop-up” and “New
Message Voice Notification” are set to
“On” , a notification appears on the
screen and a voice notification will be
heard when a new message arrives.
(See “MESSAGE SETTINGS” on page
187.)
z For SMS/MMS, selecting or
pressing the switch on the steering
wheel calls the sender. (See page 164.)
z To check the message later, select
“Ignore” or .

172
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
2. SETUP
1. PHONE SETTINGS
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “Phone” .
4Perform each setting according to the
procedures outlined on the following
pages.
1Select “Phone Sound Settings” .
2Perform each setting according to the
procedures outlined on the following
pages.
3When all settings are completed, select
“Save”.
The phonebook can be edited. Volume,
display and message settings can also
be changed.
PHONE SOUND SETTINGS
The call and ring tone volume can be ad-
justed. A ring tone can be selected.

173
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
1Select “Call Volume” on the “Phone
Sound Settings” screen.
2Select “-” or “+” to adjust the call vol-
ume.
3Select “OK”.
1Select “Ring Tone Volume” on the
“Phone Sound Settings” screen.
2Select “-” or “+” to adjust the ring tone
volume.
3Select “OK”.
1Select “Ring Tone” on the “Phone
Sound Settings” screen.
2Select the screen button corresponding
to the desired ring tone.
z Ring tones can be heard by selecting the
screen buttons.
3Select “OK”.
1Select “Default” on the “Phone Sound
Settings” screen.
2Select “Yes”.
INFORMATION
●
The system will automatically increase
the volume when the speed exceeds 50
mph (80 km/h).
CALL VOLUME SETTING
RING TONE VOLUME
SETTING
RING TONE SETTING
INITIALIZING THE SETTINGS
The settings can be initialized.

174
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Press the “MENU” button on the
Remote Touch. (See “Remote Touch”
on page 10.)
2Select “Setup” on the “Menu” screen.
3Select “Phone” on the “Setup” screen.
4Select “Phonebook” .
5Perform each setting according to the
procedures outlined on the following
pages.
1Press the “MENU” button on the
Remote Touch, then select “Setup”.
2Select “Phone” on the “Setup” screen.
3Select “Phonebook” on the “Phone Set-
tings” screen.
4Select “Manage Contacts” .
5Perform each setting according to the
procedures outlined on the following
pages.
PHONEBOOK
The call history can be deleted and
phonebook and speed dial settings can
be changed.
INFORMATION
●
Phonebook data is managed indepen-
dently for every registered phone. When
one phone is connected, another phone’s
registered data cannot be read.
SETTING THE PHONEBOOK
The phonebook can be transferred from
a Bluetooth
® phone to the system. The
phonebook also can be added, edited
and deleted.

175
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
■THE “Contacts” SCREEN CAN
ALSO BE DISPLAYED
1Press the “MENU” button on the
Remote Touch, then select “Phone”.
zThe “Phone” screen can be displayed by
pressing
on the steering wheel.
2Select “Contacts” on the “Phone”
screen.
3Select “Options” .
4Select “Manage Contacts” .
■TRANSFERRING A PHONE NUM-
BER
X For PBAP compatible Bluetooth®
phones
1Select “Transfer Contacts” .
2Select “Update Contacts” .
The phone numbers in a Bluetooth®
phone can be transferred to the system.
The system can manage up to 5 phone-
books. Up to 1000 contacts (maximum
of 3 numbers per contact) can be regis-
tered in each phonebook.
Operation methods differ between
PBAP compatible and PBAP incompat-
ible but OPP compatible Bluetooth
®
phones.
If your cellular phone is neither PBAP
nor OPP compatible, the phonebook
cannot be transferred.
