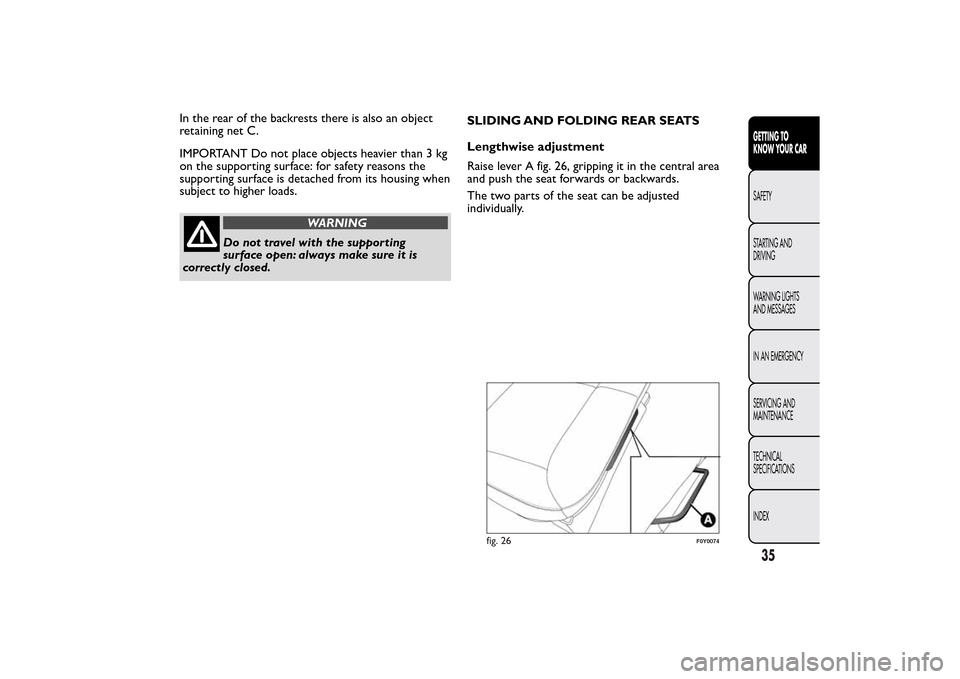

In the rear of the backrests there is also an object
retaining net C.
IMPORTANT Do not place objects heavier than 3 kg
on the supporting surface: for safety reasons the
supporting surface is detached from its housing when
subject to higher loads.
WARNING
Do not travel with the supporting
surface open: always make sure it is
correctly closed.SLIDING AND FOLDING REAR SEATS
Lengthwise adjustment
Raise lever A fig. 26, gripping it in the central area
and push the seat forwards or backwards.
The two parts of the seat can be adjusted
individually.
fig. 26
F0Y0074
35GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

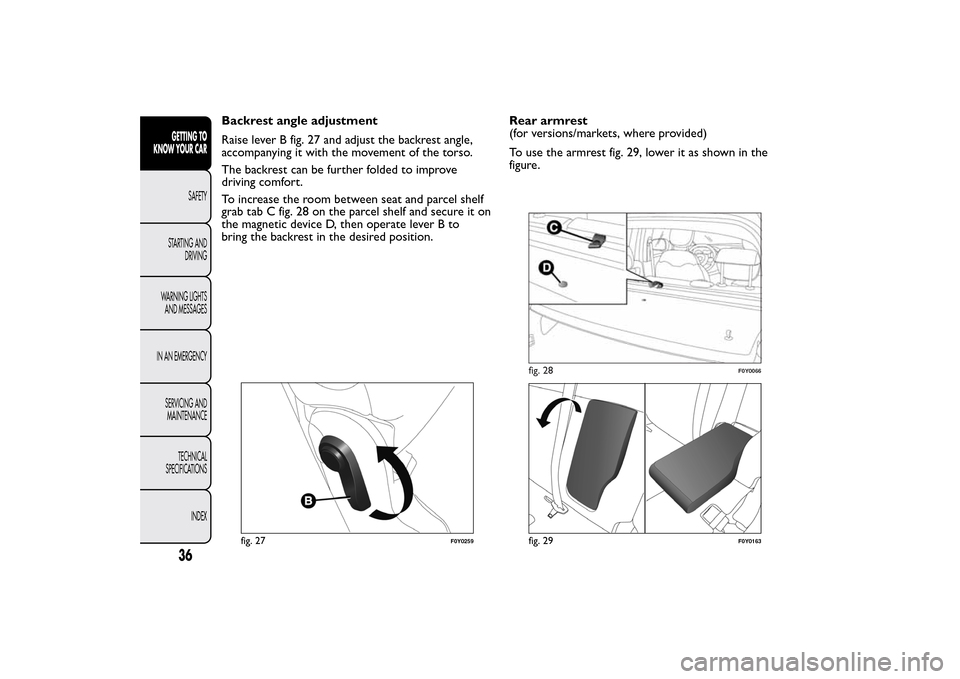

Backrest angle adjustment
Raise lever B fig. 27 and adjust the backrest angle,
accompanying it with the movement of the torso.
The backrest can be further folded to improve
driving comfort.
To increase the room between seat and parcel shelf
grab tab C fig. 28 on the parcel shelf and secure it on
the magnetic device D, then operate lever B to
bring the backrest in the desired position.Rear armrest
(for versions/markets, where provided)
To use the armrest fig. 29, lower it as shown in the
figure.
fig. 27
F0Y0259
fig. 28
F0Y0066
fig. 29
F0Y0163
36GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

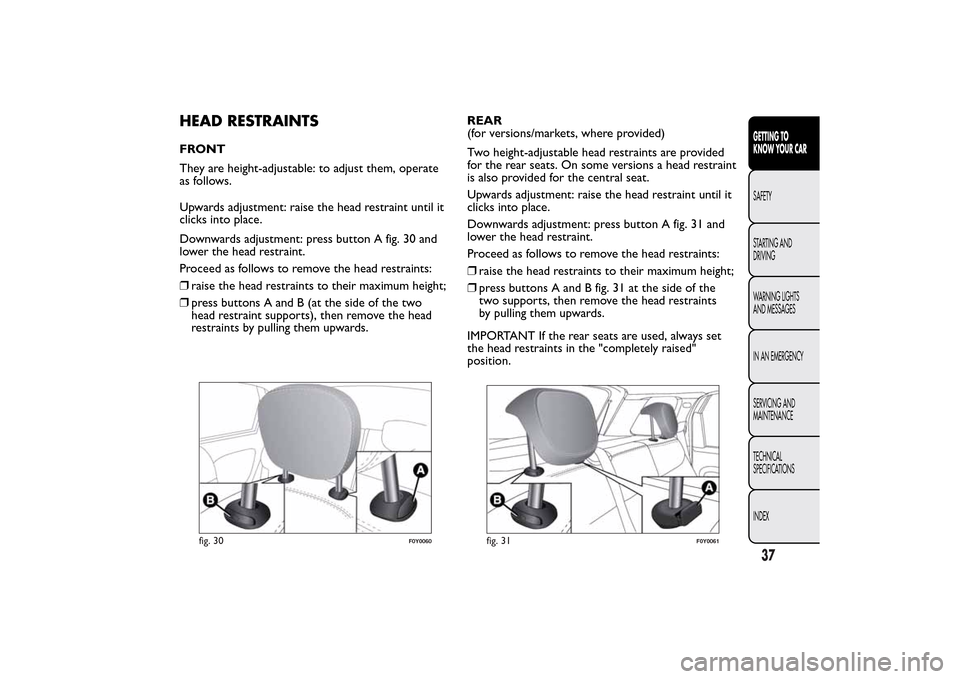

HEAD RESTRAINTSFRONT
They are height-adjustable: to adjust them, operate
as follows.
Upwards adjustment: raise the head restraint until it
clicks into place.
Downwards adjustment: press button A fig. 30 and
lower the head restraint.
Proceed as follows to remove the head restraints:
❒raise the head restraints to their maximum height;
❒press buttons A and B (at the side of the two
head restraint supports), then remove the head
restraints by pulling them upwards.REAR
(for versions/markets, where provided)
Two height-adjustable head restraints are provided
for the rear seats. On some versions a head restraint
is also provided for the central seat.
Upwards adjustment: raise the head restraint until it
clicks into place.
Downwards adjustment: press button A fig. 31 and
lower the head restraint.
Proceed as follows to remove the head restraints:
❒raise the head restraints to their maximum height;
❒press buttons A and B fig. 31 at the side of the
two supports, then remove the head restraints
by pulling them upwards.
IMPORTANT If the rear seats are used, always set
the head restraints in the "completely raised"
position.
fig. 30
F0Y0060
fig. 31
F0Y0061
37GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

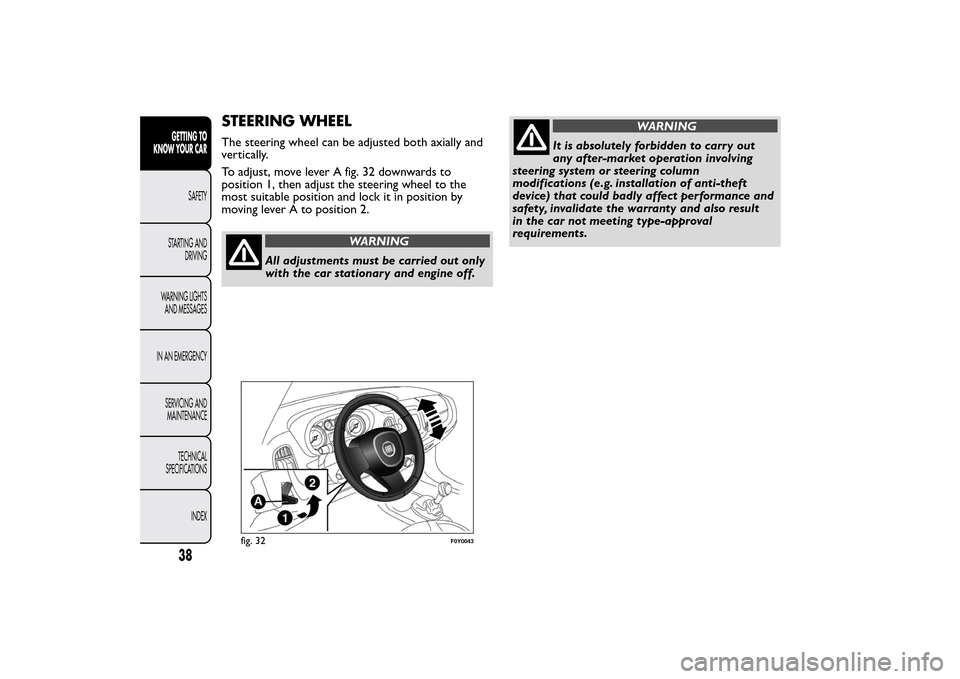

STEERING WHEELThe steering wheel can be adjusted both axially and
vertically.
To adjust, move lever A fig. 32 downwards to
position 1, then adjust the steering wheel to the
most suitable position and lock it in position by
moving lever A to position 2.
WARNING
All adjustments must be carried out only
with the car stationary and engine off.
WARNING
It is absolutely forbidden to carr y out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could badly affect performance and
safety, invalidate the warranty and also result
in the car not meeting type-approval
requirements.
fig. 32
F0Y0043
38GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

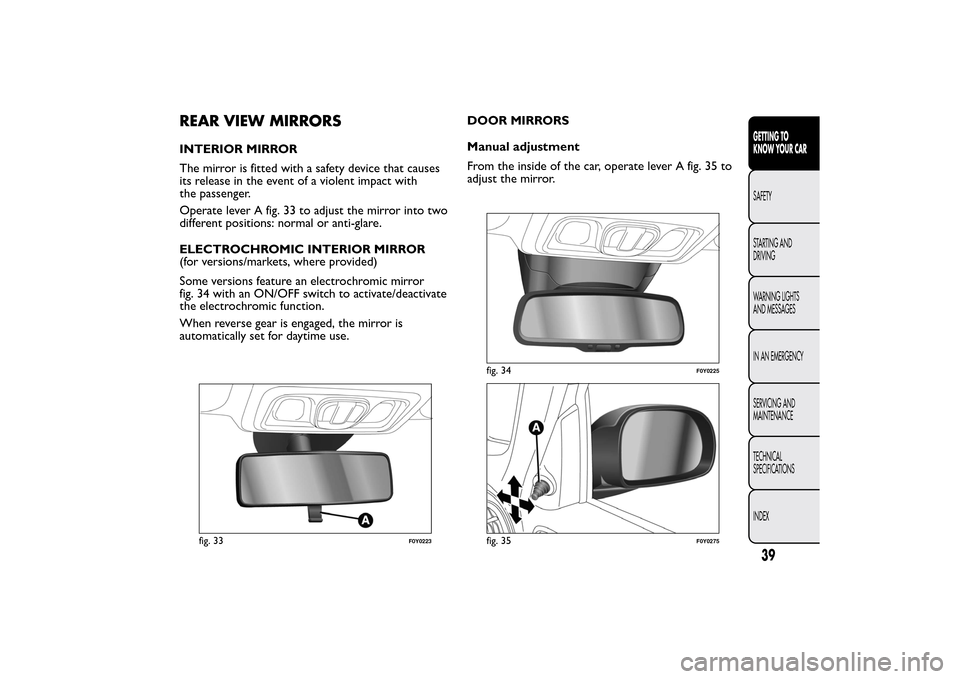

REAR VIEW MIRRORSINTERIOR MIRROR
The mirror is fitted with a safety device that causes
its release in the event of a violent impact with
the passenger.
Operate lever A fig. 33 to adjust the mirror into two
different positions: normal or anti-glare.
ELECTROCHROMIC INTERIOR MIRROR
(for versions/markets, where provided)
Some versions feature an electrochromic mirror
fig. 34 with an ON/OFF switch to activate/deactivate
the electrochromic function.
When reverse gear is engaged, the mirror is
automatically set for daytime use.DOOR MIRRORS
Manual adjustment
From the inside of the car, operate lever A fig. 35 to
adjust the mirror.
fig. 33
F0Y0223
fig. 34
F0Y0225
fig. 35
F0Y0275
39GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

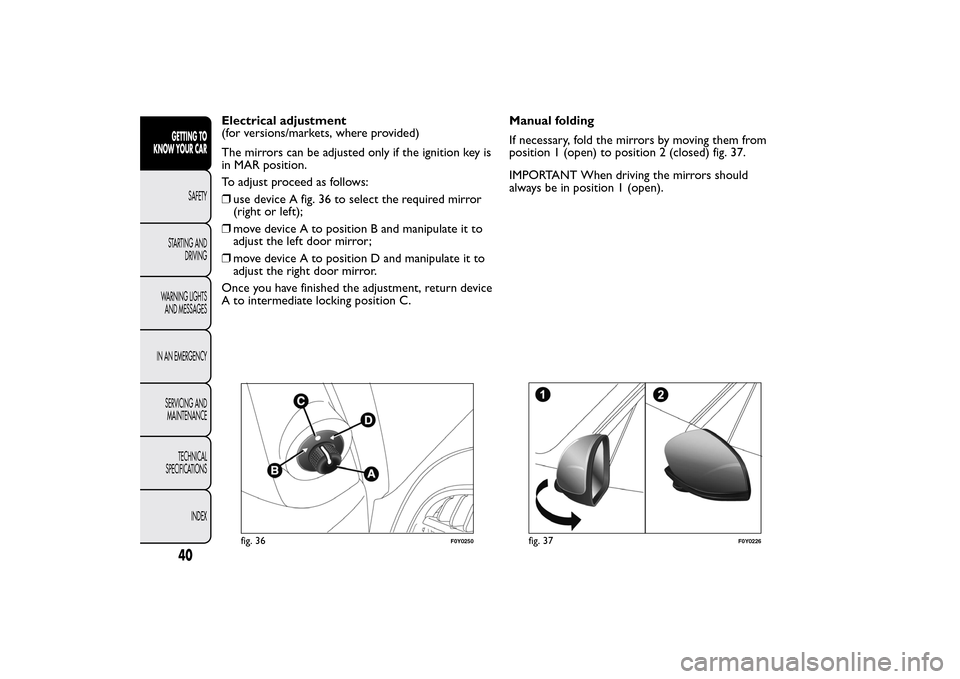

Electrical adjustment
(for versions/markets, where provided)
The mirrors can be adjusted only if the ignition key is
in MAR position.
To adjust proceed as follows:
❒use device A fig. 36 to select the required mirror
(right or left);
❒move device A to position B and manipulate it to
adjust the left door mirror;
❒move device A to position D and manipulate it to
adjust the right door mirror.
Once you have finished the adjustment, return device
A to intermediate locking position C.Manual folding
If necessary, fold the mirrors by moving them from
position 1 (open) to position 2 (closed) fig. 37.
IMPORTANT When driving the mirrors should
always be in position 1 (open).
fig. 36
F0Y0250
fig. 37
F0Y0226
40GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

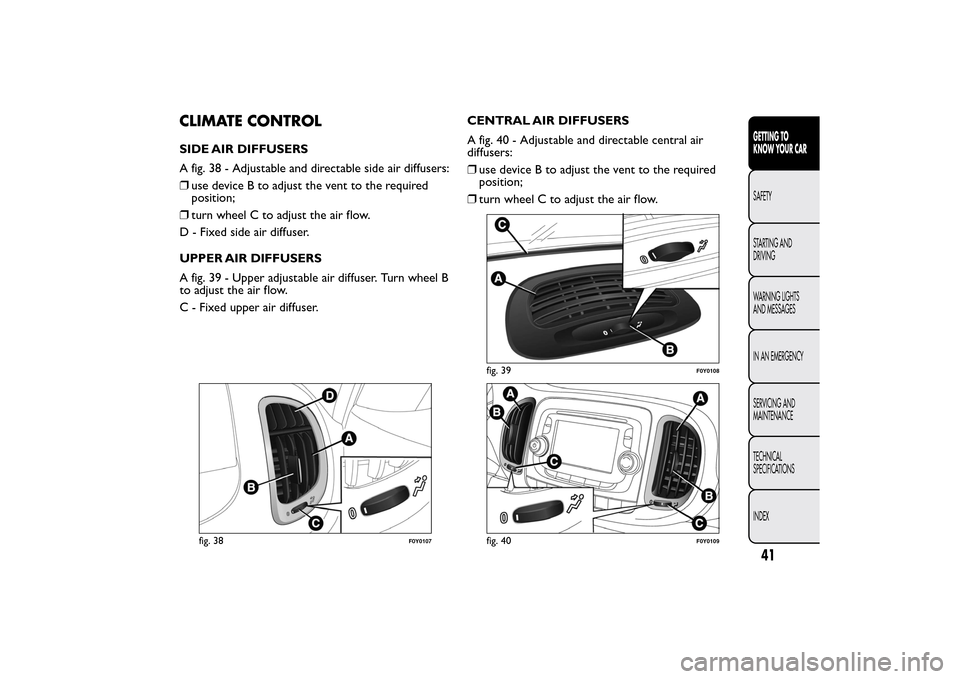

CLIMATE CONTROLSIDE AIR DIFFUSERS
A fig. 38 - Adjustable and directable side air diffusers:
❒use device B to adjust the vent to the required
position;
❒turn wheel C to adjust the air flow.
D - Fixed side air diffuser.
UPPER AIR DIFFUSERS
A fig. 39 - Upper adjustable air diffuser. Turn wheel B
to adjust the air flow.
C - Fixed upper air diffuser.CENTRAL AIR DIFFUSERS
A fig. 40 - Adjustable and directable central air
diffusers:
❒use device B to adjust the vent to the required
position;
❒turn wheel C to adjust the air flow.
fig. 38
F0Y0107
fig. 39
F0Y0108
fig. 40
F0Y0109
41GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CLIMATIC COMFORTDIFFUSERS1. Fixed upper diffuser 2. Adjustable side diffusers 3. Fixed diffusers for side windows 4. Adjustable centre air diffusers
5. Adjustable upper diffuser
fig. 41
F0Y0222
