SETUP MENU
The menu comprises a series of options which can
be selected using buttons
and
to access the
different selection and setting operations (Setup)
indicated below. Some options have a submenu.
The menu can be activated by briefly pressing the
button.
The menu comprises the following options:
❒MENU
❒LIGHTING
❒HEADLIGHT ALIGNMENT (for versions/markets,
where provided)
❒SPEED BEEP
❒HEADLIGHT SENSOR (for versions/markets
where provided)
❒CORNERING LIGHTS (for versions/markets,
where available)❒RAIN SENSOR (for versions/markets, where
provided)
❒TRIP B ACTIVATION/DATA
❒SET TIME
❒SET DATE
❒AUTOCLOSE
❒MEASUREMENT UNIT
❒LANGUAGE
❒WARNINGS VOLUME
❒BELT BUZZER
❒SERVICE
❒AIRBAG/PASSENGER BAG (for versions/markets,
where provided)
❒DAYTIME RUNNING LIGHTS (for versions/
markets, where provided)
❒CITY BRAKE C./COLLISION MITIGATION
(for versions/markets, where provided)
❒EXIT MENUfig. 10
F0Y0035
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Selecting an option from the main menu without a
submenu:
❒briefly press the
button to select the main menu
option to be set;
❒press buttonsor
(with single presses) to
select the new setting;
❒briefly press the
button to store the new setting
and to go back to the same main menu option
selected previously.
Selecting an option from the main menu with a
submenu:
❒briefly press thebutton to display the first
submenu option;
❒press buttonsor
(with single presses) to
scroll through all the submenu options;
❒briefly press the
button to select the displayed
submenu option and to open the relevant setup
menu;
❒press buttonsor
(with single presses) to
select the new setting for this submenu option;
❒briefly press button
to store the new setting and
at the same time go back to the previously
selected menu option.
MENU ITEMSMenu
This option allows you to access the Setup Menu.
Press the
or
button to select the various
Menu items.
Hold down the
button to return to the standard
screen.
Lighting
(Interior light adjustment)
(with side lights on only)
With the side lights on, this function is used to set
the brightness of the instrument panel, uconnect™
system controls (for versions/markets where
provided) and automatic climate control system
controls (for versions/markets where provided) to 8
levels.
Proceed as follows to adjust the brightness:
❒press buttonbriefly. The level set previously
flashes on the display;
12GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒press button
or
to set the required
brightness level;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without saving. NoteWith uconnect™ system (for versions/
markets where provided), some Menu items are
shown and managed on the display of the latter and
not on the instrument panel display (refer to the
uconnect™ supplement).

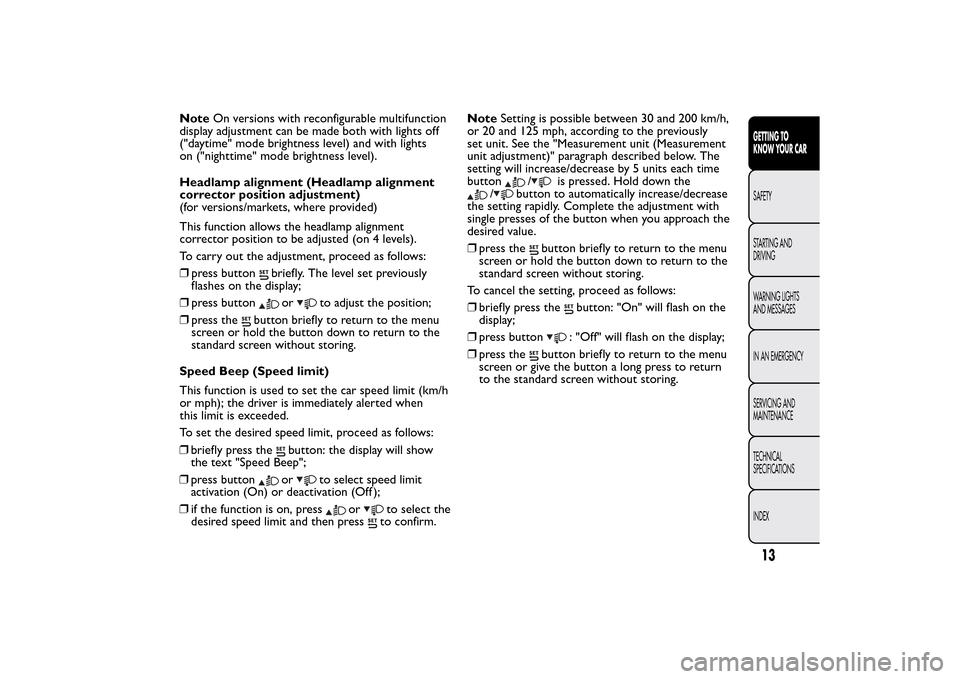

NoteOn versions with reconfigurable multifunction
display adjustment can be made both with lights off
("daytime" mode brightness level) and with lights
on ("nighttime" mode brightness level).
Headlamp alignment (Headlamp alignment
corrector position adjustment)
(for versions/markets, where provided)
This function allows the headlamp alignment
corrector position to be adjusted (on 4 levels).
To carry out the adjustment, proceed as follows:
❒press button
briefly. The level set previously
flashes on the display;
❒press buttonor
to adjust the position;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Speed Beep (Speed limit)
This function is used to set the car speed limit (km/h
or mph); the driver is immediately alerted when
this limit is exceeded.
To set the desired speed limit, proceed as follows:
❒briefly press the
button: the display will show
the text "Speed Beep";
❒press buttonor
to select speed limit
activation (On) or deactivation (Off );
❒if the function is on, press
or
to select the
desired speed limit and then pressto confirm.NoteSetting is possible between 30 and 200 km/h,
or 20 and 125 mph, according to the previously
set unit. See the "Measurement unit (Measurement
unit adjustment)" paragraph described below. The
setting will increase/decrease by 5 units each time
button
/
is pressed. Hold down the
/
button to automatically increase/decrease
the setting rapidly. Complete the adjustment with
single presses of the button when you approach the
desired value.
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
To cancel the setting, proceed as follows:
❒briefly press the
button: "On" will flash on the
display;
❒press button: "Off" will flash on the display;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
13GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

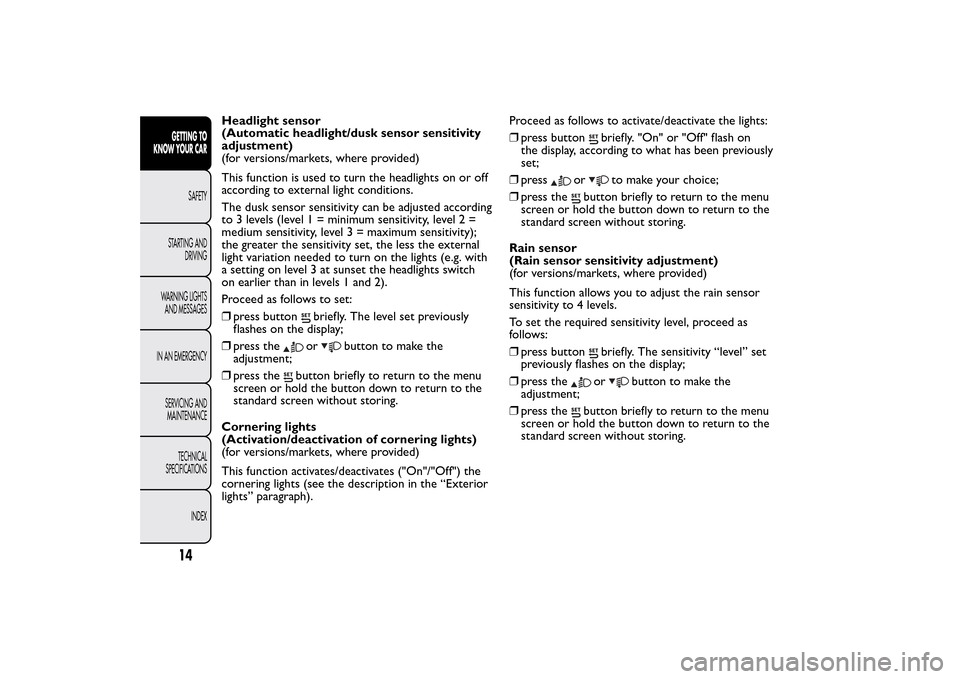

Headlight sensor
(Automatic headlight/dusk sensor sensitivity
adjustment)
(for versions/markets, where provided)
This function is used to turn the headlights on or off
according to external light conditions.
The dusk sensor sensitivity can be adjusted according
to 3 levels (level 1 = minimum sensitivity, level 2 =
medium sensitivity, level 3 = maximum sensitivity);
the greater the sensitivity set, the less the external
light variation needed to turn on the lights (e.g. with
a setting on level 3 at sunset the headlights switch
on earlier than in levels 1 and 2).
Proceed as follows to set:
❒press button
briefly. The level set previously
flashes on the display;
❒press theor
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Cornering lights
(Activation/deactivation of cornering lights)
(for versions/markets, where provided)
This function activates/deactivates ("On"/"Off") the
cornering lights (see the description in the “Exterior
lights” paragraph).Proceed as follows to activate/deactivate the lights:
❒press button
briefly. "On" or "Off" flash on
the display, according to what has been previously
set;
❒press
or
to make your choice;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Rain sensor
(Rain sensor sensitivity adjustment)
(for versions/markets, where provided)
This function allows you to adjust the rain sensor
sensitivity to 4 levels.
To set the required sensitivity level, proceed as
follows:
❒press button
briefly. The sensitivity “level” set
previously flashes on the display;
❒press theor
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
14GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Activation/Trip B data
(Activating Trip B)
With this function it is possible to activate ("On") or
deactivate ("Off") the Trip B display (partial trip).
For more information see the "Trip computer"
paragraph.
For activation/deactivation, proceed as follows:
❒press the
button briefly to make the display flash
On or Off according to the previous setting;
❒press theor
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
Time adjustment (Clock adjustment)
This function enables the clock to be set through
two submenus: “Time” and “Format”.
To carry out the adjustment, proceed as follows:
❒press button
briefly. The display shows the two
submenus "Time" and "Format";
❒press theor
button to switch between
the two submenus;
❒once you have selected the submenu to be
changed, press the button
briefly;
❒if the "Time" submenu is selected and button
is
pressed briefly, "hours" will flash on the display.
Press the
or
button to make the
adjustment;❒pressing the
button briefly again: the "minutes"
flash on the display. Press the
or
button
to make the adjustment;
❒if the "Format" submenu is selected and button
is pressed briefly, the display mode will flash
on the display. Press the
or
button to
select "12h" or "24h" mode. When you have
carried out the required settings, briefly press the
button to go back to the submenu screen or
hold the button down to go back to the main
menu screen without storing the new settings.
Hold down the
button again to return to the
standard screen or to the main menu according to
the menu items where you are in.
IMPORTANT The setting will increase or decrease
by one unit each time the button
or
is
pressed. Keeping the button pressed causes an
automatic rapid speed increase/decrease. Complete
the setting by briefly pressing the button when
you approach the required value.
15GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

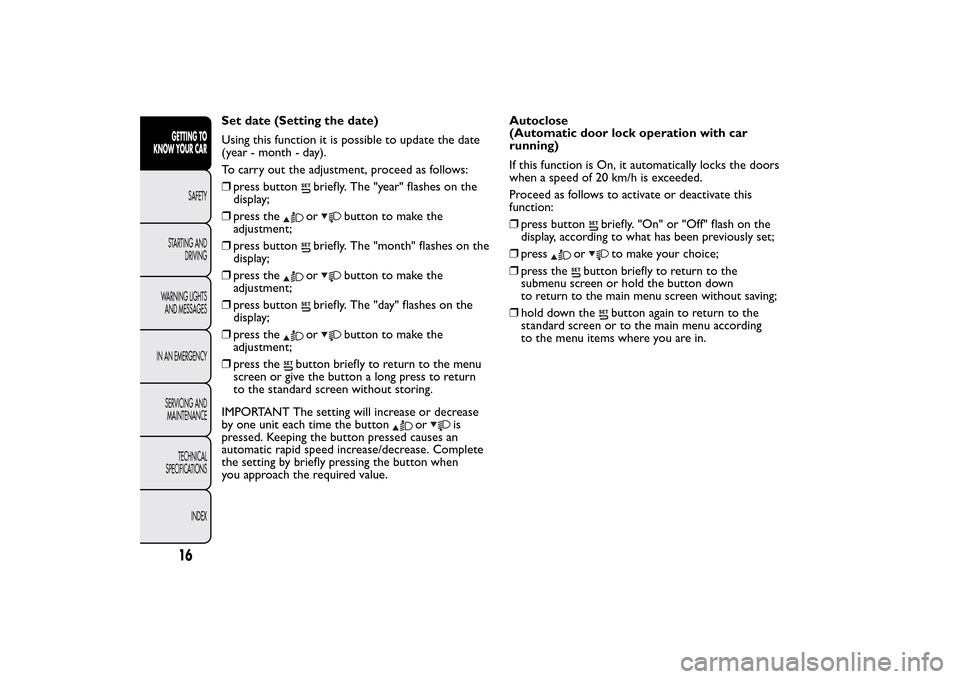

Set date (Setting the date)
Using this function it is possible to update the date
(year - month - day).
To carry out the adjustment, proceed as follows:
❒press button
briefly. The "year" flashes on the
display;
❒press theor
button to make the
adjustment;
❒press button
briefly. The "month" flashes on the
display;
❒press theor
button to make the
adjustment;
❒press button
briefly. The "day" flashes on the
display;
❒press theor
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
IMPORTANT The setting will increase or decrease
by one unit each time the button
or
is
pressed. Keeping the button pressed causes an
automatic rapid speed increase/decrease. Complete
the setting by briefly pressing the button when
you approach the required value.Autoclose
(Automatic door lock operation with car
running)
If this function is On, it automatically locks the doors
when a speed of 20 km/h is exceeded.
Proceed as follows to activate or deactivate this
function:
❒press button
briefly. "On" or "Off" flash on the
display, according to what has been previously set;
❒press
or
to make your choice;
❒press the
button briefly to return to the
submenu screen or hold the button down
to return to the main menu screen without saving;
❒hold down the
button again to return to the
standard screen or to the main menu according
to the menu items where you are in.
16GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Unit of measurement
(Setting the unit of measurement)
With this function it is possible to set the units
through three submenus: "Distances",
"Consumption" and "Temperature".
To set the desired measurement unit, proceed as
follows:
❒press button
briefly. The display will show the
three submenus;
❒press buttonor
to scroll through the
three submenus;
❒once you have selected the submenu to be
changed, press the button
briefly;
❒if the "Distances" submenu is selected and button
is pressed briefly, the display shows "km" or
"mi" depending on the previous setting;
❒press
or
to make your choice;
❒if the "Consumption" submenu is selected and
button
is pressed briefly, the display shows
"km/l", "l/100km" or "mpg" depending on
the previous setting. If the measurement unit set
for "Distances" is "km", the display allows the
measurement unit ("km/l" or "l/100km") for
Consumption to be set. If the measurement unit
set for "Distances" is "mi", the display will show
Consumption in "mpg";
❒pressor
to make your choice;❒if the "Temperature" submenu is selected and
button
is pressed briefly, the display shows "°C"
or "°F" depending on the previous setting;
❒pressor
to make your choice;
Once the required settings are made, briefly press
button
to go back to the submenu screen or hold
the button down to return to the main menu screen
without storing.
Hold down the
button again to return to the
standard screen or to the main menu according to
the menu items where you are in.
Language (Language selection)
Display messages can be set to be shown in different
languages: Italian, German, English, Spanish, French,
Portuguese, Polish, Dutch, Turkish (the list varies
according to the market).
To set the desired language, proceed as follows:
❒press buttonbriefly. The “language” set
previously flashes on the display;
❒press
or
to make your choice;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
17GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Warnings volume
(Adjusting the alert/warning acoustic signal
volume)
With this function the volume of the buzzer which
accompanies the display of any failure/warning can be
adjusted to 8 levels.
To set the desired volume, proceed as follows:
❒press button
briefly. The volume “level” set
previously flashes on the display;
❒press
or
to make your choice;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Seat belt buzzer
(SBR buzzer reactivation)
This function can only be displayed after a Fiat
Dealership has deactivated the SBR system (see
paragraph “SBR system” in the “Safety” chapter).
To reactivate this function, proceed as follows:
❒press thebutton briefly; "Off" will flash on the
display. Press the
or
button and "On"
will appear;
❒press the
button briefly to return to the
submenu screen or hold the button down
to return to the main menu screen without saving.Service (Scheduled servicing)
With this function it is possible to view information
on mileage or time intervals for servicing.
To consult this display, proceed as follows:
❒press button
briefly. The display shows the
service interval in kilometres (km) or miles (mi)
according to the previous setting (see the "Units of
measurement" paragraph);
❒press the
button briefly to return to the menu
screen or hold it down to return to the standard
screen.
18GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
NoteThe “Scheduled Servicing Plan” includes car
maintenance at fixed intervals, refer to the
"Maintenance and care" chapter. This message is
displayed automatically - when the key is turned to
MAR-ON - 2,000 km (or equivalent value in miles)
before these deadlines and reappears every 200
km (or equivalent value in miles). Below 200 km
servicing indications are more frequent. The display
will be in km or mi depending on the measurement
unit settings. When one of the next scheduled
deadlines is approaching, the word “Service” will
appear on the display, followed by the number of
kilometres or miles left, when the key is turned to
MAR-ON. Contact a Fiat Dealership. The operations
in the “Scheduled servicing plan” will be performed
and the message will be reset.
