2014 CITROEN DS3 CABRIO Handbook (in English)

Practical information
Third brake lamp (4 W5W bulbs)
) Open the boot. )
Remove the plugs Aon the inner panel. )
Push on the centre of the lamp using two screwdrivers to lever it outwards. )
Disconnect the connector and if necessary
the screenwash pipe from the lamp.) Turn the bulb holder for the faulty bulb aquar ter of a turn. )
Pull out the bulb and change it.
To r e f i t , c a r ry out these operations in reverse order.


Third brake lamp (LEDs)

For the replacement of this type of LED lamp, contact a CITROËN dealer or a qualified
workshop.

Changing the number plate lamp
bulbs (W5W)
)Insert a thin screwdriver into one of the
outer holes of the lens. )Push it outwards to unclip. )Remove the lens. )Pull the bulb out and change it.

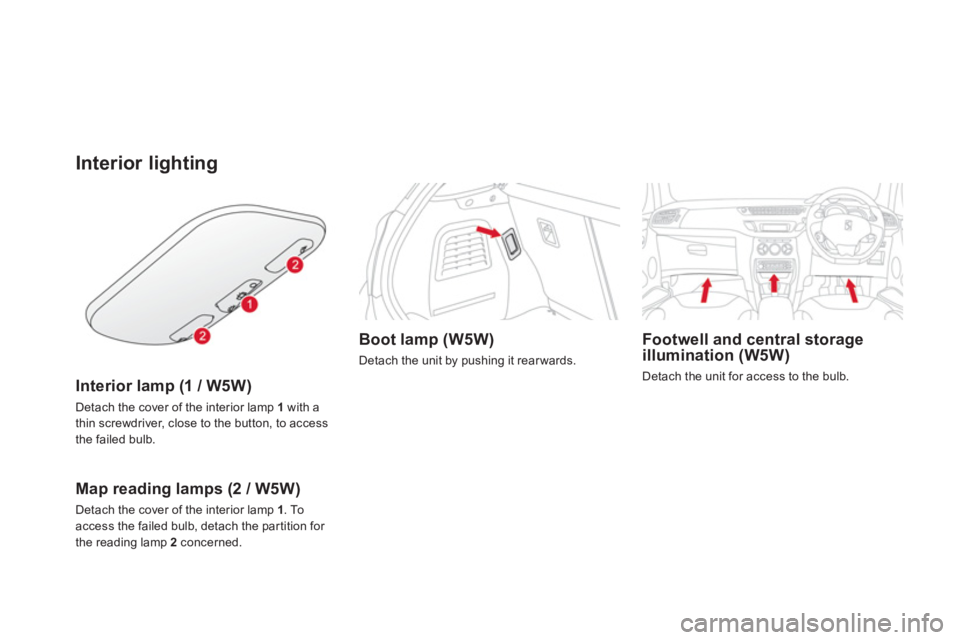

Interior lighting
Interior lamp (1 / W5W)
Detach the cover of the interior lamp 1
with athin screwdriver, close to the button, to access
the failed bulb.

Map reading lamps (2 / W5W)
Detach the cover of the interior lamp 1
. To access the failed bulb, detach the par tition for
the reading lamp 2 concerned.

Boot lamp (W5W)


Detach the unit by pushing it rear wards.


Footwell and central storageillumination (W5W)

Detach the unit for access to the bulb.

225
Practical information




















Changing a fuse

Installing electricalaccessories
Your vehicle's electrical system is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

CITROËN will not accept responsibility for the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes. The extraction tweezer and the s
pare fusestorage locations are on the back of thedashboard fuse box cover.
For access to them:)open the glove box lid,)unclip the fusebox cover by pulling on the side,)remove the cover completely,)remove the tweezer.

Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the faulty fuse by checking thecondition of its filament.
Changing a fuse
GoodFailed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse
of the same rating. ) Check that the number marked on thebox, the rating marked on the fuse and the
tables below all agree.

Dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
)Refer to the paragraph "Access to the tools".

Fuse tables
Fuse N°RatingFunctions
FH3
65 ATr a i l e r r e l ay unit.
FH3
7-Not used.
FH3
820 AHi-Fi amplifier.
FH39
-Not used.
FH4
040 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F115 ARear wiper.
F2-Not used.
F3 5
A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror,particle filter pump (Diesel), diagnostic socket, air flow
sensor (Diesel).
F5
30 AElectric windows panel, passenger's electric window control,front electric window motor.
F6
30 ADriver's electric window motor.
F7 5
ACourtesy lamp.

227Practical information
Fuse N°RatingFunctions
F820 AMultifunction screen, audio system, navigation radio, alarmcontrol unit, alarm siren.
F
930 A12 V socket, portable navigation suppor t supply.
F10 15
ASteering wheel controls.
F1
115 AIgnition, diagnostic socket, automatic gearbox control unit.
F1
215 ARain / brightness sensor, trailer relay unit.
F1
35 AMain stop switch, engine relay unit.
F1415 AParking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F15
30 ALocking.
F1
6-Not used.
F1740 ARear screen and door mirrors demisting/defrosting.
S
H-PA RC shunt.

Engine compartment
fusebox
The fusebox is placed in the engine compartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover.)
Change the fuse (see correspondingparagraph).)
When you have finished, close the cover carefully to ensure the sealing of thefusebox.
All work on the fuses in this box,located on the battery, must be carried out by a CITROËN dealer or a qualified workshop.

229Practical information

Fuse table
Fuse N°RatingFunctions
F120 A
Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump(Diesel).
F
215 A Horn.
F
310 A Front / rear wash-wipe.
F420 A LED lamps.
F5
15 A Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), EGR electrovalve (Diesel),
blow-by heater and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary stop switch.
F
710 A Electric power steering, automatic gearbox.
F8
25 A Starter control.
F
910 A Switching and protection unit (Diesel).
F10 30 A
Fuel heater
(Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.

Fuse N°RatingFunctions
F1230 AWindscreen wipers slow / fast speed.
F1
340 ABuilt-in systems inter face supply (ignition positive).
F1
430 AValvetronic supply (VTi).
F1
510 ARight-hand main beam headlamps.
F16 10 ALe
ft-hand main beam headlamps.
F1715 ALeft-hand dipped beam headlamps.
F18 15
ARight-hand dipped beam headlamps.
F1
915 AOxygen sensors and electrovalves (VTi), electrovalves
(Diesel), EGR electrovalve (Diesel).
F20 10 APumps, electronic thermostat
(VTi), timimg electrovalve (THP), water in fuel sensor (Diesel).
F2
15 AFan assembly control supply, ABS/ESP, turbo pump (THP).
