2014 AUDI TT ROADSTER Owners Manual

-To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle with the seatback reclined. Safety
belts and the airbag system offer maxi­
mum protection only when the seatback
is upright and the safety be lts are prop­
erly positioned on the body. The more
the seatback is reclined, the greater the
risk of personal injury from an incorrect
seating position and improperly posi­
tioned safety be lts!
- Always make sure the front seatbacks are
in the upright position and securely
locked in place when dr iving.
Head restraints
Adjusting head restraints, front seats
The head restraints must be adjusted proper­
ly to provide protection .
Fig. 70 Dr iver 's seat head restraint: ad just ing t he
height
The head restraints on the front seats can be
adjusted to provide safe support to head and neck at the opt imum he ight. When optimally
adjusted, the top of the restraint should be
level with the top of the head ¢
page 95,
Proper adjustment of head restraints.
... Grasp the sides of the head restraint with
both hands and slide it upward/downward
until you feel it click into place¢
fig. 70.
_& WARNING
- Driving without head restraints or with
head restraints that are not properly ad-
-
Seats and storage 63
justed increases the risk of serious or fa­
tal neck injury dramat ica lly.
- Read and heed all WARNINGS
¢page 95.
(D Tips
Correctly adjusted head restraints and
safety be lts are an extreme ly effective
combination of safety features.
Luggage compartment
Pass-through with Ski Bag
Using the pass-through and the removable
ski bag, you can transport long objects (e .g.
skis) neatly and without damaging the interi­
or.
Fig. 71 Open storage co mpartmen t between th e seat­
backs
Fig. 72 Retainer fo r the ski bag between the seatbacks
Loading
... Open the flip cover to the storage compart ­
ment between the seatbacks ¢
page 67 .
... To unlock it, pull the handle and fold the
cover of the pass-through to the trunk
<=> fig. 71.
"'"Flip the cover upward in the direction of the
arrow.
"'" Open the trunk lid .

64 Seats and storage

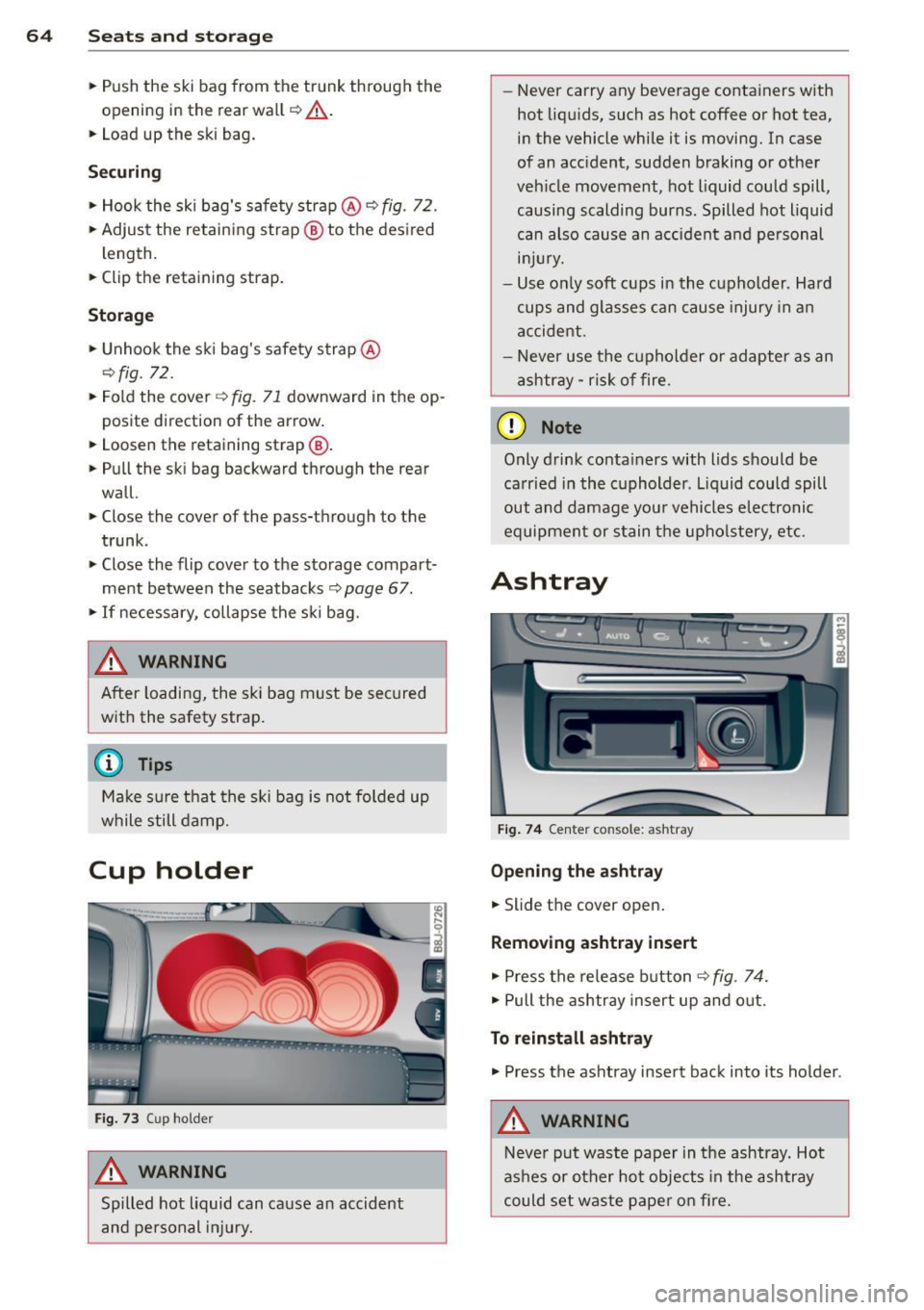

• Push the ski bag from the trunk through the
opening in the rear wall
c::> &_.
• Load up the ski bag.
Securing
• Hook the ski bag 's safety strap @ c::> fig. 72.
• Adjust the retain ing strap @ to the des ired
length .
• Clip the retaining strap.
Storag e
• Unhoo k the ski bag's safety strap @
¢fig. 72.
• Fold the cover¢
fig. 71 downward in the op­
posite direction of the arrow .
• Loosen the retaining strap@.
• Pull the ski bag backward through the rear
wall.
• Close the cover of the pass-through to the
trunk .
• Close the flip cove r to the storage compart­
ment between the seatbacks ¢
page 67.
• If necessary, collapse the s ki bag.
_& WARNING
After loading, the sk i bag must be secured
w ith the safety strap.
(D Tips
Ma ke sure that the s ki bag is not folded up
while still damp.
Cup holder
F ig. 73 Cup holder
_& WARNING ,. -
Spilled hot liquid can cause an accident
and pe rsonal injury. -
Never carry any beverage conta iners with
hot liqu ids, such as hot coffee or hot tea,
in the vehicle while it is moving. In case
of an acc ident, sudden braking or other
veh icle movement, hot liquid could spill,
causing scalding burns . Spilled hot liquid
can also cause an accident and pe rsonal
inju ry.
- Us e only soft cups in the c upholder. Hard
cups and glasses can cause injury in an
accident.
- Neve r use the cupholder or adapter as an
ashtray -ris k of fire.
(1) Note
Only drink containers with Lids should be
carried in the cuphold er. L iquid could spill
out and damage your vehicles electronic
equipmen t or s tain t he upho lstery, etc.
Ashtray
Fig . 7 4 Center console: ashtray
Opening the ashtray
• Slide the cover open.
Removing ashtray insert
• Press the release button ¢fig . 74.
• Pull the ashtray insert up and out.
To r einstall a shtray
• Press the ashtray insert back into its holder.
_& WARNING
-Never put waste paper in the ashtray. Hot
as hes or other hot objects in the ashtray
could set waste paper on fire.

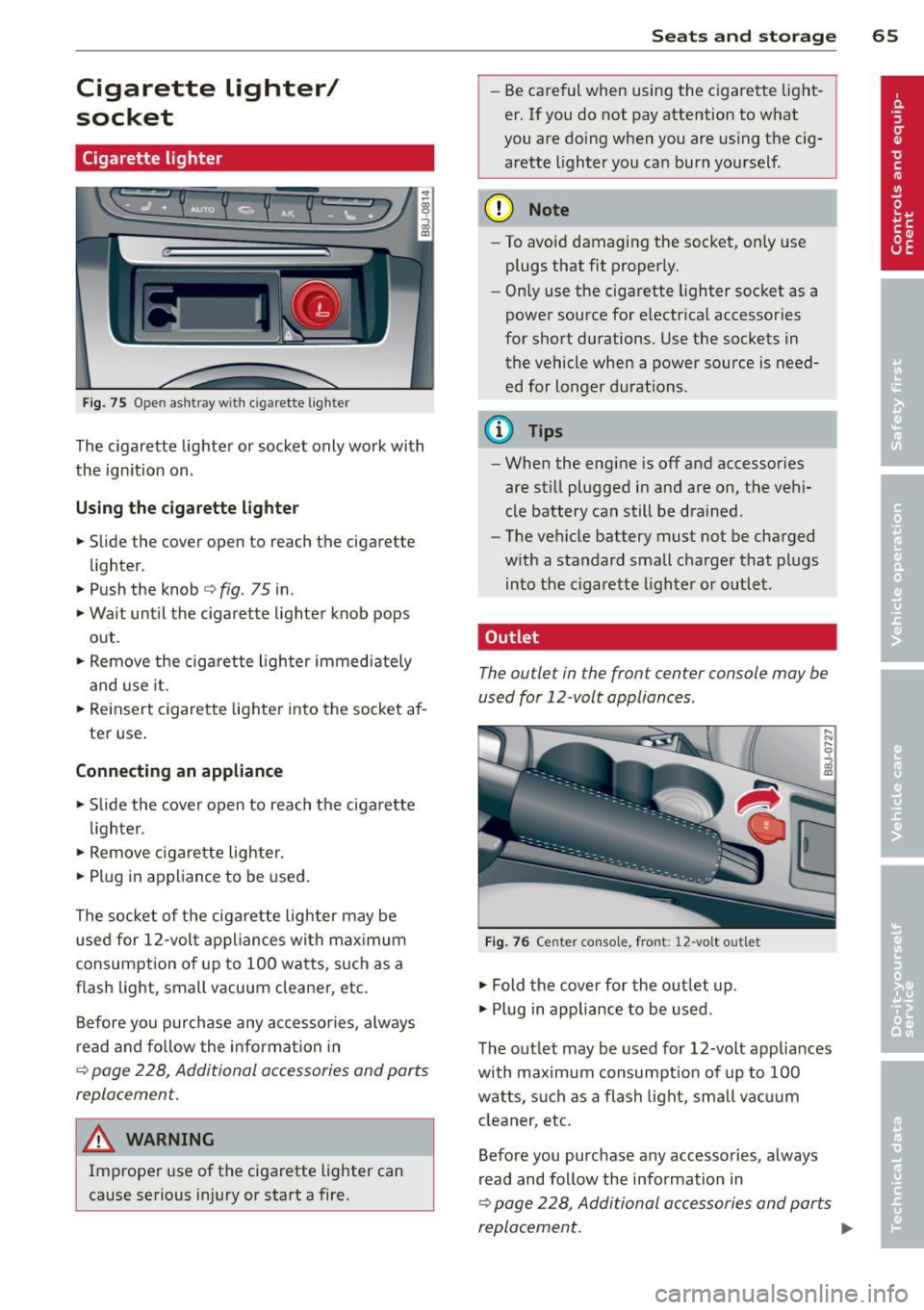

Cigarette lighter/
socket
Cigarette lighter
Fig. 75 Open ashtray with cigar ette ligh ter
The cigarette lighter or socket only work with
the ignition on.
Using the cigarette lighter
.,. Slide the cover open to reach the cigarette
lighter.
.,. Push the knob¢
fig. 75 in .
.,. Wait until the cigarette lighter knob pops
out .
.,. Remove the cigarette lighter immediately
and use it.
.,. Reinsert cigarette lighter into the socket af­
ter use.
Connecting an appliance
.,. Slide the cover open to reach the cigarette
lighter.
.,. Remove cigarette lighter .
.,. Plug in appliance to be used.
The socket of the cigarette lighter may be used for 12-volt appliances with maximum
consumption of up to 100 watts, such as a
f lash Light, small vacuum cleaner, etc.
Before you purchase any accessories, always
read and follow the information in
¢ page 228, Additional accessories and parts
replacement .
A WARNING
-
Improper use of the cigarette lighter can
cause serious injury or start a fire.
Seats and storage 65
-Be careful when using the cigarette light­
er. If you do not pay attention to what
you are doing when you are using the cig­
arette lighter you can burn yourself .
(D Note
-To avoid damaging the socket, only use
plugs that fit properly.
- Only use the cigarette lighter socket as a
power source for e lectrical accessories
for short durations. Use the sockets in the vehicle when a power source is need­
ed for longer durations.
@ Tips
- When the engine is off and accessories
are still plugged in and are on, the vehi­
cle battery can still be drained.
- The vehicle battery must not be charged
with a standard small charger that plugs
into the cigarette lighter or outlet .
, Outlet
The outlet in the front center console may be
used for 12 -volt appliances .
Fig. 76 Center console, front: 12 -volt outlet
.,. Fold the cover for the outlet up.
.,. Plug in appliance to be used .
"'
" 0
i
The outlet may be used for 12-volt appliances
with maximum consumpt ion of up to 100
watts, such as a flash light, small vacuum
cleaner, etc.
Before you purchase any accessories, always
read and follow the info rmation in
¢ page 228, Additional accessories and parts
replacement.

66 Seats and st o rage

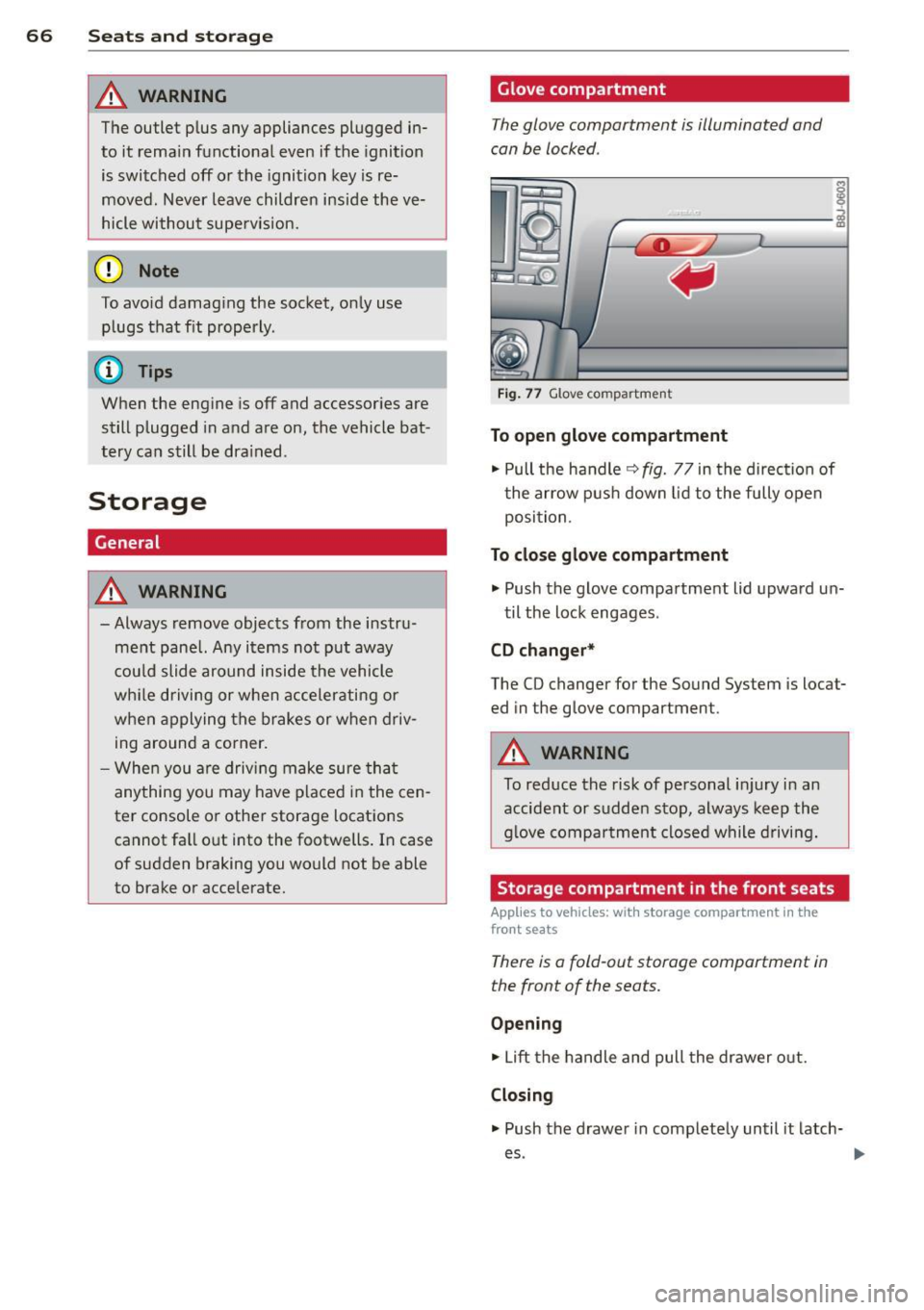

A WARNING
The outlet p lus any appliances plugged in­
to it rema in functional even if the ignition
is switched off or the ignition key is re­
moved. N ever leave children inside the ve­
hicle withou t supe rvision.
@ Note
To avo id damag ing the socket, only use
plugs that fit properly .
(i) Tips
When the engine is off and accessor ies are
still plugged in and are on, the vehicle bat­
tery can still be dra ined .
Storage
General
A WARNING
- Always remove objects from the instru­
ment panel. Any items not put away
cou ld slide around inside the vehicle
wh ile driving or when accelerating or
when applying the brakes or when driv­ ing around a corner.
- When you are drivi ng make sure tha t
anything you may have placed in the cen­
ter console or other storage locations cannot fa ll out into the footwells. In case
of sudden braking you would not be able
to brake or accelerate.
-
Glove compartment
The glove compartment is illuminated and
can be locked .
§
___ .;.;._ _______ i
Fig . 77 G love compartme nt
To open glove compartment
• Pull the handle~ fig. 77 in the direct ion of
t he ar row push down lid to the fully open
position .
To close gl ove compartment
• Push the glove compartment lid upward un-
til the lock engages .
CD changer *
The CD changer for the Sound System is locat­
ed in the glove compartment.
A WARNING
-To reduce the risk of personal i njury in an
accident or sudden stop, always keep the
g love compartment closed while driving.
Storage compartment in the front seats
Applies to vehicles: w ith storage compartment in the
front seats
There is a fold-out storage compartment in
the front of the seats.
Op ening
• Lift the handle and pull the drawer o ut.
Clo sin g
-
.. Push the drawer in completely until it latch­
es .

@ Tips
The maximum car ryi ng capac ity 2.2 lbs
(1 kg).

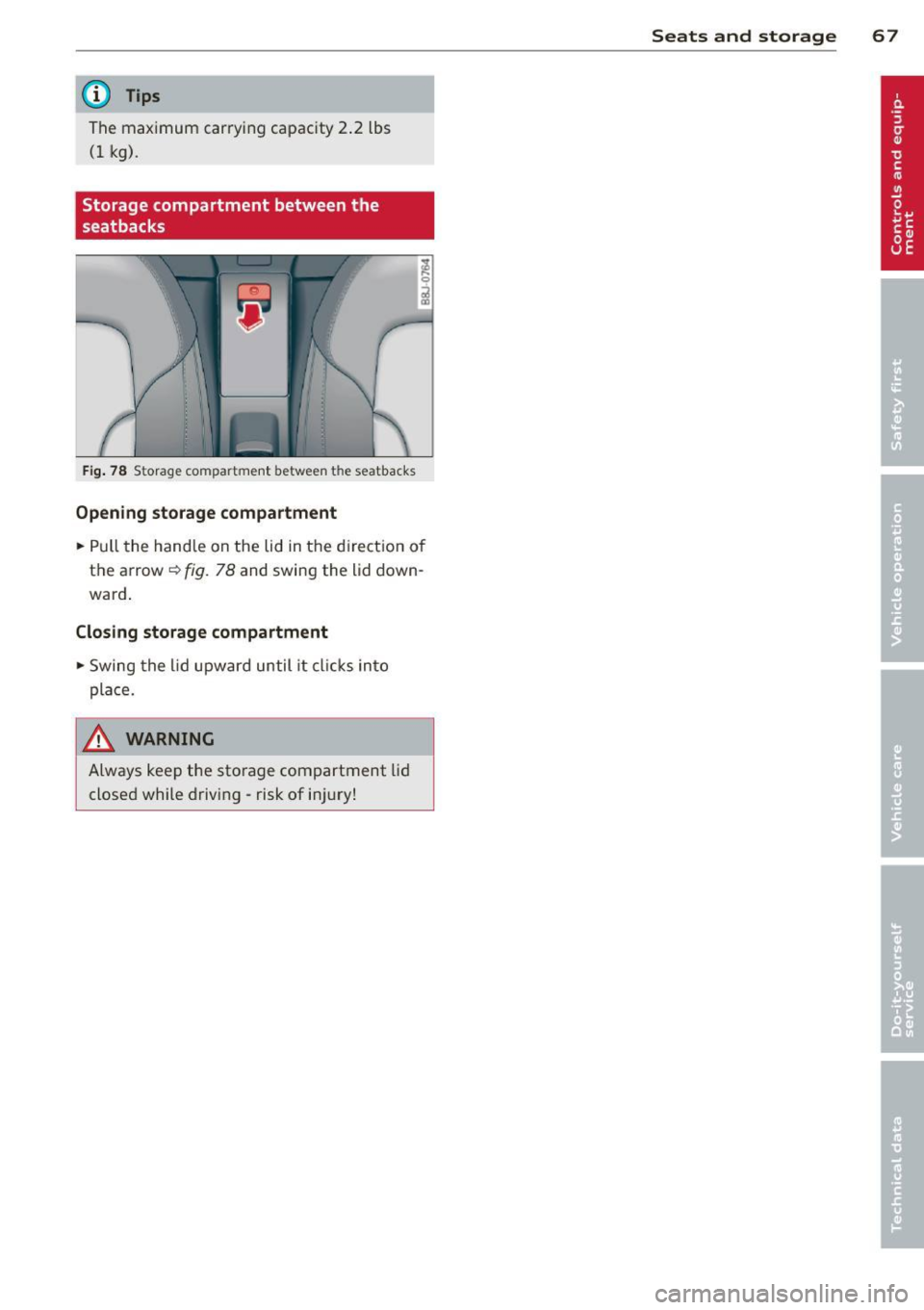

Storage compartment between the
seatbacks
F ig. 78 Storage compartment between the seatbacks
Opening storage compartment
.. Pull the hand le on the lid in the directio n of
t h e arrow~
fig. 78 and swing the lid down­
ward .
Closing storage compartment
.. Swing the lid upward until it clicks i nto
pla ce.
A WARNING
Always kee p the sto rage compartment lid
closed while d rivi ng -risk of i njur y!
Seats and storage 67

68 Warm and cold
Warm and cold
Climate controls
Controls
The air conditioning automatically maintains the selected temperature in the vehicle interior
throughout each season .
Fig. 79 Climate contro ls
We recommend the following sett ing :
> Rotate the knob 9 fig. 79 @ to the right to
switch on the air conditioning .
> Set the temperature to 72 °F (22 °().
> Press the !AUTO !~ fig. 79 button .
Using the previously recommended setting is
the quickest way to achieve a comfortable cli ­
mate in the vehicle . This setting should there­
fore only be changed when personal comfort
l eve ls or certain circumstances require it.
The climate controls are a combination of au ­
tomatic heating and ventilation systems and a
coo ling system which dehum idifies and coo ls
the air inside the vehicle.
The climate controls automatically maintain a temperature once it has been set. The tem­
perat ure of the air from the vents, fan speed
(air vol ume) and air distribution are also auto­
matically adjusted . The system also takes into
account strong sunshine so that manua l ad­
justment is not necessary. So in almost all
cases,
automatic mode offers the best condi­
tions for the comfort of the occupants at all
times of the year
9 page 71 .
Please note :
In cooling mode , relative humidity in the inte­
rior is reduced . This prevents the windows
from fogg ing up.
When relative humidity and temperatures outside are high ,
condensation can drip from
the a ir condition ing evaporator and form a
pool of water under the vehicle. This is normal
and not an ind ication of a leak!
When outside temperatures are low, the fan
does not switch to a higher speed until the
coolant has reached an adequate tempera ­
tu re, with the exception of the defrost set­
t in g.
When accelerating at wide-open throttle, the air conditioning compressor is temporarily
switched off to maintain full engine power.
In order to ensure engine cooling under ex­
treme engine loads, the compressor is switch­
ed off if coolant temperatures climb too high.
Functions are set by turning the rotary knob
or switched on and off by tapp ing the buttons.
II>

The LED in the buttons illum inates when the
function is active.
Button (s) Meaning
Rotary Temperature
selection
knob
CD ¢ page 69
Rotary Switch air conditioning on/off
knob @lil (Fan)
Q
page 69
Rotary A ir distribution Q
page 70
knob@
~ Defrost Q page 71
~
Rear window defogger
¢page 71
Heated seat* driver/passenger I-.., +I
side ¢ page 72
~ Recircu lation Q page 71
IA!CI Switch on cooling system
¢page 71
Pollutant filt er
The pollutant filter (particle filter) ensures
that contaminants in the outside air (such as
dust or po llen) are greatly reduced or stop­
ped. The air is also filtered in recirculation
mode.
The pollutant filter element must be changed
according to the intervals specified in the
maintenance schedule so that the air condi­
tioning system's performance is not adversely
affected .
If the fi lter's effectiveness is weakened by
driving the vehicle in areas with heavily pollut­
ed outside air, the filter element should also
be changed in between the listed services.
A WARNING
For safety reasons, it is important that all
w indows are free of ice, snow, and conden­
sa tion. Only then is good visib ility ensured.
Please fam iliarize yourse lf w ith the correct
operation of the air conditioning and how
to de humidify/defrost the windows .
(D Note
-If yo u suspect that the clima te controls
have been damaged, switch the system
Warm and c old 69
off to avoid damaging it, and have it in ­
spected by an authorized Audi dealer .
- Audi climate control system repairs re ­
quire special expertise and the proper
tools . You should contact an authorized
Audi dealer in the event of malfunctions.
(D Tips
- To avoid adversely affecting heating and
cooling performance and to prevent con­
densation on the windows, the air intake
in front of the windshield must be free of
ice, snow, and leaves.
- The air coming from the vents and circu­
lat ing through the entire interior is ex­
tracted through the out let slots in the
side pane ls in t he luggage compartment.
Make sure that the outlet slots are not
covered by clothing, etc.
- Climate control works most effectively if
the windows are closed. Howeve r, if the
inter io r of a par ked vehicle is ext reme ly
hot from the sun's rays, briefly open ing
t he windows can speed up the cooling
process .
Setting temperature
.. Turn the rotary knob CD Q page 68, fig. 79
to the desired temperature setting.
To set a lower temperature, turn the rotary
knob to the left. To set a higher temperature,
turn the rotary knob to the right. There are
additional intermediate settings available to
adjust the temperature as needed .
Switching climate control on and off
Switching the climate control system on
and off
.. Tu rn the knob @Q page 68, fig. 79 to the
r ight to switc h climate cont ro l on. The LED
next to the word O FF goes o ut.
.. Turn the knob@¢
page 68, fig. 79 to the
left to switch the climate control system off.
The LED next to the word OFF comes on.
I)>

70 Warm and cold
Setting fan sp ee d 8/r
.,. Turn the knob@¢ page 68, fig. 79 to the
setting you want to adjust fan speed (air
quantity).
I n a utomat ic mode the cl imate control sys­
tem automatically regulates fan speed de­
pending on interior temperature. You can ad ­
just the volume of air produced by the fan to
meet your own requirements.
Air distribution
F ig . 8 0 In st rume nt panel: Locat ion of air vents
.,. Turn the rotary knob@¢ page 68, fig. 79
to the desired setting .
.,. To open and close the o utlets, turn the ad­
justing ring .
.,. To adj ust the direct ion of the airf low from
the outlet, move the tab in the center o f the
outlet in the des ired d irect ion. The direction
of the air de livered from the vents can be
adjusted horizontally and vertically .
A ir distribution :
- In sett ing
-0-, air flows only to the w indows,
vents
(D and @are open . To defrost the
driver and front passenger side windows
most effectively, the vents @should be di­
rected toward the side w indows.
- In sett ing@, air flows on ly to the dr iver/
passenger, vents ® and © are open.
- In setting{}, air flows only to the footwell,
vents ® are open .
(D Tips
If the difference between the desired tem­
perature set by you and the veh icle's interi­
or temperature is too great, the fan speed
will change a utomat ically. This is done so
that the desired temperature setting is
r eached as q uic kly as possib le.
- In setting~' air flows only to the windows
and the footwell, ven ts
(D , @ and ® are
open.
T he re a re additional comb inat ions (th ro ugh
in termediate settings) available to adjus t air
dist ribution a s needed.
(r} Tips
If the climate contro ls are running in cool­
i ng mode, air should flow mainly from
vents @and @. To achieve sufficient co ol­
i ng, you should never close these ven ts
complete ly .
