Information
Specifications
■Vehicle SpecificationsModelAcura TSX Sport Wagon
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 4,630 lbs (2,100 kg)
Gross Axle Weight
Rating (Front)2,410 lbs (1,095 kg)Gross Axle Weight
Rating (Rear)2,270 lbs (1,030 kg)
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type SP-10
■Engine Specifications
■ Fuel
■ Washer FluidDisplacement144 cu-in (2,354 cm3)
Spark Plugs NGK
ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity2.6 US qt (2.5 ℓ)
■Light BulbsHeadlights (Low Beam)35W (D2S)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 21/5W
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Tail/Rear Side Marker Lights 21/5W
Rear Turn Signal Lights21W
Back-Up Lights 21W
Taillights 5W
High-Mount Brake Light LED
License Plate Lights5W
Cargo Area Lights 5W
Interior LightsSpotlight8WCeiling Light8W
Vanity Mirror Lights 2W
Courtesy Lights3.8W
14 ACURA TSX 5D-31TL76300.book 312 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
2014 TSX Sport Wagon

313
uu Specifications u




■Brake Fluid
■ Transmission FluidSpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF DW-1
(automatic
transmission fluid)2.6 US qt (2.5 ℓ)
(Change)
■Engine Oil
■ Engine Coolant
Recommended·Acura Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
4.0 US qt (3.8 ℓ)
Change
including
filter 4.2 US qt (4.0 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.64 US gal (6.2 ℓ) 
(change including the remaining 
0.196 US gal (0.74 ℓ) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire kit
RegularSizeP225/50R17 93VPressure 
psi (kPa [kgf/cm2])33 (230 [2.3])
Compact
Spare
*1Size T135/80D16 101M
Pressure 
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7.5JCompact Spare*116 x 4T
14 ACURA TSX 5D-31TL76300.book 313 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
2014 TSX Sport Wagon

314





Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle’s engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission Number
14 ACURA TSX 5D-31TL76300.book 314 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
2014 TSX Sport Wagon

315





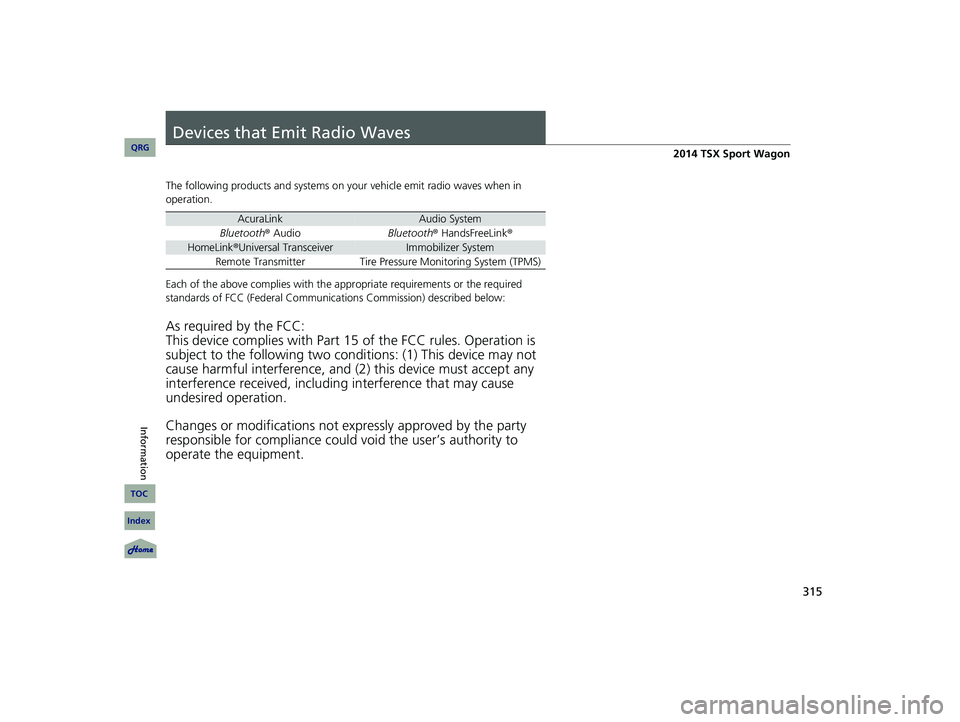

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appr opriate requirements or the required
standards of FCC (Federal Communications Commission) described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two condi tions: (1) This device may not
cause harmful interference, and (2 ) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
AcuraLink Audio System
Bluetooth ® AudioBluetooth ® HandsFreeLink ®
HomeLink®Universal TransceiverImmobilizer System
Remote TransmitterTire Pressure Monitoring System (TPMS)
14 ACURA TSX 5D-31TL76300.book 315 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
2014 TSX Sport Wagon

316





Reporting Safety Defects
14 ACURA TSX 5D-31TL76300.book 316 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and reme dy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer,
or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888- 327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov ;
or write to: Administrator, NHTS A,
1200 New Jersey Avenue, SE., Washington, DC 20590.
You can also obtain othe r information about motor vehicle safety from http://www.safercar.gov
.
In Canada
If you believe that your vehicle has a defect which co uld cause a crash or could cause injury or death, you should immediately inform
Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of
vehicles, it may lead to a recall and remedy campaign. However, Transport Canada cannot become involved in individual problems
between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For more information on
reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/roadsafety
.
.
2014 TSX Sport Wagon

317Continued




Emissions Testing
Testing of Readiness Codes
Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during te sting to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go throug h the testing just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w
, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the e ngine off for 6 hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35 °C).
4. Start the engine without touching the accelerator pedal, and let it idle for
20 seconds.
5. Keep the vehicle in
(P
. Increase the engine speed to 2,000 rpm, and hold it there
until the temperature gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again on ly after several days of
driving under a variety of conditions.
If a testing facility determ ines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility dete rmines the readiness codes
are still not set, see a dealer.
14 ACURA TSX 5D-31TL76300.book 317 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
2014 TSX Sport Wagon

318
uu Emissions Testing u Testing of Readiness Codes





7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
14 ACURA TSX 5D-31TL76300.book 318 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
2014 TSX Sport Wagon

319Continued




Warranty Coverages
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limite d Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in materials and workmanship.
14 ACURA TSX 5D-31TL76300.book 319 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
Information
TOC
