2014 Acura TSX Owner's Manual

240
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter



Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the maintenance message on the multi-
information display. 1.Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the bolts on the undercarriage
and remove the under cover.
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
5. Remove the oil filter and dispose of the
remaining oil.1Changing the Engine Oil and Oil Filter
NOTICEYou may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under Cover
Bolt
Washer Drain Bolt
14 ACURA TSX 5D-31TL76300.book 240 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

241
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter



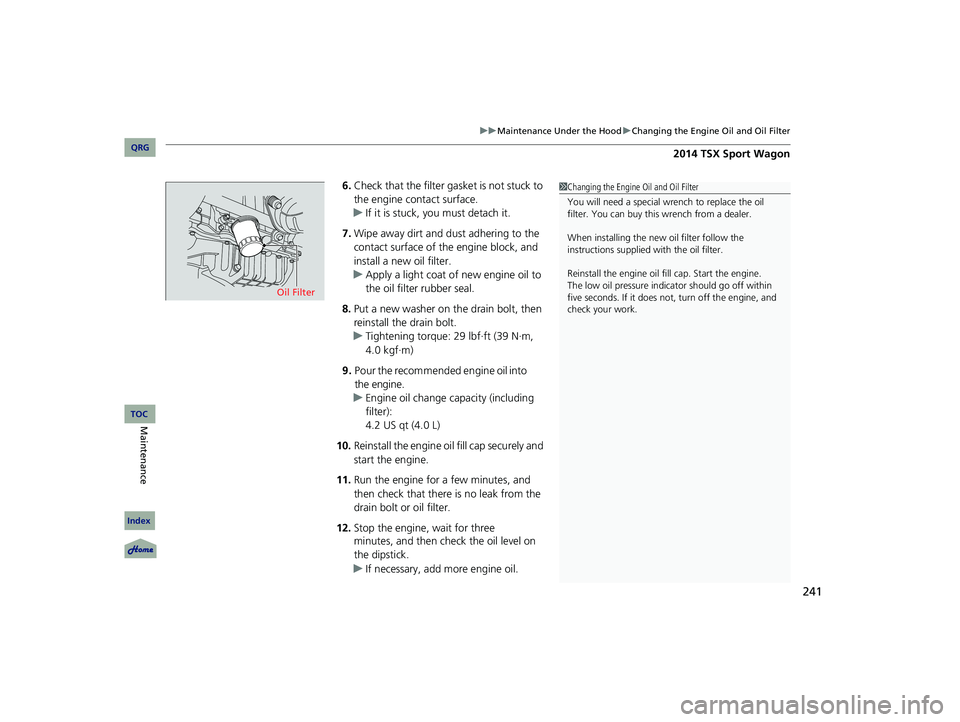

6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter rubber seal.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque: 29 lbf∙ft (39 N∙m,
4.0 kgf∙m)
9. Pour the recommended engine oil into
the engine.
u Engine oil change capacity (including
filter):
4.2 US qt (4.0 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three
minutes, and then check the oil level on
the dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine.
The low oil pressure indicator should go off within
five seconds. If it does not , turn off the engine, and
check your work.
Oil Filter
14 ACURA TSX 5D-31TL76300.book 241 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

242
uu Maintenance Under the Hood u Engine Coolant



Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1.Check the am ount of coolant in the
reserve tank.
2. If the coolant level is below the MIN mark,
add the specified coolant until it reaches
the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICEIf temperatures consistent ly below -22°F (-30°C) are
expected, the coolant mixture should be changed to
a higher concentration. Consult a dealer for more
information.
If Honda antifreeze/coolant is not available, you may
use another major brand non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended fo r aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.
Reserve Tank
MAX MIN
Reserve Tank
14 ACURA TSX 5D-31TL76300.book 242 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

243
uu Maintenance Under the Hood u Engine Coolant


1. Make sure the engine and radiator
are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and
tighten it fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1Radiator
NOTICEPour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in th e engine compartment.
3 WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Radiator Cap
14 ACURA TSX 5D-31TL76300.book 243 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

244
uu Maintenance Under the Hood u Transmission Fluid



Transmission Fluid
Check the fluid level when the engine is at normal operating temperature.
1.Park on level ground, and start the engine.
2. Wait until the radiator fan starts and then
turn off the engine.
u Perform step 3 after waiting for about 60
seconds (less than 90 seconds).
3. Remove the dipstick (yellow loop) from the
transmission and wipe it with a clean cloth.
4. Insert the dipstick all the way back
into the transmission securely, as shown
in the image.
5. Remove the dipstick and check the
fluid level. u It should be between the upper and
lower marks in the HOT range.
6. If the level is below the lower mark,
add fluid into the dipstick hole to bring it
to the level between the upper and lower
marks, and have your vehicle checked by
a dealer immediately.
■Automatic Transmission Fluid
Specified fluid: Acura ATF DW-1 (automatic transmission fluid)
1Automatic Transmission Fluid
NOTICEDo not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission fluid other than Acura ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’s transmission, and damage
the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Acura ATF DW-1 is not covered
by Acura’s new vehicle warranty.
NOTICEPour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in th e engine compartment.
Upper
Lower
MarksRubber
Cap
Guide
14 ACURA TSX 5D-31TL76300.book 244 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

245
uu Maintenance Under the Hood u Brake Fluid


Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICEBrake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for le aks or worn brake pads as
soon as possible.
Brake
Reservoir
MIN MAX
14 ACURA TSX 5D-31TL76300.book 245 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

246
uu Maintenance Under the Hood u Refilling Window Washer Fluid



Refilling Window Washer Fluid
Check the amount of window washer fluid using the washer fluid level gauge
on the cap.
If the level is low, fill the washer reservoir.
Check the amount of window washer fluid by looking at the reservoir. If the level is low, fill the washer reservoir.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICEDo not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Models with level gauge
Level Gauge
Models without level gauge
14 ACURA TSX 5D-31TL76300.book 246 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

247Continued


Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.
1.Remove the engine coolant reservoir.
2. Remove the fasteners, using a flat-tip
screwdriver. Remove the cover of the air
intake duct and its upper part.
High beam headlight:60 W (HB3 for halogen bulb type)
Low beam headlight:35 W (D2S for high voltage discharge type)
■High Beam Headlight
1Headlight Bulbs
NOTICEHalogen bulbs get very hot when lit.
Oil, perspiration, or a scra tch on the glass can cause
the bulb to overheat and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo ar ea or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights’ inside lenses (headlights, brake
lamps, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a large amount of water or ice
accumulated inside the lenses, have your vehicle
inspected by a dealer.
Engine Coolant Reservoir
Passenger side
Fastener
Cover
Air Intake
Duct
Driver side
