2014 Acura TSX Owner's Manual

uu When Driving u Starting the Engine
200


3. Turn the ignition switch to START (e

without depressing the accelerator pedal.
1. Keepi
ng your right foot on the brake peda l, release the parking brake. Check that
the parking brake indicator has gone off.
2 Parking Brake P. 216
2. Put the shift lever in (D
. Select (R
when reversing.
3. Gradually release the brake pedal and gently depress the accelerator pedal
to pull away.
1Starting the Engine
Do not hold the key in START (e
for more than 15
seconds.
•If the engine does not start right away, wait for at
least 10 seconds before trying again.
•If the engine starts, but then immediately stops,
wait at least 10 seconds before repeating step 3
while gently depressing the accelerator pedal.
Release the accelerator pedal once the engine
starts.
The immobilizer system protects your vehicle from
theft. If an improperly code d key (or other device) is
used, the engine’s fuel system is disabled.
2 Immobilizer System P. 100
■Starting to Drive
14 ACURA TSX 5D-31TL76300.book 200 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

201
uu When Driving u Precautions While Driving


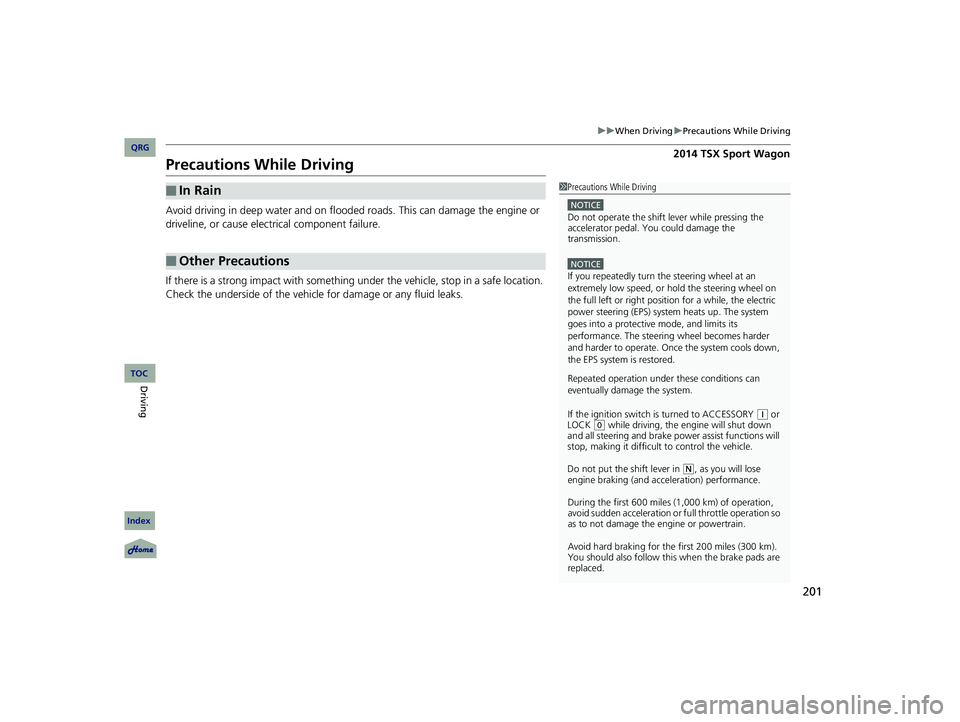

Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicl e for damage or any fluid leaks.
■In Rain
■Other Precautions
1Precautions While Driving
NOTICEDo not operate the shift lever while pressing the
accelerator pedal. Y ou could damage the
transmission.
NOTICEIf you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel on
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation unde r these conditions can
eventually damage the system.
If the ignition switch is turned to ACCESSORY
(q
or
LOCK (0
while driving, the engine will shut down
and all steering and brake power assist functions will
stop, making it difficult to control the vehicle.
Do not put the shift lever in
(N
, as you will lose
engine braking (and acce leration) performance.
During the first 600 mile s (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
14 ACURA TSX 5D-31TL76300.book 201 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

202
uu When Driving u Automatic Transmission


Automatic Transmission
The engine runs at a higher idle speed and creeping increases. Keep the brake pedal
firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unex pectedly increasing vehicle speed. Depress
the accelerator pedal carefully, espe cially on slippery roads and curves.
■Creeping
■Kickdown
14 ACURA TSX 5D-31TL76300.book 202 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

203
uu When Driving u Shifting
Continued

Shifting
Change the shift positi on in accordance with your driving needs.
■Shift lever positions
1Shifting
You cannot turn the ignition switch to LOCK
(0
and
remove the key unless the shift lever is in (P
.
The vehicle may move forward very slightly even in
(N
while the engine is cold.
Depress the brake pedal firmly and, when necessary,
apply the parking brake.Park
Used when parking or starting the
engine
Reverse
Used when reversing
Neutral
Used when idling
Drive
Used:
●For normal driving (gears change
between 1st and 5th automatically)
●When temporarily driving in the
sequential mode
Drive (S)
Used for:
●Automatically changing gears
between 1st and 4th (4th gear is used
only at high speed)
●Driving in the sequential mode
14 ACURA TSX 5D-31TL76300.book 203 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

uu When Driving u Shifting
204


■Shift Lever Operation1Shift Lever Operation
NOTICEWhen you change the shift lever from (D
to (R
and
vice versa, come to a co mplete stop and keep the
brake pedal depressed.
Operating the shift lever before the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position before pulling away.
If the transmission indicator blinks when driving, in
any shift position, there is a problem with the
transmission.
Avoid sudden acceleration an d have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut off if you drive at engine
speeds in or over the tac hometer’s red zone (engine
speed limit). If this happens, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
Tachometer’s red zone
Shift Lever Position Indicator
Depress the brake pedal and press the
shift lever release button to shift.
Shift without pressing the shift lever
release button.
Press the shift lever release button
and shift.
M (Sequential Shift mode) Indicator/
Gear Position Indicator
14 ACURA TSX 5D-31TL76300.book 204 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

205
uu When Driving u Shifting
Continued

Use the paddle shifters to change between 1st and 5th gears without removing
your hands from the steering wheel. The transmission will switch to the
sequential shift mode.
■When the shift lever is in (D
:
The vehicle will go into the sequential shi ft mode momentarily, and the gear position
indicator will come on.
Once you start traveling at a constant speed, the sequential shift mode will
automatically switch off, and the gear position indicator will go off.
Hold the
(+
paddle shifter for two seconds to return to normal drive.
■When the shift lever is in (S
:
The vehicle will go into the se quential shift mode, and the M (sequential shift)
indicator and gear position indicator will come on. At speeds of 6 mph (10 km/h) or
less, the vehicle automatically shifts down into 1st gear. It will not automatically shift
up, even if vehicle speed increases.
You can only pull away in 1st or 2nd gear.
When switching out of the sequential shift mode, move the shift lever from
(S
to
(D . When the sequential shift mode is cancel ed, the sequential shift mode indicator
and shift indicator go off.
■Sequential Shift Mode
14 ACURA TSX 5D-31TL76300.book 205 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

uu When Driving u Shifting
206


■Second gear lock mode
If you pull the
(+
paddle shifter while stopped or driving at 6 mph (10 km/h) or less,
the gear position will be locked in 2nd gear. This makes it easier to pull away on
slippery surfaces such as snow covered roads.
To cancel the 2nd gear lock mode, pull the
(-
paddle shifter, or move the shift lever
from
(S
to (D .
■Sequential Shift Mode Operation1Sequential Shift Mode Operation
Each paddle shift operation makes a single gear
change.
To change gears continuo usly, release the paddle
shifter before pulling it again for the next gear.
Recommended Shift Points
Use this table as a guideline for efficient fuel
economy and effective emission control.
If the gear position indicator blinks when you try to
shift up or down, this means your vehicle speed is not
in its allowable gear shifting range.
Slightly accelerate to shift up and decelerate to shift
down while the indicator is blinking. Shift Up Normal Acceleration
1st to 2nd15 mph (24 km/h)
2nd to 3rd 25 mph (40 km/h)
3rd to 4th40 mph (64 km/h)
4th to 5th 45 mph (72 km/h)
(-
Paddle Shifter
(Shift down) (+
Paddle Shifter
(Shift up)
Downshifting when pulling
the
(-
paddle shifter.
(Changes to a lower gear) Upshifting when pulling
the
(
+
paddle shifter
(Changes to a higher gear)
14 ACURA TSX 5D-31TL76300.book 206 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

207
uu When Driving u Cruise Control
Continued


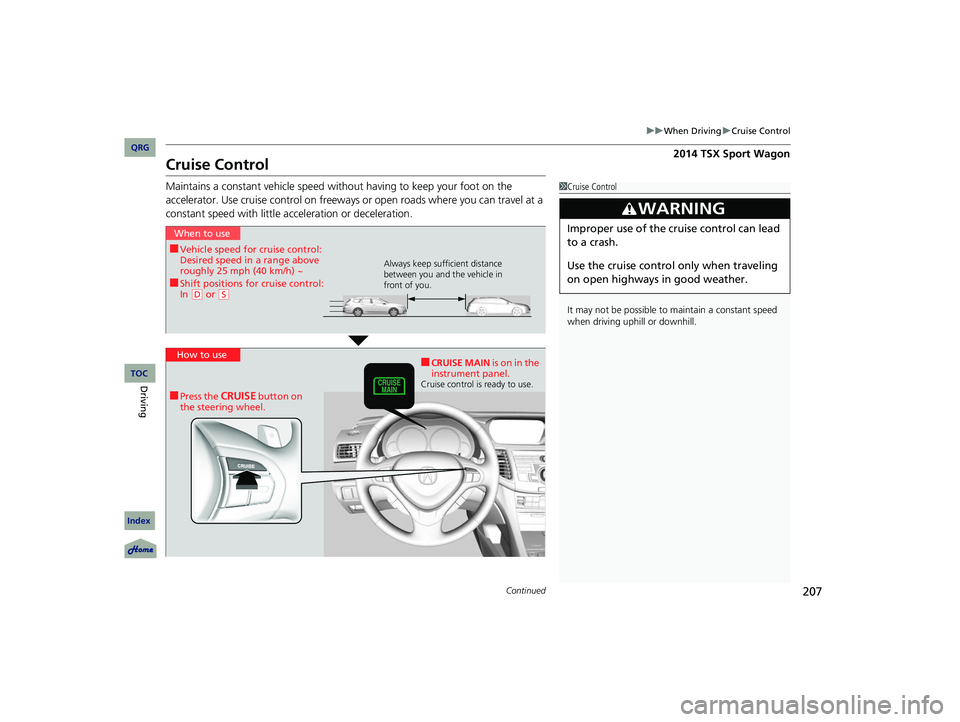

Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little ac celeration or deceleration.1Cruise Control
It may not be possible to maintain a constant speed
when driving uphill or downhill.
3 WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
■Shift positions for cruise control: 
In (D
or (S

When to use
Always keep sufficient distance
between you and the vehicle in
front of you.
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
How to use
■CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.■Press the CRUISE button on
the steering wheel.
