2014 Acura TSX Owner's Manual

uu Fuses u Fuse Locations
304




Located on the lower side panel. Take off the
cover to open.
■Passenger Side Fuse Box1Passenger Side Fuse Box
Fuse locations are shown on the fuse box cover.
Locate the fuse in questi on by the fuse number and
box cover number.
14 ACURA TSX 5D-31TL76300.book 304 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

305
uu Fuses u Circuit Protected and Amps for Each Fuse
Continued



Circuit Protected and Amps for Each Fuse
The current rating in brackets indicate that
you may find a fuse in the location even if
your particular model is not equipped with
the device the fuse is used for.
■Engine Compartment
Circuit ProtectedAmps
1Battery100 A
Passenger’s Side Fuse Box40 A
2
EPS70 A
Passenger’s Side Fuse Box (40 A)
ABS/VSA FSR30 A
Power Tailgate Motor *40 A
ABS/VSA Motor30 A
− −
3
IG50 A
Power Tailgate Motor *(40 A)
Passenger’s Side Light Main30 A
Driver’s Side Fuse Box(60 A)
Driver’s Side Light Main30 A
Main Fan Motor30 A
−−
Wiper Motor30 A
4 Rear Defogger 40 A
5Sub Fan Motor20 A
6 − −
7−−
8Heater Motor 40 A
9Hazard 15 A
10 Horn 10 A
11−−
12 Stop 15 A
13IG Coil15 A
14 FI Sub 15 A
15Backup10 A
16 Interior Lights 7.5 A
17FI Main15 A
18 DBW 15 A
19−−
20 MG Clutch 7.5 A
21Engine Oil Level7.5 A
Circuit ProtectedAmps■Driver Side
Circuit ProtectedAmps
1−−
2Seat Memory(7.5 A)
3Washer15 A
4Wiper10 A
5Meter7.5 A
6ABS/VSA7.5 A
7ACG15 A
8STS(7.5 A)
9Fuel Pump20 A
10VB SOL(10 A)
11SRS10 A
12ODS7.5 A
13IG1(7.5 A)
14−−
15Daytime Running Lights7.5 A
16A/C7.5 A
17Accessory, Key, Lock7.5 A
18Accessory7.5 A
19Driver’s Power Seat Sliding(20 A)
20Moonroof(20 A)
21Driver’s Power Seat
Reclining(20 A)
22Rear Driver’s Side Power
Window20 A
* Not available on all models
14 ACURA TSX 5D-31TL76300.book 305 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

306
uu Fuses u Circuit Protected and Amps for Each Fuse




23Front Accessory Power
Socket20 A
24Driver’s Power Window20 A
25Driver’s Side Door Lock15 A
26Left Front Fog Light(10 A)
27Left Side Small Lights
(Exterior)10 A
28Left Headlight High Beam10 A
29TPMS10 A
30Left Headlight Low Beam15 A
31−−
32 Engine Oil Level *(7.5 A)
Circuit ProtectedAmps■Passenger Side
Circuit ProtectedAmps
1Right Headlight High Beam10 A
2Right Side Small Lights
(Exterior)10 A
3Right Front Fog Light(10 A)
4Right Headlight Low Beam15 A
5−−
6Interior Lights7.5 A
7−−
8Passenger’s Side Power Seat
Reclining20 A
9Passenger’s Side Power Seat Sliding20 A
10Right Side Door Lock10 A
11Rear Passenger’s Side Power Window20 A
12Console Accessory Power
Socket20 A
13Front Passenger’s Power Window20 A
14−−
15Premium AMP(20 A)
16Rear Accessory Power Socket(20 A)
17−−
18−−
19Seat Heater20 A
20−−
21−−
22−−
Circuit ProtectedAmps
* Not available on all models
14 ACURA TSX 5D-31TL76300.book 306 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

307
uu Fuses u Inspecting and Changing Fuses



Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0
. Turn
headlights and all accessories off.
2. Remov
e the fuse box cover.
3. Check the large fuse in the engine
compartment.
u I
f the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If
there is a burned out fuse, remove it
with the fuse puller an d replace it with a
new one.1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system. If you do not have a replacement
fuse with the proper rating for the circuit, install one
with a lower rating.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 305 and P. 306.
There is a fuse puller on the back of the engine
compartment fuse box.
Fuse Blown Fuse
Combined Fuse
Blown Fuse
Fuse Puller
14 ACURA TSX 5D-31TL76300.book 307 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

308




Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoting arms that go under the fr ont tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1Emergency Towing
NOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
14 ACURA TSX 5D-31TL76300.book 308 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

309



When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate and remove the lid.
2 Side Storage Compartment P. 133
2. Remove the cover, turn it by using a flat-tip
screwdriver or coin, then pry it out.
3. Pull the release lever towards you.
u The release lever unlocks the fuel fill door
when it is pulled, and locks when
returned to its original position.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Cover
14 ACURA TSX 5D-31TL76300.book 309 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

310




When You Cannot Open or Close the Tailgate
If you cannot open or close the tailgate or power tailgate, use the
following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
2. To open the tailgate, push the tailgate
while pushing down the lever.
■When You Cannot Open or Close the Tailgate1When You Cannot Open or Close the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space aroun d the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Model with power tailgate
Lever
Model without power tailgate
14 ACURA TSX 5D-31TL76300.book 310 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

311

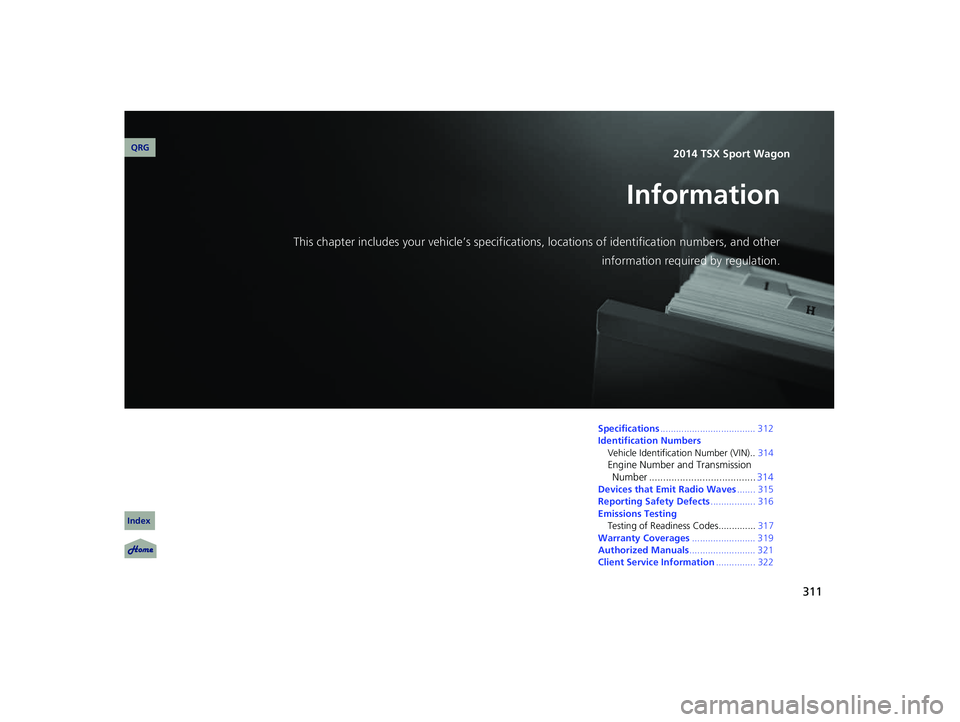

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other information required by regulation.
Specifications.................................... 312
Identification Numbers Vehicle Identification Number (VIN).. 314
Engine Number and Transmission
Number ...................................... 314
Devices that Emit Radio Waves ....... 315
Reporting Safety Defects ................. 316
Emissions Testing
Testing of Readiness Codes..............317
Warranty Coverages ........................ 319
Authorized Manuals ......................... 321
Client Service Information............... 322
