2014 Acura TSX Owner's Manual

152
uu Audio System Basic Operation u Playing the AM/FM Radio

Playing the AM/FM Radio
AM/FM Button
Press to select a band.
SCAN Button
Press to sample each of the strongest
stations on the selected band for 10 seconds.
To turn off scan, press the button again.
Knob
Press to turn th e audio system
on and off.
Turn to adjust the volume.VOL/Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it
until you hear a beep.
To listen to a stored station, select a
band, then press th e preset button.
Selector Knob
Turn to tune the radio frequency.
TITLE Button
Press to switch the RDS name
on and off.
CATEGORY Bar
Press either side to display and
select an RDS category. SKIP Bar
Press and hold to search up and
down the selected band for a
station with a strong signal.
A.SEL (Auto Select) Button
Press to scan both bands and store
the strongest station
in each preset.
To turn off auto select, press the
button again. Th is restores the
presets you or iginally set.
14 ACURA TSX 5D-31TL76300.book 152 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
2014 TSX Sport Wagon

153
uu Audio System Basic Operation u Playing the AM/FM Radio
Provides text data information related to your selected RDS capable FM station.
■RDS INFO ON
Press the TITLE button while listening to an RDS capable station. RDS INFO ON
appears, and the station name is displayed.
■To find an RDS station from your selected program category
1.Press the CATEGORY bar to display and
select an RDS category.
2. Use SKIP or SCAN to select an RDS station.
■Radio Data System (RDS)1Playing the AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the MODE button on the steering wheel.
2 Audio Remote Controls P. 150
You can store 6 AM stations and 12 FM stations into
preset button memory. FM1 and FM2 let you store 6
stations each.
A.SEL function scans and stores up to 6 AM stations
and 12 FM stations with a strong signal into the
preset button memory.
If you do not like the stations auto select has stored,
you can manually store your preferred frequencies.
1Radio Data System (RDS)
The display shows up to 31 ch aracters of text data.
Press and hold the TITLE button to see additional
characters. indicates that the text data continues.
The display goes back to the previous screen if you
press and hold the button again.
RDS Category
14 ACURA TSX 5D-31TL76300.book 153 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
2014 TSX Sport Wagon

154
uu Audio System Basic Operation u Playing the XM ® Radio


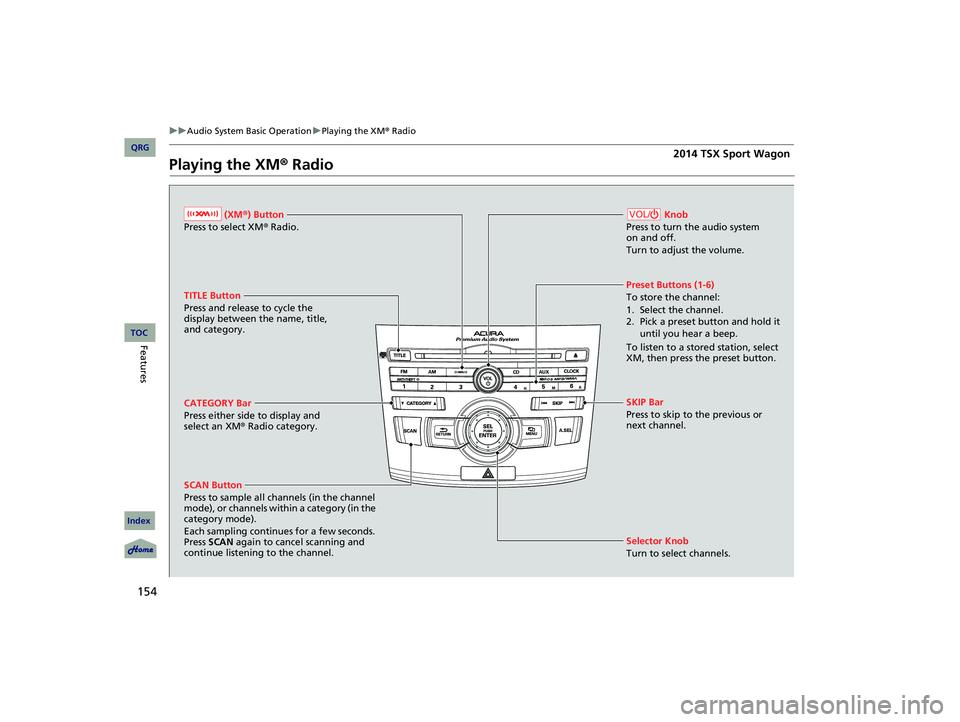

Playing the XM ® Radio
(XM®) Button
Press to select XM® Radio.
TITLE Button
Press and release to cycle the
display between the name, title,
and category.
CATEGORY Bar
Press either side to display and
select an XM® Radio category.
SCAN Button
Press to sample all channels (in the channel
mode), or channels within a category (in the
category mode).
Each sampling continues for a few seconds.
Press SCAN again to cancel scanning and
continue listening to the channel.
Knob
Press to turn th e audio system
on and off.
Turn to adjust the volume.VOL/
Preset Buttons (1-6)
To store th e channel:
1. Select the channel.
2. Pick a preset button and hold it until you hear a beep.
To listen to a stored station, select
XM, then press the preset button.
SKIP Bar
Press to skip to the previous or
next channel.
Selector Knob
Turn to select channels.
14 ACURA TSX 5D-31TL76300.book 154 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
2014 TSX Sport Wagon

155
uu Audio System Basic Operation u Playing the XM ® Radio
1. Press the button to select the XM ® radio band (XM1 or XM2).
2. Press and hold the TITLE button to switch between the channel mode and
category mode.
If you press the MENU button, rotate to select MODE/CATEGORY or MODE
CHANNEL . Each time you press , the mode switches between them.
Press the button to enter the setting.
3. Select a channel using the TUNE ( ), SKIP , CATEGORY , SCAN , or Preset
buttons.
1.Press to display a channel list.
2. Rotate to select a channel, then
■To Play the XM ® Radio
■To Select a Channel from a List
1Playing the XM® Radio
In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Ja zz, Rock, Classical, etc.).
You can store 12 XM ® stations in the preset buttons.
XM1 and XM2 let you store 6 stations each.
There may be instances when XM ® Radio does not
broadcast all the data fields (artist name, title). This
does not indicate a problem with your audio system.
Channel list is shown.
14 ACURA TSX 5D-31TL76300.book 155 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
press .
2014 TSX Sport Wagon

156
uu Audio System Basic Operation u Playing a CD

Playing a CD
Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3 or WMA format. With the CD loaded, press the CD button.
SCAN Button
You will get a 10-second sampling of each song.
●Press to sample all tracks on the CD (all files
in the current folder in MP3 or WMA).
●Press two times to sample the first file in
each of the main fold ers (MP3 or WMA).
●To turn off scan, press and hold the button.
Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.VOL/
CD Slot
Insert a CD about halfway into the
CD slot.
SKIP Bar
Press or to change tracks
(files in MP3 or WMA).
CD Button
Press to play a CD.
(CD Eject) Button
Press to eject a CD.
CATEGORY Bar
Press to skip to the next folder,
and to skip to the beginning of
the previous folder in MP3 or WMA.
TITLE Button
Press to display the text data on a CD
(if it was recorded with text data).
Selector Knob
Turn to change tracks/files. Turn
to select an item, then press
ENTER to set your selection.
14 ACURA TSX 5D-31TL76300.book 156 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
2014 TSX Sport Wagon

Continued157
uu Audio System Basic Operation u Playing a CD
1. Press to switch the display to a folder list.




2. Rotate to select a folder.




3. Press to change the display to a list of
files in that folder.
4. Rotate to select a file, then press .
■How to Select a File from a Folder with the
Selector Knob (MP3/WMA)1Playing a CD
NOTICEDo not use CDs with adhesive labels. The label can
cause the CD to jam in the unit.
WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays UNSUPPORTED, then
skips to the next file.
Text data appears on the display under the following
circumstances:
•When you select a new folder, file, or track.•When you change the audio mode to CD.•When you insert a CD.
The display shows up to 31 ch aracters of text data.
Press and hold the TITLE button to see additional
characters. indicates that the text data continues.
The display goes back to the previous screen if you
press and hold the button again.
If you eject the CD but do not remove it from the slot,
the system reloads the CD automatically after several
seconds.
Folder Selection
Track Selection
14 ACURA TSX 5D-31TL76300.book 157 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
2014 TSX Sport Wagon

uu Audio System Basic Operation u Playing a CD
158

You can select repeat, random, and scan modes when playing a track or files.
1. Press the MENU button.




2. Rotate to select PLAY MODE , then
press .



3. Rotate to select a mode, then press .
■To turn off a play mode
1. Press the MENU button.
2. Rotate to select PLAY MODE , then press .
3. Rotate to select NORMAL PLAY , then press .
■How to Select a Play Mode1How to Select a Play Mode
Press the RETURN button to go back to the previous
display, and press the MENU button to cancel this
setting mode.
Play Mode Menu Items
NORMAL PLAY
REPEAT ONE TRACK: Repeats the current track/
file(s).
REPEAT ONE FLD (MP3/WMA): Repeats all files in
the current folder.
RANDOM IN DISC: Plays all tracks/files in random
order.
RANDOM IN FLD (MP3/WMA): Plays all files in the
current folder in random order.
SCAN TRK: Samples all tracks on the CD.
(MP3/WMA): Samples all files in the current folder.
SCAN FLD (MP3/WMA): Samples the first file in
each folder.
Play Mode
Items
14 ACURA TSX 5D-31TL76300.book 158 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
FeaturesTOC
2014 TSX Sport Wagon

159
uu Audio System Basic Operation u Playing an iPod®
Continued
Playing an iPod ®
Connect the iPod ® using your dock connector to the USB adapter cable, then press
the AUX button.
2USB Adapter Cable P. 147
Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.VOL/
SKIP Bar
Press or to change songs.
Selector Knob
Turn to select a song, file, menu
item, or play mode. Press ENTER
to set your selection. AUX Button
Press to select iPod ® (if connected).
TITLE Button
Press to display the text data.
