uu Replacing Light Bulbs u Fog Light Bulbs
248



3. Remove the coupler.
u It can be removed by pushing the tab.
4. Rotate the old bulb to the left to remove.
5. Insert a new bulb in to the headlight
assembly and turn it to the right.
6. Insert the coupler into the connector of
the bulb.
High voltage can remain in the circuit for a long period of time after the light is
switched off. Do not attemp t to inspect or replace the high voltage discharge type
bulbs yourself. Ask a dealer to inspect and replace low beam headlights.
Fog Light Bulbs
When replacing, use the following bulbs.
1.Remove the clips using a flat-tip
screwdriver, and lower the under cover.
Bulb
Coupler
Tab
Driver and passenger side
■Low Beam Headlights
Fog Light: 55 W
1Fog Light Bulbs
NOTICEHalogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights are halogen bulbs.
When replacing a bulb, handle it by its plastic case,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Clip
Under Cover
14 ACURA TSX 5D-31TL76300.book 248 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

Continued249
uu Replacing Light Bulbs u Front Turn Signal/Parking/Side Marker Light Bulbs


2. Remove the coupler.
u It can be removed by pushing the tab.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the fog light
assembly and turn it to the right.
5. Insert the coupler into the connector of
the bulb.
Front Turn Signal/Parking/Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to
the opposite side from the headlight
being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to
the right.
2. Remove the holding clips and screws, and
pull the inner fender back.
Bulb
Coupler
Tab
Front Turn Signal/Parking/Side Marker: 21/5W
1Front Turn Signal/Parking/Side Marker Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Inner Fender
Screw
Clip
14 ACURA TSX 5D-31TL76300.book 249 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

uu Replacing Light Bulbs u Side Turn Signal/Emergency Indicator Light Bulbs
250



3. Turn the socket to the left and remove it.
4. Push in the old bulb, ro tate to the left until
it unlocks, and remove.
5. Insert a new bulb.
Side Turn Signal/Emergency Indicator Light Bulbs
Door mirrors have the side turn lights. Ha ve an authorized Acura dealer inspect and
replace the light bulbs.
1Front Turn Signal/Parking/Side Marker Light Bulbs
Insert the clip with the center pin raised, and push
until it is flat.
Push until the
pin is flat
Socket
Bulb
14 ACURA TSX 5D-31TL76300.book 250 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

251
uu Replacing Light Bulbs u High-Mount Brake Light Bulbs
Continued


High-Mount Brake Light Bulbs
High-mount brake light bulbs are LED type. Have an authorized Acura dealer inspect
and replace the light bulbs.
Brake Light, Taillight, Rear Side Marker Light and
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
u It can be removed by pulling it backward.
2. Use a Phillip-head screwdriver to remove
the bolts.
3. Slide out the light assembly to the side.
Brake/Taillight/Rear Side Marker Light: 21 W/5W
Rear Turn Signal Light: 21 W
Cover
Bolts
14 ACURA TSX 5D-31TL76300.book 251 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

252
uu Replacing Light Bulbs u Back-Up Light, Taillight Bulbs



4. Turn the socket to the left and remove it.
Remove the old bulb.
5. Insert a new bulb.
Back-Up Light, Taillight Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
Bulb
Socket
Back-Up Light: 21W
Taillight: 5W
Cover
14 ACURA TSX 5D-31TL76300.book 252 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

253
uu Replacing Light Bulbs u Rear License Plate Light Bulbs
Continued


2. Turn the socket to the left and remove it.
Remove the old bulb.
3. Insert a new bulb.
Rear License Plate Light Bulbs
When replacing, use the following bulbs.
1.Push the tab on the left and pull out the
lens and the socket attached to it.
Bulb
Socket
License Plate Light: 5W
TabLens
14 ACURA TSX 5D-31TL76300.book 253 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

254
uu Replacing Light Bulbs u Rear License Plate Light Bulbs



2. Remove the lens.
u It can be removed by pushing the tab.
3. Remove the old bulb.
4. Insert a new bulb.Tab
Lens
Tab
14 ACURA TSX 5D-31TL76300.book 254 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

255Continued



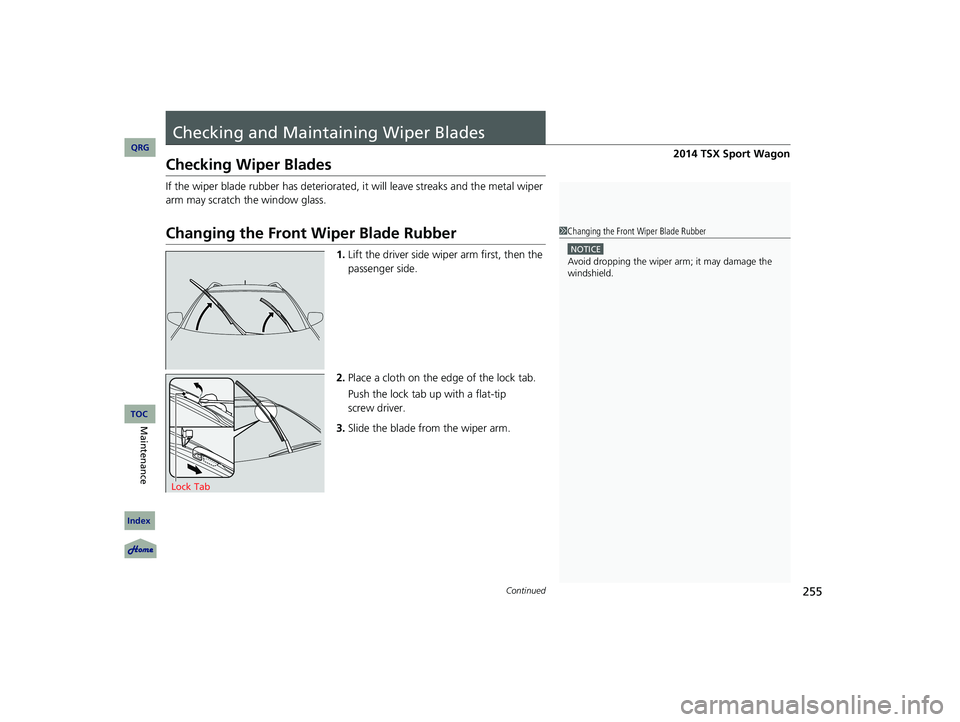

Checking and Maintaining Wiper Blades
