Front passenger side overview

Fig. 9 Overview of the front passenger side.
Key to ⇒ fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the lockable glove compartment
(3) Air vent / – J
Applicable only in Canada
Front passenger side overview

Fig. 10 Overview of the front passenger side.
Key to ⇒ fig. 10:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Inside the glove compartment: SET button for Tire Pressure Monitoring System Ç SET
(3) Opening handle for the lockable glove compartment
(4) Air vent / – J

Applicable only in the United States
Symbols on the roof console

Symbol Meaning
*  / s  Interior and reading lights

Applicable only in Canada
Symbols on the roof console and sun visor

Symbol Meaning
*  / s  Interior and reading lights
1 2 3 HomeLink® Universal Transmitter

Instrument cluster

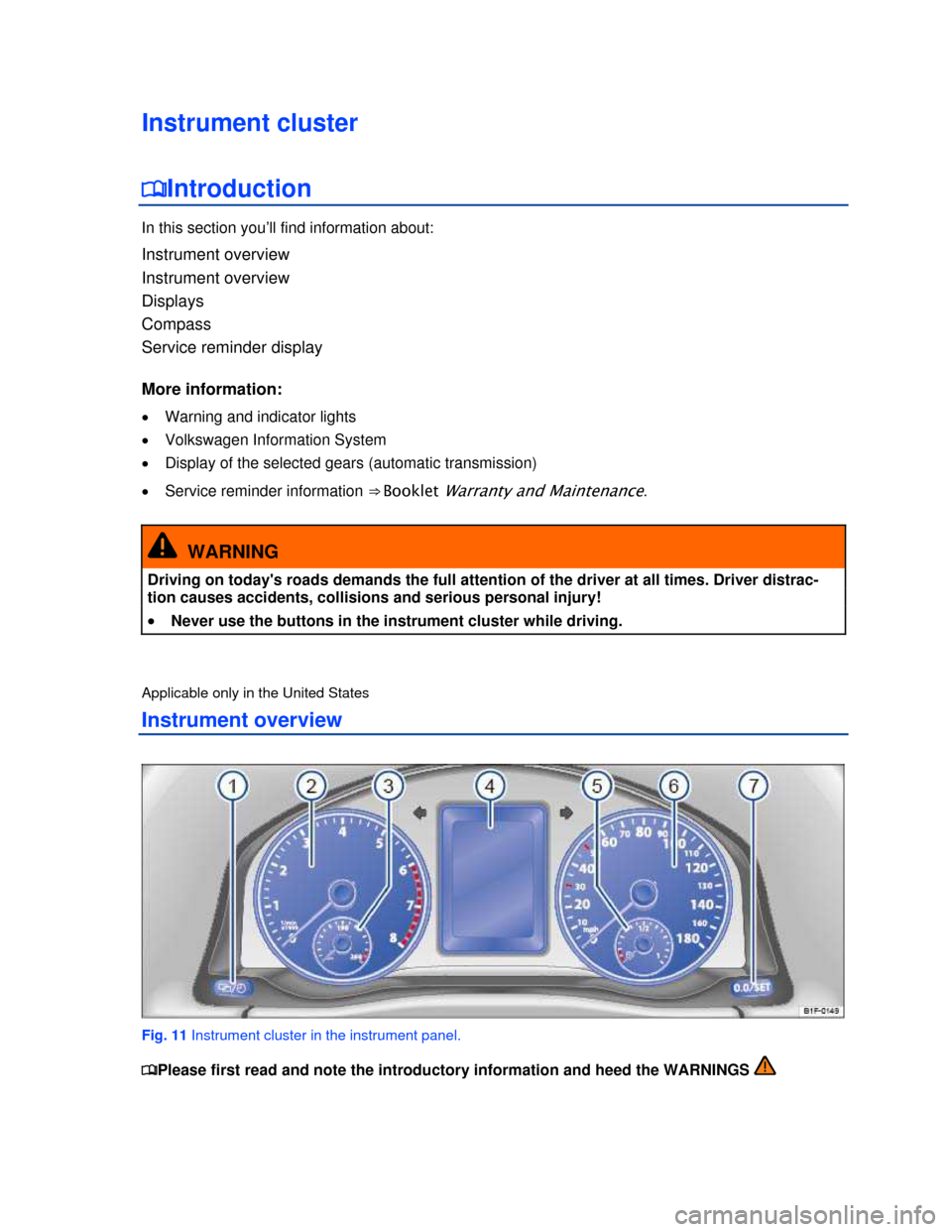

Instrument explanations ⇒ fig. 11:
(1) Button for setting the instrument cluster clock1.
– With the ignition on, push the

Instrument explanations ⇒ fig. 12:
(1) Button for setting the instrument cluster clock2.
– With the ignition on, push the

Depending on the vehicle model, different information may be shown in the instrument cluster display
⇒ fig. 11 (4), ⇒ fig. 12 (4).
x Warning and information texts
x Odometer displays
x Time
x Outside temperature
x Compass display
x Open door, engine hood, or luggage compartment lid ⇒ fig. 13.
x Selector lever position
x Multi-Function Indicator (MFI) and menus for different settings
x Service reminder display
x Alternative speed display (Settings menu)
Compass

Fig. 14 Compass zones.

Adjusting the compass zone
x Switch on the ignition.
x Select the Settings menu followed by the Compass and Zone menu items.
x Select the compass zone according to the current location ⇒ fig. 14.
x Adjust and confirm compass zone (1-15) by using the arrow buttons.
Calibrating the compass
In order to calibrate the compass, you need a valid compass zone for the location and enough room to
drive in a circle.
x Switch on the ignition.
x Select the Settings menu followed by the Compass and Calibration menu items.
x Confirm the A complete circle must be driven for calibration message by press-
ing the /+ button on the multi-function steering wheel, and then drive in a complete circle at about
6 mph (10 km/h).
During calibration, CAL is shown in the instrument cluster display. The calibration is complete when
the compass direction is displayed.
Service reminder display

In the Service submenu, select the Reset menu item.
Confirm request by pressing the /+ button on the multi-function steering
wheel.

Do not reset the service reminder between service intervals; otherwise, incorrect information will
be displayed.
The service reminder disappears after a few seconds when the engine is running or after the /+
button on the multi-function steering wheel has been pushed.
