Side camera (Wide view front & side monitor display)

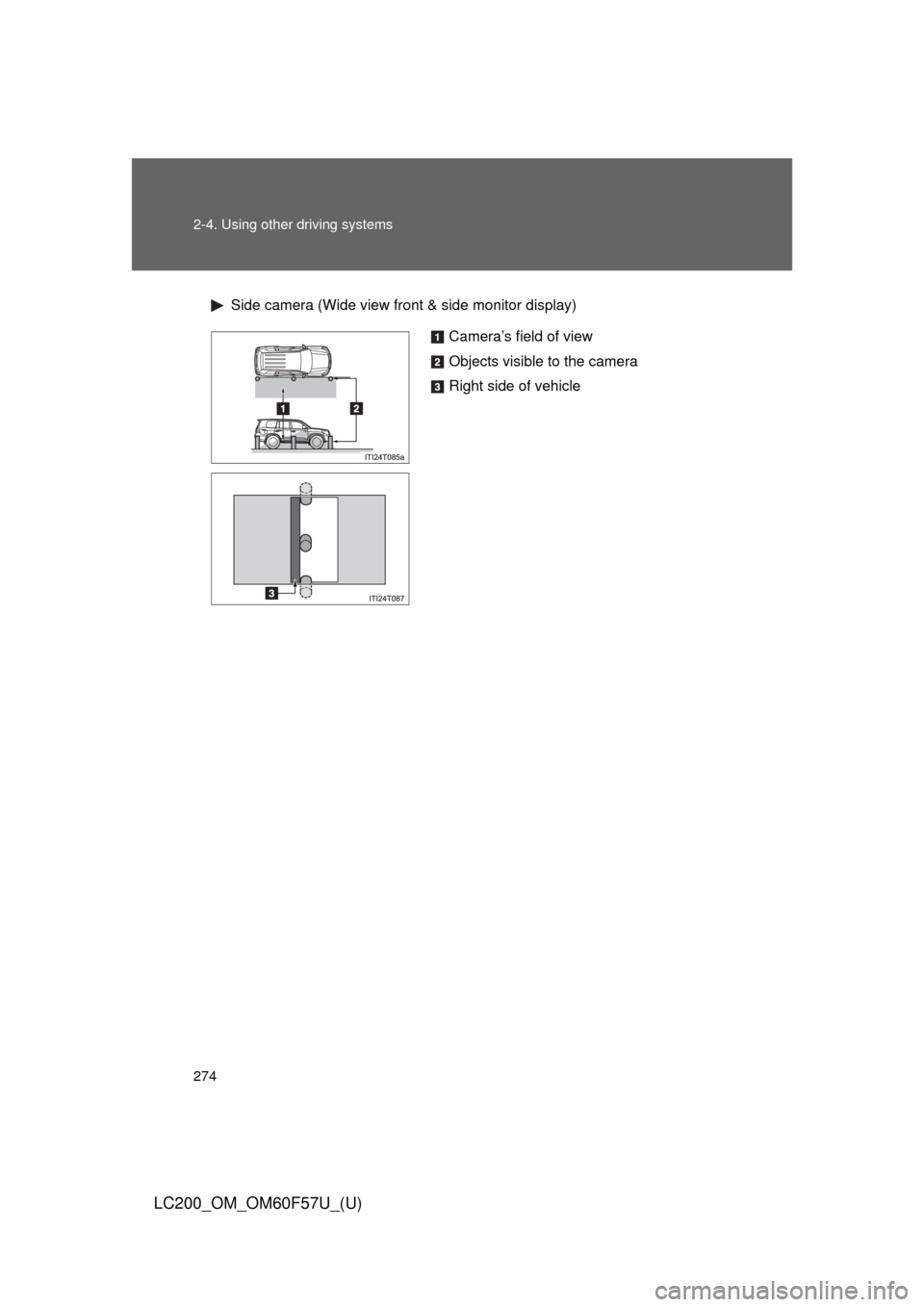

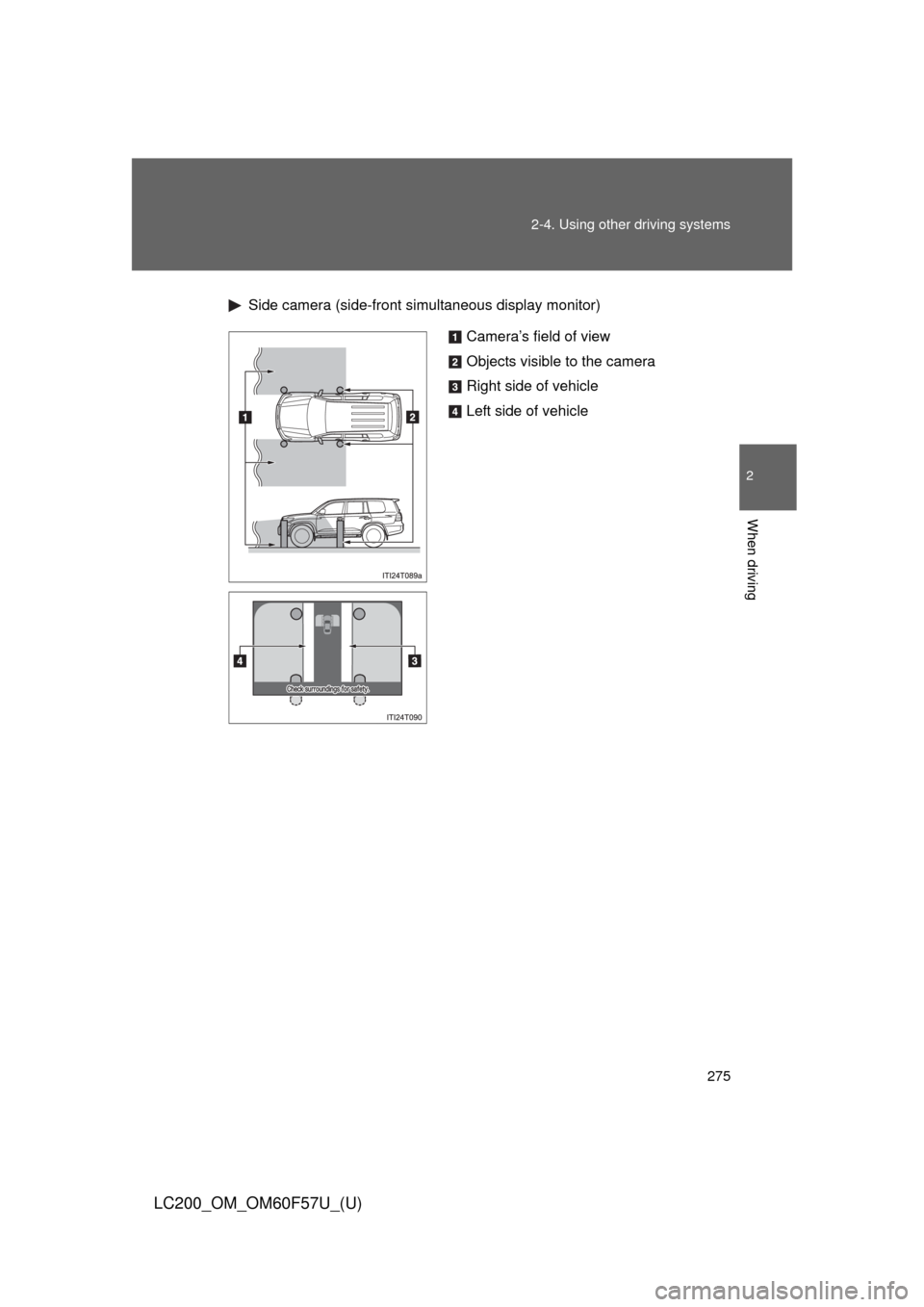

Camera’s field of view
Objects visible to the camera
Right side of vehicle

275 2-4. Using other driving systems
2
When driving
LC200_OM_OM60F57U_(U)
Side camera (side-front simultaneous display monitor)
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle

276 2-4. Using other driving systems
LC200_OM_OM60F57U_(U)
Side camera (side-rear simultaneous display monitor)
Rear camera
Refer to the “Navigation System Owner’s Manual”
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle

278 2-4. Using other driving systems
LC200_OM_OM60F57U_(U)
■Smear effect
■Flicker effect
When the camera is used under fluorescent lights, sodium lights, mercury
lights etc., the lights and the illuminated areas may appear to flicker.
■Display settings
Refer to the “Navigation System Owner’s Manual”
If a bright light, such as sunlight reflected
off the vehicle body, is picked up by the
camera, a smear effect
* characteristic to
the camera may occur.
*: Smear effectA phenomenon that
occurs when a bright light is picked up
by the camera; when transmitted by the
camera, the light source will appear to
have streaks of light emanating from it.
The streaks will also appear when the
light source is in the vehicle icon area.

279 2-4. Using other driving systems
2
When driving
LC200_OM_OM60F57U_(U)
■If the message “System is initializing.” is displayed
“System is initializing.” will be displayed
on the screen under the following condi-
tions:
• The battery has been reinstalled.
• The steering wheel has been moved
while the battery was being rein-
stalled.
• Battery power is low.
• The steering sensor has been rein-
stalled.
• There is a malfunction in the signals
being output by the steering sensor.
Initialize the system by performing either
of the procedures below:
• Drive for a short period of time while
keeping the steering wheel straight.
• Stop the vehicle, and turn the steer-
ing wheel as far as it will go to the
left and right. On the system initial-
ization screen, touch the “?” button
to display the operating procedure.
If this does not resolve the symptom,
have the vehicle inspected by your Toyota
dealer.

280 2-4. Using other driving systems
LC200_OM_OM60F57U_(U)
CAUTION
■When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in
death or serious injuries:
●Never depend solely on the monitor system.
●Always check visually and with the mirrors to confirm your intended path is
clear.
●Depicted distances between objects and flat surfaces differ from actual
distances.
●Do not use the system if the hood or doors are open.
■Conditions which may affect the Multi-terrain Monitor system
●If the front or the rear of the vehicle or the outside rear view mirror has
been hit, the camera’s position and mounting angle may have changed.
Have the vehicle inspected by your Toyota dealer.
●As the camera has a water proof construction, do not detach, disassemble
or modify it. This may cause incorrect operation.
●Rapid temperature changes, such as when hot water is poured on the
vehicle in cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with
water and wipe with a soft cloth. If the camera lens is extremely dirty, wash
with a mild cleanser and rinse.
●Do not strongly rub the camera lens. If the camera lens is scratched, it
cannot transmit a clear image.
●Do not allow organic solvent, car wax, window cleaner or glass coat to
adhere to the camera. If this happens, wipe it off as soon as possible.
●The displayed image may be darker and moving images may be slightly
distorted when the system is cold.
●Situations unsuitable for Multi-terrain Monitor
• On icy or slick road surfaces, or in snow
• When using tire chains

281 2-4. Using other driving systems
2
When driving
LC200_OM_OM60F57U_(U)
CAUTION
■Conditions which may affect the Multi-terrain Monitor system
●If the tires are changed, the position of the guide lines displayed on the
screen may be incorrect. When changing the tires, consult your Toyota
dealer.
●Depending on the circumstances of the vehicle (number of passengers,
amount of luggage, etc.), the position of the guide lines displayed on the
screen may change. Be sure to check visually behind and all around the
vehicle before proceeding.
●Depending on the overall length of the vehicle (if a frontal protection sys-
tem is installed or the bumper has been replaced, etc.), the position of the
distance guidelines displayed on the front monitor may change. Be sure to
check visually behind and all around the vehicle before proceeding.
●When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in the camera malfunction-
ing.
NOTICE
■When using the Multi-terrain Monitor
●Even if an obstacle is no longer visible on the side monitor, do not turn the
steering wheel further in the direction the vehicle is turning until the vehicle
has moved completely past the obstacle. If the steering wheel is turned to
full lock, the vehicle will turn in the smallest possible turning circle, and
may collide with the obstacle.
●It may be difficult to judge distance with the image from the front camera
due to the characteristics of the lens. Drive carefully while checking the
actual distance to the obstacles displayed on the screen. Also, give your
full attention to sudden bumps in the road.

284 2-4. Using other driving systems
LC200_OM_OM60F57U_(U)
To disable Active TRAC and/or VSC and Trailer Sway Control
If the vehicle gets stuck in fresh snow or mud, Active TRAC, VSC and
Trailer Sway Control may reduce power from the engine to the
wheels. You may need to turn the system off to enable you to rock the
vehicle in order to free it.
■Turning off Active TRAC
Quickly push and release the
button to turn off Active TRAC.
The “TRAC OFF” will be shown
on the multi-information display.
This mode can be used when the
transfer mode is H4.
Push the button again to turn the
system back on.
■Turning off Active TRAC, VSC and Trailer Sway Control
Push and hold the button for
more than 3 seconds while the
vehicle is stopped to turn off
Active TRAC, VSC and Trailer
Sway Control.
The VSC OFF indicator light will
come on and the “TRAC OFF” will
be shown on the multi-information
display.
Push the button again to turn the
system back on.
