2013 SSANGYONG NEW ACTYON SPORTS key

06-6
8510-72 Multifunction switch
- Connector pin and layout changed due to heated steering wheel system adopted
- Mounting appearance changed due to changed steering wheel angle sensor
(wiring route changed) and contact coil (fixing key)
Fixing key
Mounting
groove

07-10
3) STICS Control Logic Related to Wiper and Washer
Wiper MIST and Front Washer Coupled Wiper ▶
The wiper relay is turned on 0.3 seconds after turning "ON" the washer switch for 0.1 ~ 0.59
seconds with the ignition key "ON", and it is turned off when the parking terminal is turned off. 1.
The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is turned
on for more than 0.6 seconds with the ignition switch "ON". The wiper relay gets on 3 times
immediately after turning off the washer switch. 2.

08-78610-09
3) Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
<009a008c0095009a0090009b0090009d0090009b00a000470090009a004700900095008a0099008c0088009a008c008b0047004f008c009f00610047009a008c0095009a0090009b0090009d0090009b00a00047005700470d7d0047005800500047009e00
8f00900093008c0047009b008f008c00470090008e00950090>tion switch and the INT switch is
in the "ON" position, and the wiper motor is in "Parked" position). However, the wiper motor can
be operated only when the rain sensor detects the "Rain Detected" signal. 1.
If the volume sensitivity is changed more than 1 stage within 2 seconds, the wiper motor runs only
one cycle.
4) Auto Light Control
Only when the auto light switch is in "AUTO" position, it controls the tail lamp and headlamp by
communicating with the rain sensor (while the ignition key is in "ON" position). 1.

08-8
5) When Wiper Parking Signal is Abnormal
The wiper system continuously outputs the parking signal of current sensitivity when the parking
terminal is grounded (while the ignition key is in "ON" position and the INT switch is in "ON"
position). 1.
When the parking terminal is fixed to IGN, the wiper system outputs the wiper operating signal for
2 seconds, then continuously outputs the wiper parking signal.
※ The wiper motor runs only when the rain sensor requires the wiper operation. 2.

08-98610-09
6) Defective Rain Sensor
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain sensor,
while the ignition key is in "ON" position and the wiper switch is in "ON" position. 2.The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain sensor,
while the ignition key is in "ON" position and the wiper switch is in "ON" position. 1.

08-10
7) Speed Sensitive INT Wiper
Calculates and converts the Intermittent interval automatically by obtaining the INT VOLUME when
the ignition switch and the INT switch is in the "ON" position.
The wipers are operated in vehicle speed sensitive mode as soon as turning the INT auto switch to
the "ON" position with the ignition key ON or turning the ignition key to the "ON" position with the INT
auto switch ON.
This applies to the vehicle without the rain sensor. -
-
※
Controls the wiper intermittent operation by the values from the vehicle speed and the setting value.

09-4
2. CAUTIONS
Note that the display does not show everything in the rear area. Always check nobody, especially
animals and children, is behind the vehicle when parking or reversing.
If you can not properly check the vehicle behind, get out of the vehicle and then visually check it.
The parking aid system is just a supplemental device to help your parking.
Always keep the safety precautions.
Do not press or shock the sensors by hitting or using a high-pressure water gun while washing,
since it may damage the sensors.
If the system is in normal operating condition, a short beep sounds when the shift lever is moved into
"R" position with the ignition key "ON". -
-
-
-
-
-
The parking aid system will not work or improperly work under following cases: ▶
1. Certain obstacles that sensors can not detect
Thin and narrow objects, such as wires, ropes, chains
Cotton, sponge, clothes, snow; that absorb ultrasonic waves
Obstacles lower than the bumper (ex. drain ditch or mud puddle) -
-
-
2. Not defective but improperly working
When the sensing portion is frozen (operates normally after thawed)
When the sensing portion is covered by rain, water drops, snow or mud (operates normally after
cleaned)
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on -
-
-
-
3. Narrowed sensing area
When the sensing portion is partially covered by snow or mud (operates normally after cleaned)
<007a009c009900990096009c0095008b00900095008e0047009b008c00940097008c00990088009b009c0099008c00470096008d0047009a008c0095009a0096009900470090009a0047009b009600960047008f0090008e008f0047004f00880097009700
990096009f005500470096009d008c00990047005f005700b6>C) or too low (approx.
below -30°C) -
-
When driving on the rough roads, gravel road, hill and grass
When the bumper height is changed due to heavy load
When the sensing portion is frozen
When the sensing portion is covered by rain, water drops, snow or mud
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on
When some accessories are attached in detecting ranges -
-
-
-
-
-
- 4. Not defective but may cause malfunction

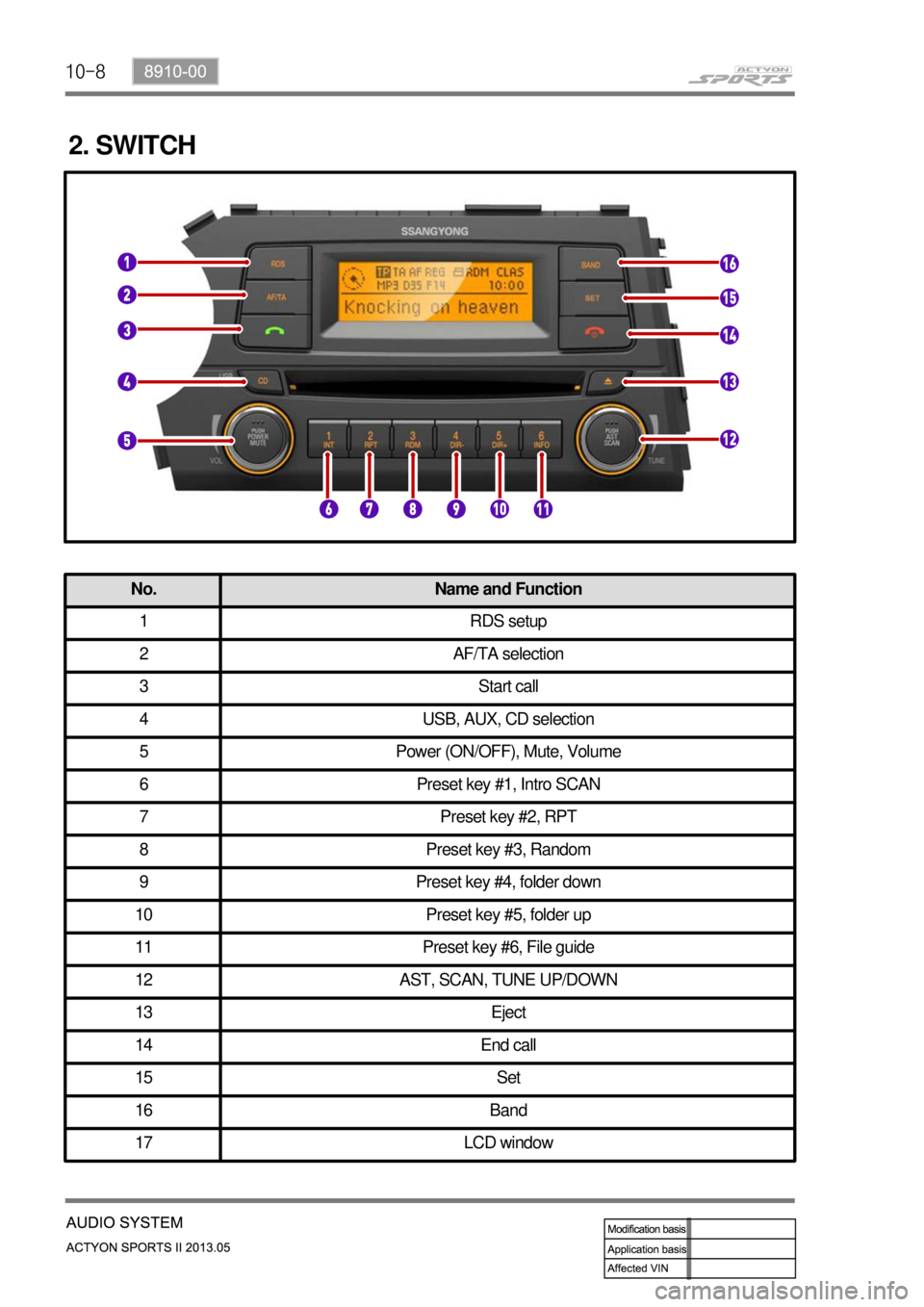

10-8
2. SWITCH
No. Name and Function
1 RDS setup
2 AF/TA selection
3 Start call
4 USB, AUX, CD selection
5 Power (ON/OFF), Mute, Volume
6 Preset key #1, Intro SCAN
7 Preset key #2, RPT
8 Preset key #3, Random
9 Preset key #4, folder down
10 Preset key #5, folder up
11 Preset key #6, File guide
12 AST, SCAN, TUNE UP/DOWN
13 Eject
14 End call
15 Set
16 Band
17 LCD window
