2013 Peugeot 308 SW BL Owner's Manual

11
215
PRACTICAL INFORMATION
VERY COLD CLIMATE SCREEN *

Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.

Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,

-
at speeds above 75 mph (120 km/h).



Removal



)
Use a screwdriver as a lever to re-
lease each fi xing clip in turn. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.

Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.



)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.


*
According to country.

11
216
PRACTICAL INFORMATION

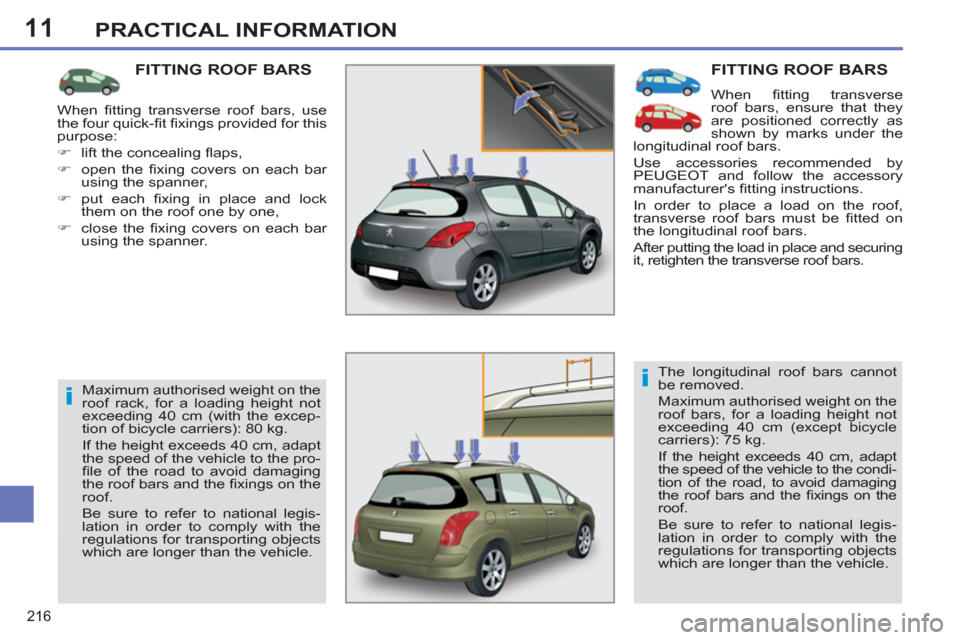

FITTING ROOF BARS

When fi tting transverse
roof bars, ensure that they
are positioned correctly as
shown by marks under the
longitudinal roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fi tting instructions.
In order to place a load on the roof,
transverse roof bars must be fi tted on
the longitudinal roof bars.
After putting the load in place and securing
it, retighten the transverse roof bars.
The longitudinal roof bars cannot
be removed.
Maximum authorised weight on the
roof bars, for a loading height not
exceeding 40 cm (except bicycle
carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the condi-
tion of the road, to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS
Maximum authorised weight on the
roof rack, for a loading height not
exceeding 40 cm (with the excep-
tion of bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle. When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:


)
lift the concealing fl aps,

)
open the fi xing covers on each bar
using the spanner,

)
put each fi xing in place and lock
them on the roof one by one,

)
close the fi xing covers on each bar
using the spanner.

11
217
PRACTICAL INFORMATION

"Protection":
mats * , mud fl aps, seat covers compat-
ible with lateral airbags, vehicle covers,
door sill protectors, translucent bumper
protectors.

*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of
another.

ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Comfort":
parking sensors, side and rear blinds,
door defl ectors, isotherm module, head
restraint-mounted coat hanger, front
centre armrest, reading lamp, scented
air freshener...

Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.

"Transport solutions":
boot liner, boot mat, boot spacers, stor-
age under parcel shelf, transverse roof
bars, bicycle carrier, ski carrier, roof
box, towbars, wiring harnesses...

"Style":
leather steering wheel, aluminium gear
lever knob, alloy wheels, wheel trims,
body styling kit...
"Security and safety":
anti-theft alarm, wheel security locks,
vehicle tracking system, child seats and
booster cushions, breathalyser, fi rst aid
kit, warning triangle, high visibility vest,
dog guard, front foglamp kit, temporary
puncture repair kit, snow chains, anti-
skid covers.
Where the towbar and its wiring har-
ness are not fi tted by a PEUGEOT
dealer, they must be fi tted in line
with the vehicle manufacturer's rec-
ommendations.

11
218
PRACTICAL INFORMATION
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and
accessories.

Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle.
"Mulitmedia":
audio systems, satellite navigation sys-
tems, Bluetooth system, speakers, DVD
player, USB Box, Wi-Fi on board...

Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter,
you can contact a PEUGEOT deal-
er for the specifi cation of transmit-
ters which can be fi tted (frequency,
maximum power, aerial position,
specifi c installation requirements),
in line with the Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).


By visting a PEUGEOT dealer, you can
also obtain products for cleaning and main-
tenance (exterior and interior) - including
products from the "TECHNATURE" range,
products for topping up (screenwash...),
paint touch-up pens and aerosols for the
exact colour of your vehicle, refi lls (sealant
cartridge for the temporary puncture repair
kit...)...

12
219

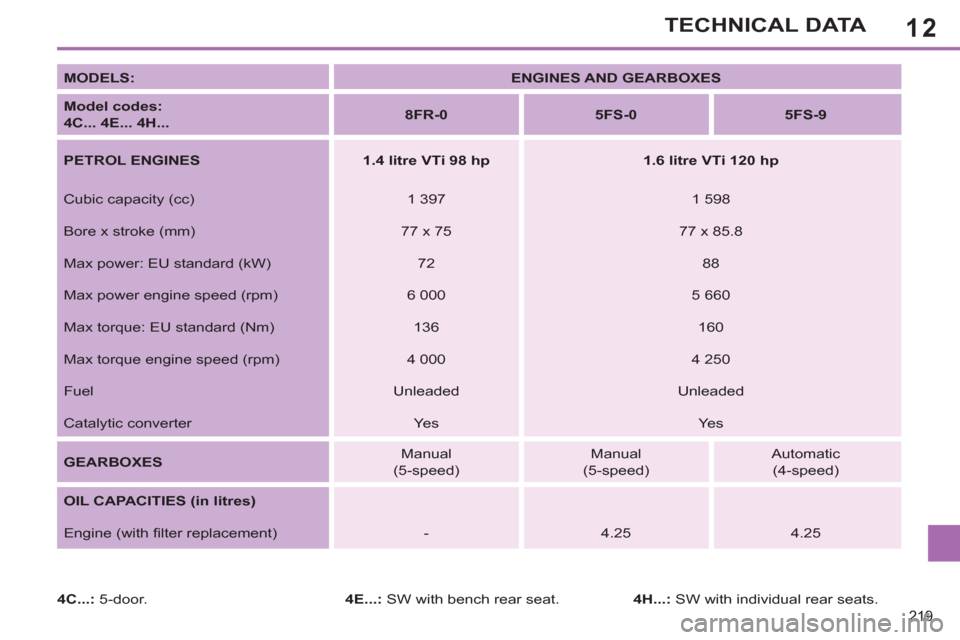

TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:


4C... 4E... 4H...


8FR-0



5FS-0



5FS-9



PETROL ENGINES


1.4 litre VTi 98 hp



1.6 litre VTi 120 hp


Cubic capacity (cc)
1 397
1 598
Bore x stroke (mm)
77 x 75
77 x 85.8
Max power: EU standard (kW)
72
88
Max power engine speed (rpm)
6 000
5 660
Max torque: EU standard (Nm)
136
160
Max torque engine speed (rpm)
4 000
4 250
Fuel
Unleaded
Unleaded
Catalytic converter
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)

-
4.25
4.25

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
220
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


N6A-C
N6A-5



5FE-J



5FV-8



5FV-A



5FM-J



PETROL ENGINES


1.6 litre 16V
110 hp



1.6 litre THP
150 hp



1.6 litre THP 156 hp



1.6 litre THP
163 hp


Cubic capacity (cc)
1 587
1 598
1 598
1 598
Bore x stroke (mm)
82 x 107
77 x 85.8
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
78
11 0
115
120
Max power engine speed (rpm)
5 600
6 000
6 000
6 000
Max torque: EU standard (Nm)
142
240
240
240
Max torque engine speed (rpm)
4 000
1 400
1 400
1 400
Fuel
Unleaded
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes
Yes
Yes
Yes

GEARBOXES

Manual
(5-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
3.25
-
-
-
-

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
221

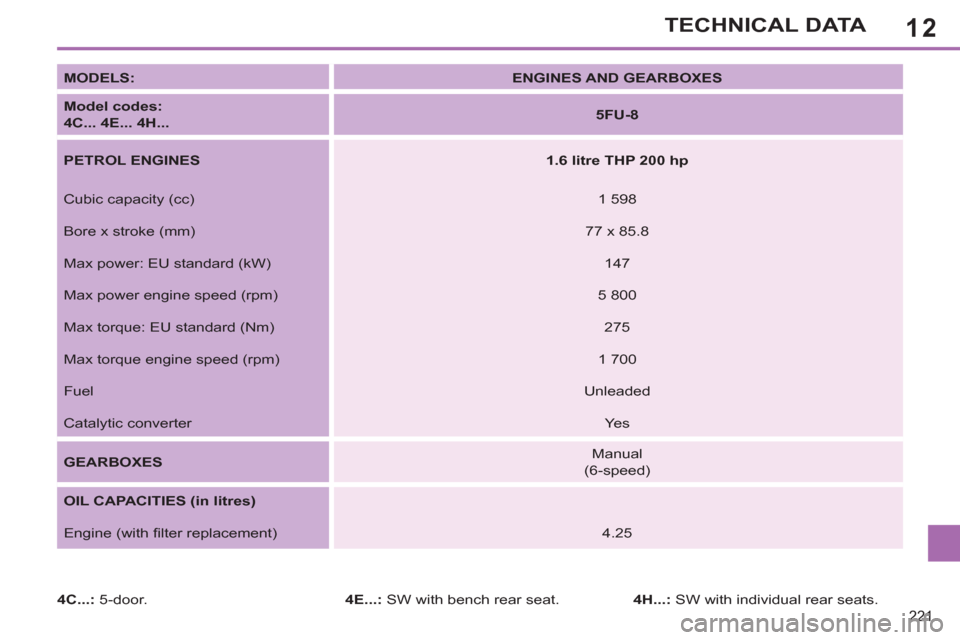

TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


5FU-8



PETROL ENGINES


1.6 litre THP 200 hp


Cubic capacity (cc)
1 598
Bore x stroke (mm)
77 x 85.8
Max power: EU standard (kW)
147
Max power engine speed (rpm)
5 800
Max torque: EU standard (Nm)
275
Max torque engine speed (rpm)
1 700
Fuel
Unleaded
Catalytic converter
Yes

GEARBOXES

Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
4.25

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
222
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi 98 hp




1.6 litre 16V 110 hp




1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Manual



Automatic



Model codes:


4C...


8FR-0



N6A-C
N6A-5



5FS-0



5FS-9




- Unladen weight
1 271
1 302
1 287
1 312


- Kerb weight
1 346
1 377
1 362
1 387


- Payload
509
518
528
523


- Gross vehicle weight (GVW)
1 780
1 820
1 815
1 835


- Gross train weight (GTW)
on a 12% gradient
2 980
3 020
3 315
3 085


- Braked trailer (within GTW limit)

on a 10% or 12% gradient
1 200
1 200
1 500
1 250


- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 450
1 500
1 500


- Unbraked trailer
670
685
680
690


- Recommended nose weight
60
60
76
60
